Two modular storage systems combined!

GEN2 Modular Storage System is a modular rail system for mounting storage units under Lack enclosures and tables.

Gridfinity by Zack Freedman is an incredibly customizable storage solution that uses a grid like pattern for positioning customizable storage bins. Official Video

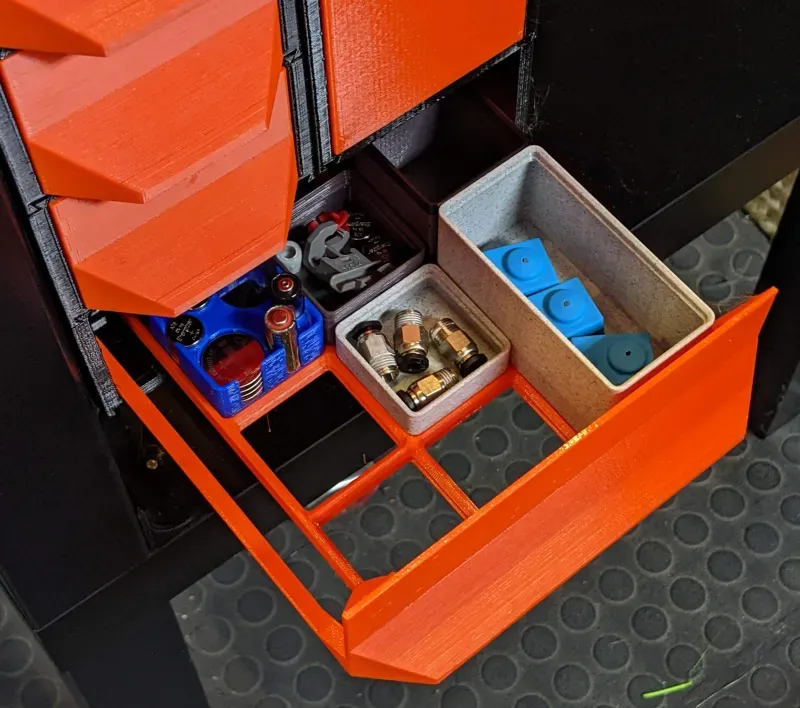

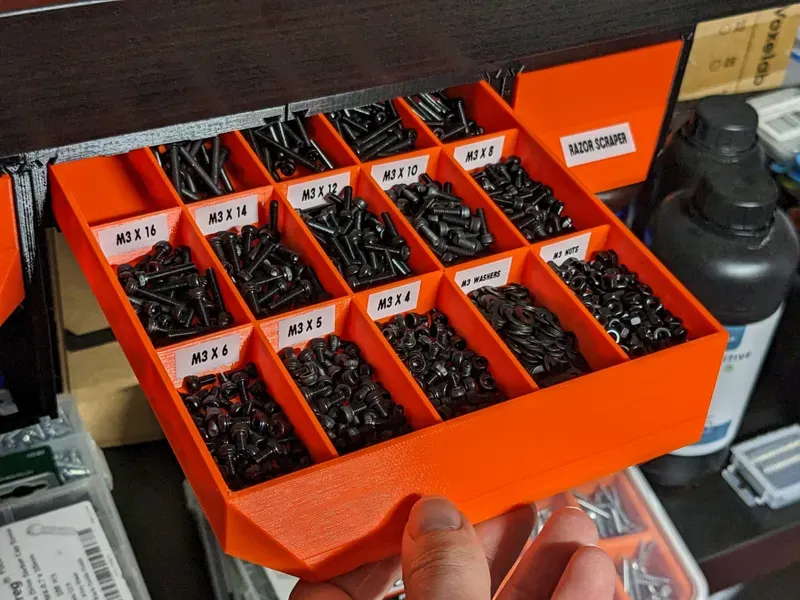

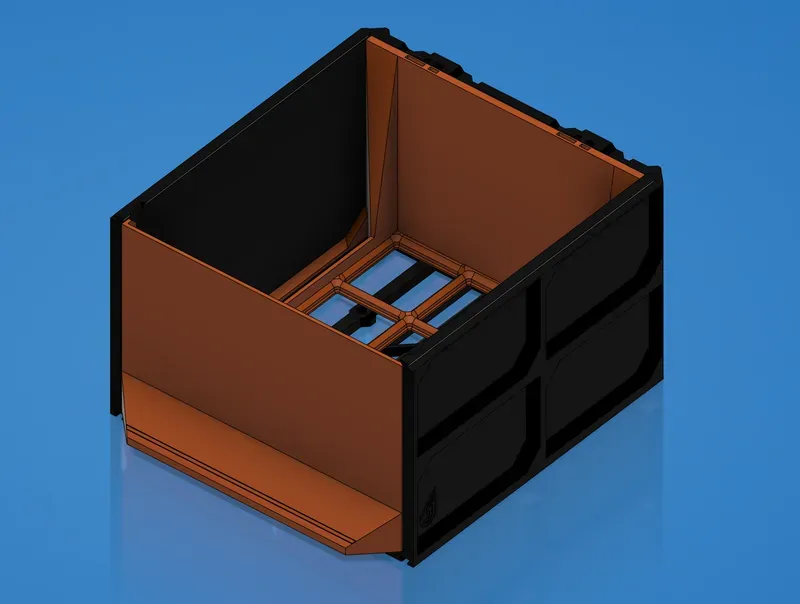

The GEN2 Gridfinity Drawers combine both these modular designs into one, allowing you to easily store your Gridfinity bins directly under your printer or workbench.

Originally designed for the “Original Prusa i3 MK3 ENCLOSURE…", The Lack drawers have found their way on to many desks, workbenches, and other tables as well. Now with the Gen2's rail design you can quickly swap the storage units between work areas

Download the GEN2 Interactive Catalog PDF

Features:
• Gen2 rails allowing quick and easier swap-ability and combinations of many Gen2 Storage System designs.
• Gridfinity Drawers also includes optional slots for magnets allowing them to snap into place with a nice "Click".
• Drawer stoppers keep your drawers from attacking your feet.
• Designed for larger and easier to install wood screws over the original lack enclosure drawer design.

HARDWARE
• Screwdriver
• Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #16 or #18 up to 1" long)
• Drill bit that is smaller diameter than the wood screws
• Pen, Marker, or Scratch Awl
• Magnets (Optional): 10x5x2mm or 10x2mm
• M3 nuts
• M3 Screws M3x6 - M3x10

UPDATES
	NEW - Tall Double Gridfinity Drawer This drawer allows for up to 90mm of stacked Gridfinity units. Reinforced structural support to handle more weight.

INSTRUCTIONS

• Lets install the case for the drawers, use the template to mark the hole locations on the surface you are mounting the desired sized rail to.

• Drill out marked locations using a drill bit smaller than the diameter of the wood screw you will be using.

• Prep the rail for installation by installing M3 nuts into the hexagonal holes. You can use a M3 screw to position and tighten the nut in place.

• Install the rail using wood screws, use at least 4 screws on the outer corners to mount the single rail and and 6 to mount the double rail. (extra screw holes are available if you plan to stack more than 2 rows of drawers or contents of heavier than normal weight.)

• Prep the drawer case for installation:

- Install optional magnets if desired
NOTE: you only need to install at least one magnet, you can choose to install 2 stacked if you want more magnetism between the case and the drawer. Pay attention to polarity, they can be corrected later if needed.

- Install optional nuts in drawer case (these are only used if you are installing a shorter drawer beneath this drawer case.

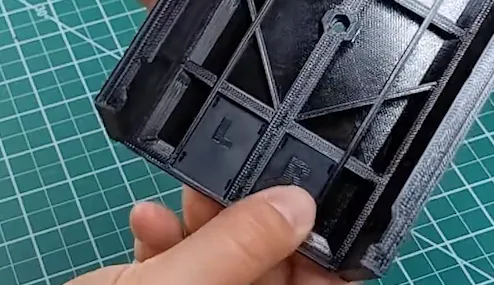

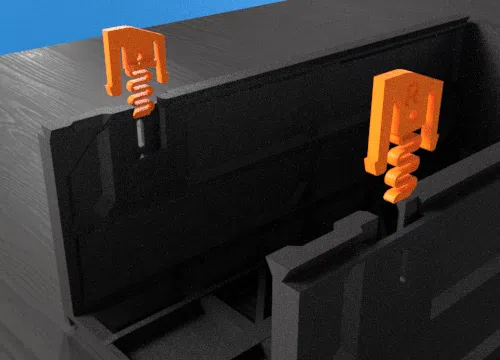

- Install optional drawer stops by pressing them into place as they are friction fit. Pay attention to the orientation, notch facing down and towards the front to pass through the slot. The one labeled “L” goes on the left side of the case and “R” on the right side. (While facing the front of the case)

• Slide the case into position until it either stops or lines up with the front of the rail. (If you feel any resistance you might need to clean up and plastic imperfections around the male or female rails.

• Slide a rail lock into the rail found on the backside of the drawer case, slide all the way to the top until it buts up against the hole in the rail that contains the nut. Screw in place using a M3x8 or M3x10.

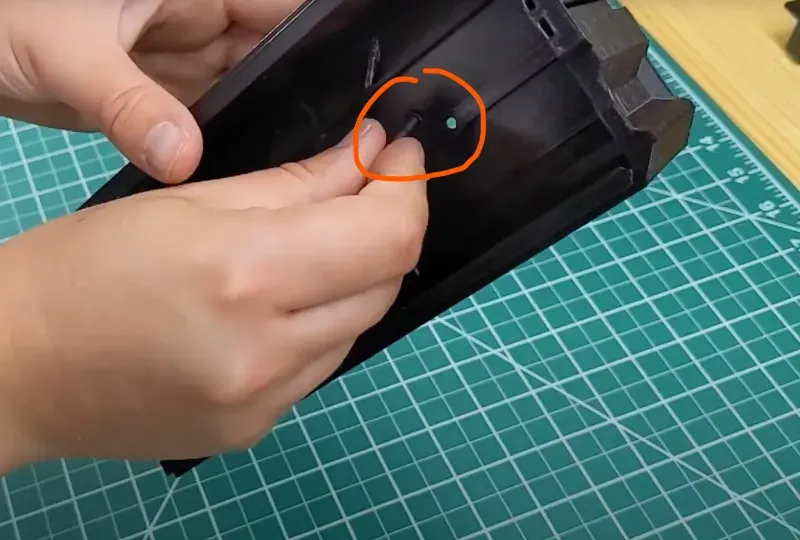

• Prep the tray, install the optional magnet, pay attention to the polarity. (If you need to remove the magnet you can use another magnet to pull it out of place or use a small Allen wrench or paper clip inserted into the hole below it.)

• Insert the tray by tilting in back when installing in order to pass by the drawer stopper notches. The tray should now slide into place.

Installing Drawers/Trays under each other

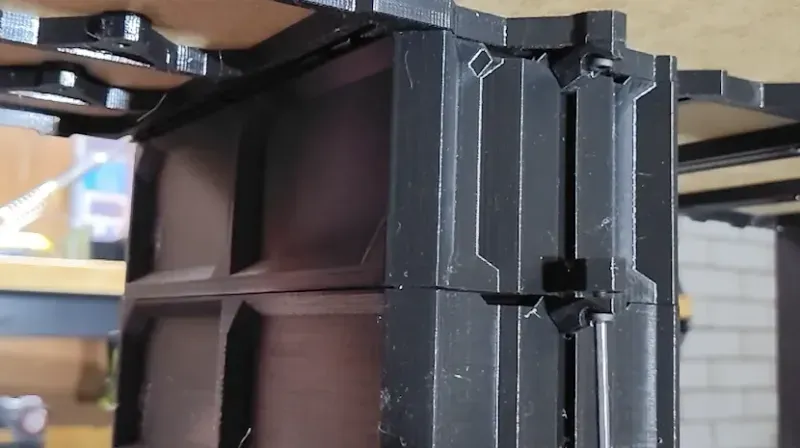

• This is the same process as above but instead of mounting the "Rail Lock" into the nut on the rail you will need to slide a “Rail Lock Upper” into place on the back of the case above or if installing a shorter drawer line up with the hole in the case above it.
NOTE: You can only install the same length or smaller drawer case under each drawer case.

A great how to video by Howard

RECOMMENDED PRINT SETTINGS

Filament: PLA (PETG or ABS for heavier duty storage)
Nozzle Size: 0.4mm
Print Height: 0.2-0.35mm
Infill: 10-20%

Gridfinity Bins created using Gridfinity Template (Fusion 360)

GEN2 COMPATIBLE PRINTS
Gen2 Modular Lack Enclosure Drawers Download HERE
Gen2 Parts Drawers Download HERE
GEN2 Steel Sheet Holder V2 for Lack Enclosures Download HERE
Gen2 Open Bin Lack Drawers Download HERE
Gen2 Slim Lack Enclosure Drawers Download HERE
GEN2 Filament Color Sample Tray Download HERE
Gen2 Modular Tilt Drawers Download HERE
Gen2 Large Modular Tilt Drawers Download HERE
Gen2 Large Enclosure Bins Download HERE
