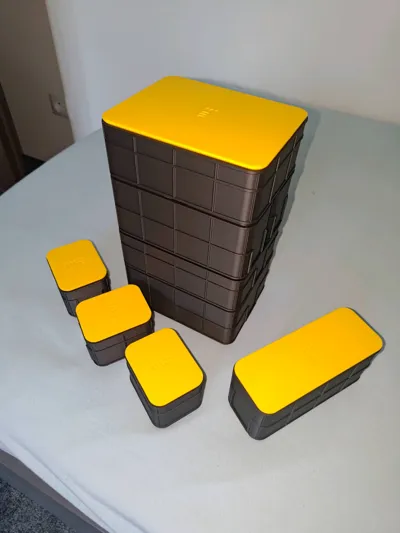

Functional Stackable Boxes with Battery Inserts

Introducing a versatile collection of crates in various sizes, designed for universal use. These crates are stackable and feature slots for easily adding signage to indicate their contents. You have the option to utilize pre-designed sign templates included in the package or create your own with specific dimensions: 29mm width and 28mm length, using the Arial Rounded MT Bold font with a height of 6mm to maintain consistency with the design.

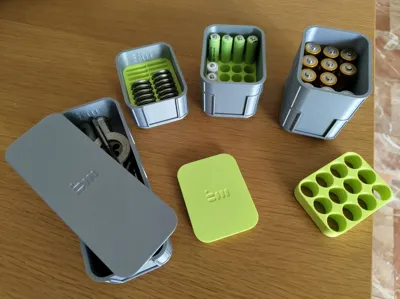

Additionally, covers are provided for all crate sizes to ensure the contents remain protected. The package also includes inlays and signs for organizing items such as batteries (AAAA, AAA, AA, 9V, CR2032, CR2, CR123A, 18650), CFexpress memory cards (type A and B), SD and microSD (TF) memory cards, USB and USB-C flash drives. A template file is included to assist in creating custom inlays.

The crates come in various dimensions:

• Heights: 1H=38mm, 1.5H=43mm, 2H=48mm, 2.5H=53mm, 3H=58mm
• Widths: 1W=56mm, 2W=112.5mm
• Lengths: 1L=72mm, 2L=144.5mm

Print settings:

• Printer: Prusa i3 MK4
• Rafts and supports: Optional
• Resolution: 0.2mm
• Infill: 15%
• Filament: Any brand, color, and material

Note: Supports are recommended for wider and longer crates. For inlays without closed bottoms, use a brim for better adhesion to the print bed.
