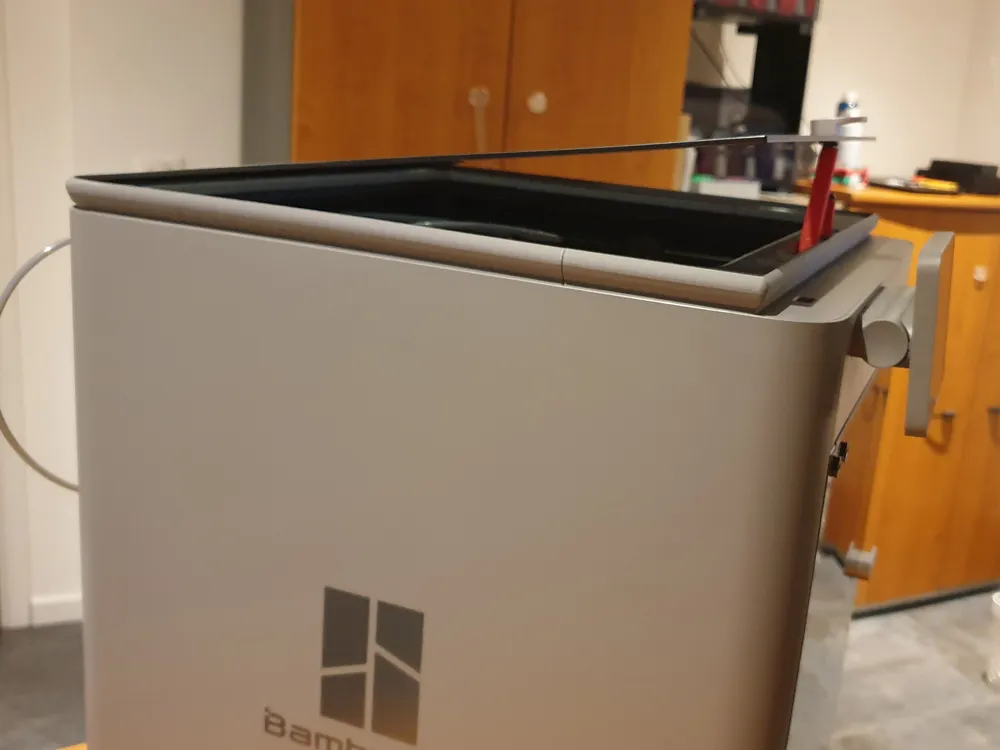

Bambu Lab X2D/P2S LED Light Frame & Glass Riser

You can find the version for the X1C and P1S here: https://makerworld.com/en/models/954573

Key features:

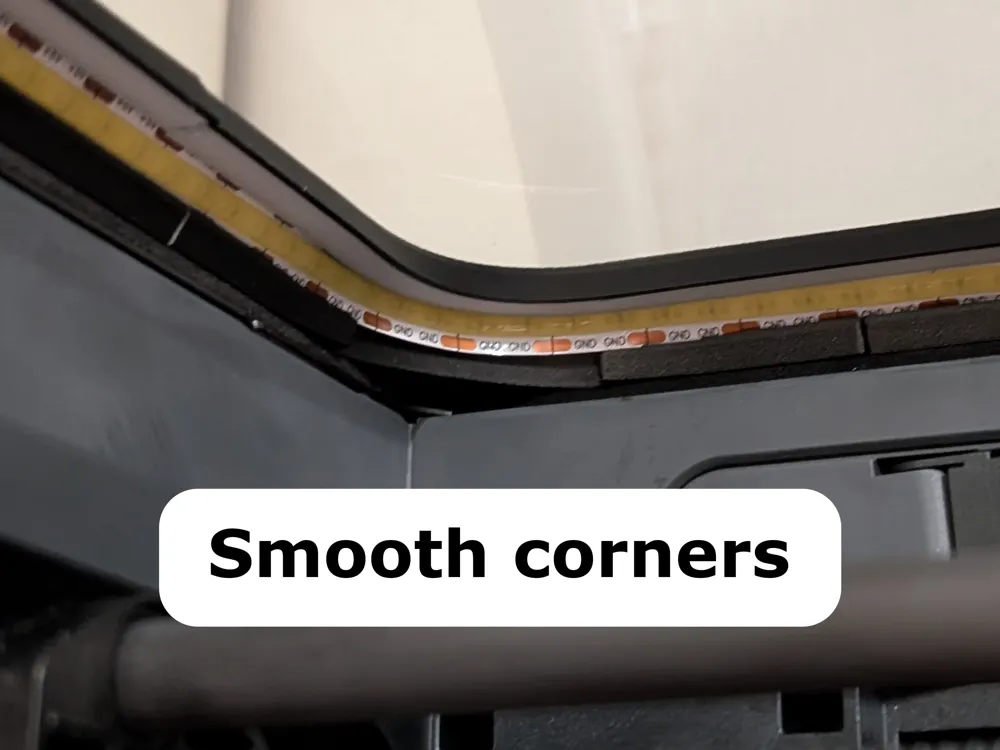

• Smooth corners: No need to cut or solder the strip light.

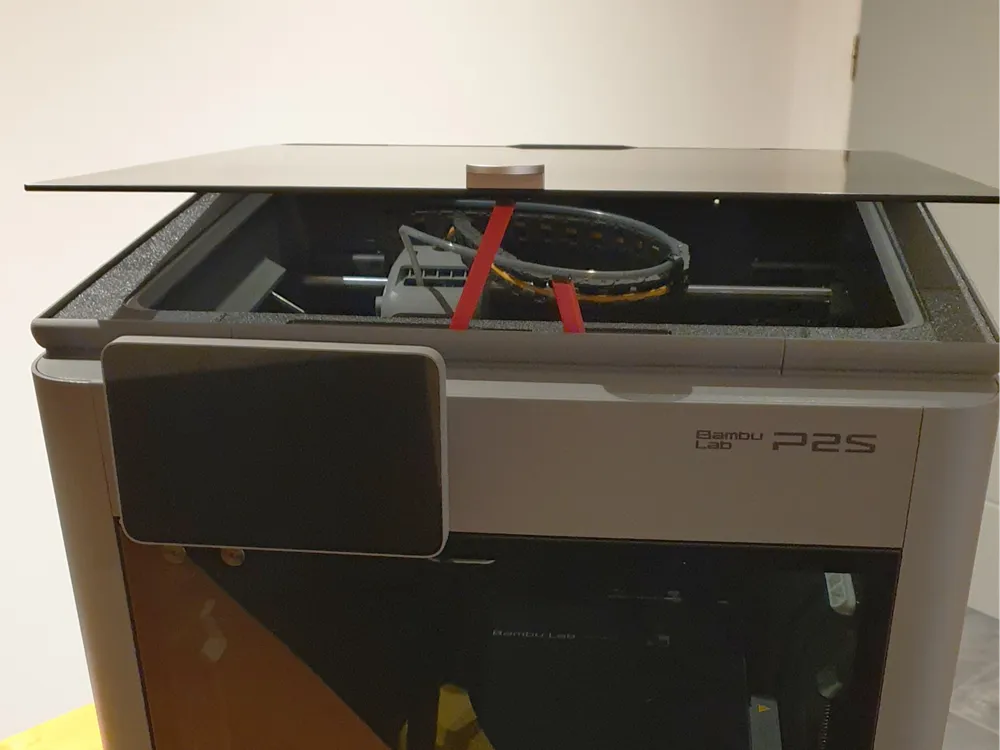

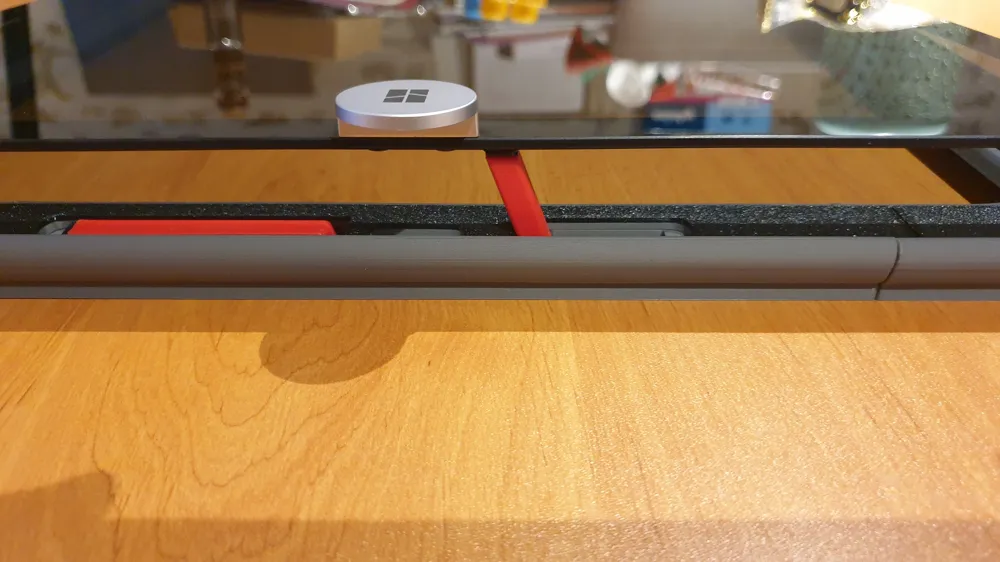

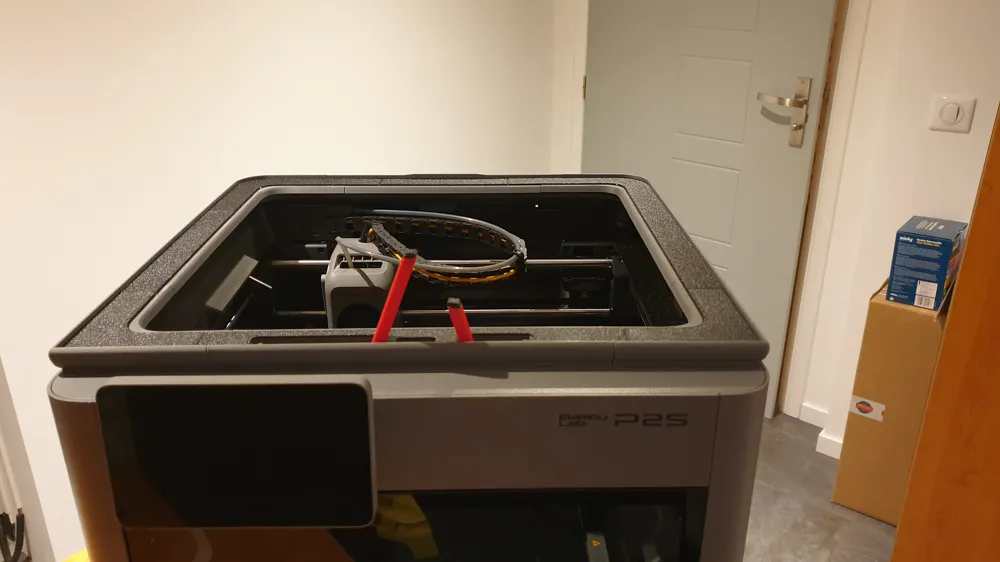

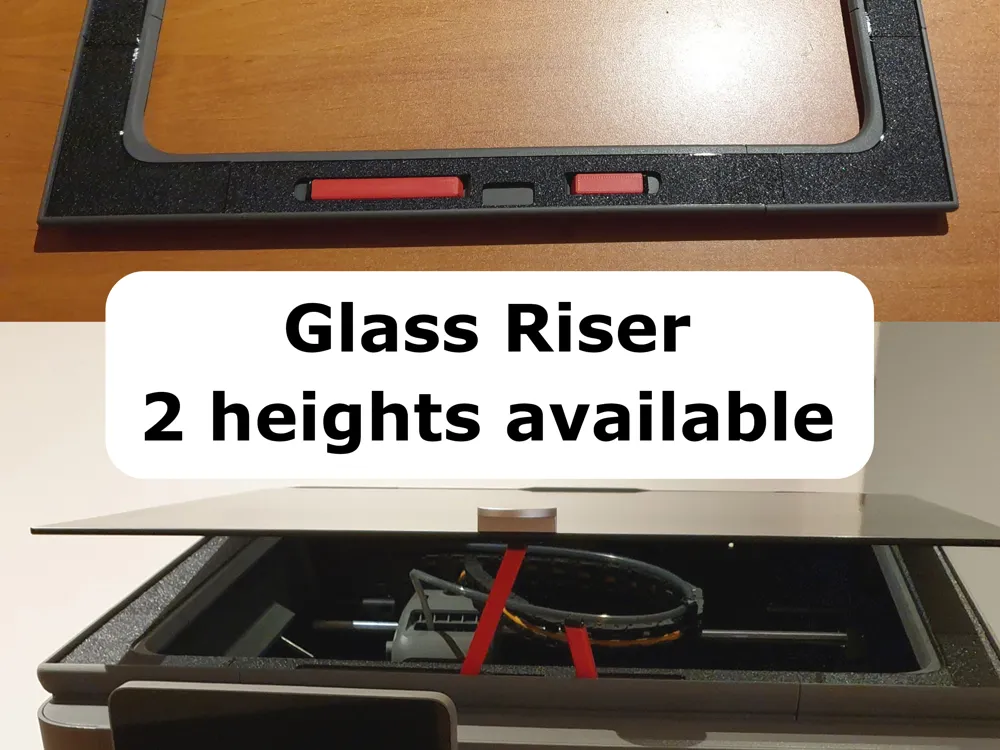

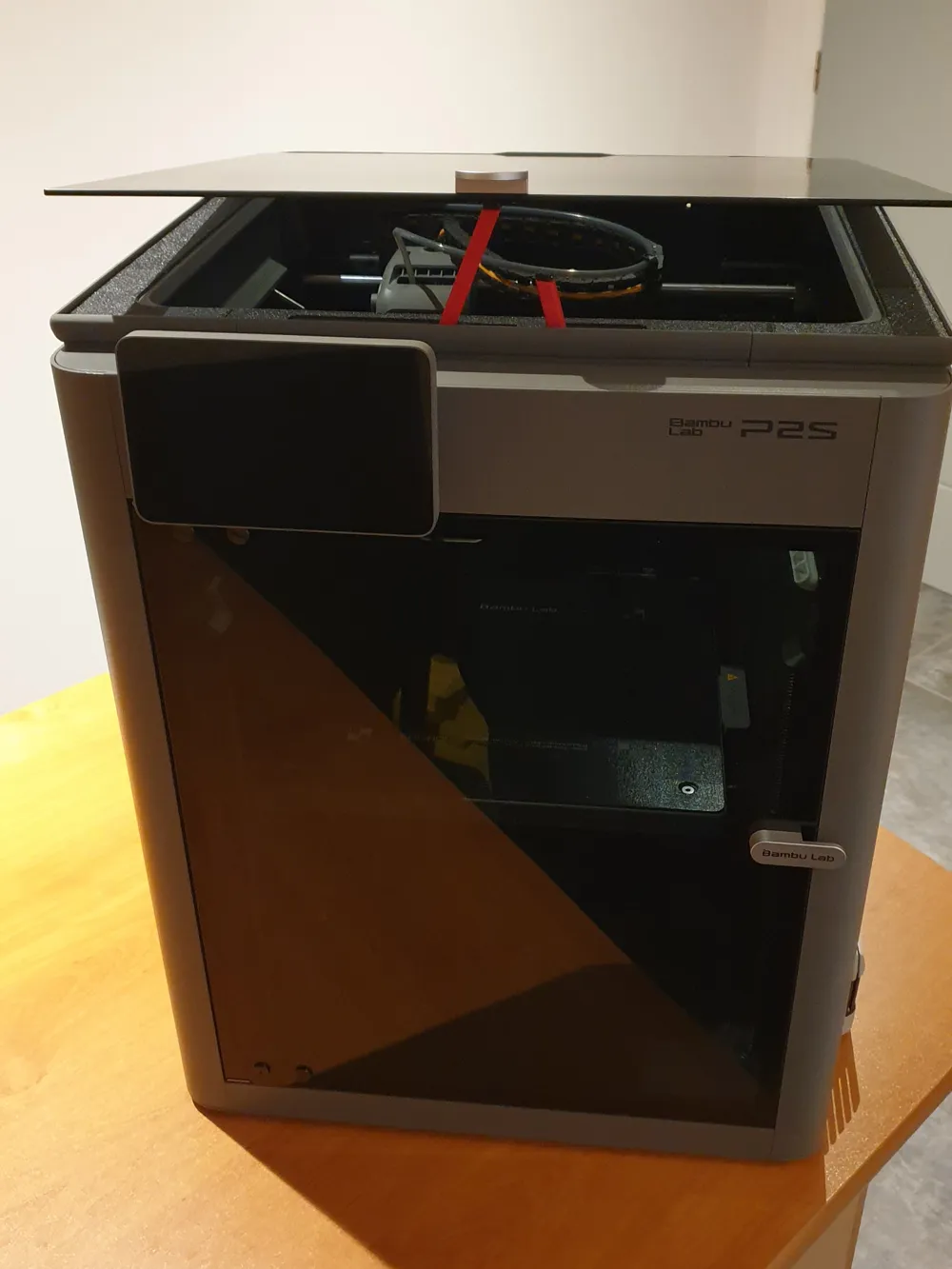

• Glass riser: Raises the glass to help dissipate heat, with 2 height options available.

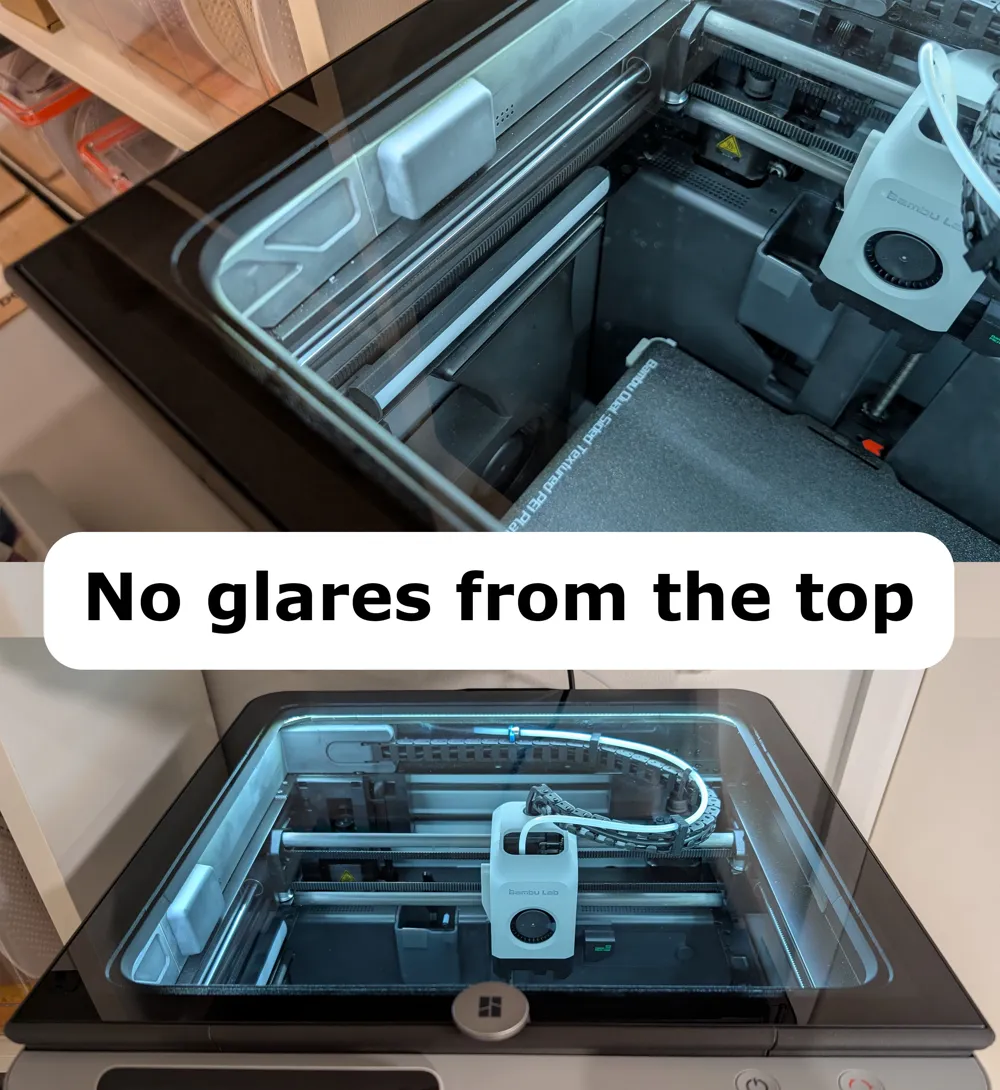

• No glares from the top.

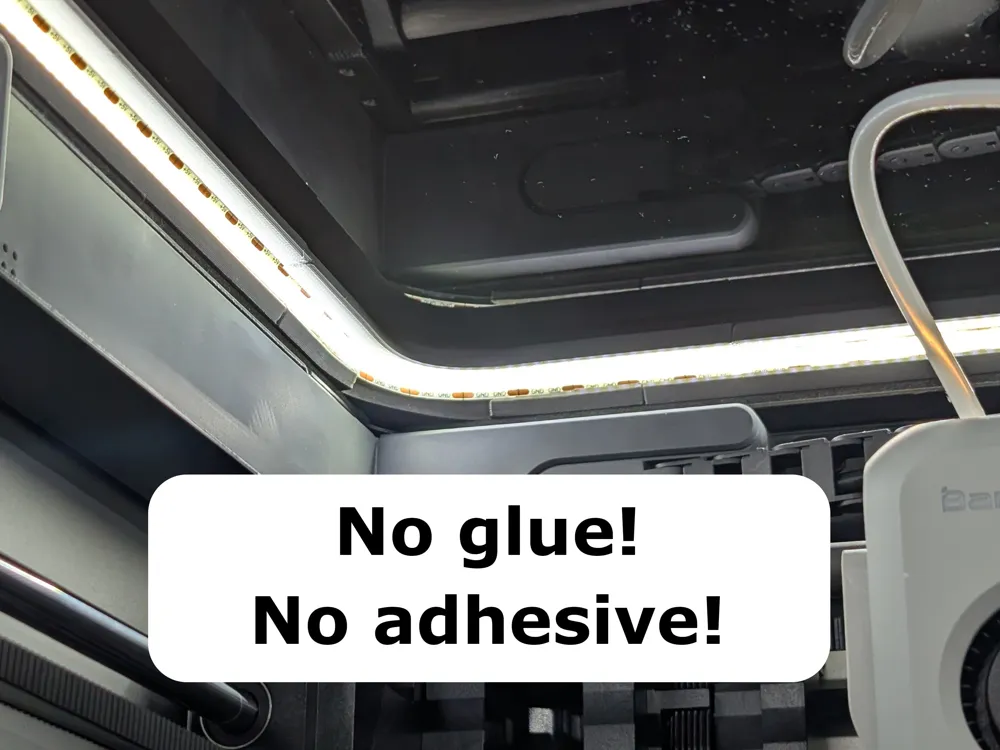

• No glue or adhesive is needed to secure the strip light!

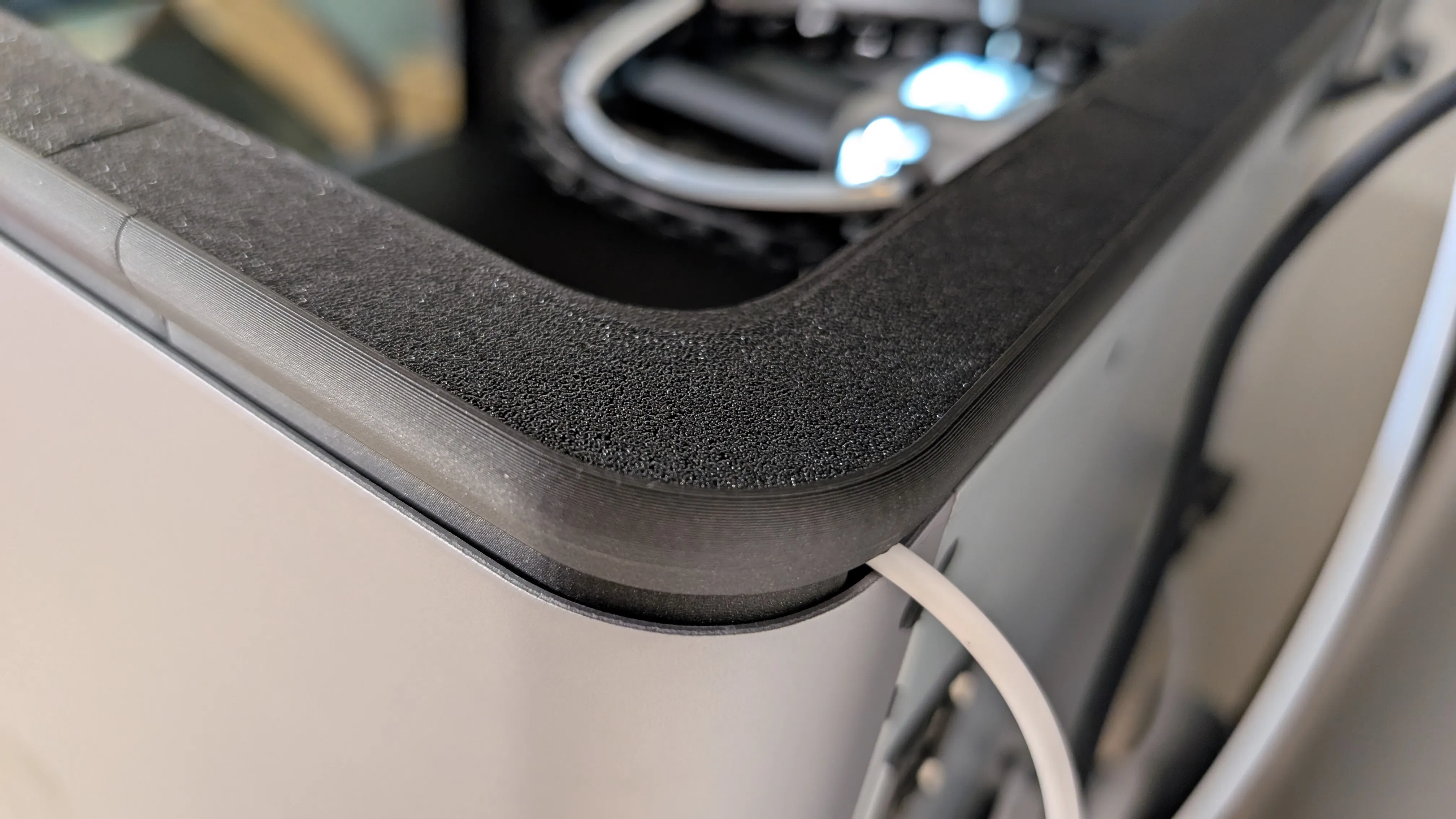

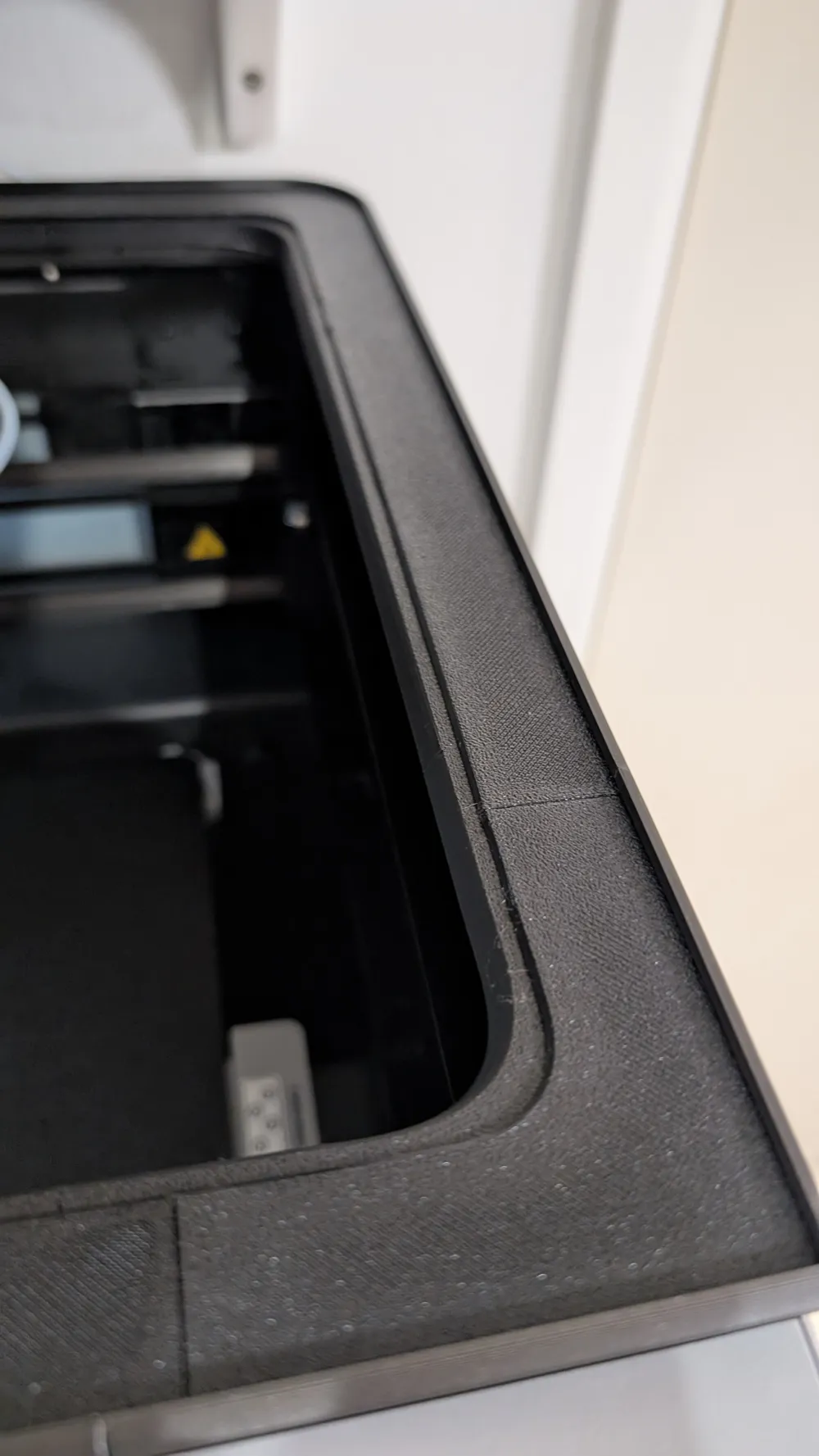

• TPU and Frame locking system: Easily assemble and disassemble for future add-ons.

The model has 4 options (4 Print Profiles are available):

• Frame & Glass Riser & TPU gasket.
• Frame & Glass Riser, without TPU.
• Frame & TPU gasket, without Glass Riser.
• Just the Frame, without Glass Riser and TPU.

About the strip light:

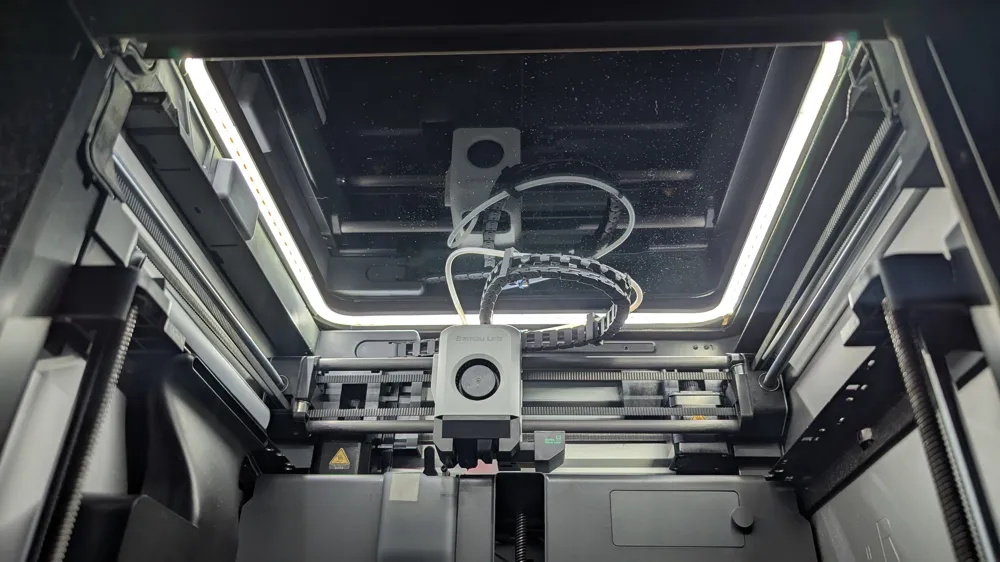

This model is designed for strip lights with a max width of 10mm. However, I recommend using an 8mm strip light, as shown in my pictures and video.

Feedback is very welcome if you try a 10mm wide strip light or one from the Bambu Lab Store!

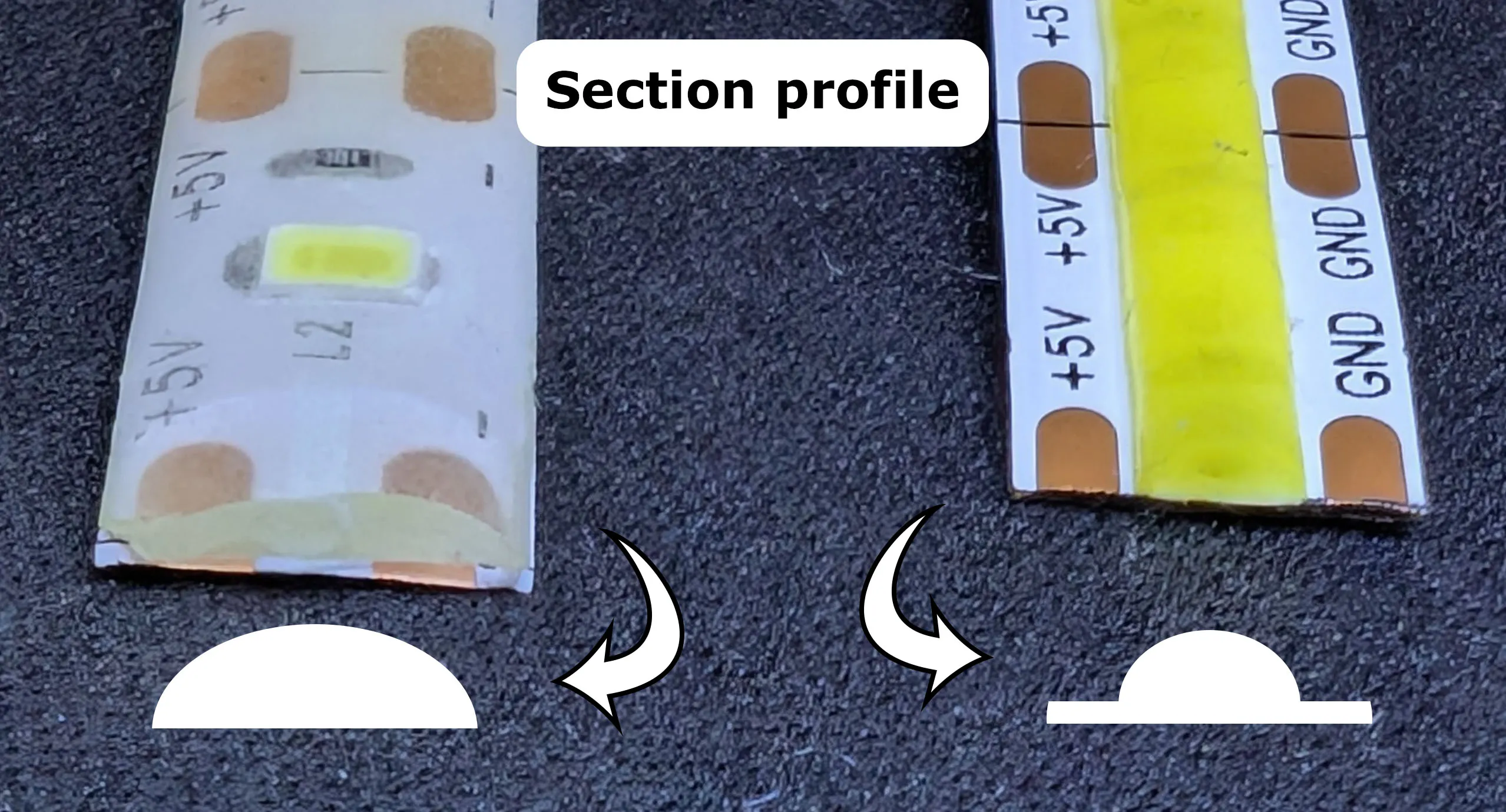

I've tested two types of strips, both 8mm wide:

They both fit well, but I recommend the one on the right, which you can also find here:

https://www.amazon.co.uk/dp/B0B7BBYCZ4

https://www.amazon.de/dp/B0B1J69YMH

Material Recommendation

I printed the model in PLA, and it works great.
PETG is also a good option if you prefer a bit more flexibility and heat resistance.

ABS can be used too, but keep in mind it may shrink during printing, so some calibration might be needed for a perfect fit.

Printing instructions:

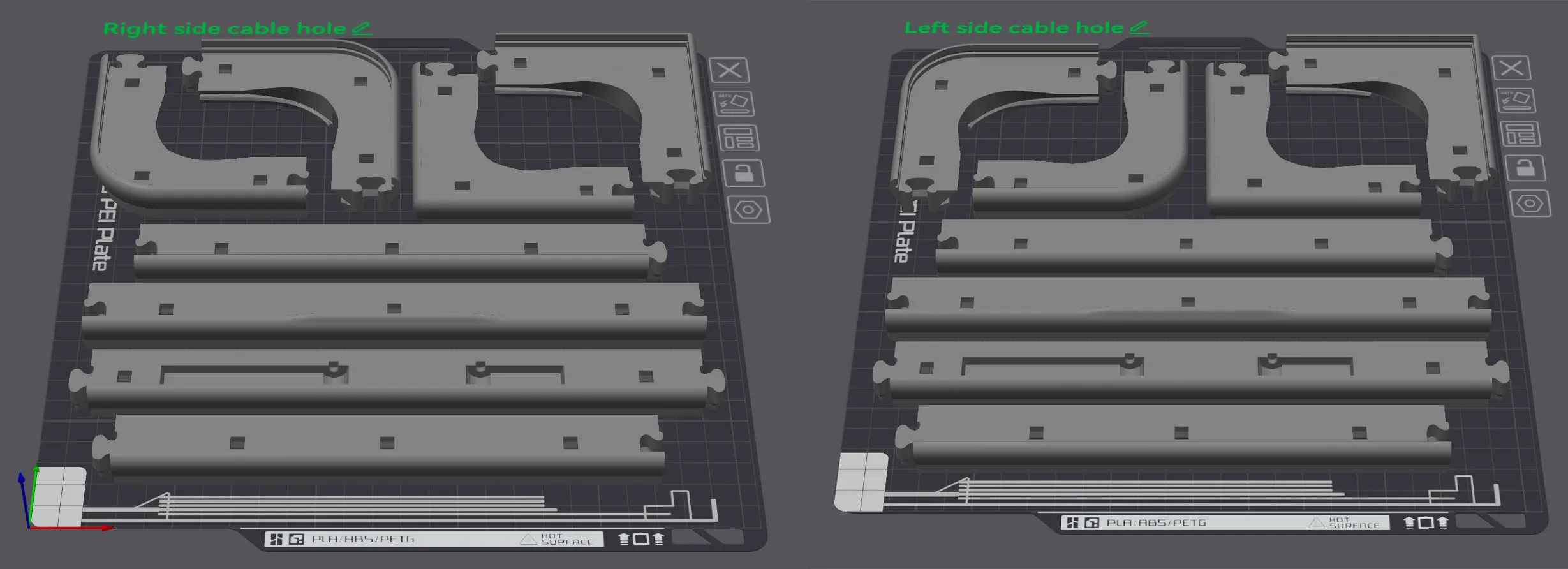

1) Print the base: Choose the plate you need; the cable hole can be on the back left or right side (from your perspective).

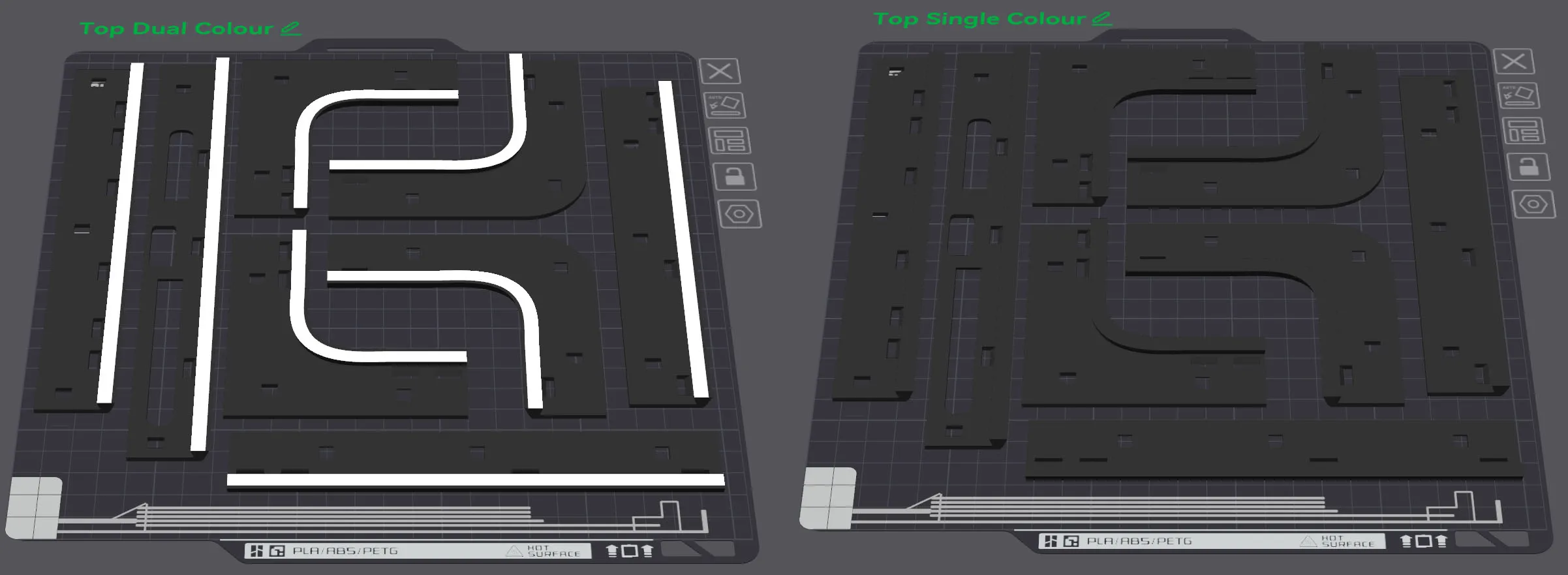

2) Print the top: Use dual or single colour. The model is the same, but I painted the dual-colour version to add a bit of reflected light from the frame.

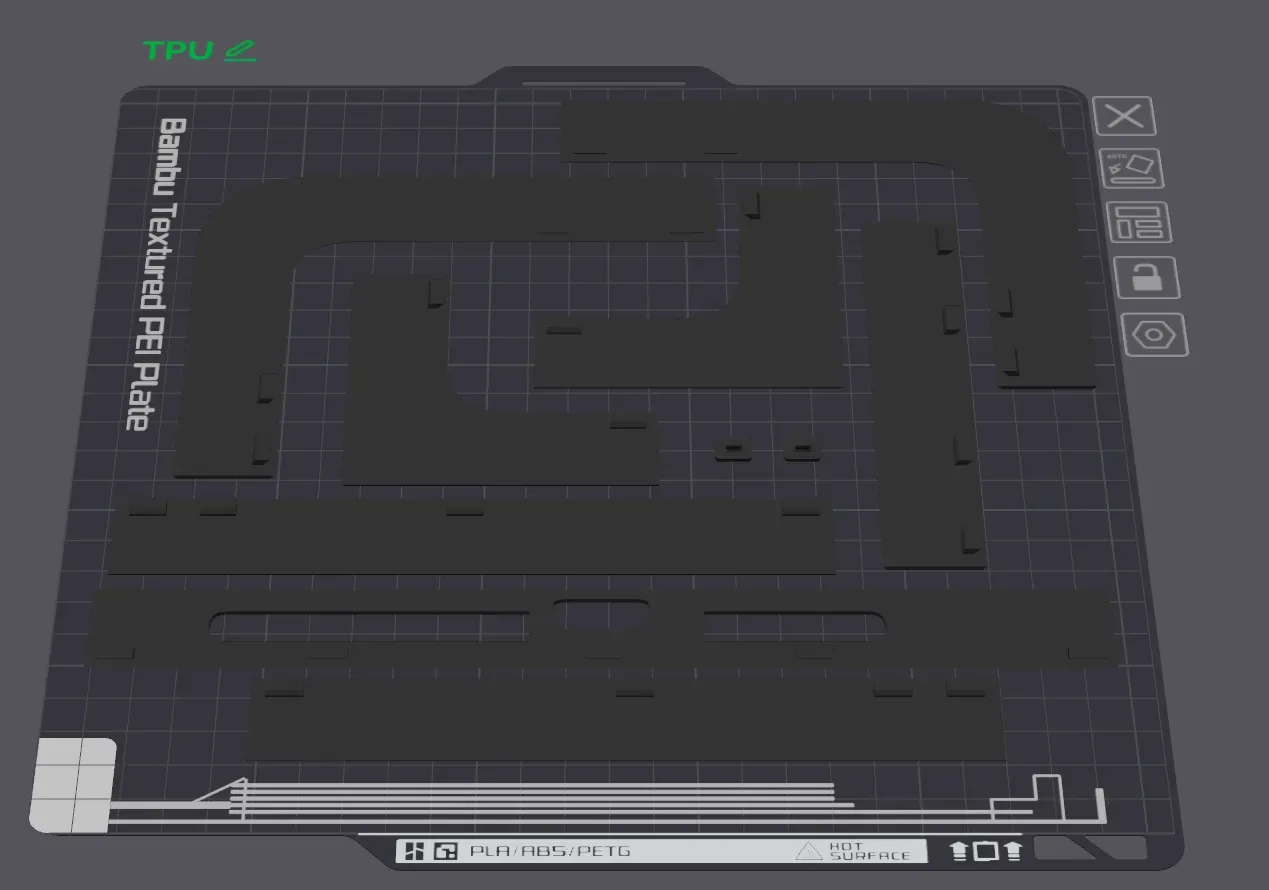

3) Print the TPU. This plate is only included with the TPU gasket option.

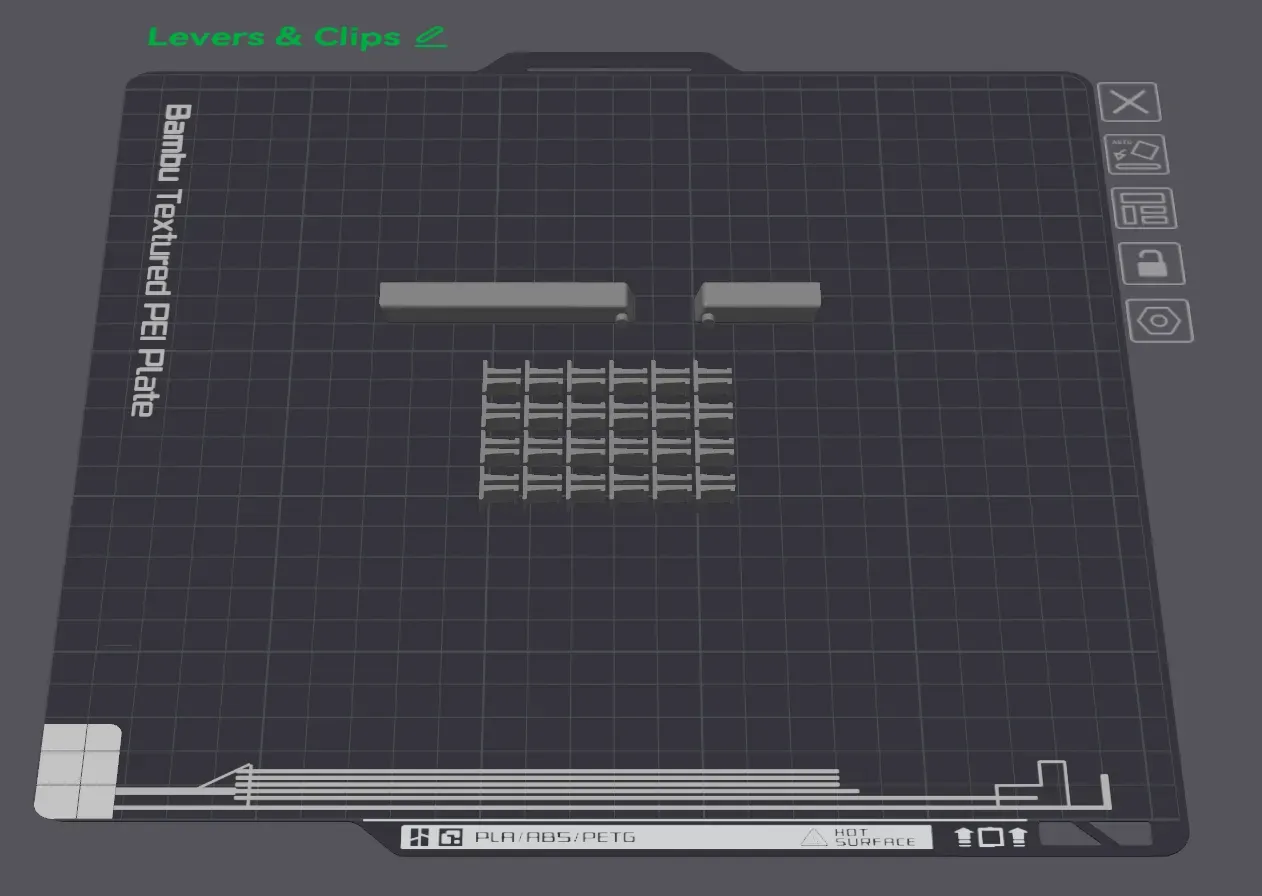

4) Print the Levers & Clips plate. This plate contains the Levers only with the Glass Riser option.

Suggestion:

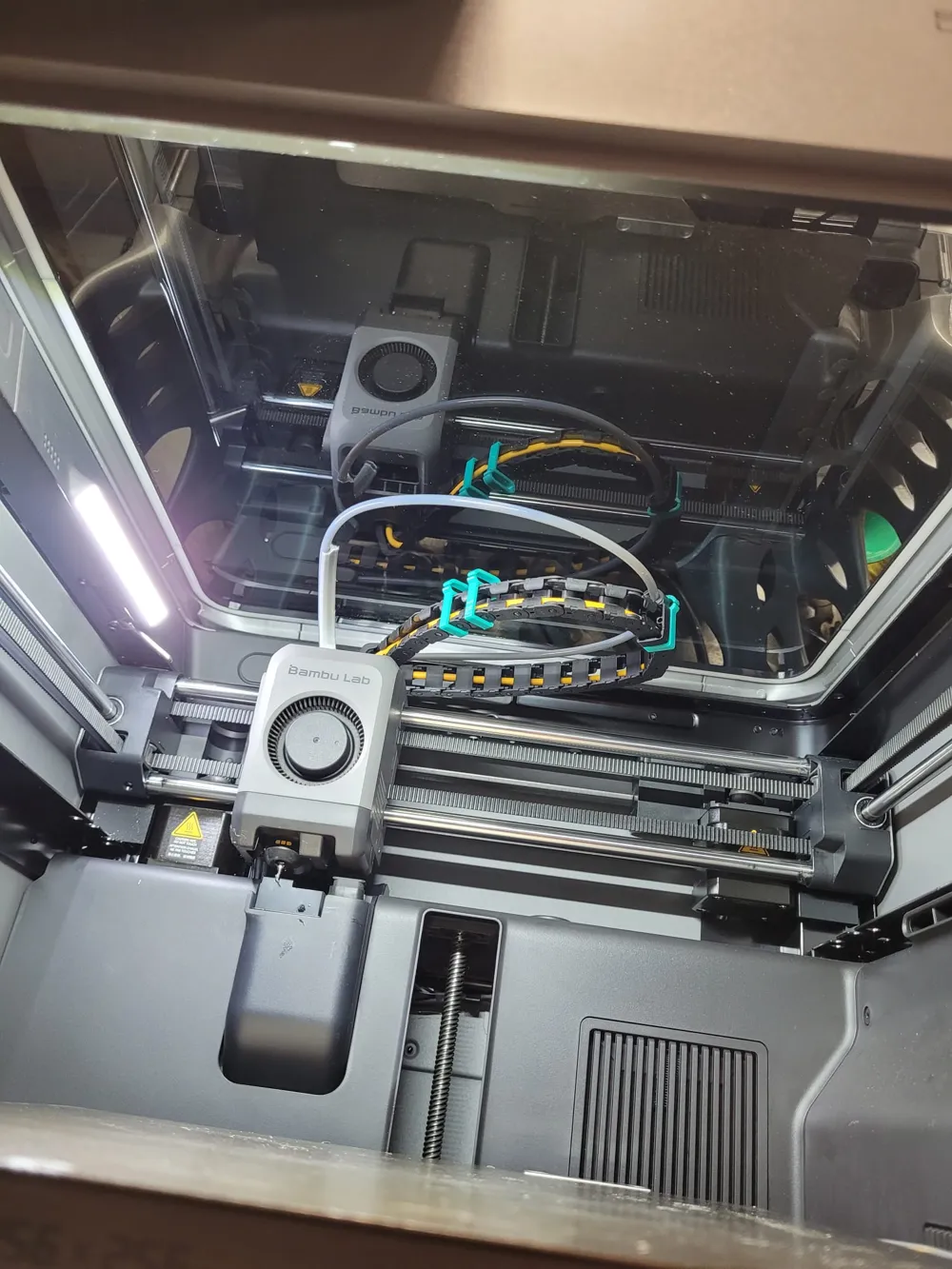

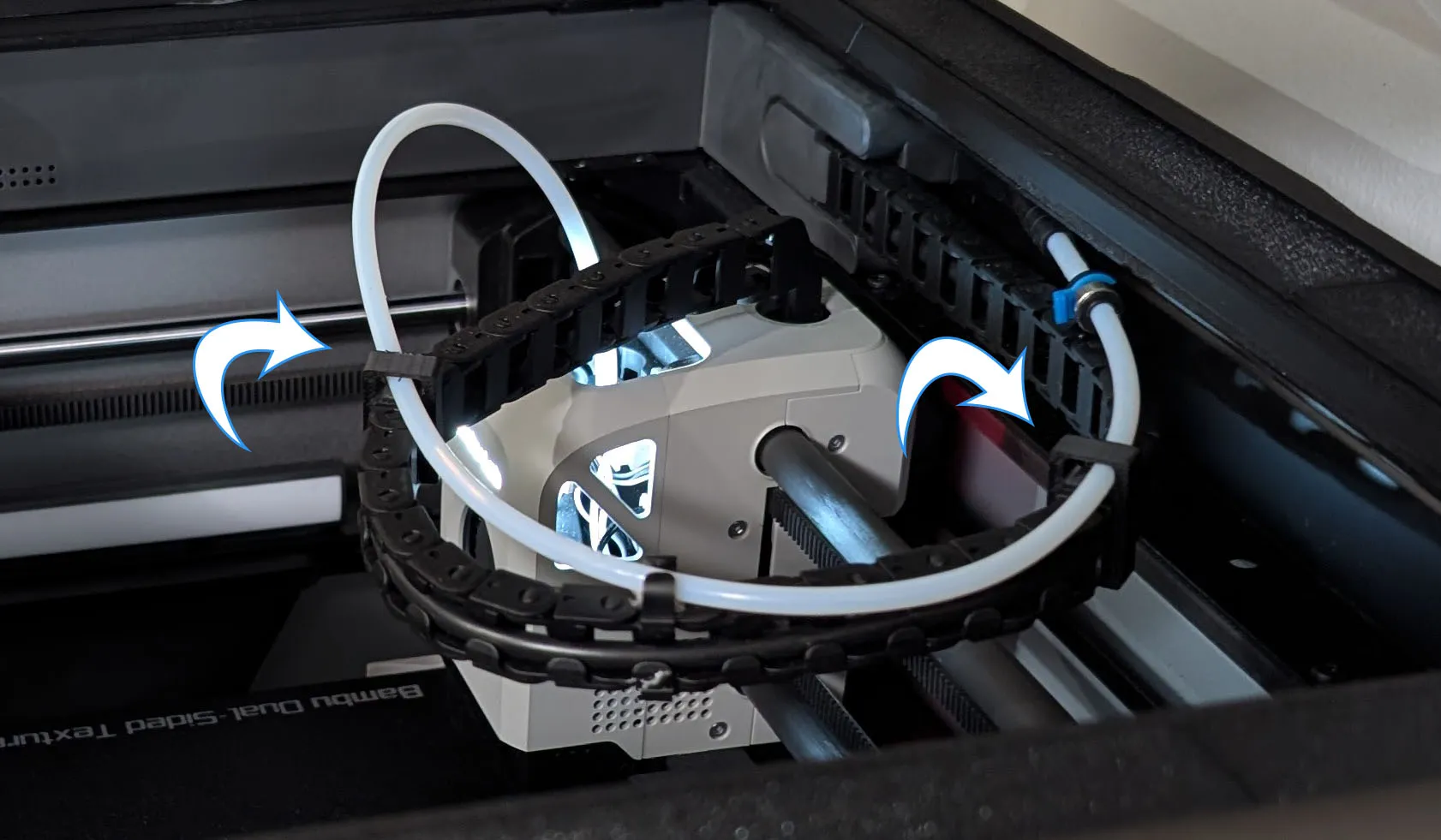

I recommend printing a couple of Clips PTFE Chain from Ariox3D to keep the tube from bumping into the strip light rail.

Assembly instruction:

Additional Components:

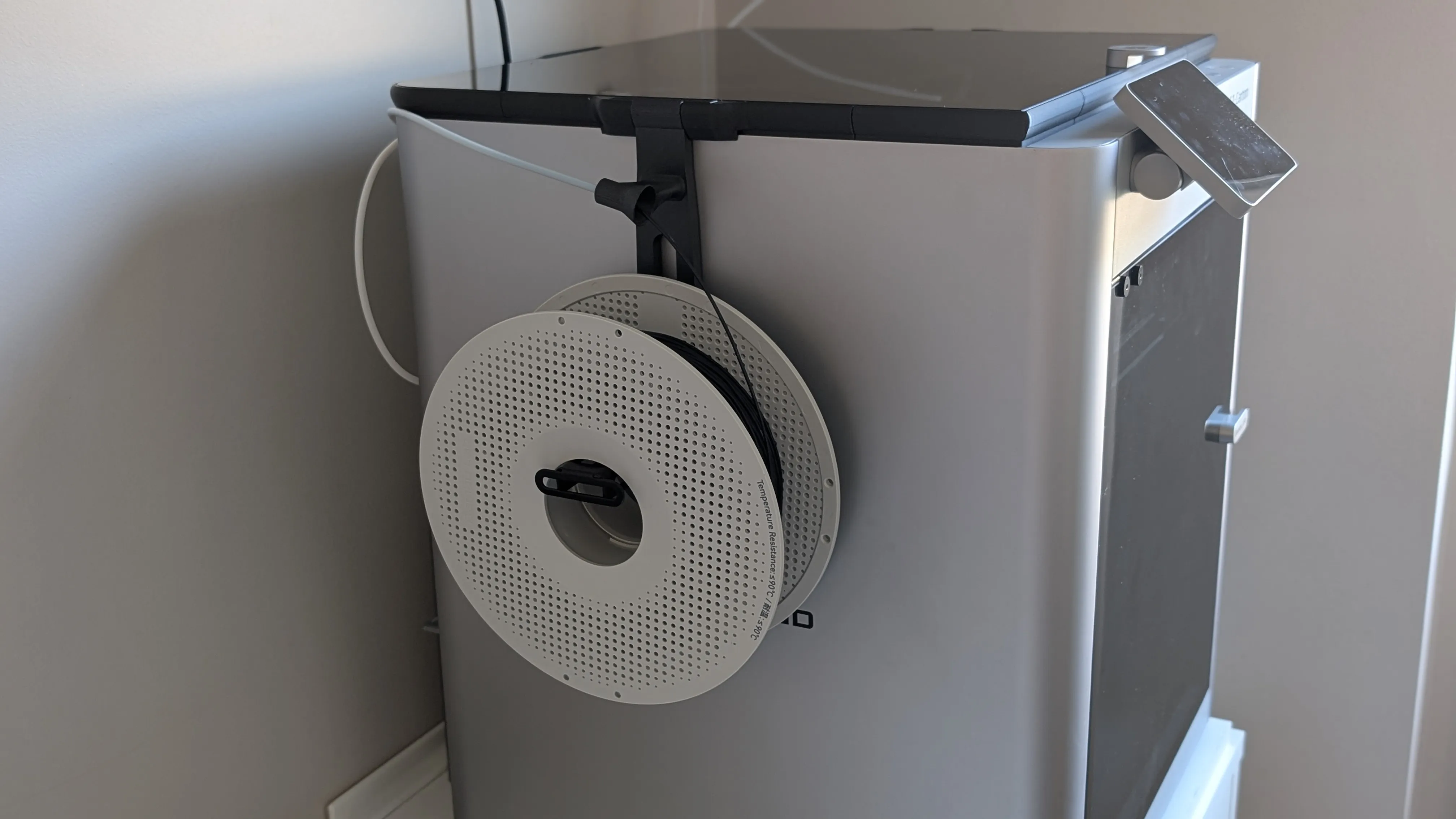

Side Spool Holder

If you also need a Spool Holder, check it out here:

https://makerworld.com/en/models/1107529

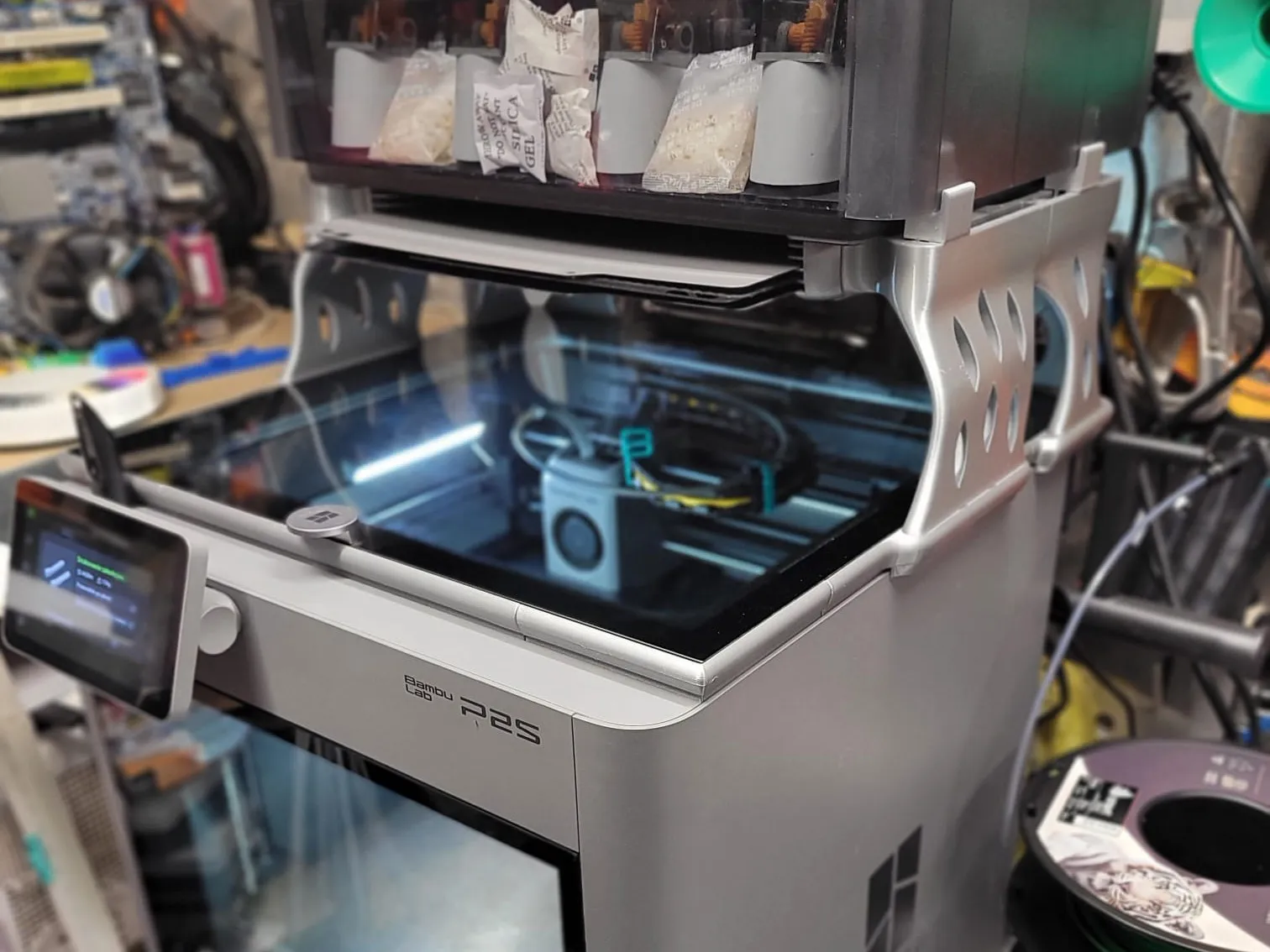

AMS Riser & 5-Plate Holder

Put your AMS on top of the Light Frame:

https://makerworld.com/en/models/1622310
