ITX PC case
Print Profile(1)
Description

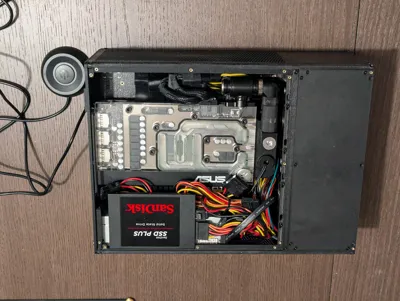

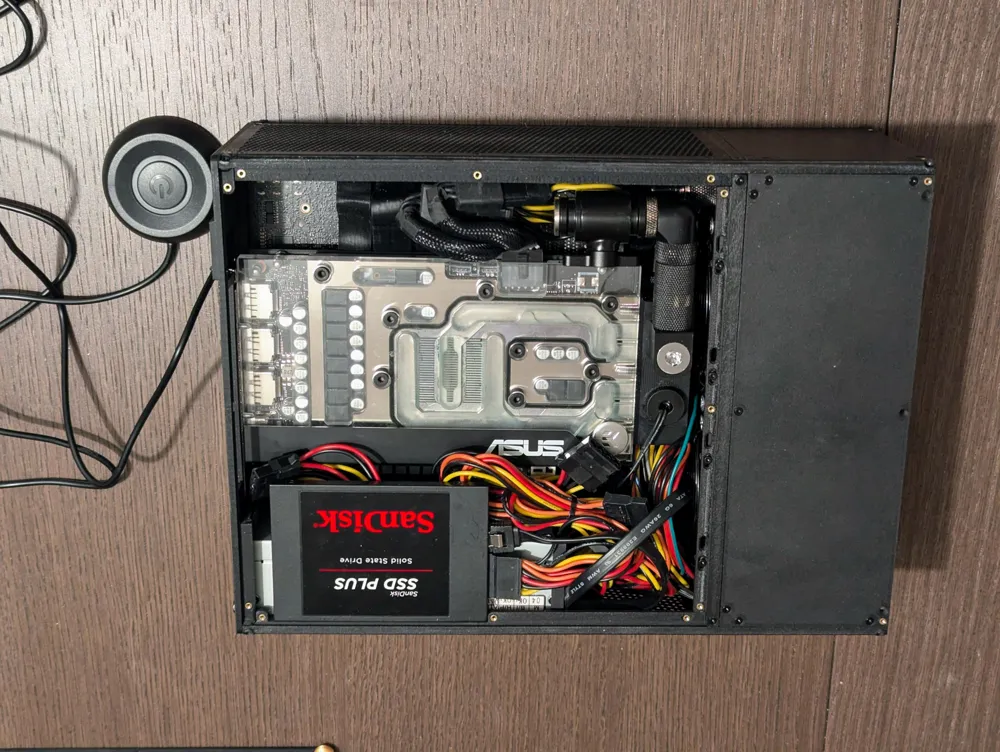

Compact 3D printed SFF case designed for Mini ITX and Flex PSU builds.
Validated for the Enhance ENP-7660B 600W.
Materials

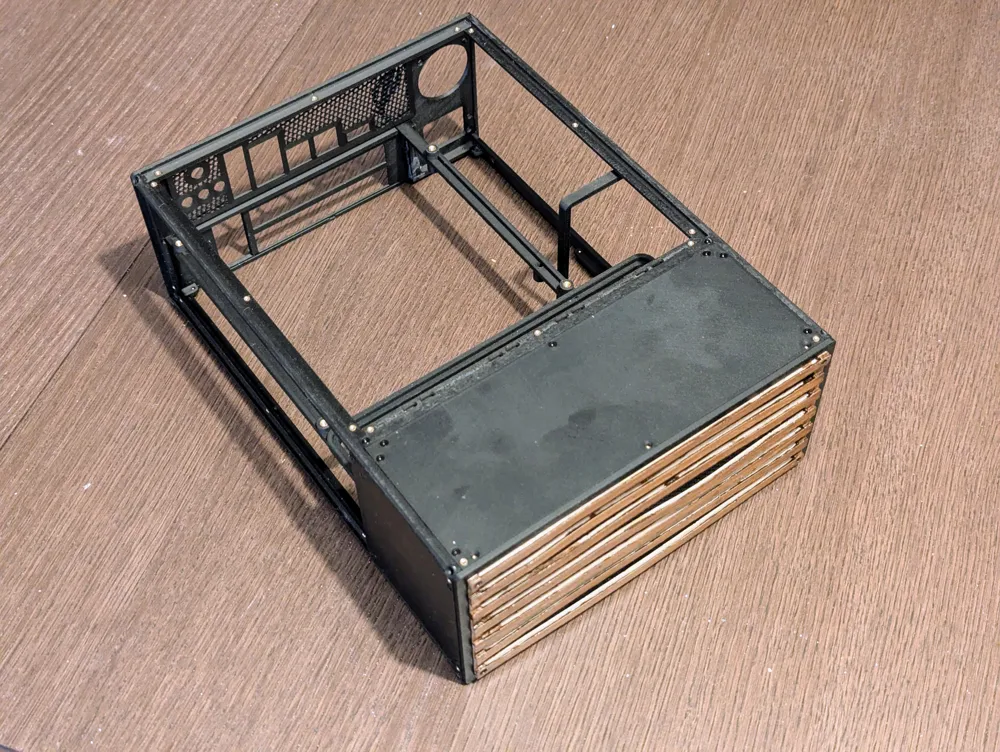

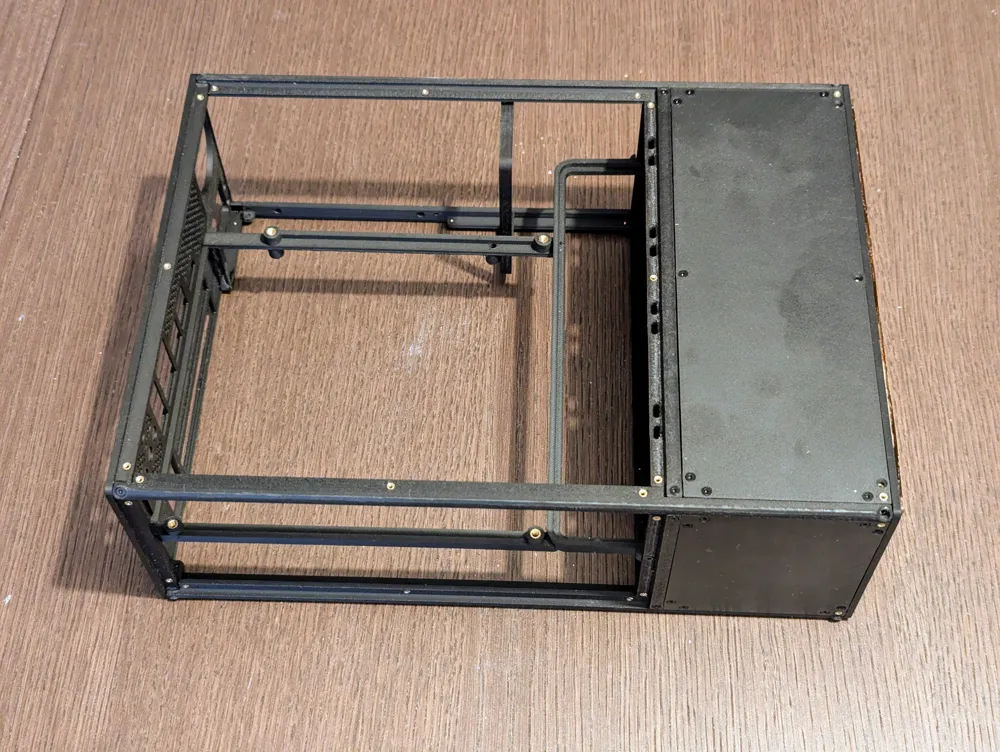

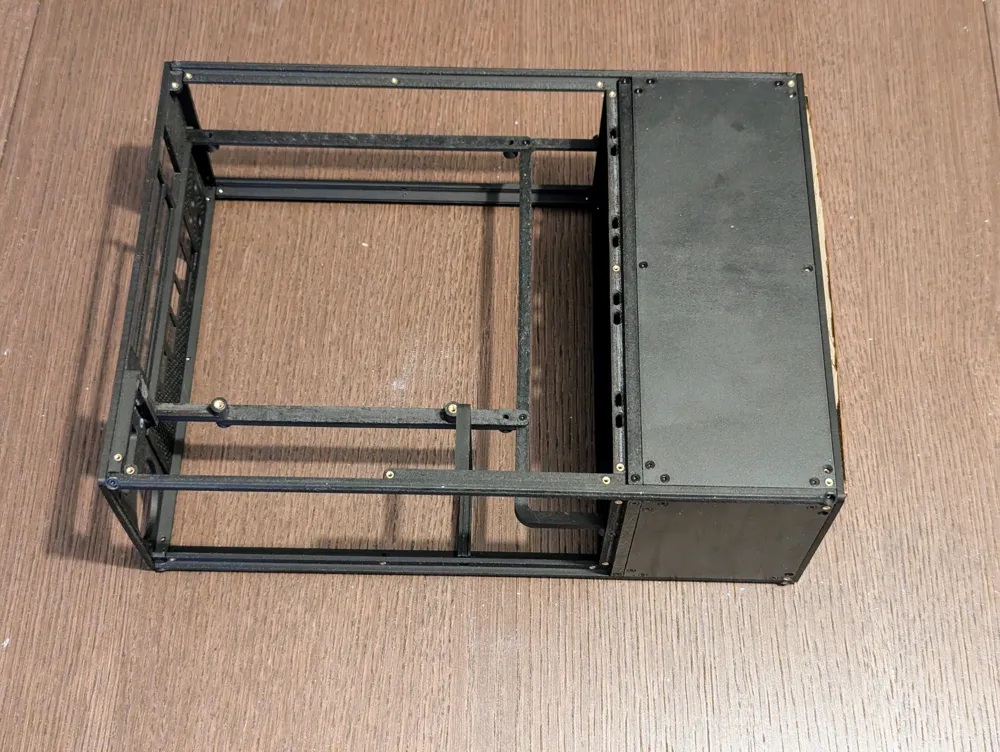

- Main chassis: ASA-CF
- Feet: Silk PLA

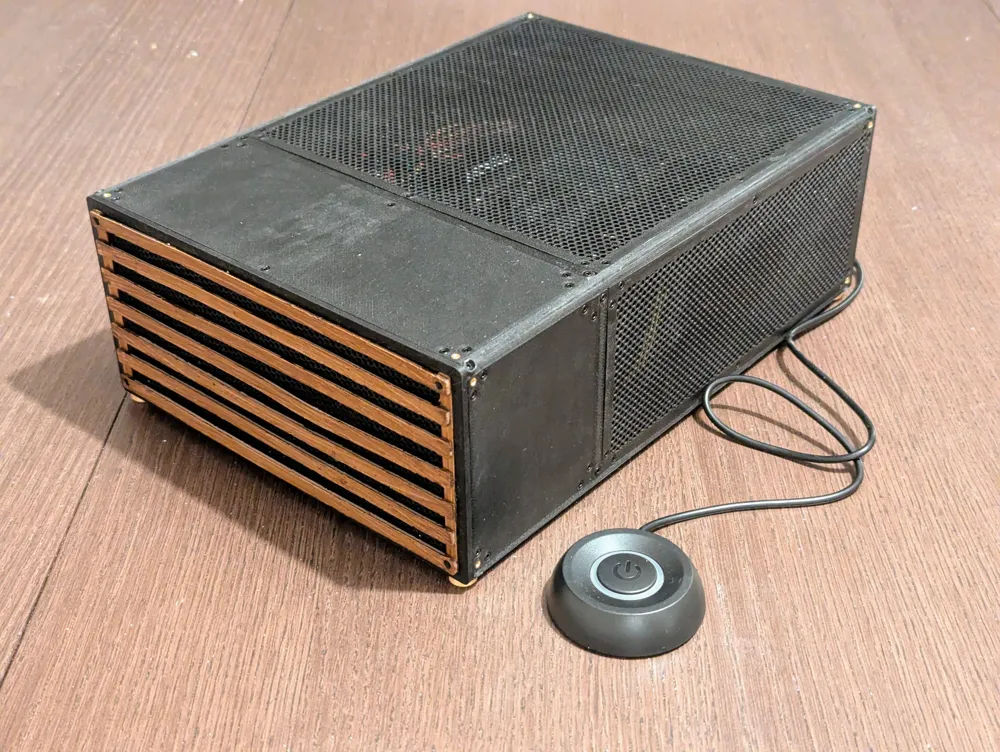

- Front grill: PLA Wood
Dimensions
- 310 x 105 x 226 mm
- 7.4L volume
Compatibility
- Motherboard: Mini ITX
- PSU: Flex PSU, tested with Enhance ENP-7660B 600W
- GPU: max 2-slot, max 215 mm length
- CPU cooler height: max 41 mm
- Riser cable: double reverse, 19 mm minimum

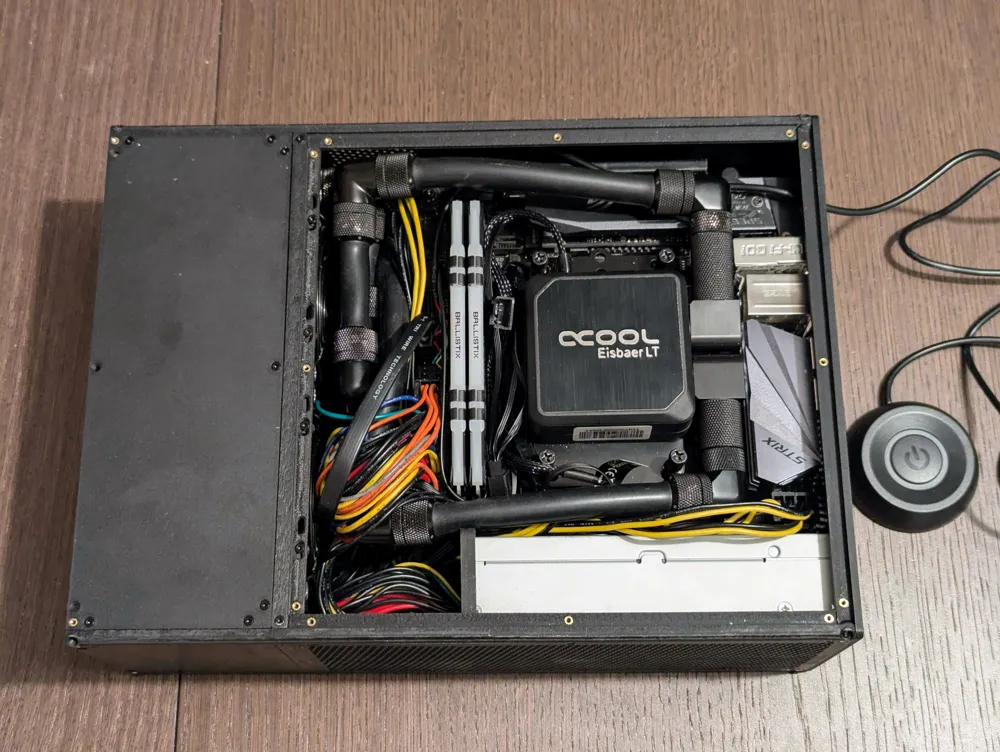

Radiator and fan support
Designed for Black Ice Nemesis GTX M184 MICRO
Supports push pull configuration with 92 mm fans, 15 mm thickness
Hardware required
M2 hardware
- Heat set inserts: M2, OD 3.2 mm, length 2 mm
- Screws: M2 x 5 mm, countersunk flat head, hex socket (Allen)
M3 hardware
- 8x M3 x 5 mm screws
- 6x M3 heat set inserts, OD 4.5 mm, length 5 mm
Used for motherboard and GPU holder mounting points
Print notes
- ASA-CF is recommended for structural parts due to heat resistance and stiffness.
- Use a hardened nozzle for CF and wood-filled filaments.
- Calibrate insert holes to your printer tolerance before final assembly.
- Heat set inserts make assembly stronger and allow repeated disassembly.
Design goal
This case is built for dense, high-performance small form factor builds with premium mixed materials.
ASA-CF gives the frame rigidity and thermal resilience, while Silk PLA feet and the PLA Wood grill add contrast and character.
