Memento Camera Case

Remixed by

Print Profile(0)


Add the first print profile to earn points

Boost
2
3
0
0
2
0
Released

Description

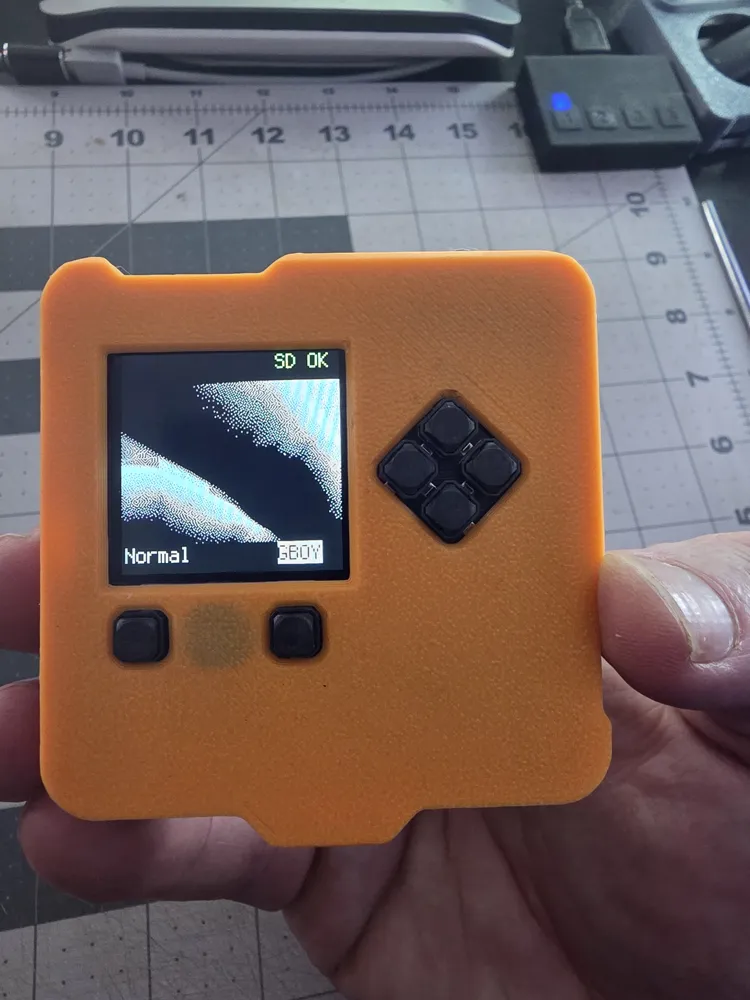

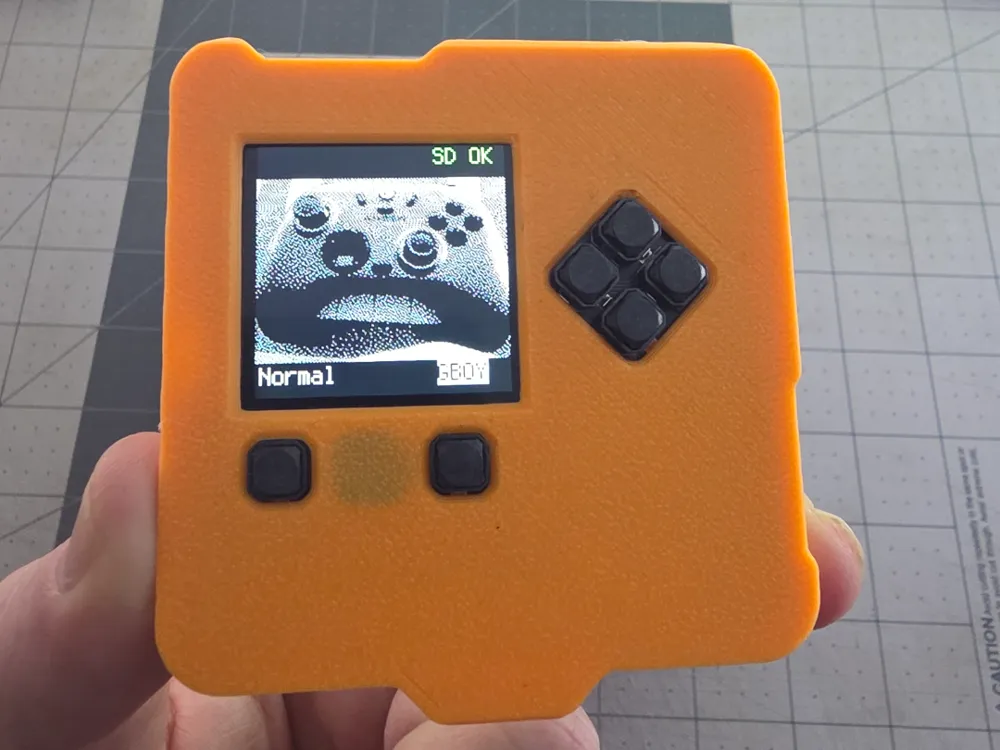

I've become absolutely obsessed with this little camera dev board, and I've hacked together different photo modes and effects that make shooting pictures entertaining, if not fun.  However, the only case I could find to print was the Adafruit model with the cat ears, and since I'm in my 50s, I felt that might give the wrong impression if I were walking around with that type of case, so I fired up Shapr3D and started beating on Adafruit's design.

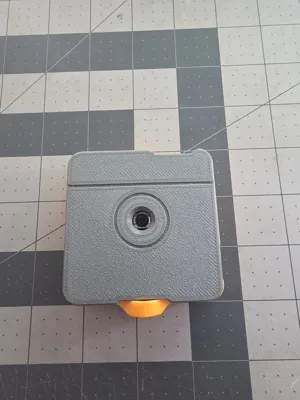

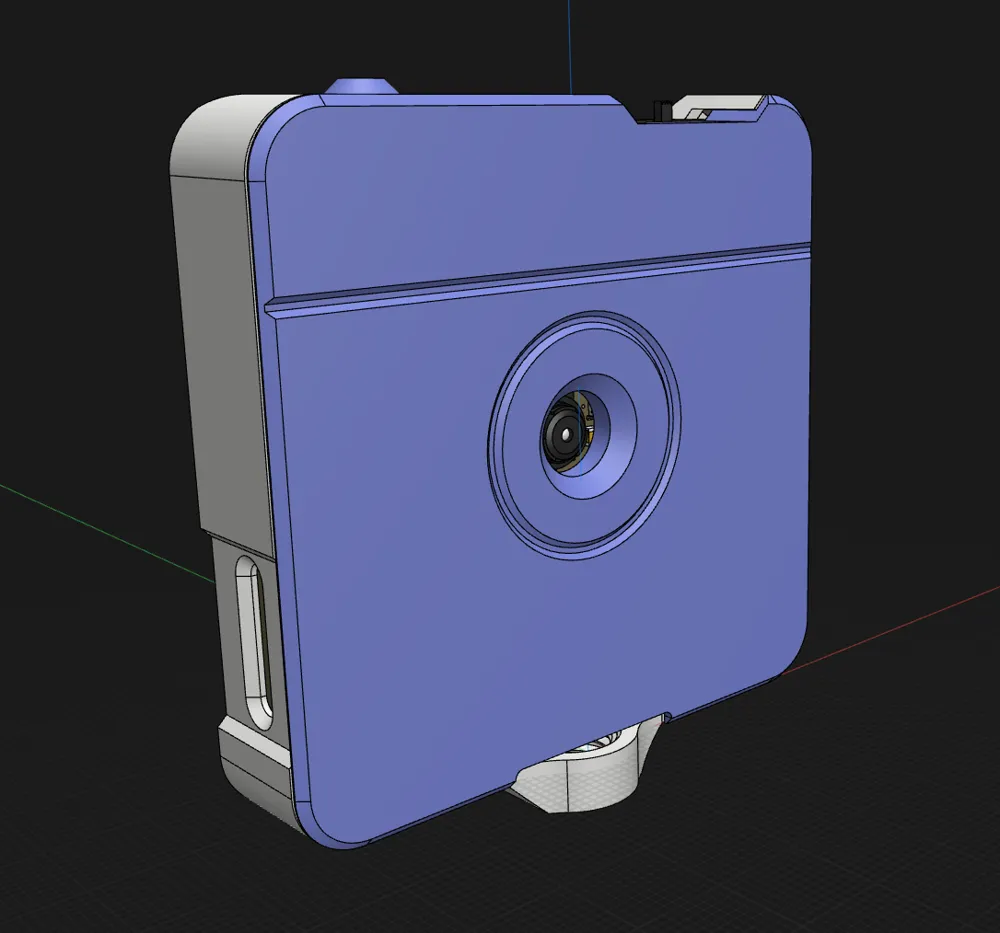

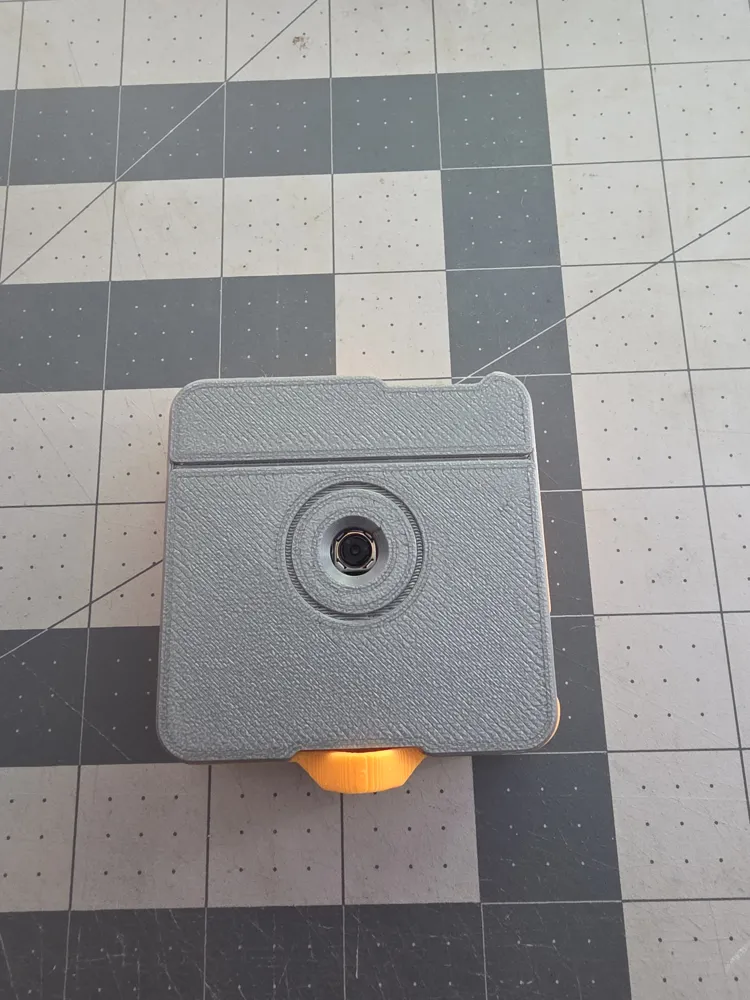

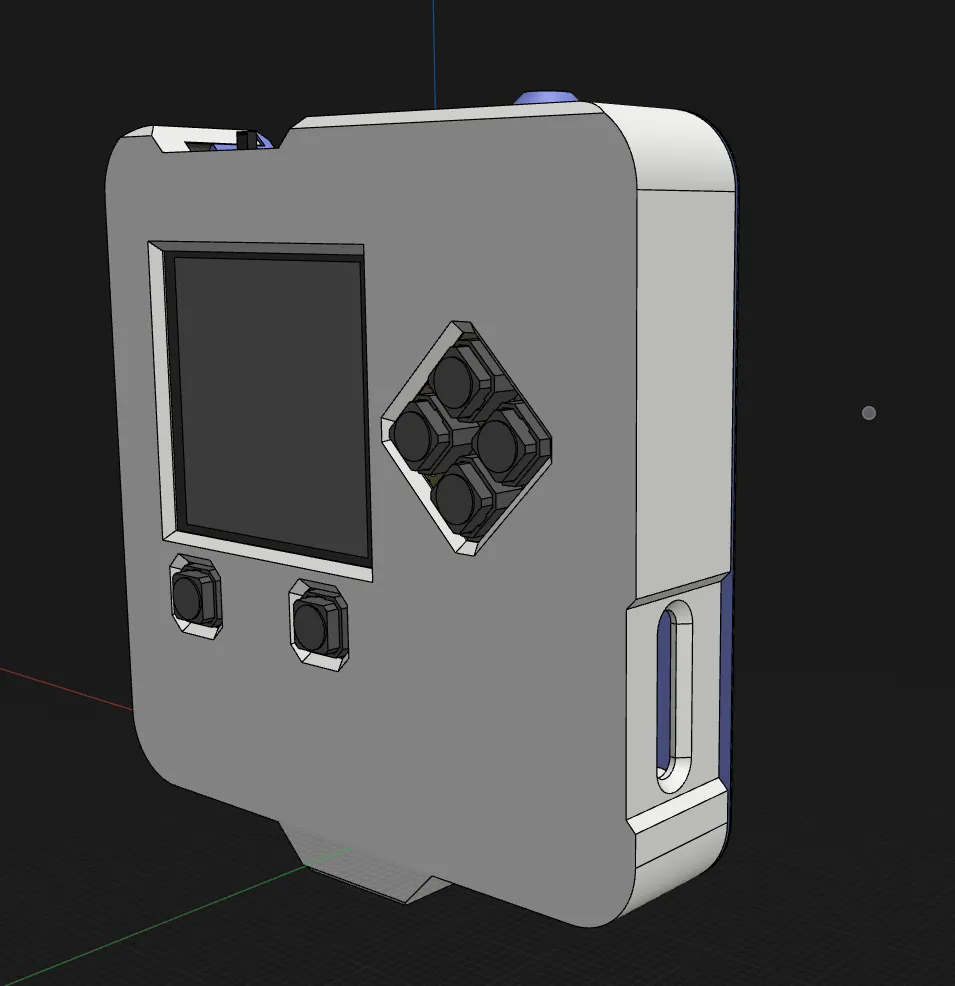

I successfully removed the ears and made it a square, and used the case version with the tripod mount on the bottom (let me know if you'd like the other version without the mount, and I can probably knock that out).  I'm still fooling with the design, and I'm hoping to have a more visually interesting version cobbled together in the next few weeks.



Many, many thanks to Adafruit and the Ruiz Brothers for making the .step files available for remixing - you guys are the best.



Some notes:

I made mine out of PLA, and it works quite well.  I tried PC, but that made the shutter button too difficult to press - there needs to be a bit of flex in the case material.  If you're having difficulty with the camera fitting into the case properly, check the screw posts on your Memento - mine came with what looked like kapton tape over the holes, which will keep the case posts from inserting into the screw posts.
