Description
New Fully Printer Version Now Available - Power Extruder 2.0 - https://makerworld.com/en/models/2957319-powered-pottery-handle-and-coil-extruder-2-0#profileId-3314312
Original Design Still Needed for the larger test tile.
Boost Me (for free)
If you like this design please consider boosting me.

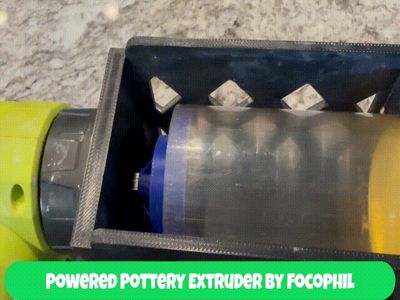

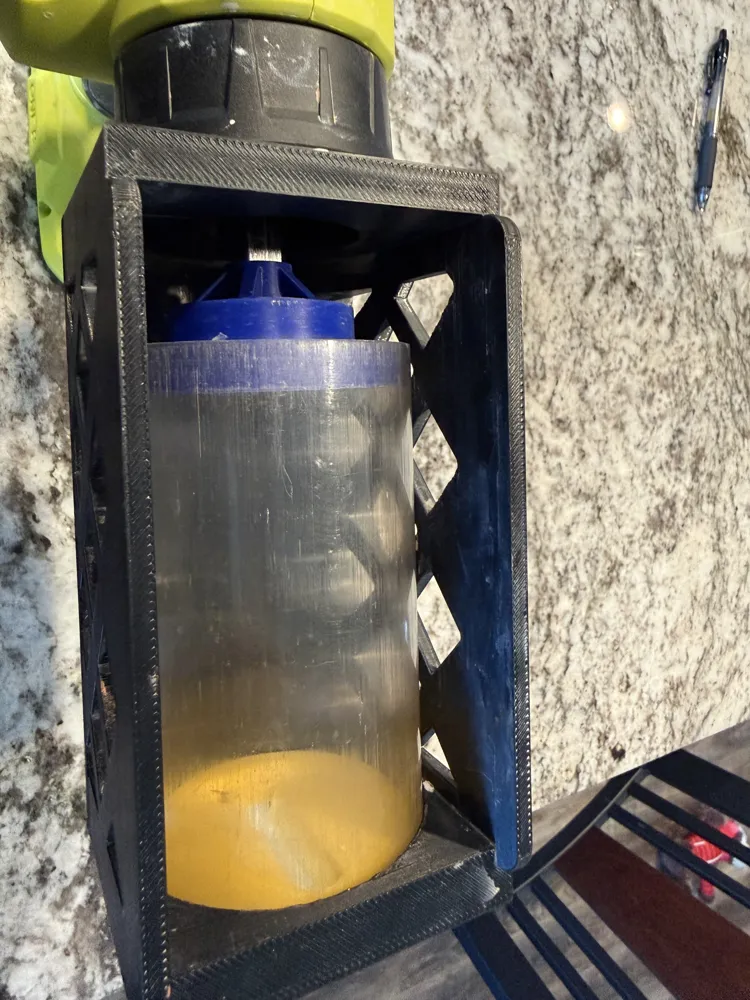

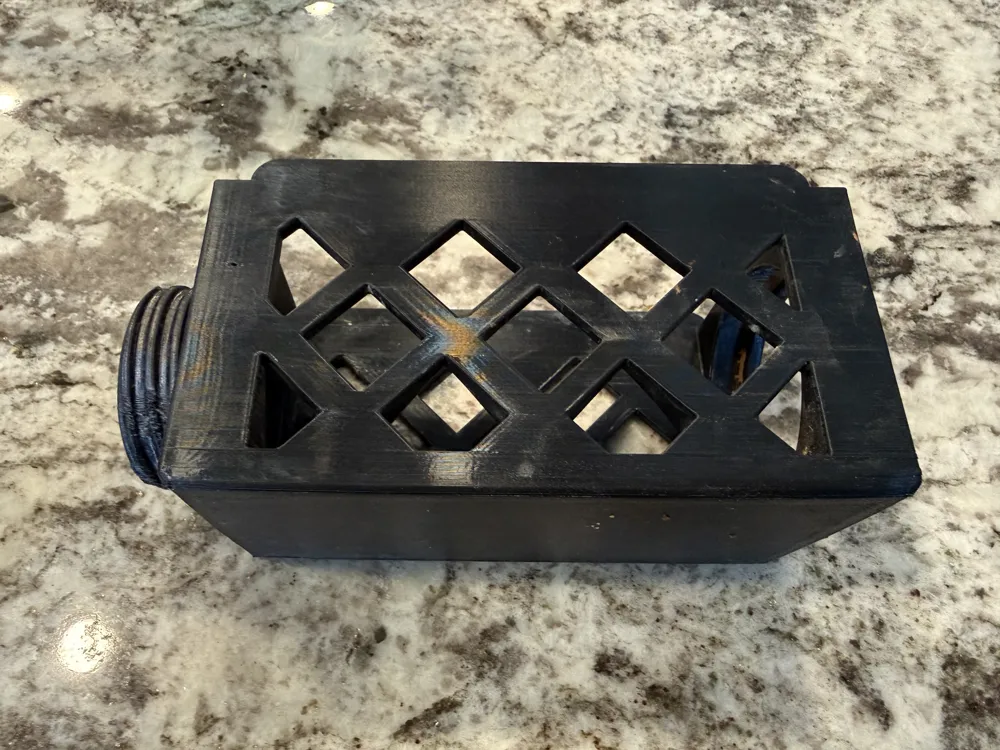

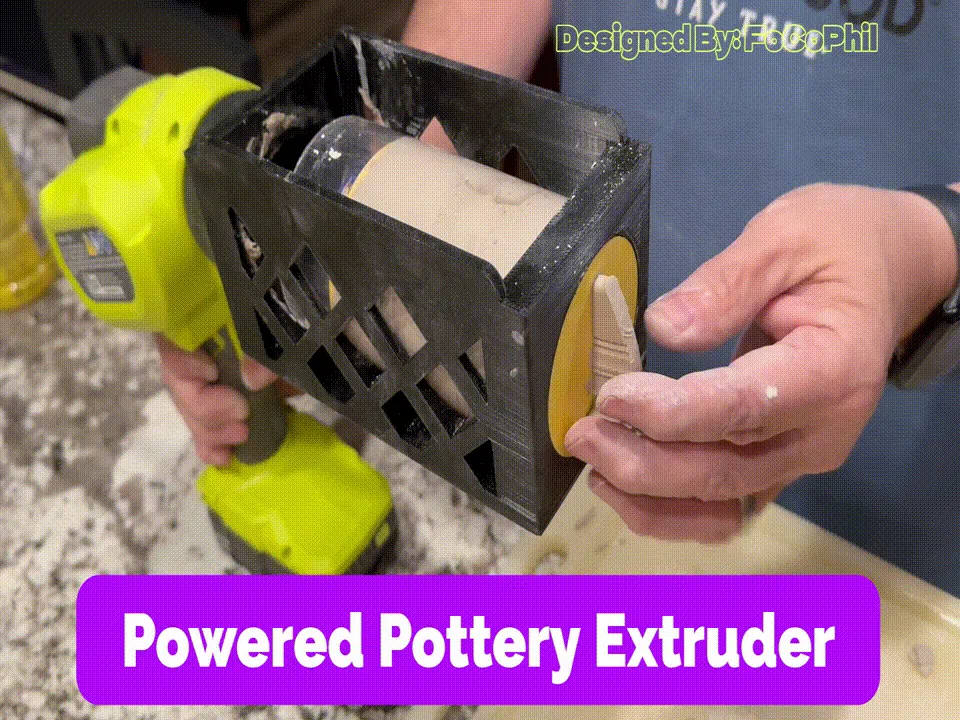

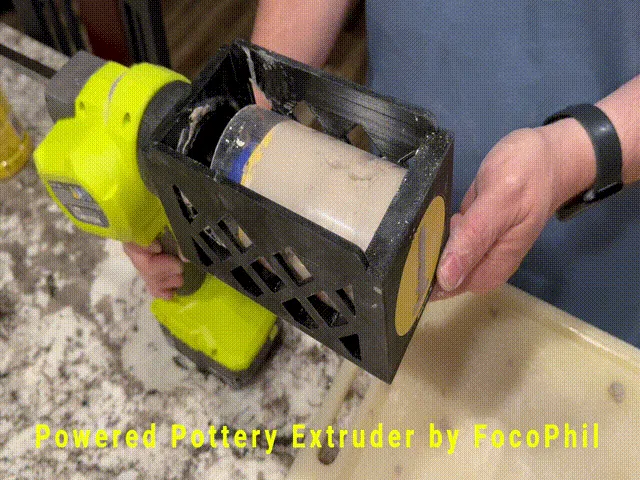

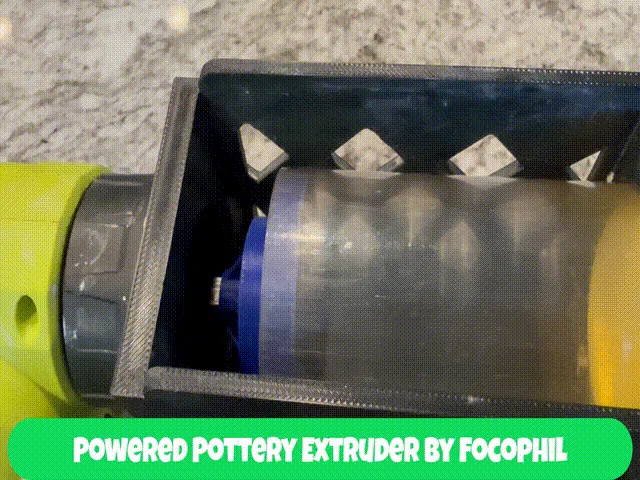

Powered Pottery Extruder

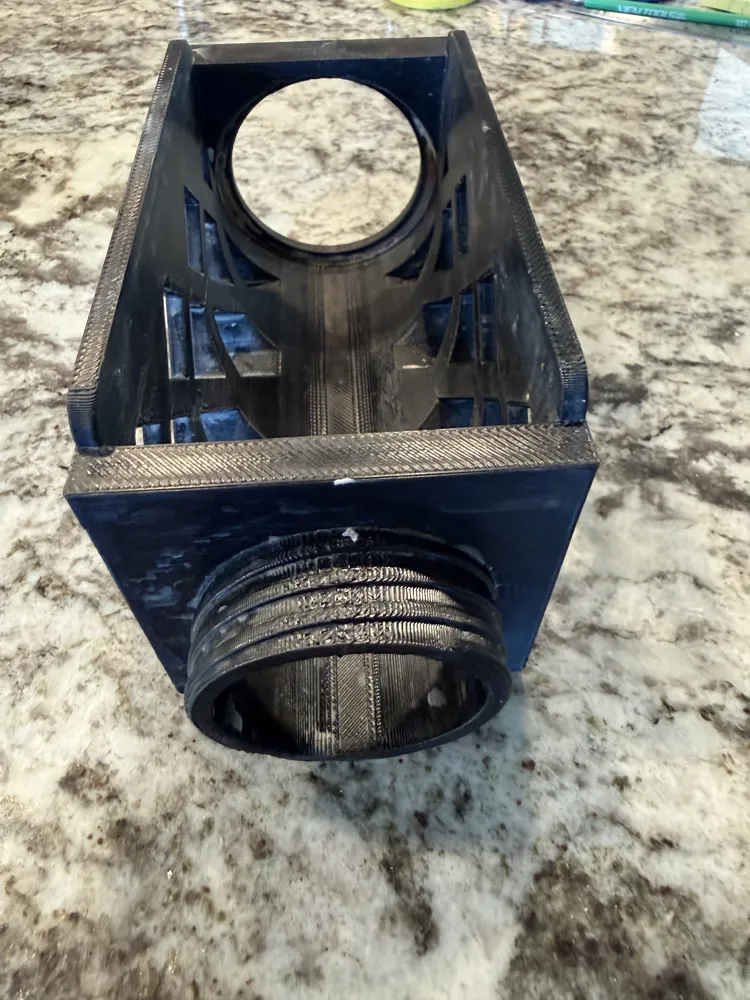

This is a powered pottery extruder. It has a 2.8" (71mm) inside diameter. Can support extruding shapes of about 2". Full extruder profile contains all the parts. The dies are also listed as separate profiles.

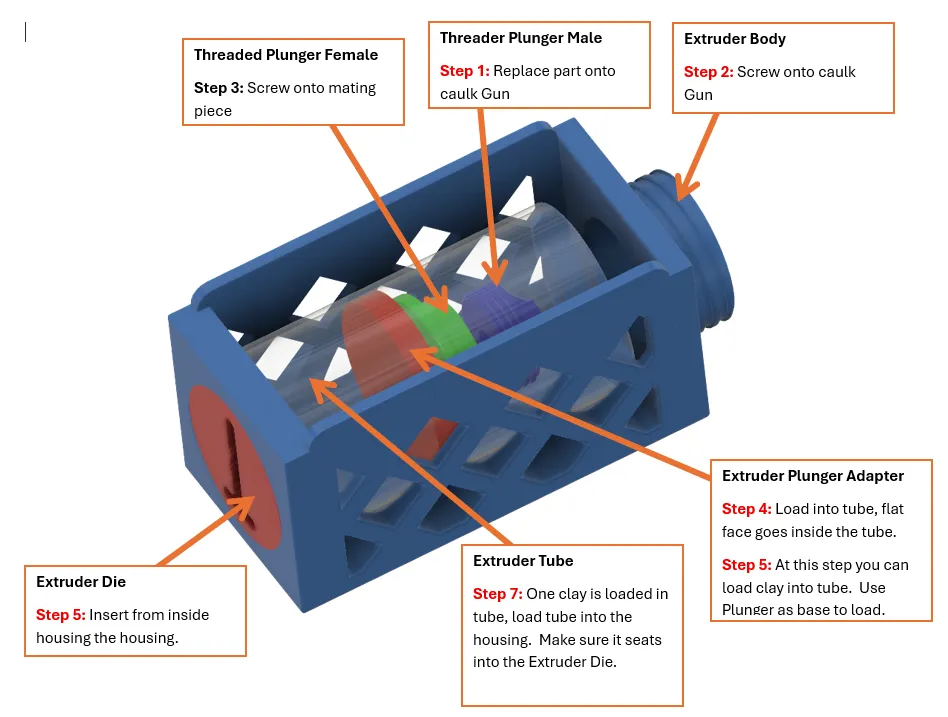

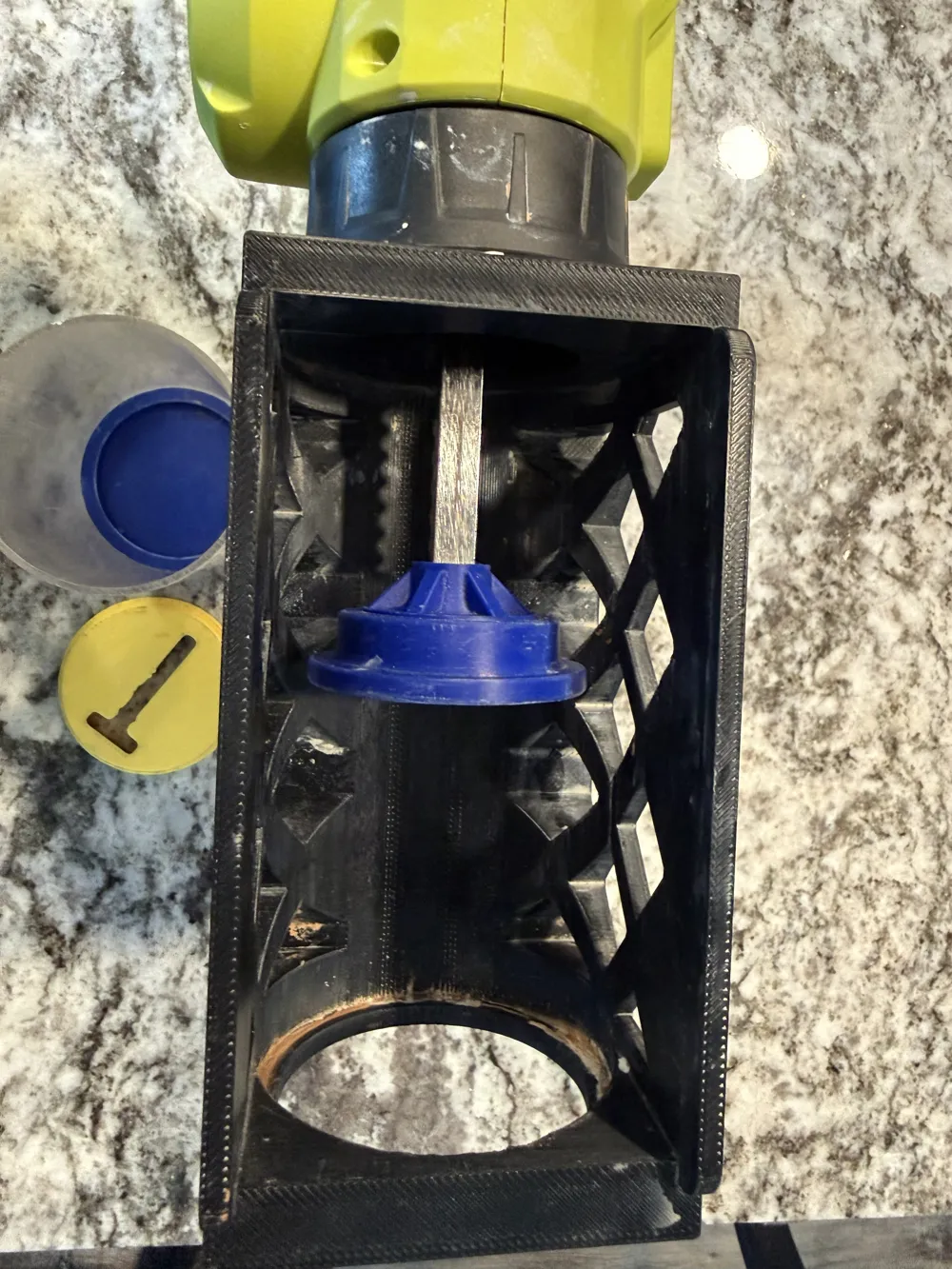

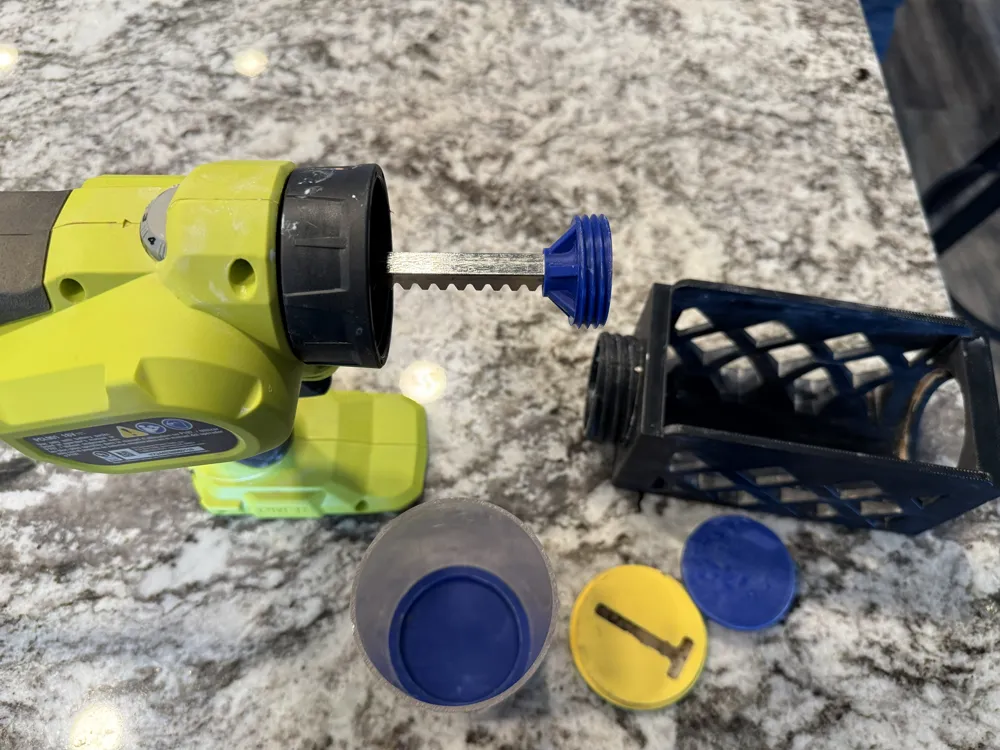

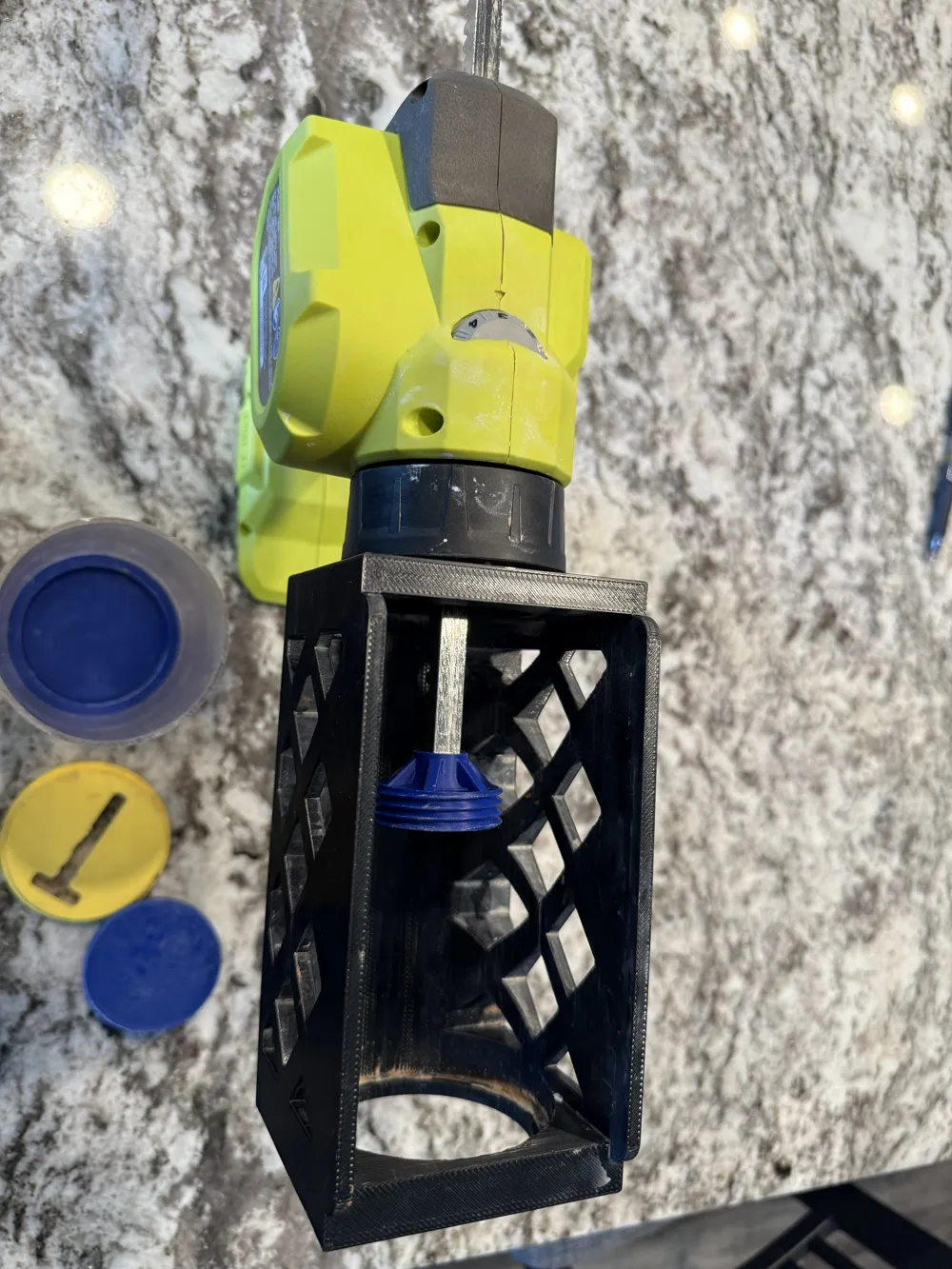

Assembly Instructions
Addition Parts Needed

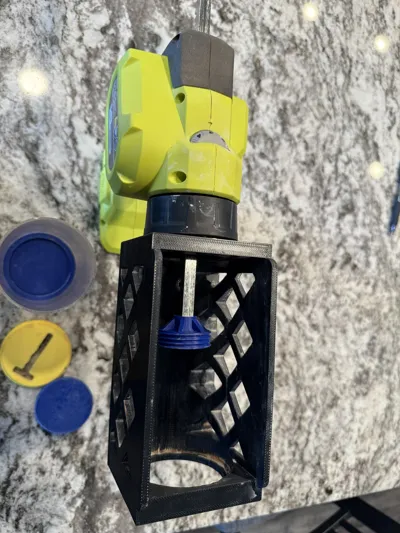

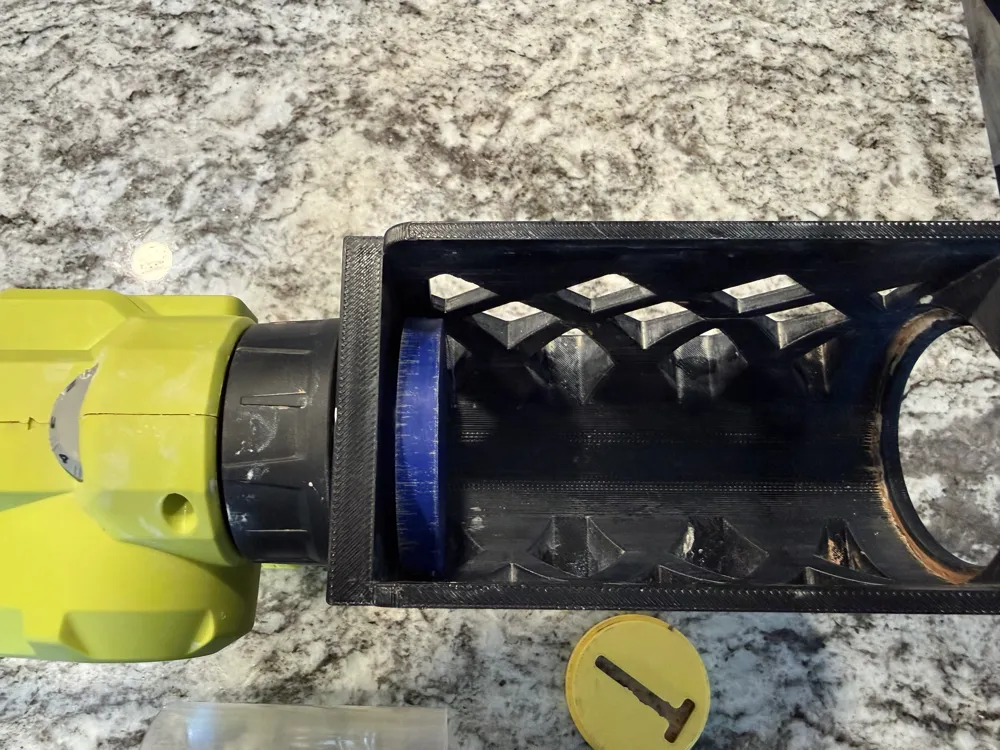

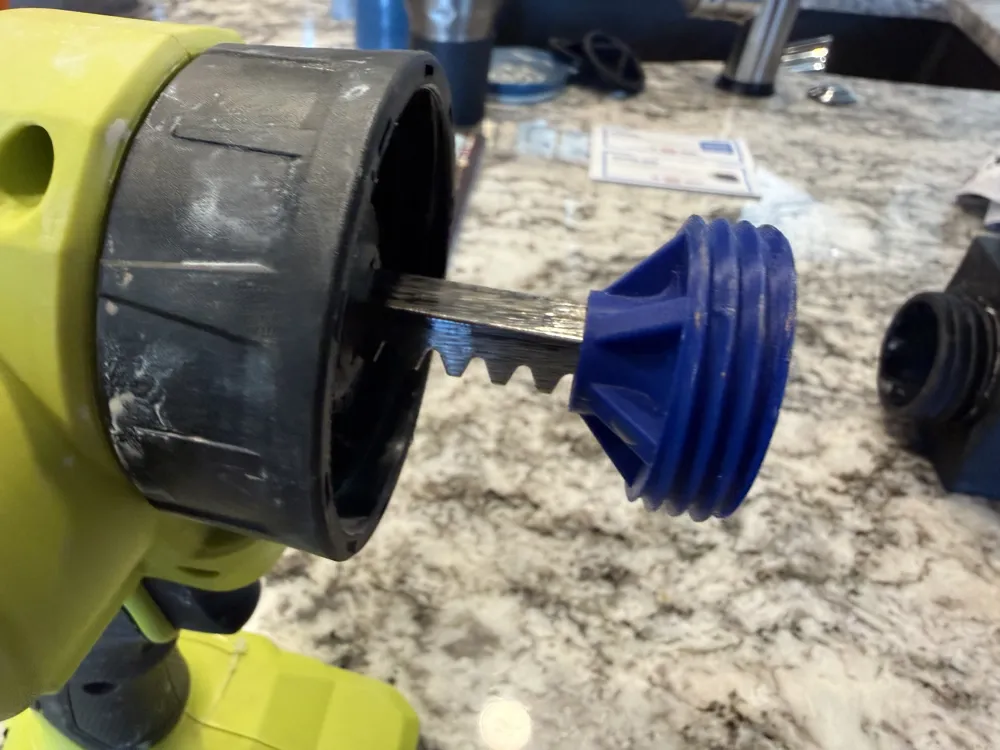

- Extruder Gun - Ryobi Caulk Gun - https://www.ryobitools.com/products/33287195169
- Notes:
- Can usually find it around $50 on sale without battery, if you already have Ryobi one tools. Full kit is usually $130.00-$200.00
- Other options may work, the harbor freight version looks like its the same interface for the caulk tube ($39 without battery). I have not tested to see if this works: https://www.harborfreight.com/20v-caulk-and-adhesive-gun-tool-only-59793.html
European versions use a different tube style so not sure they work.
Tested by user @wbarringer42 with the Dewalt DCE560 as well as the Ryobi.
- Notes:

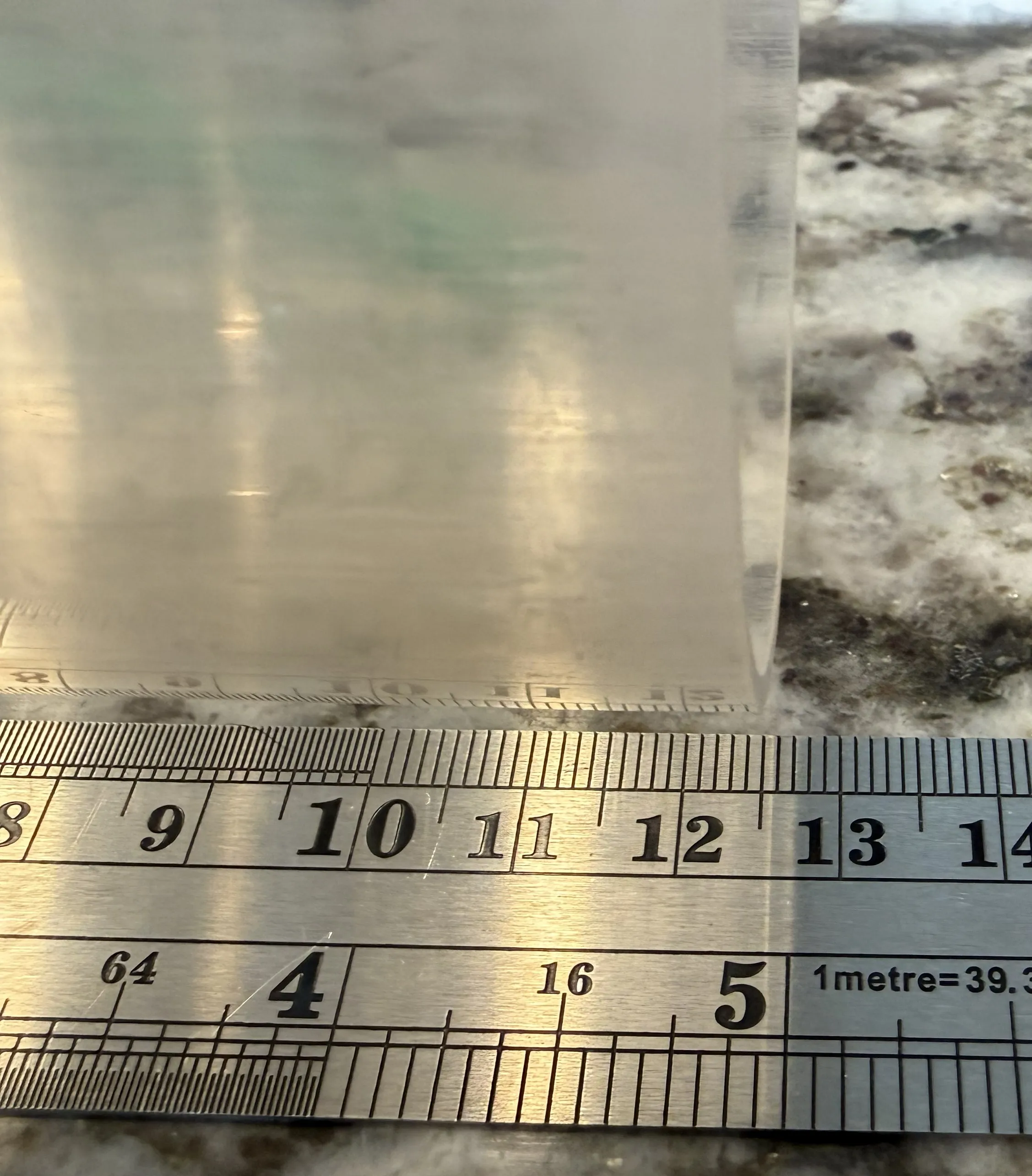

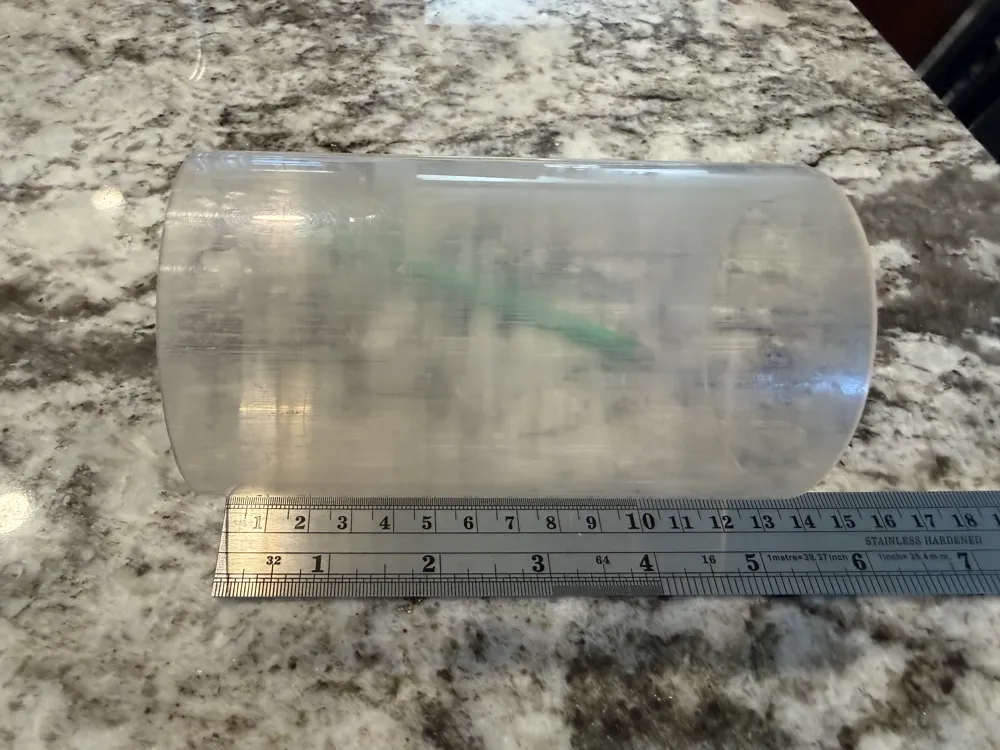

- Extruder Tube - Rigid Polycarbonate Round Tube Clear 2.8"(71mm) ID, 3"(75mm) OD, 17" (425mm) long
- Amazon Link https://a.co/d/08IkMqJ3
- Cut to ~5" (125mm) length. If you cut too long, loading and unloading become more challenging.
- With the part from amazon you can make 3 tubes so you can pre load clay.
Die List
Note: You can message me if you want a different shape, if I have time I may be able to add it to the set. Only have the Test Tile die right now since that is what my wife needed.

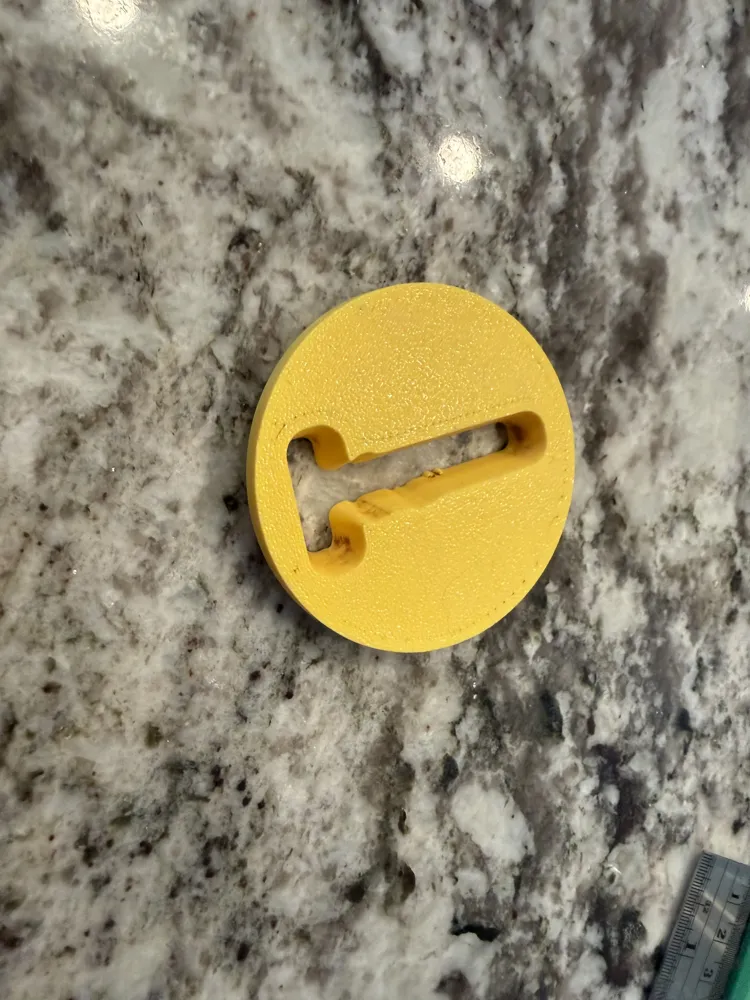

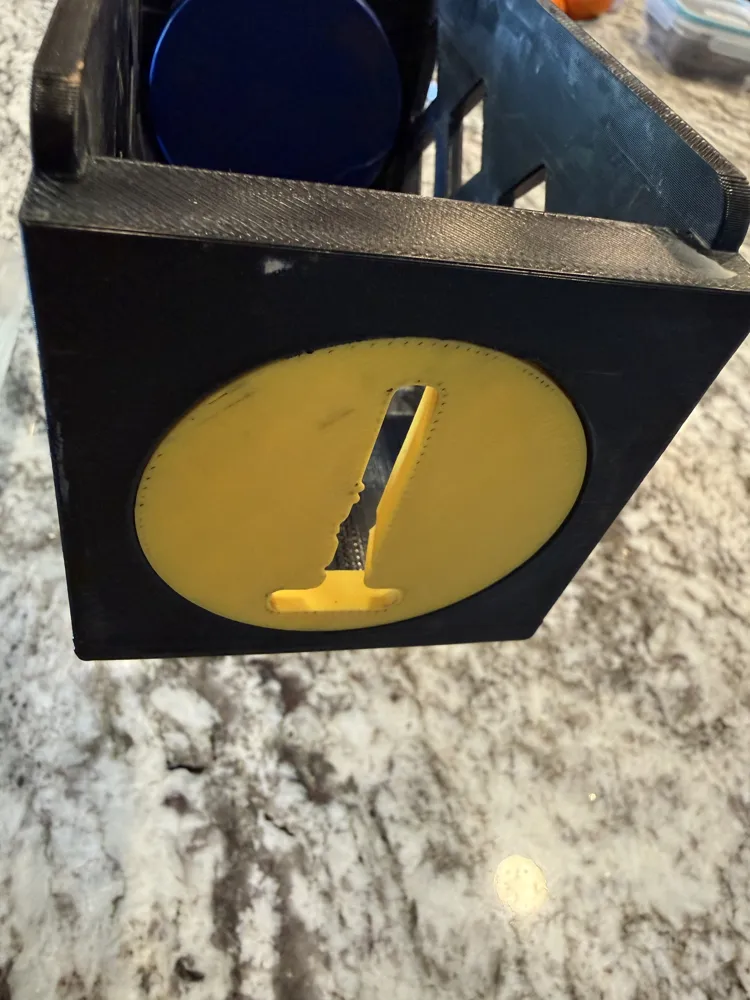

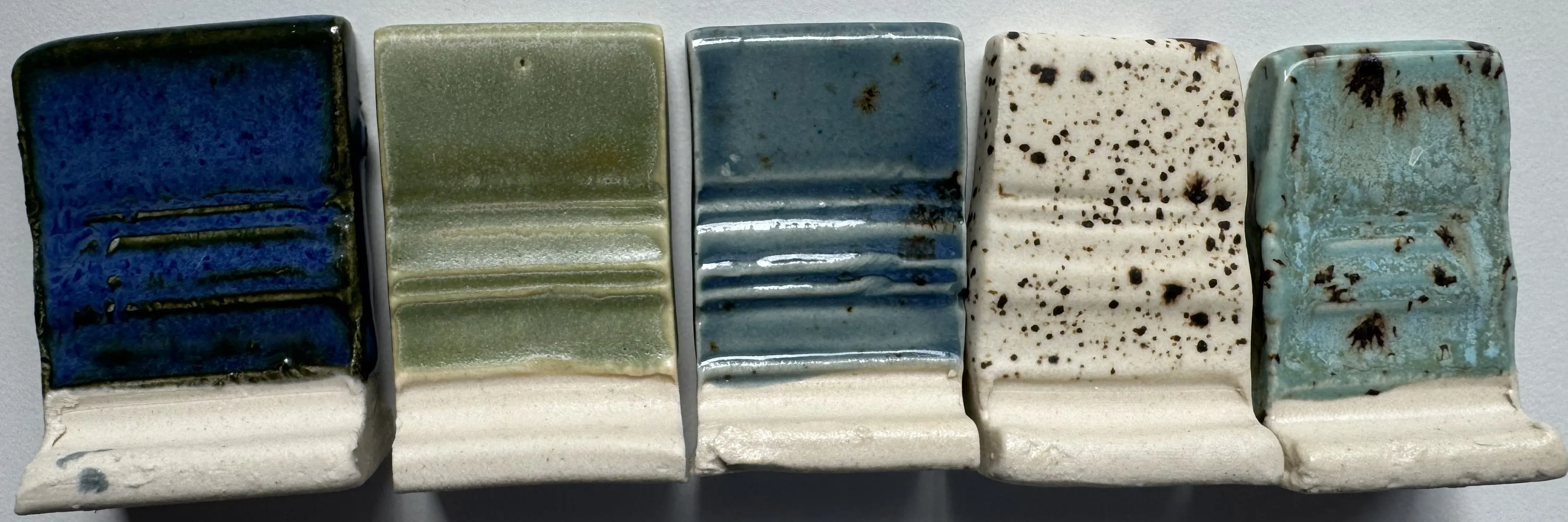

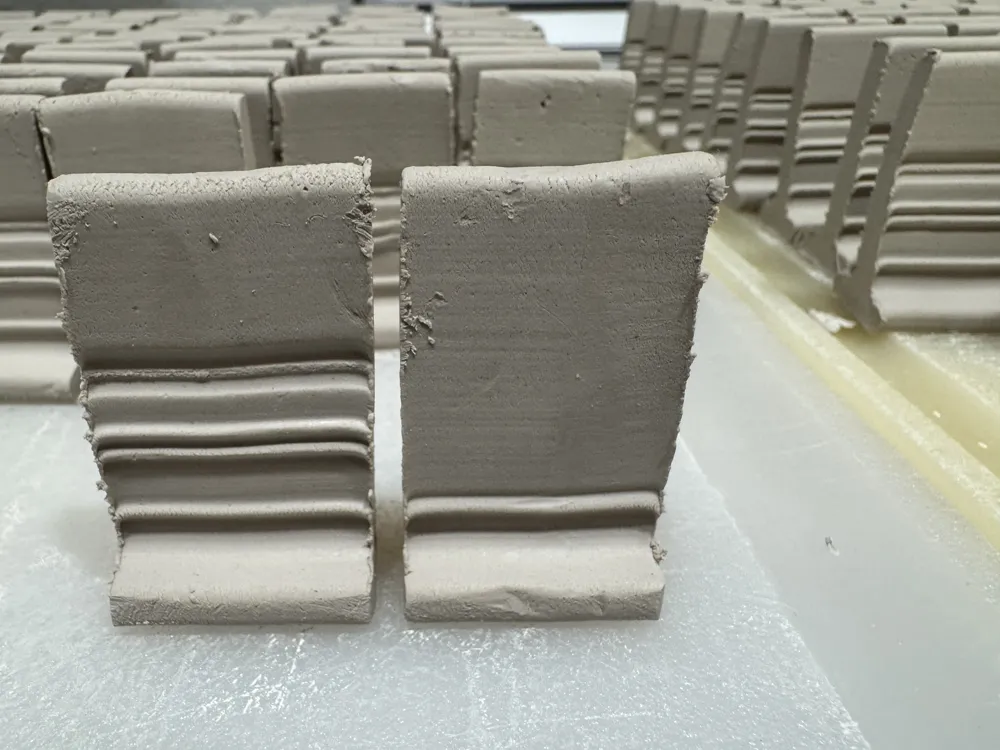

Test Tile Die
2" (50mm) tall with ~1" (22mm) base, ¼" (6mm) thick
Test Tile Die
Blank Die
- Can customize in Bambu Studio or you can program to make any die shape
Handle Die 1
Handle Die 2
Handle Die 3
Other Pottery Tools:
See my other pottery tools: https://makerworld.com/en/collections/18993488-my-pottery-models

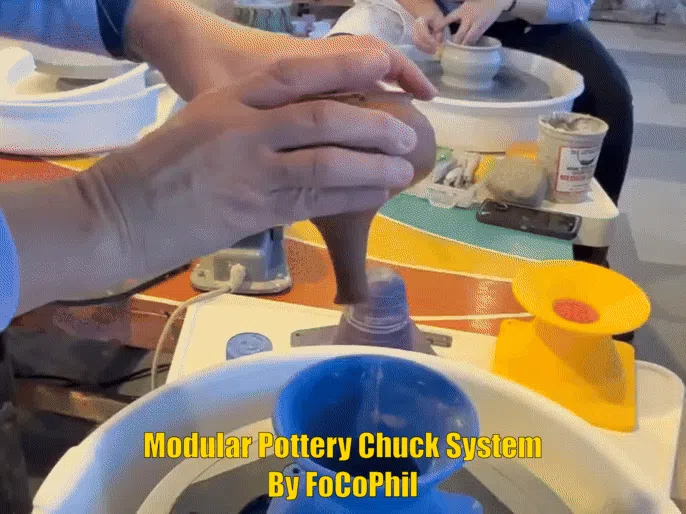

Modular Chuck System: https://makerworld.com/en/models/2372263

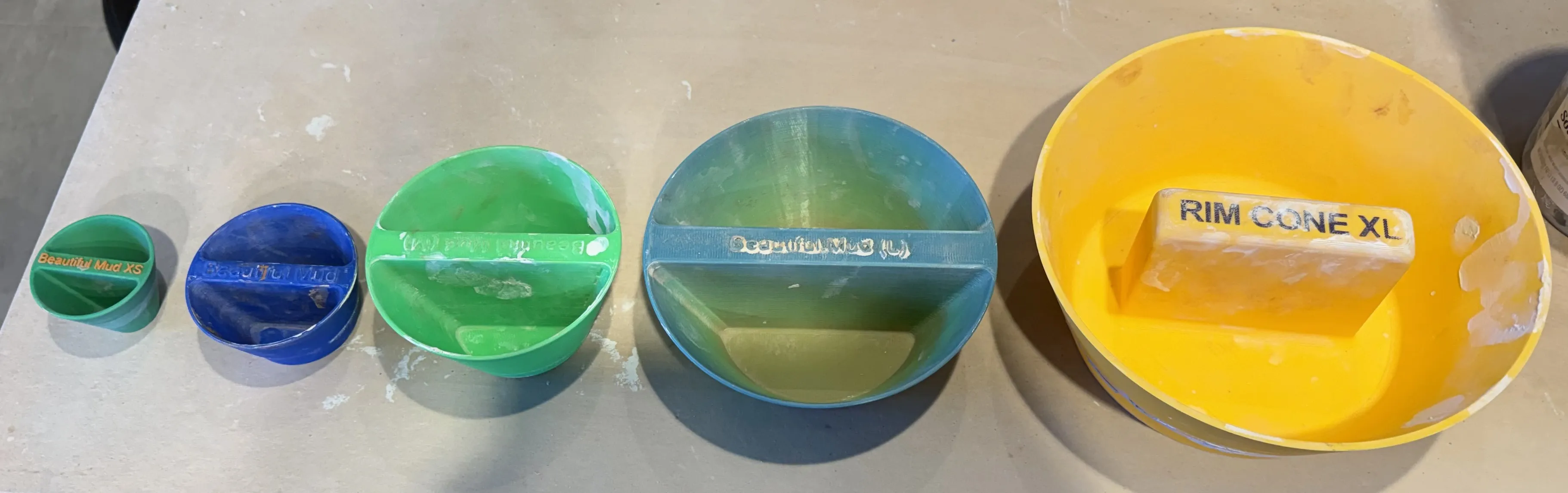

Rim Cone / Rim Rounder Series: https://makerworld.com/en/models/978995
Pottery Compass: https://makerworld.com/en/models/2371604
