Plug and Coupler for 2 inch PVC with O-ring groove

Print Profile(1)

All
P1S
A1
H2D Pro
H2S
P2S
X1E
P1P
H2D
H2C
X1 Carbon
A1 mini
X1
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.8 h
1 plate
4.0(1)

Open in Bambu Studio
Boost
0
9
1
0
20
11
Released

Description

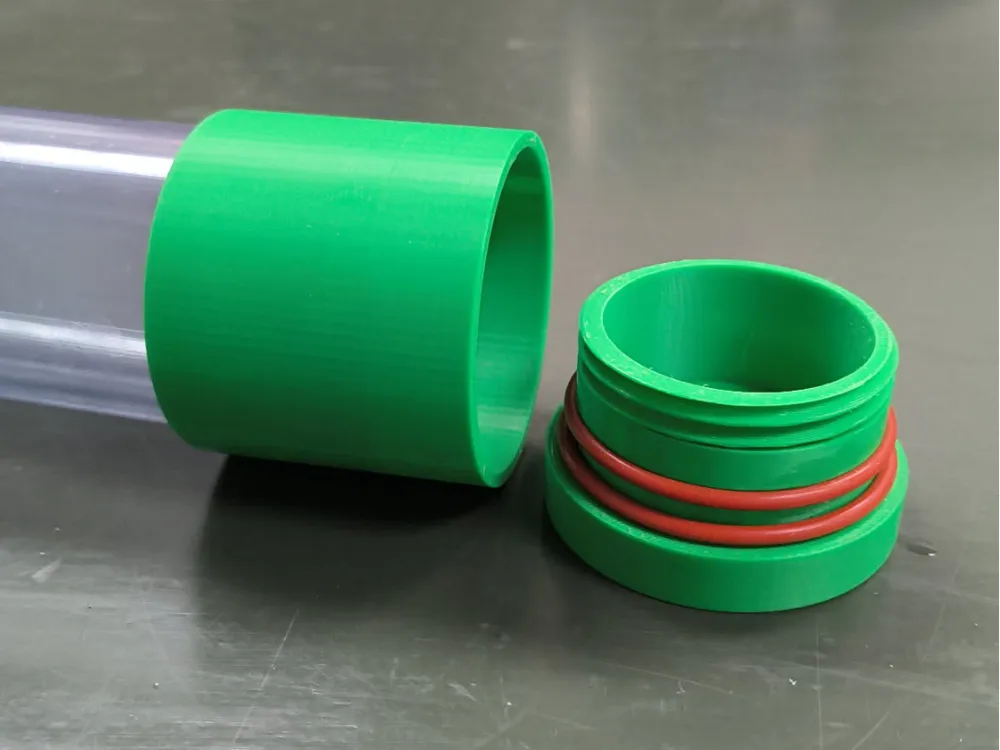

I needed a simple prototype of a PVC coupler and plug with threaded fitting and an O-ring. Produced this with Autodesk 360 and printed the prototype on a Bambu Labs P1S. I think the O-ring groove could be a bit deeper to hold the O-ring better, then the inside of the coupler would need to be a bit tighter to make good contact with the O-ring. Also, I should add some kind of grip to the surface of the plug (knurling). The none plug side is for mating with 2-inch PVC. The opening on that side has a 1.7-degree taper like most PVC couplers to ensure a snug fit. I built this with the intent to provide it to a machinist and have these manufactured from solid PVC.
