Description

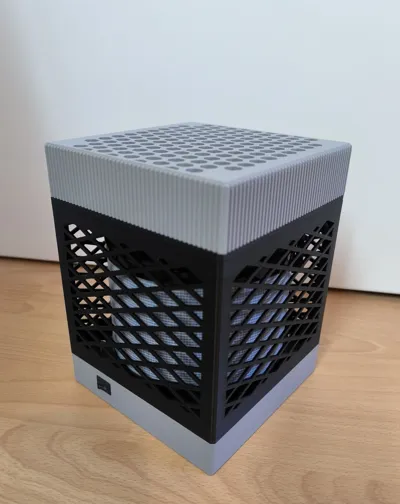

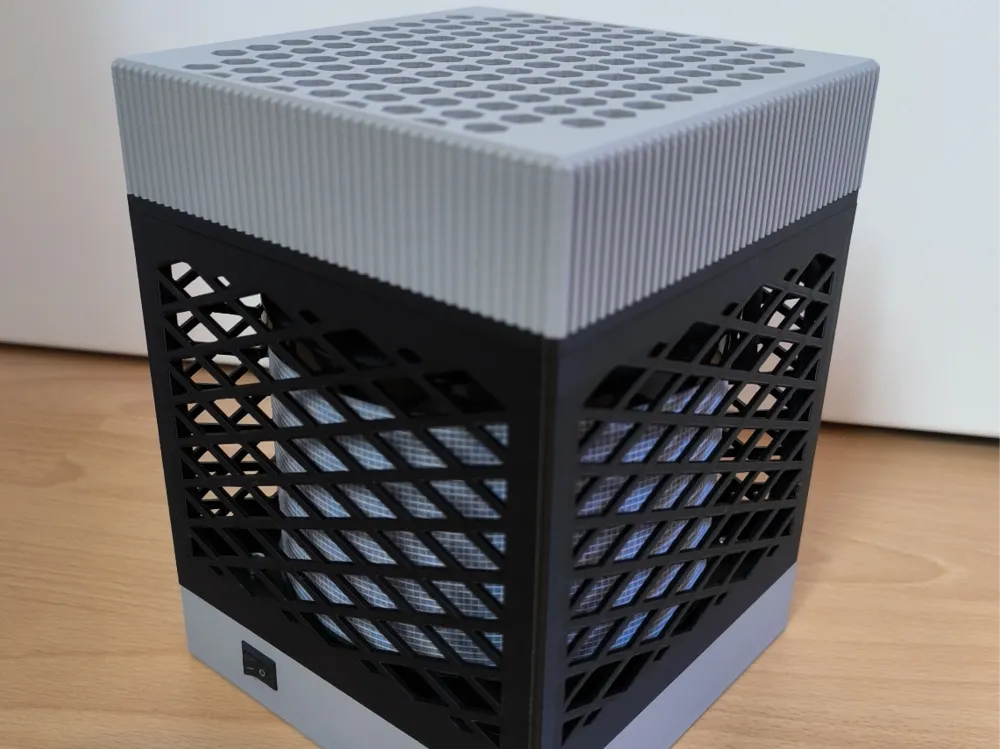

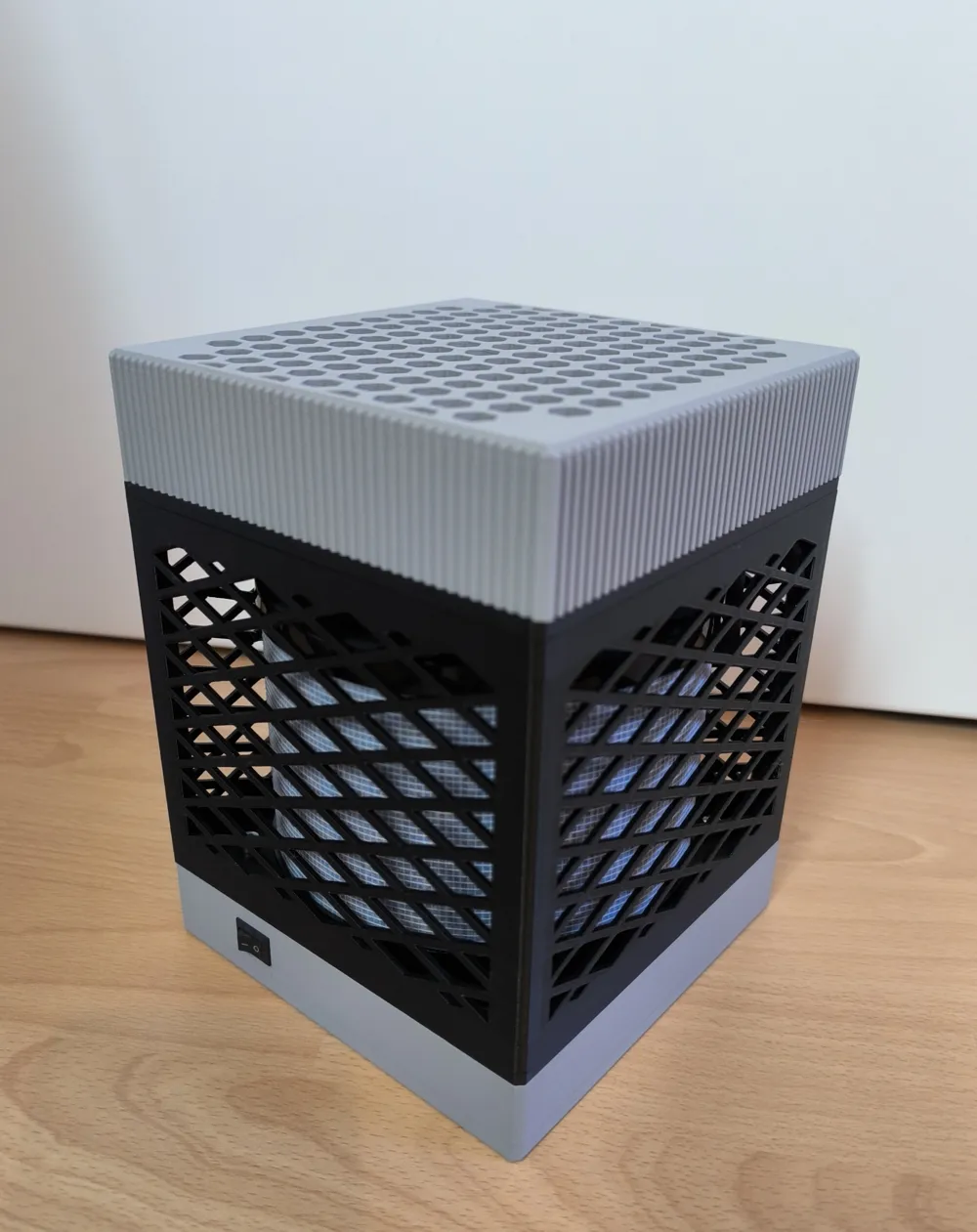

Simple HEPA Filter 2.0
An enhanced version of the simple HEPA filter
- Fan (120 mm): Noctua NF-F12 iPPC-3000 PWM
(Offers very good negative pressure performance Other fans are of course also possible) - Filter: CONOPU Air Purifier Replacement Filter for Air Purifiers DH-JH01 & DH-JH06,
H13 HEPA with activated carbon filter, efficient 4-layer filtration (Amazon)
The Noctua NF-F12 offers sufficient performance for a good result

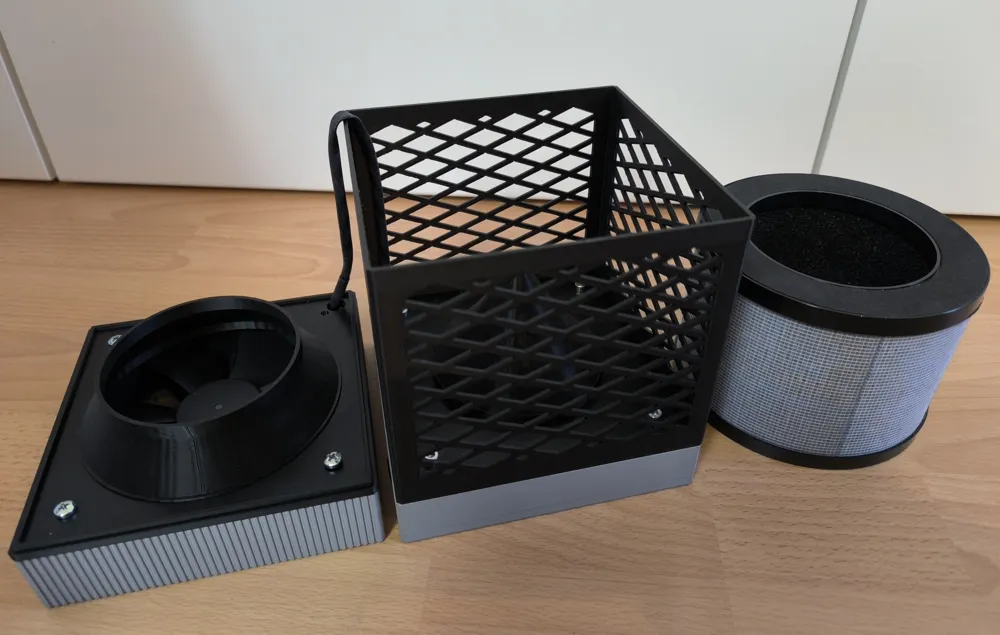

Lid and base plate are available in two designs
Lid and base plate are connected with M4 screws that fit into the M4 heat-set inserts
The assembled lid with fan is simply placed on the middle part
(comes off when lifted; another version that fits more securely may follow)

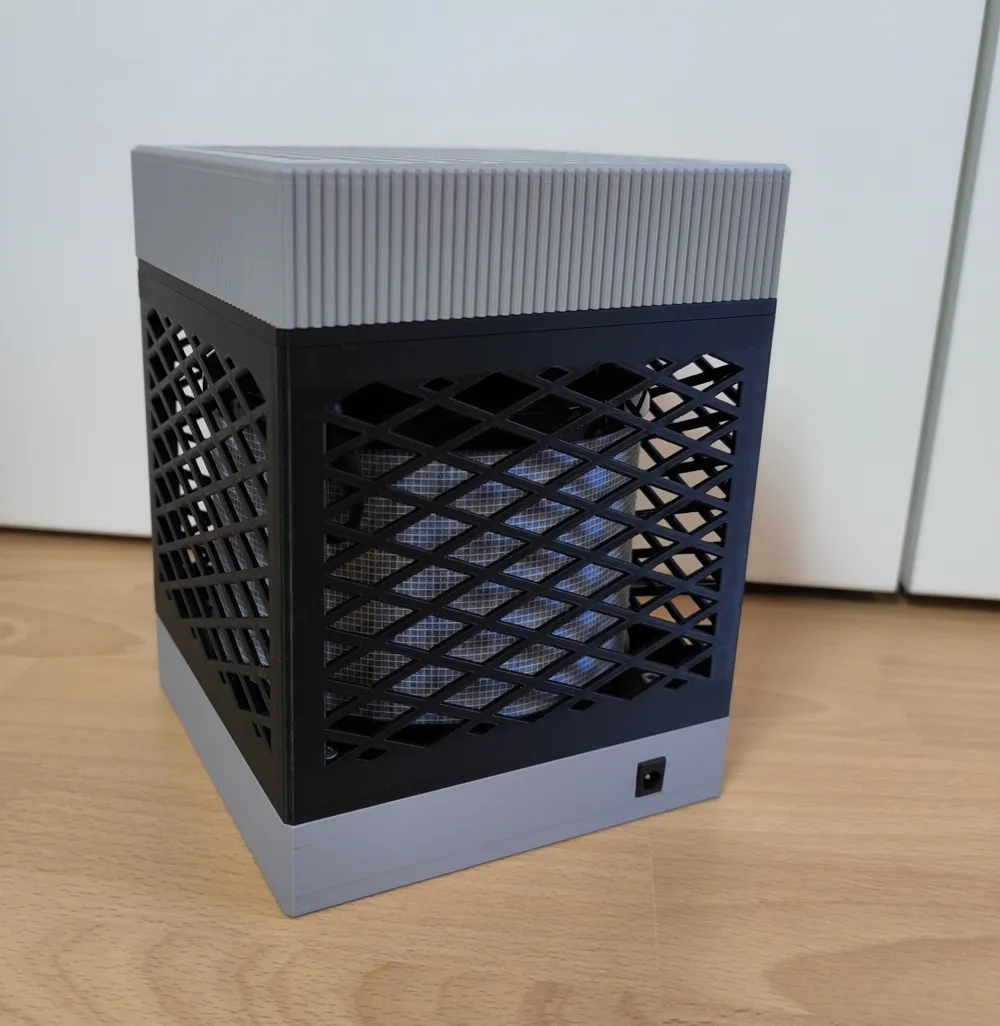

The base plate has space for a NodeMCU, a mini rocker switch for turning it on and off, and a 3.5mm DC panel mount jack for power supply
The base plate is being further developed so that fan control and sensors will also fit into it in the future
