⛳ 3D Printed Mini Golf
I couldn't find a full-size mini golf course to play, so I decided to design and make my own, completely 3D printable. The project is designed to be easy to print, support-free, and compatible with standard-sized printers
🖨️ Printer Compatibility
Designed for printers with a minimum volume of:
220 x 220 x 250 mm
Tested on:
✅ Elegoo Neptune 3
⚙️ Recommended Print Settings
These settings work for all parts:
- Layer height: 0.2 mm (recommended)
- 3 top layers
- 3 bottom layers
- 3 perimeters
- 10% infill
- No supports
- Adhesion: optional (brim recommended only if your printer needs it)
🧱 Materials
The project was fully tested with:
✅ PLA
Can also be printed with:
- PETG
- ABS
- Other materials compatible with your printer
📏 Dimensions

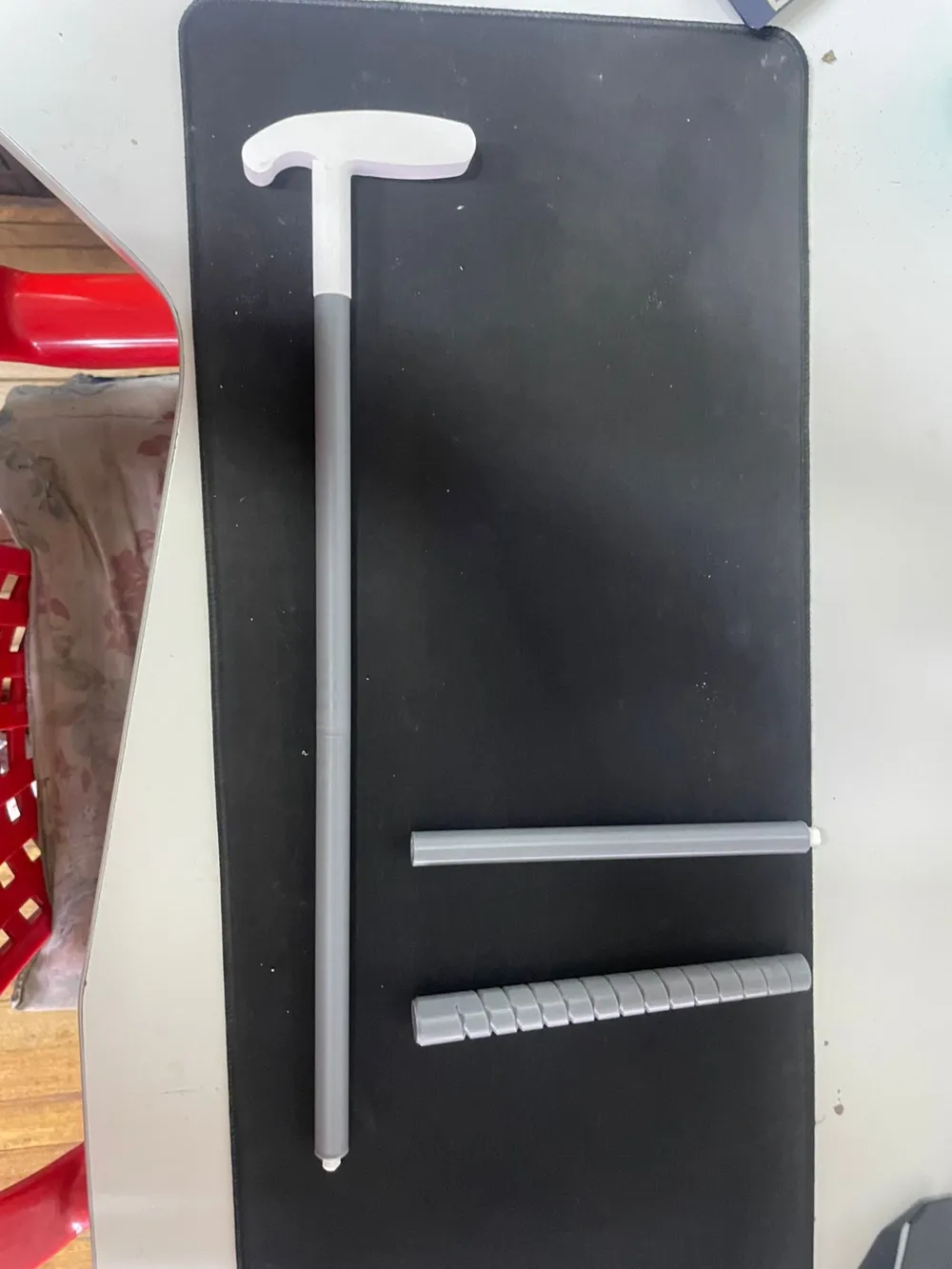

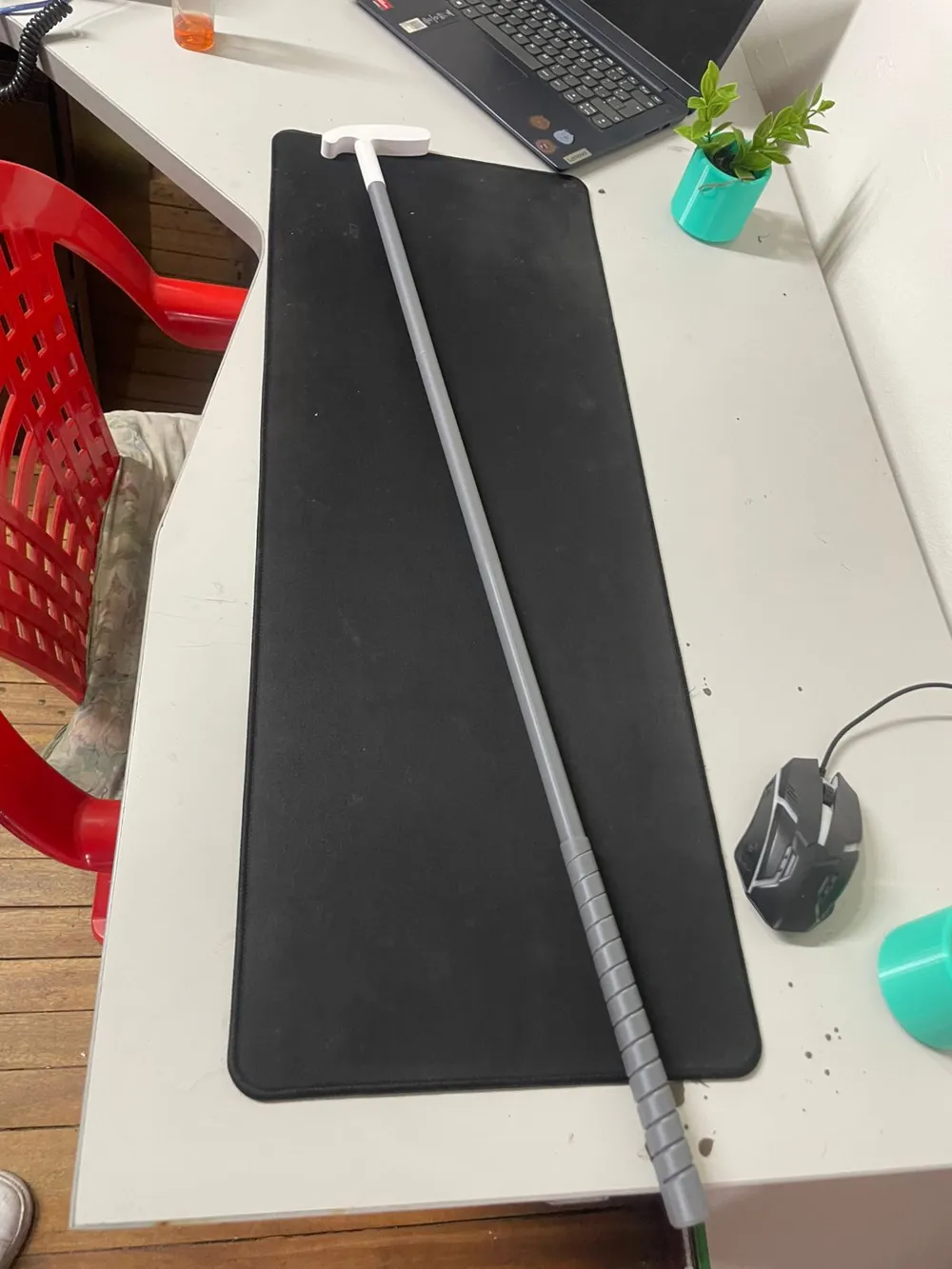

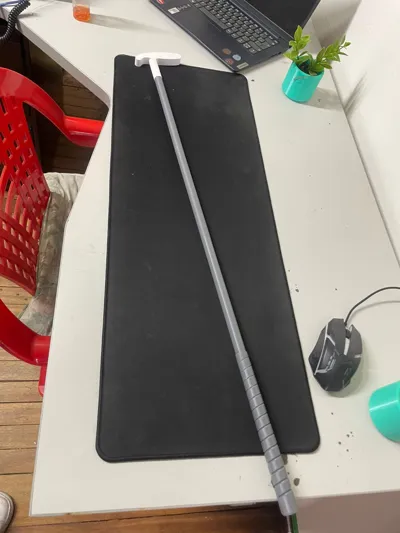

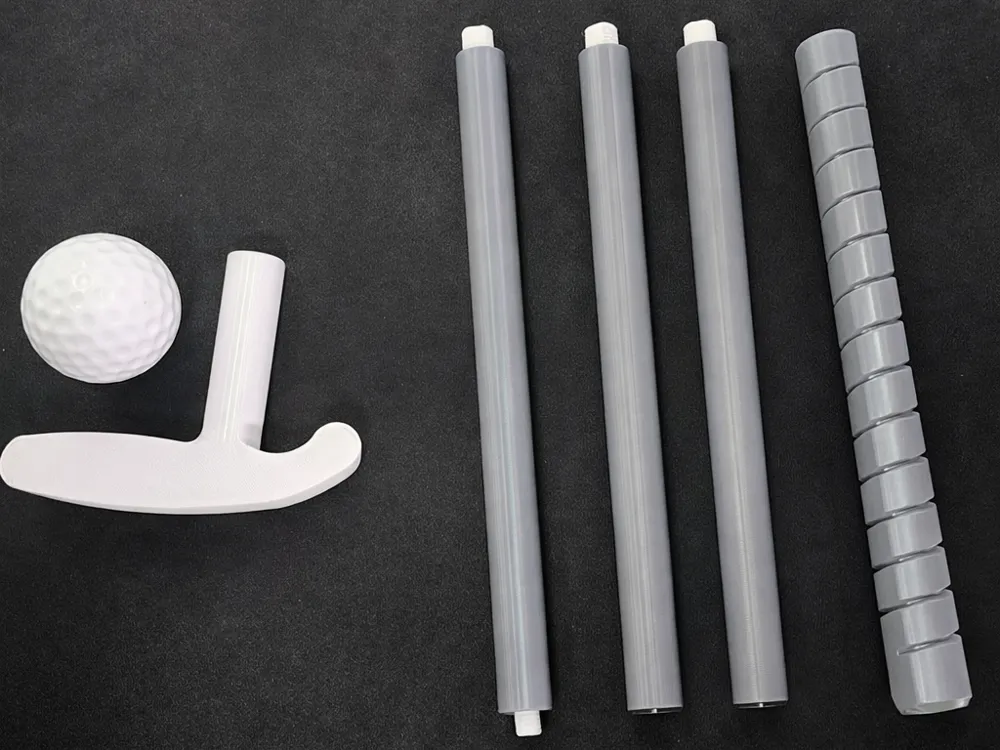

- Total club length: 93 cm

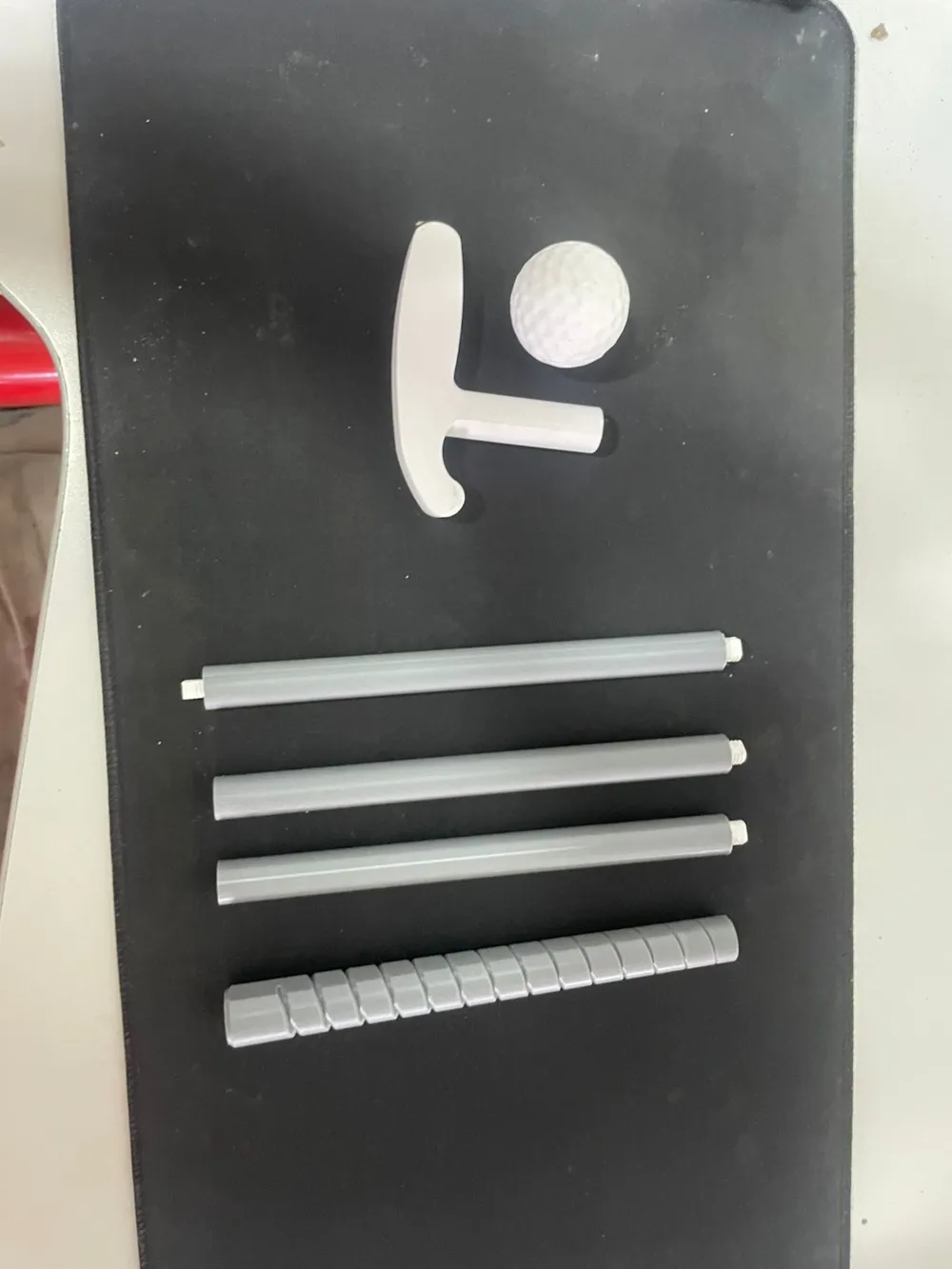

- Includes alternative connecting tubes to adjust club length
🧩 Assembly
- All parts are designed for simple assembly
- May require manual pressure to fit joints
- Glue can be used for greater firmness (optional)
🔄 Print Orientation

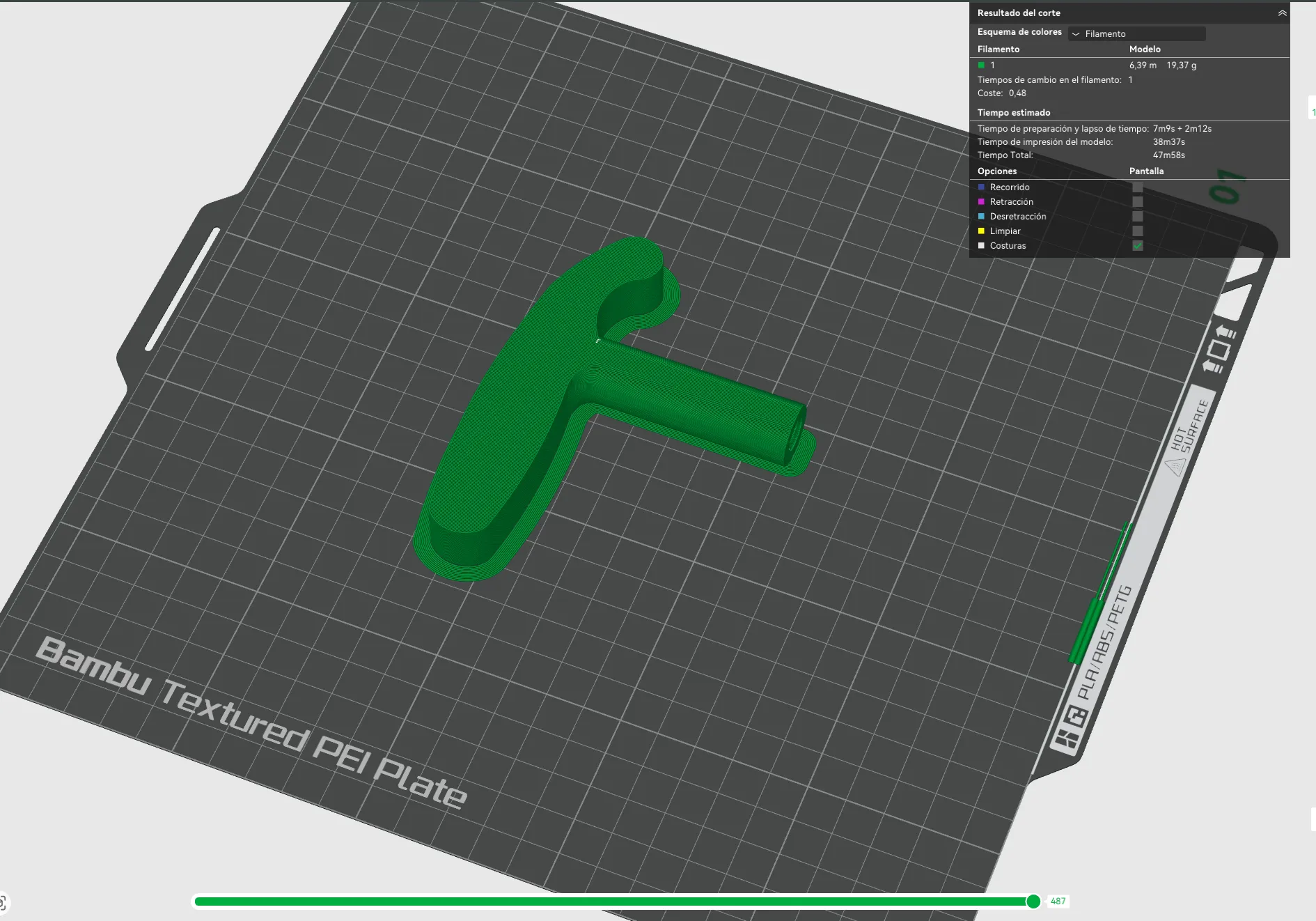

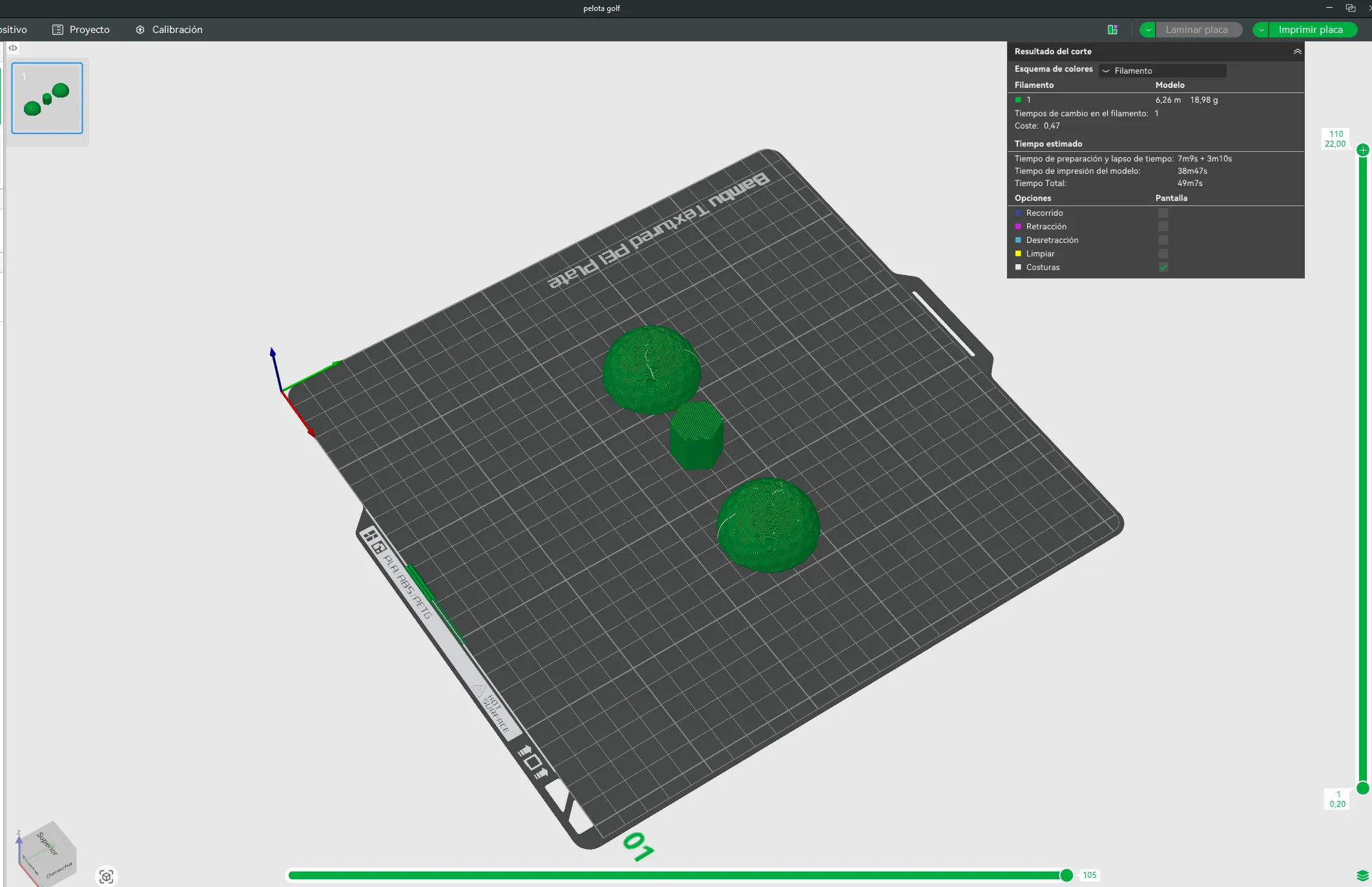

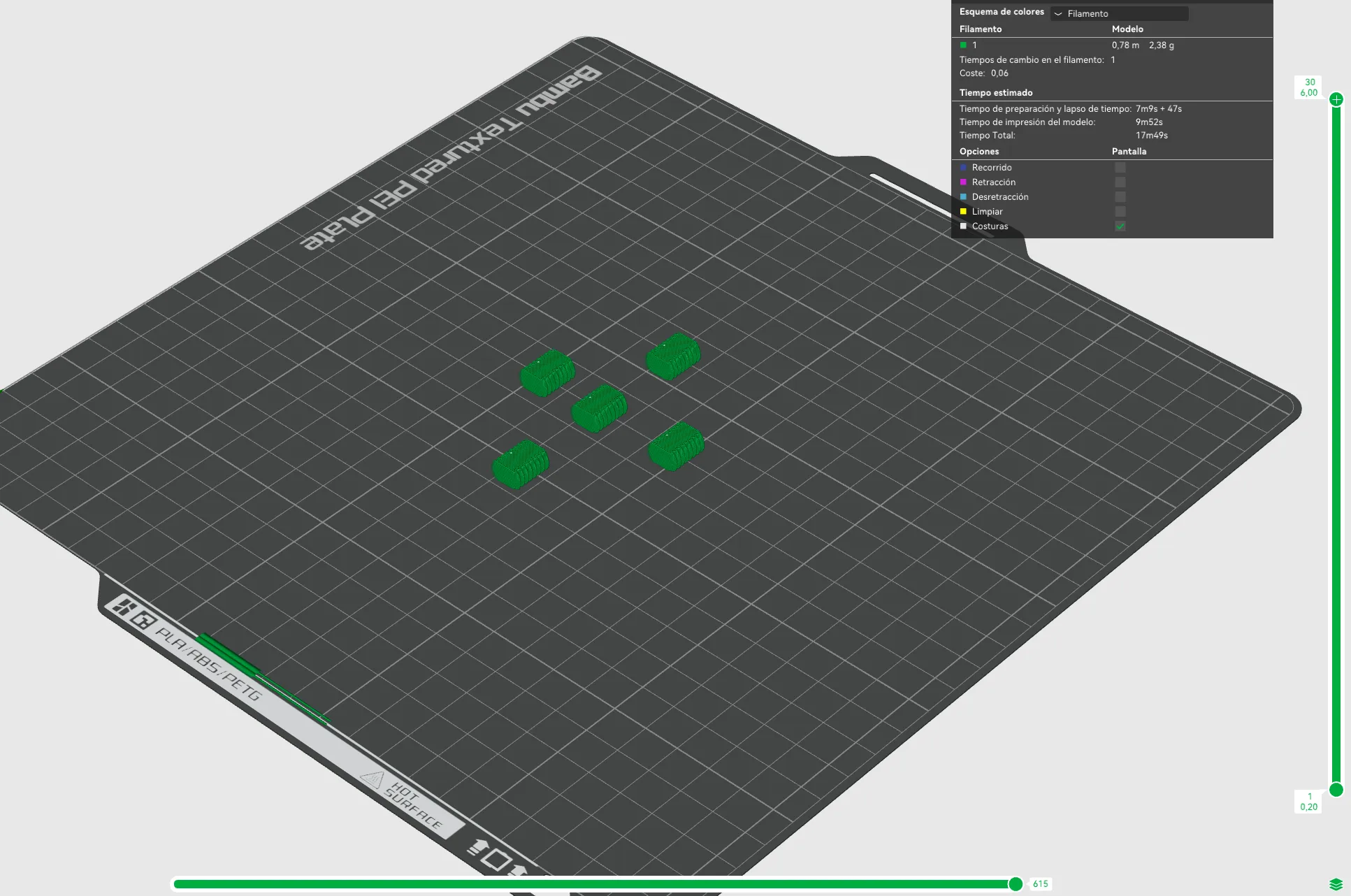

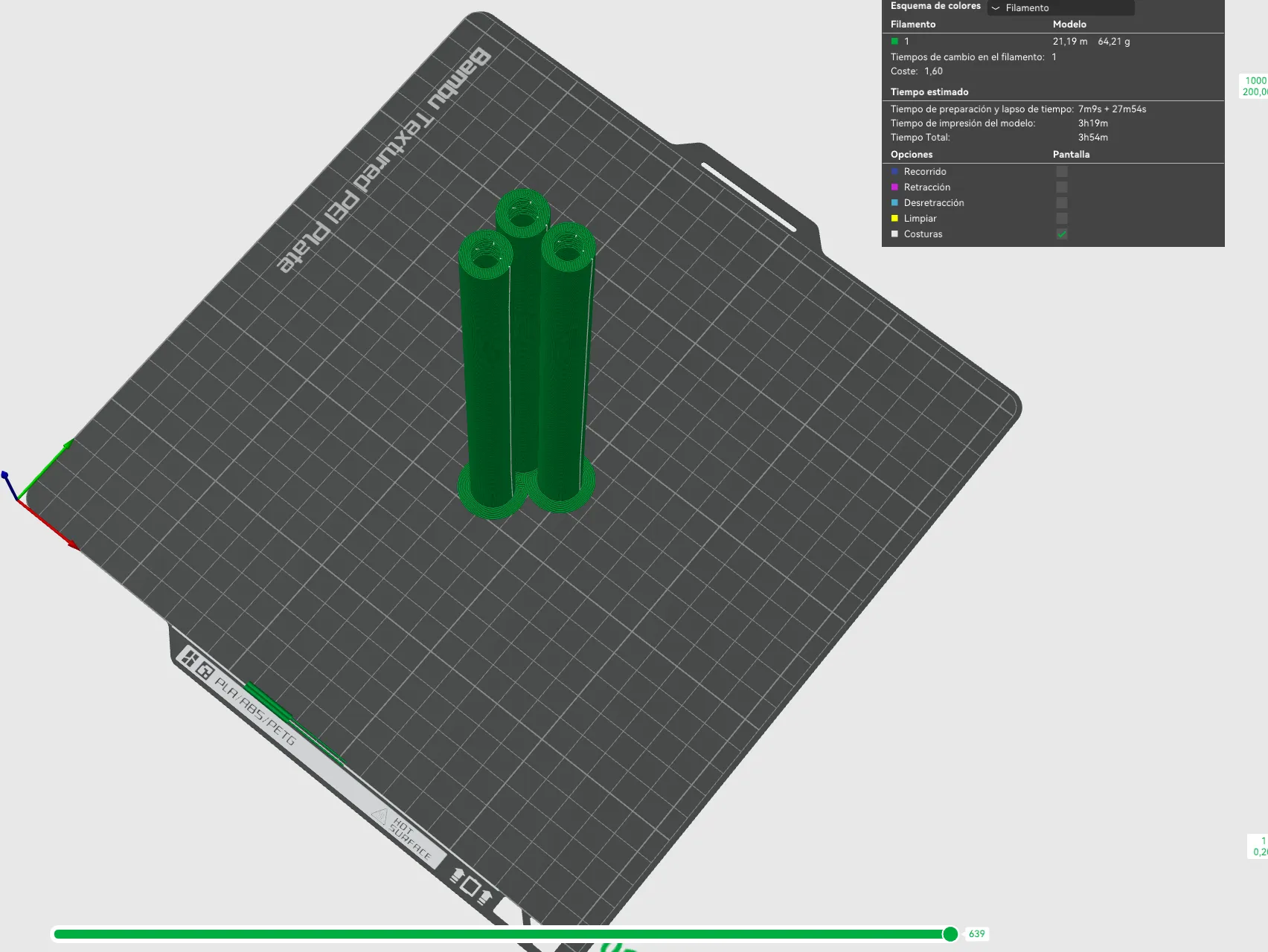

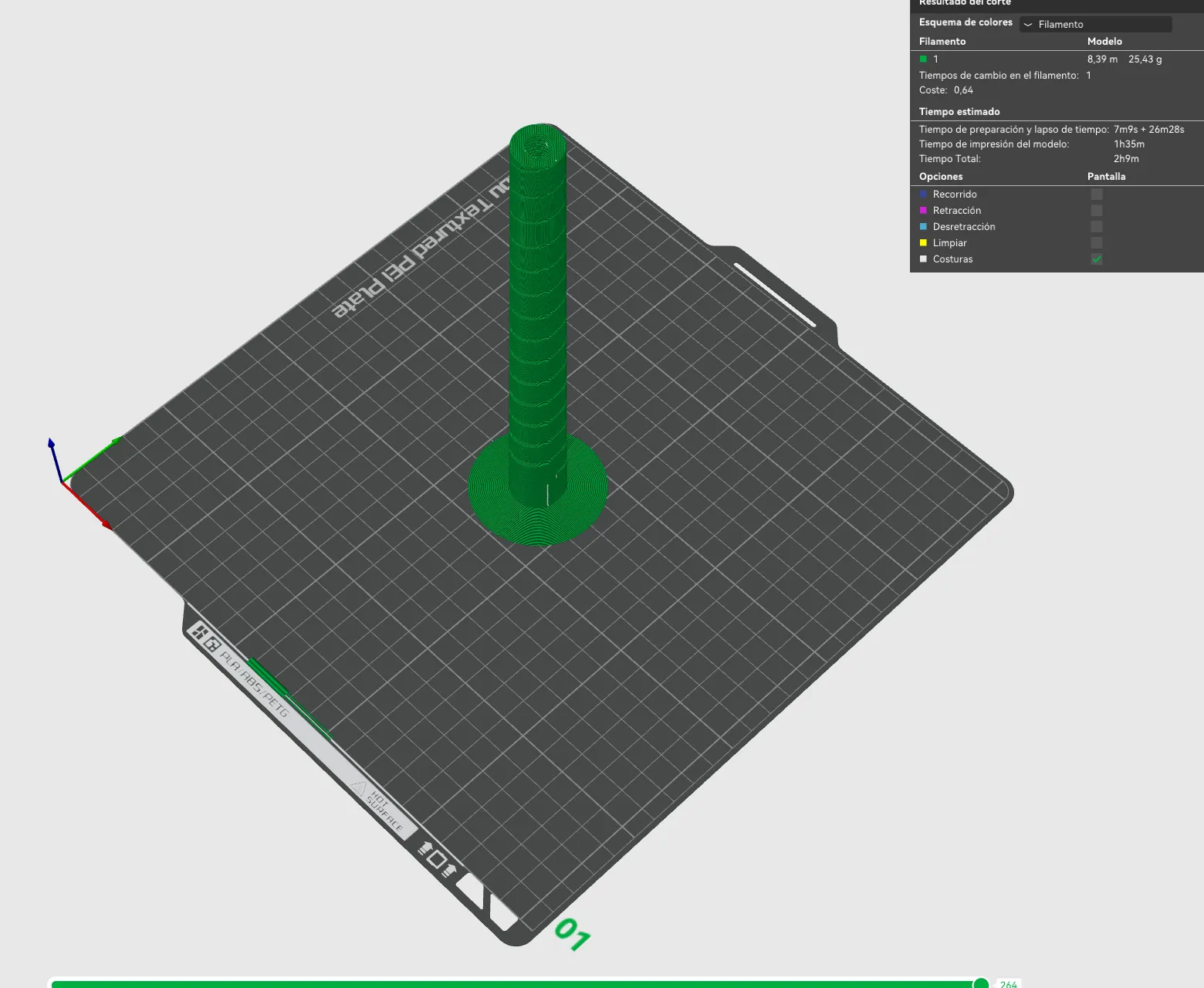

Reference images for the correct orientation of each part are included. Following this orientation helps with:
✔ Better structural strength
✔ Better surface finish
✔ Reduced print times
⚠️ Recommendations
- Check tolerances according to your printer's calibration
- If joints are too tight, slight sanding may be required
- Print a test piece first if you want to check adjustments
🎯 Project Goal
To create a functional, accessible, and easy-to-manufacture mini golf course using home 3D printers
❤️ If you liked the model
- Like it 👍
- Share your prints
- Upload makes or remixes
- Any feedback is welcome
