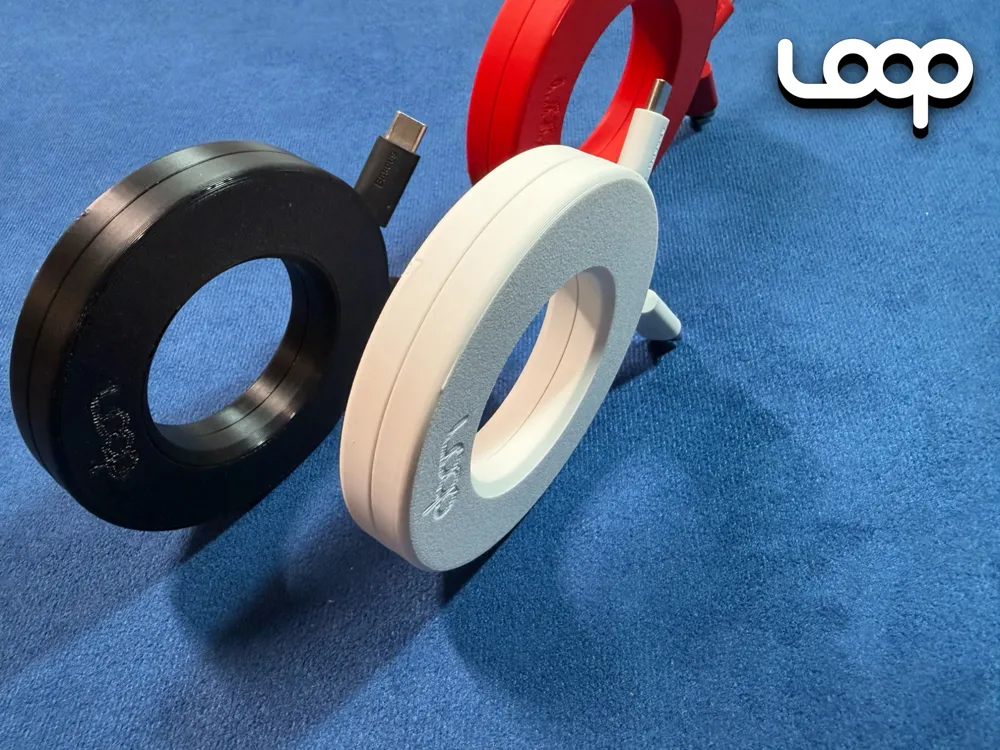

Welcome to LOOP, a storage series completely different from TRAC. If you've used the TRAC series before, you'll definitely love LOOP!

Tested with Bambu PLA & PETG

If you want to know, here's the story:

During the same period as the TRAC series, I was also contemplating a storage solution that could completely enclose cables. I've looked into many similar solutions, most of which use a rotating shaft to secure the cable's midpoint, and by turning the shaft, the cables on both sides wrap around. In summary, they generally have the following pain points

When installing cables, the storage device needs to be disassembled, and the same applies when fully removing cables
To reduce volume, cables are severely twisted and compressed internally, with bending angles exceeding 90 degrees (I admit the TRAC series also has this issue)
To synchronize storage at both ends, the cable's midpoint needs to be fixed at the pivot during installation, and even then, the lengths of both ends might not be synchronized after winding
...

Okay, starting from the list above, plus the experience I was forced to gain from the TRAC project

Universal size, no longer wanting to create a separate model for each cable size
Provide as few print profile options as possible. I know some people choose not to read the model description and directly use the first print profile, then come back to complain that the size is unsuitable... of course, they won't see these complaints either...
Needs an additional storage solution for the storage itself

In summary, plus losing some hair, and then LOOP was born

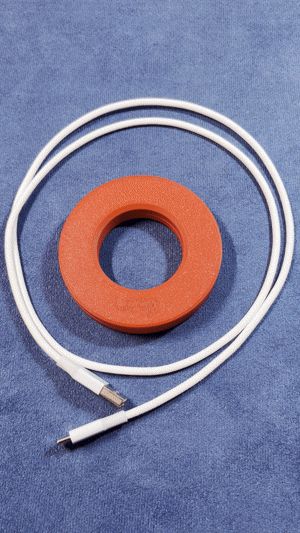

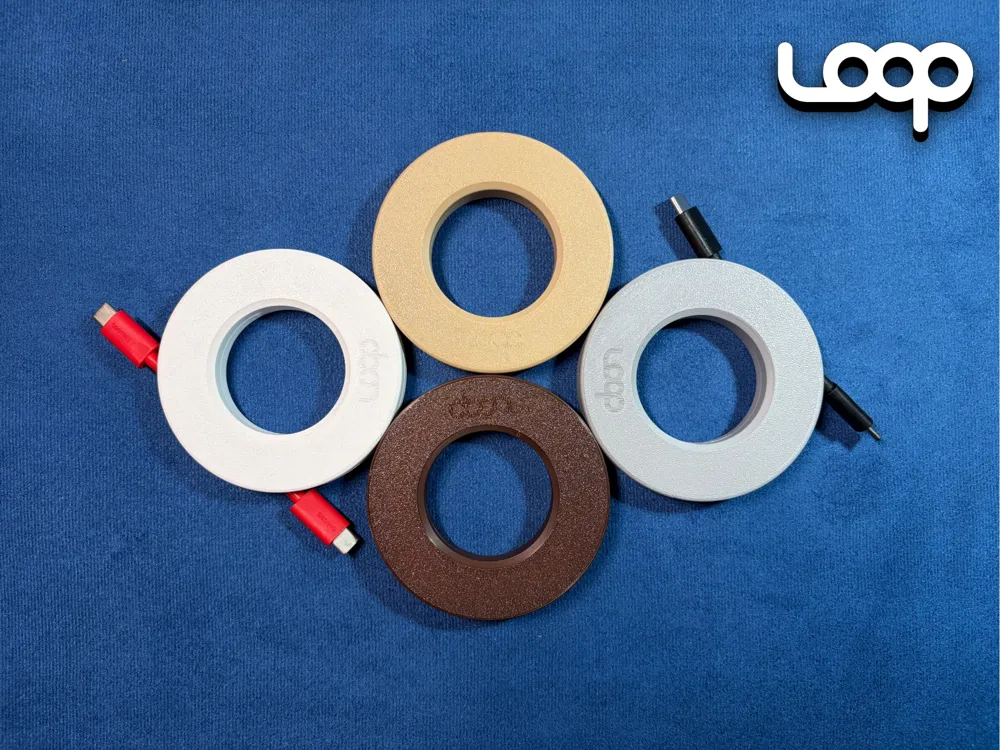

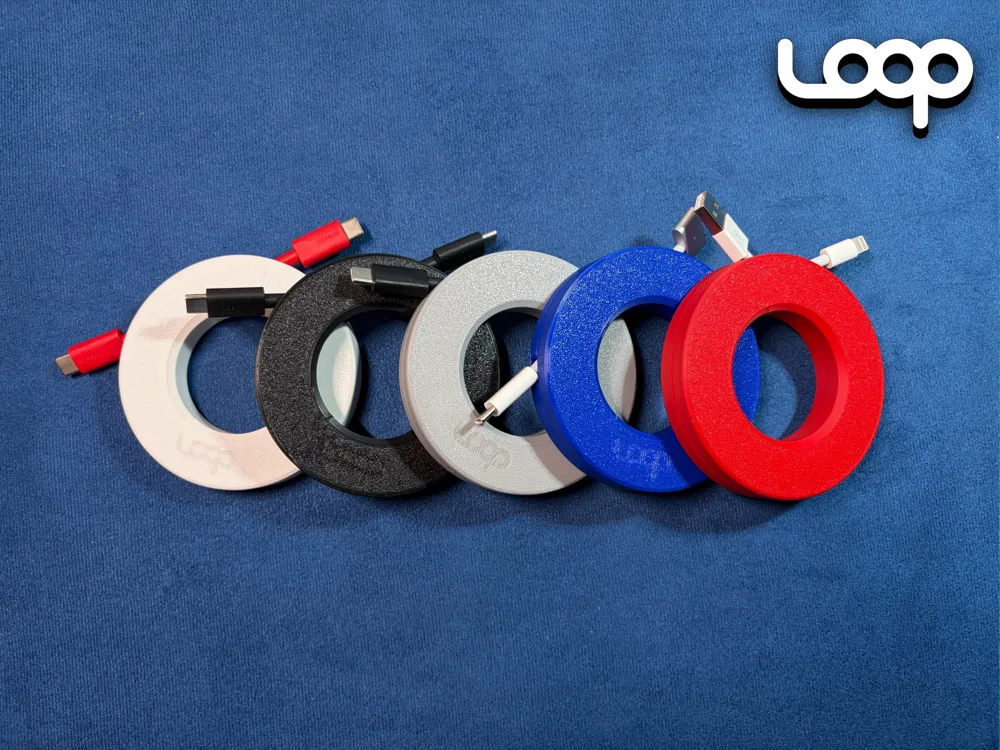

General description: Suitable for cables with a diameter under 4mm and length of 1m
Braided cables are recommended, as they have a more uniform diameter and less friction (Tested with a 3.4mm diameter, 2m long Macbook Pro charging cable, which can be fully stored in LOOP. This should be the limit for this version of LOOP to store a 2m cable. It's estimated that for a 2m non-braided cable to be fully stored, its diameter needs to be less than 3.2mm. Apologies, I don't have a suitable cable for actual testing)
Minimize twisting and compression; cables remain in a naturally curved state inside

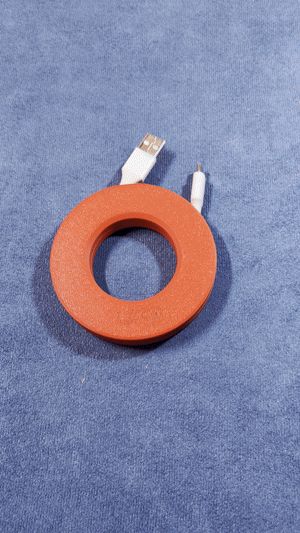

Installing and removing cables does not require disassembling the model
Either end of the cable can be independently and quickly adjusted

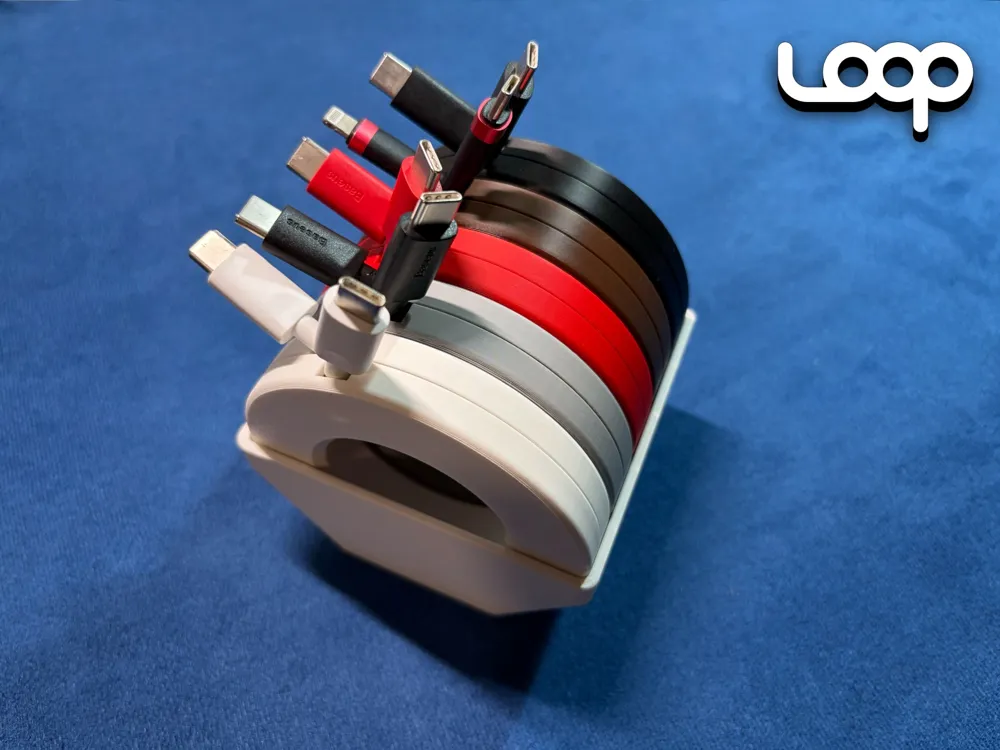

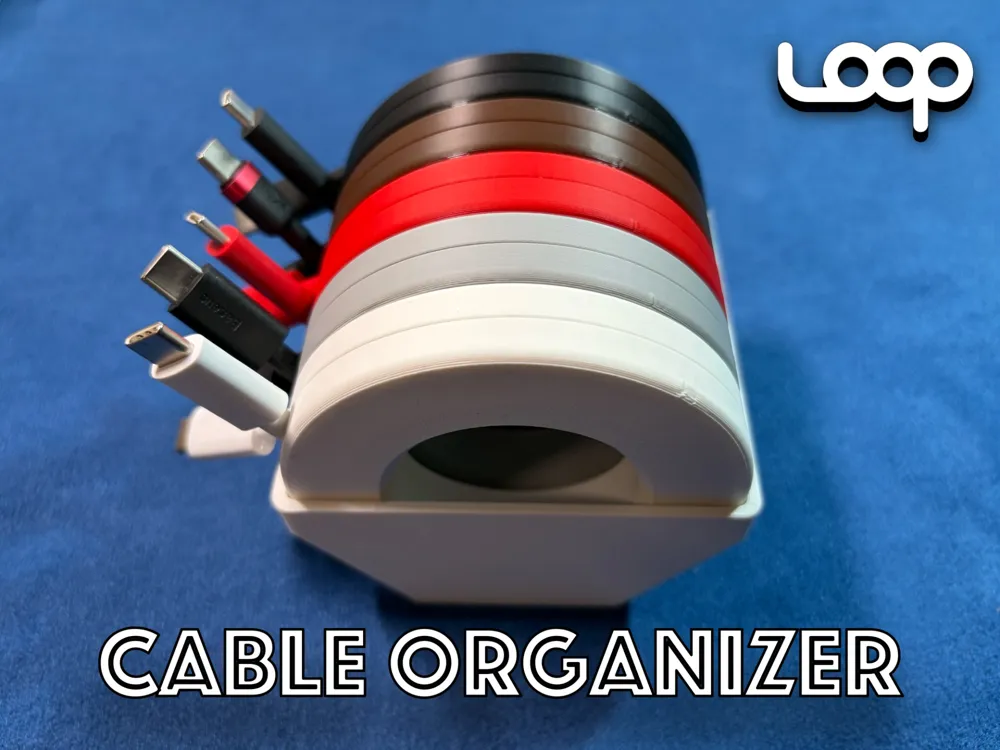

The universal size is very friendly for creating storage for LOOP, and the LOOP BOX is already on its way

Take care of your cables!

One more thing:

In memory of the filaments sacrificed to this project!

Boost Me (for free)

Feel free to share your actual usage results. Drop a comment if you have any suggestions or inspiration 🙏

// More Designs：

Boost Me (for free)

Would really appreciate a boost! 🙏

Comment & Rating (148)

@AlleyBear

Boosted

Print Profile

LOOP v1.0

Absolutely fantastic design. Once I saw it , I knew this was the one. Any plans for a larger model for longer cables?

The profile uploader has replied

@taurustao

Thank you for the boost!🙏. As for longer cables, it can be done by shrinking the inner circle while doesn't change the overall size, it is on my todo list already. Thank you again for the input🙏

(Edited)

@tonytonk

Replying to @taurustao :

Was wondering the same thing, my print just finished and came back to see if there was an stl for a larger size... saw this comment and reply were 12 hours ago and then realized you only posted this design like a week ago haha! Super awesome design, works very well. Definitely the best cable organizer ive seen.

(Edited)

@taurustao

Replying to @tonytonk :

It is done, please check it out.🙏 https://makerworld.com/en/models/2336833

(Edited)

@AgentJeremiah

Idea is great forsure and the compact size, but the execution, at least in my large-dry & slippery finger'd opinion, is the most frustrating design ever! I even attempted to add texture to the design to help grab the LOOP, but trying to adjust with my large hands/fingers was absolutely frustrating, as each time my fingers passed each other while winding, they bumped the others off the LOOP, causing me to drop the LOOP. I also probably made the mistake of using SILK filament, to keep the surface smooth for winding. So, large hands or no patience, stay clear but it was a quick print & it did work as advertised. There is another single-sided cord wrapping design out there, but its almot double the thickness (but the one pictured is for long cords, which adds to the size) worked for those of us w/ normal hand sizes, although not a fan of the internal twist mechanism as it's hard on the finger tips. If I had Ken doll-size fingers, this LOOP might have worked better, but I don't.

(Edited)

The designer has replied

@taurustao

From my experience, while silk filaments yield smoother 3D-printed surfaces, they also create tighter interconnections between parts — which may compromise the smooth rotation of moving components. On another note, if you find it awkward to grip the piece with your fingers, I’d suggest clamping it between the palms of both hands. You can still spin it smoothly this way, just like this gesture 🙏

@Emajin

I kind of ran into a similar problem. I sort of solved it by sandwiching it between my palms and twistying in opposite directions each side, using my thumb (usually) to hold the cable ends from hitting each other. I do think some kind of knurling or ridges along the outside edges may help, but I also like the smooth clean look.. Am torn.

@taurustao

This should work better for you, please try it out. https://makerworld.com/en/models/2665461

@user_1852977312

Print Profile

LOOP v1.0

Great! I'm ready to print many of them~ Excuse me, is there a configuration model for the storage box

Show original

@snowblind

this is great. you should definitely make a design that looks like filament spools. Then make a mini holder for them that looks like an AMS!! 😂 I would 100% be printing that too! haha

The designer has replied

@taurustao

Finally, the first step, wish you like it.😄

@snowblind

Replying to @taurustao :

going to print this as soon as I get home!

@snowblind

Replying to @snowblind :

Absolutely love it!

@Amidala_501st

Print Profile

LOOP v1.0

Funktioniert einwandfrei

@user_2045011688

Print Profile

LOOP v1.0

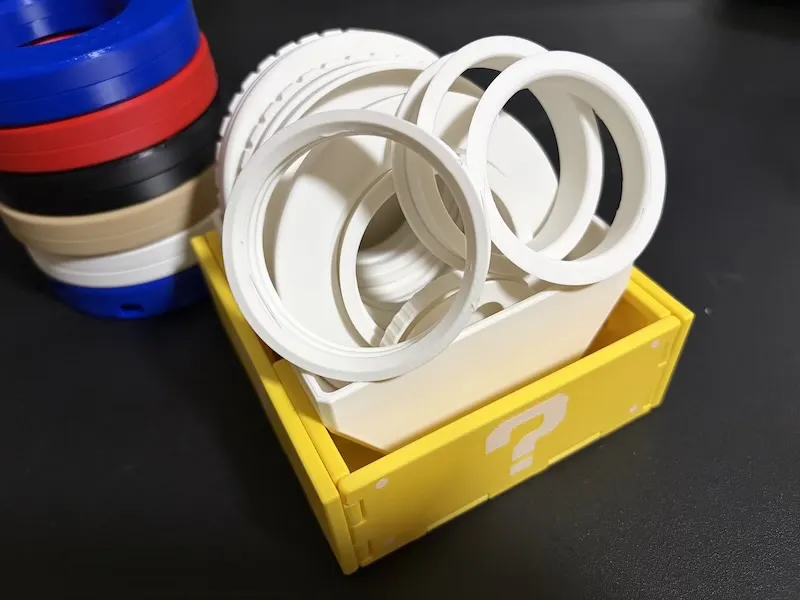

This is really easy to use, I originally just wanted to print one or two to try the feel, but I ended up printing a bunch~ (^_^)a Also, because it's modular, I used Vaseline as a lubricant. If there's any room for improvement, it's that if possible, it could be shaped, like metal knurling, it might be easier to operate, this is really too slippery now~

(Edited)

Show original

@user_3559126376

Print Profile

LOOP v1.0

Perfect and very practical model! The print is simply superb with a beautiful finish quality, certainly the best object for storing your cables, and it does not twist them unlike most other similar 3D models you can find. Use may seem complicated at first, but after a few uses, you quickly get the hang of it. Thank you very much and congratulations on this model! 🙂

Show original

@VDoubleUVR6

Boosted

Print Profile

LOOP v1.0

such an awesome print!!! scaled it a little smaller to use with another storage print that fits on a smal side shelf on my adjustable desk. no issues in petg

@LetMe_Print

Print Profile

LOOP v1.0

It’s so simple yet so effective! :-) I love your “internal” solution.

@user_1483505135

Boosted

this is brilliant!!!!

Show original
