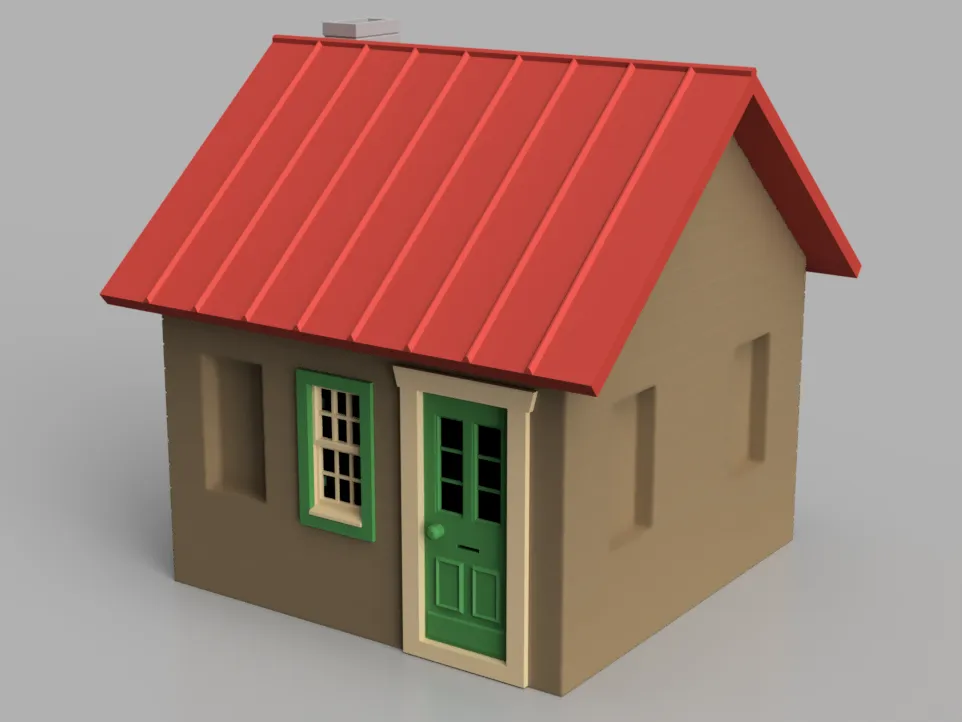

Simple House

Simple model that can be printed and assembled with no glue.

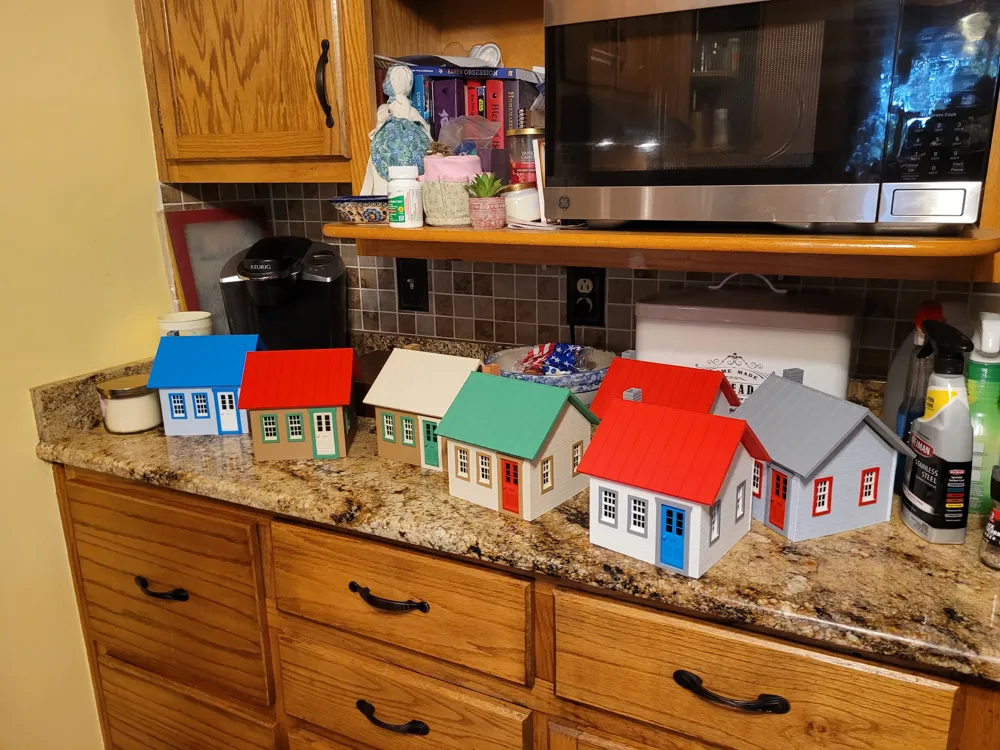

This was used as part of a fundraiser for “Homes for Heros”.

Printing

No Supports
Lightning Infill 20%

Print the following quantities:

6 Window Panes (laying on their backs)
6 Window Frames (laying on their faces)
6 Back Windows (laying down)
2 Door Frames (laying on their faces)
2 Doors (laying on their backs)
2 Back Doors (laying down)
Print 2 Chanels (laying down with the two sides facing up)
Print 1 of everything else

Print the roof on its side with the cutout for the chimney facing up.

Assembly

Join the “Front-Right” and “Rear-Left” parts using two of the “Chanels” in the “U” slots.

The “Window Frames” have a small shelf at the bottom-back. Orient the frame so it is face down (the tabs are sticking up). Take each “Window Pane” and face it down as well with its sill aligned with the frame shelf. Slide the top of the pane under the upper tabs and keep pushing (and slightly flexing the frame) until the pane sill is past the lower tabs. Then slide the pane down until it reaches the frame shelf. Take the “Back Window” and push into a window opening on the house. Push the window frame/pane assembly into the window opening.

Repeat the same procedure as used for the windows for the “Door Frames” and “Doors”.

Slide the “Chimney” into the slot on the back-side of the house.

Place the “Roof” on top of the house aligning with the tabs and the chimney.

If you are using flags, put the flags into the “Flag Stand”.

Enjoy.
