Description

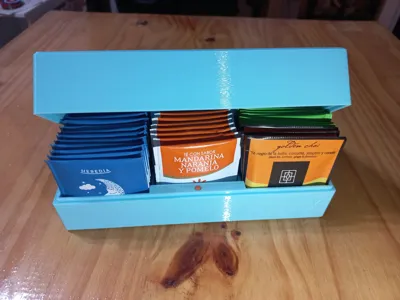

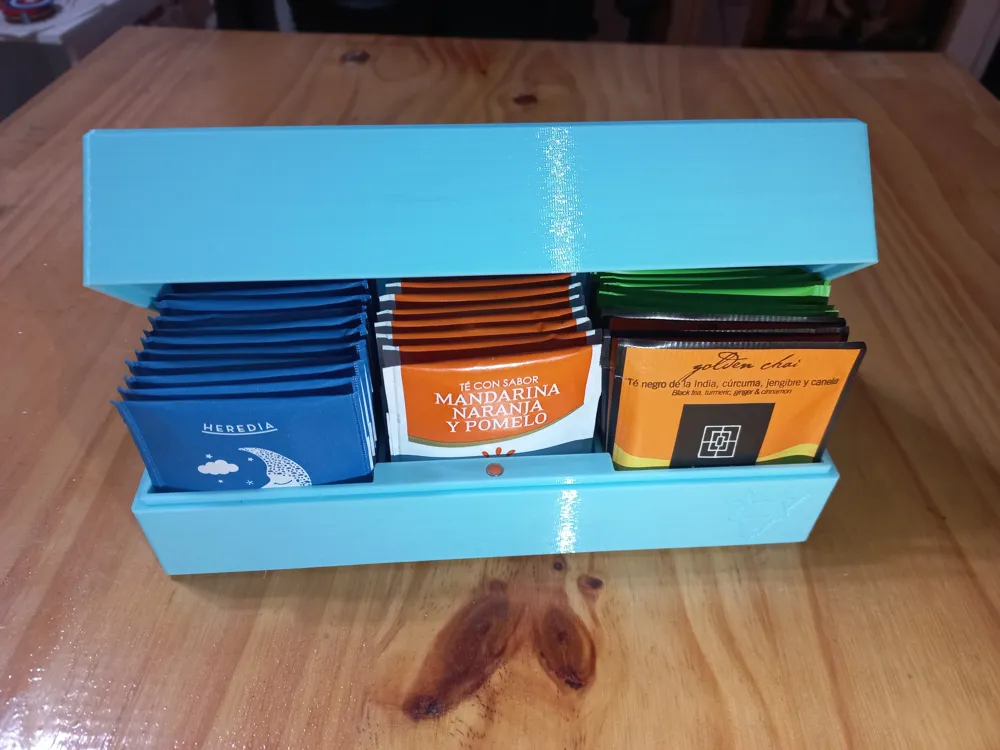

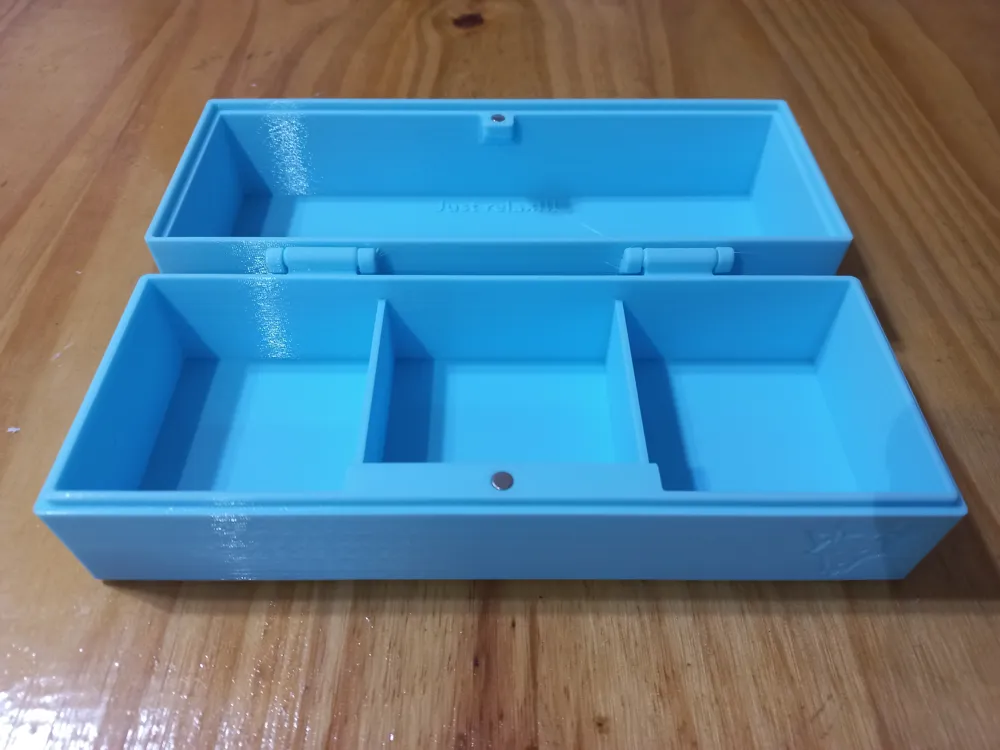

This is a tea box originally designed to be printed in the mk3s+ as one piece. Hinges are self-contained in the print.

The 3mf and gcode files have variable layer height to get a faster print.

You can easily edit the text message in the inner side of the box using the text editor in PrusaSlicer.

You must assist the printer for color changing during the first 2 layers.

You will need 2 neodymium cilyndrical magnets D5 x H3 mm.

UPDATE (v1.1)

This model fix the little problems with v1.0, it is a little bigger, it makes an angle for better tea positioning and has 3 pair of magnets for a strongest enclosure.

I will test it ASAP to show the physical new model.

Note: be careful about magnets polarity.

You can find the models for editing in this link:

https://grabcad.com/library/tea-box-4

Happy printing, I hope you like it!

Comment & Rating (3)

Please fill in your opinion
(0/5000)

do you have a link for the magnets you used? I tried some 5 x 3mm ones and they didn’t fit. Thank you!!!
The designer has replied
0
Reply
So sorry to hear that, I bought them using this link, but I do not think this will be useful for you https://articulo.mercadolibre.com.ar/MLA-619430403-200-imanes-de-neodimio-5-mm-x-3-mm-_JM Did you measure your magnets? You could dowload the step file and make adjusments for your model: https://grabcad.com/library/tea-box-4 I hope you find this useful!
