Unifi USW 16 Lite POE Switch 19-inch Rack Mount

A Remix of this great model from printables.

Unifi USW 16 Lite POE Switch 19-inch Rack Mount.

I know Mauker also made a remix of this one ,  The problem i have with that one, is that the hex & screw connectors is too far away from the mount itself,  too much flex in my case.

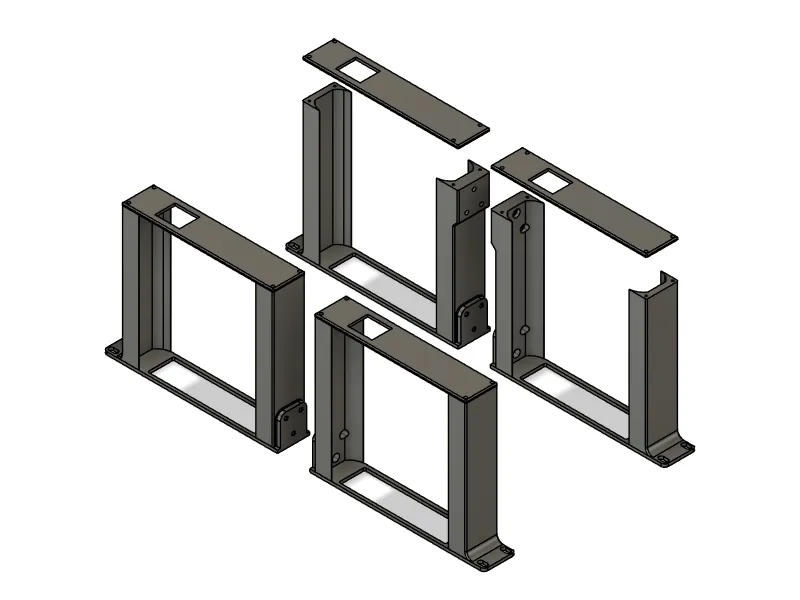

So on this remix the hex & screw connectors are connected to the mount.  I also made a version which is intended too be used if you need 2 x 16 Lite POE side by side, See picture.

Versions

1. Unifi USW 16 Lite POE Switch 19-inch Rack Mount

2. Unifi USW 16 Lite POE Switch x2 19-inch Rack Mount = Can be assembled in the back with hex & screws.

Parts for the normal mount.

3x M5 screws

3x M5 hex nuts

4x M4 screws for the back cover

Parts for the x2 mount.

6x M5 screws

6x M5 hex nuts

8x M4 screws for the back cover

The screw and hex connectors is adapted from Mauker's systems,  So You can use this mount with maukers other mounts, ore some of my mounts.

4 walls
25% infill
PETG (for heat resistance)

If you like what i'm doing. Please consider buying me a beer 😀

https://ko-fi.com/mixmeister78350

Happy printing.

Thx

@Mauker

@dbreeze
