Patch panel module, composable, 0.5U
Print Profile(1)
Bill of Materials
- M6 screw x 2: at least 12mm long, to connect with other modules
- M6 hex nut x 2: 10mm wide, to connect with other modules
Description
Boost Me (for free)
Did the design help you? Send me a message or boost me!
Patch panel module for CapRack, a capsule 10-inch rack system
CapRack is a server rack mounting system that allows you to install more equipment in your 10-inch server rack.

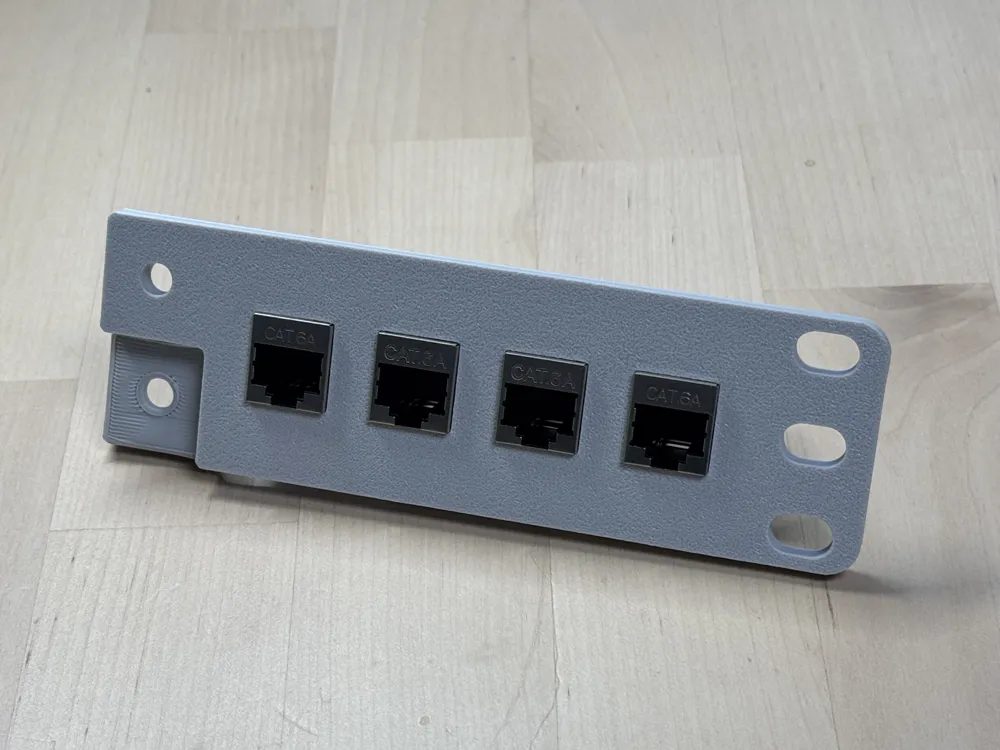

This is a patch panel that holds 4 keystone jacks for the CapRack.

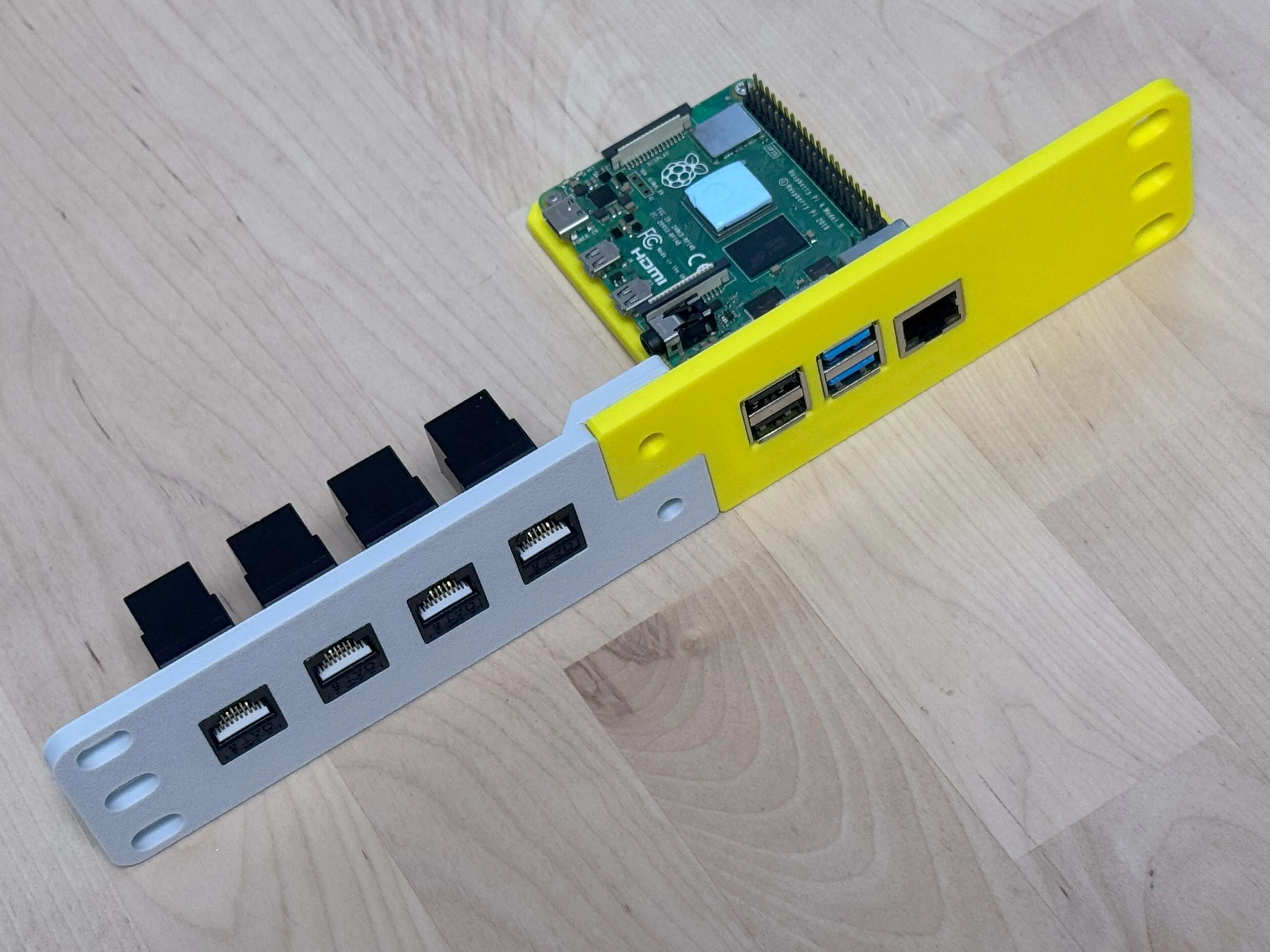

CapRack modules are composable! You can connect any 2 CapRack modules into a 1U 10-inch module.
I have created some CapRack modules:
Requirements
You need 2 x M6 screws and 2 x M6 hex nuts to connect this module with other CapRack modules.
How to connect CapRack modules
Check it out here for how to connect 2 CapRack modules!
How to install keystone jacks
As far as I know, keystone is not an official standard - actual size can vary. I have only tested the module with keystone jacks I had - it may not work seamlessly with the keystone in your hand.

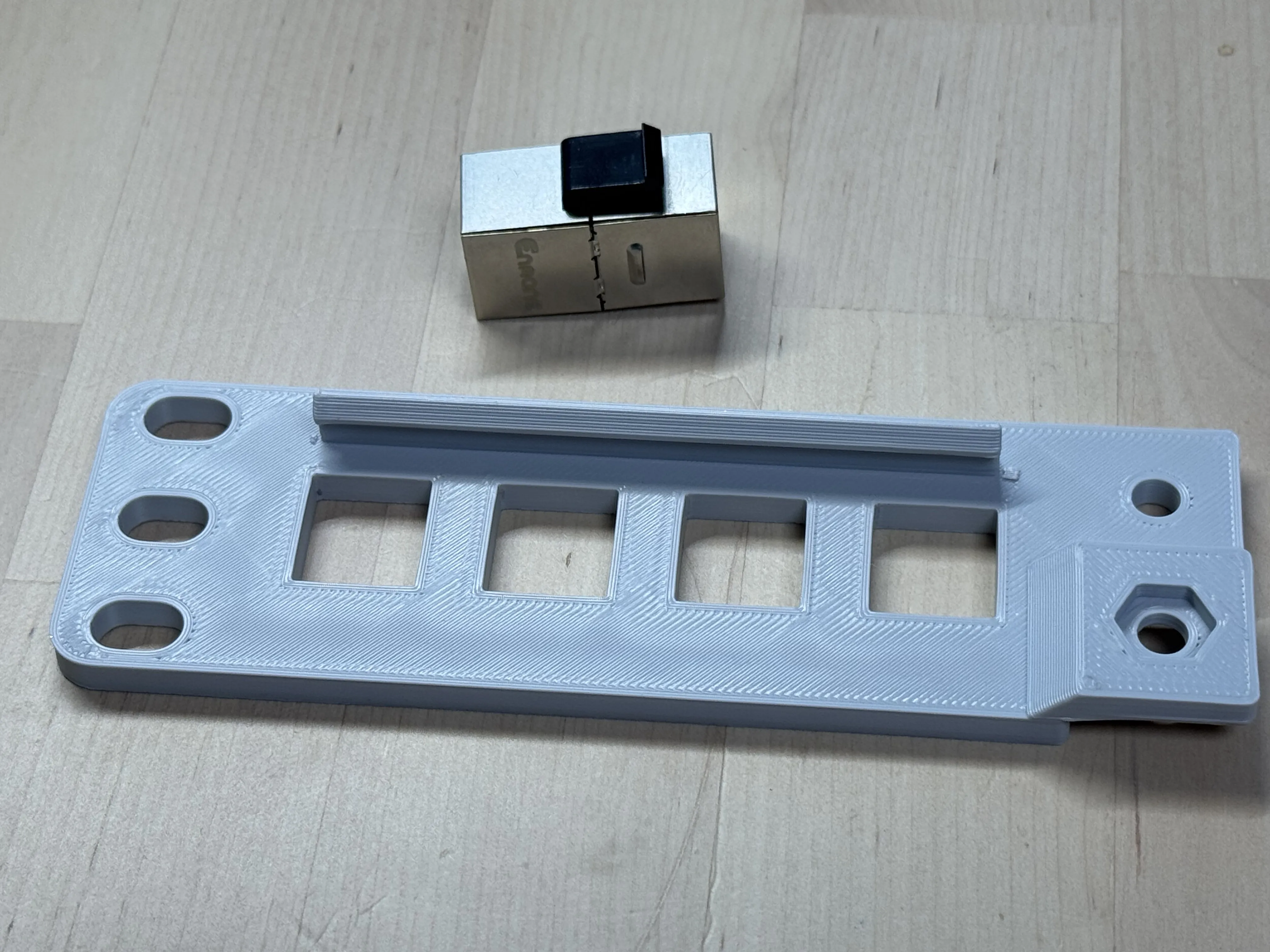

Prepare the module and keystone jacks. Remove any support printed.

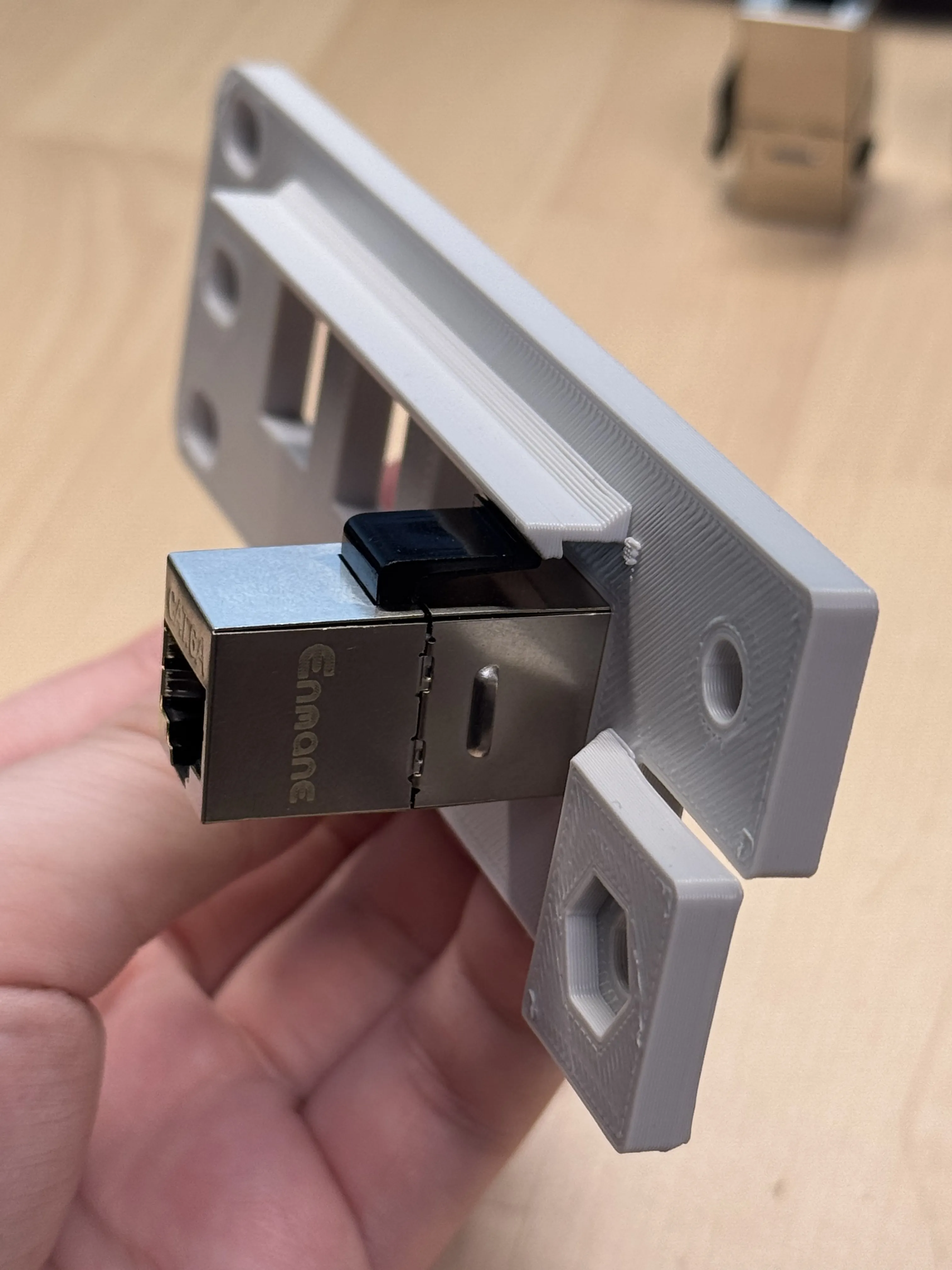

Insert the jack from the back side of the module into a square hole. The clip faces up:

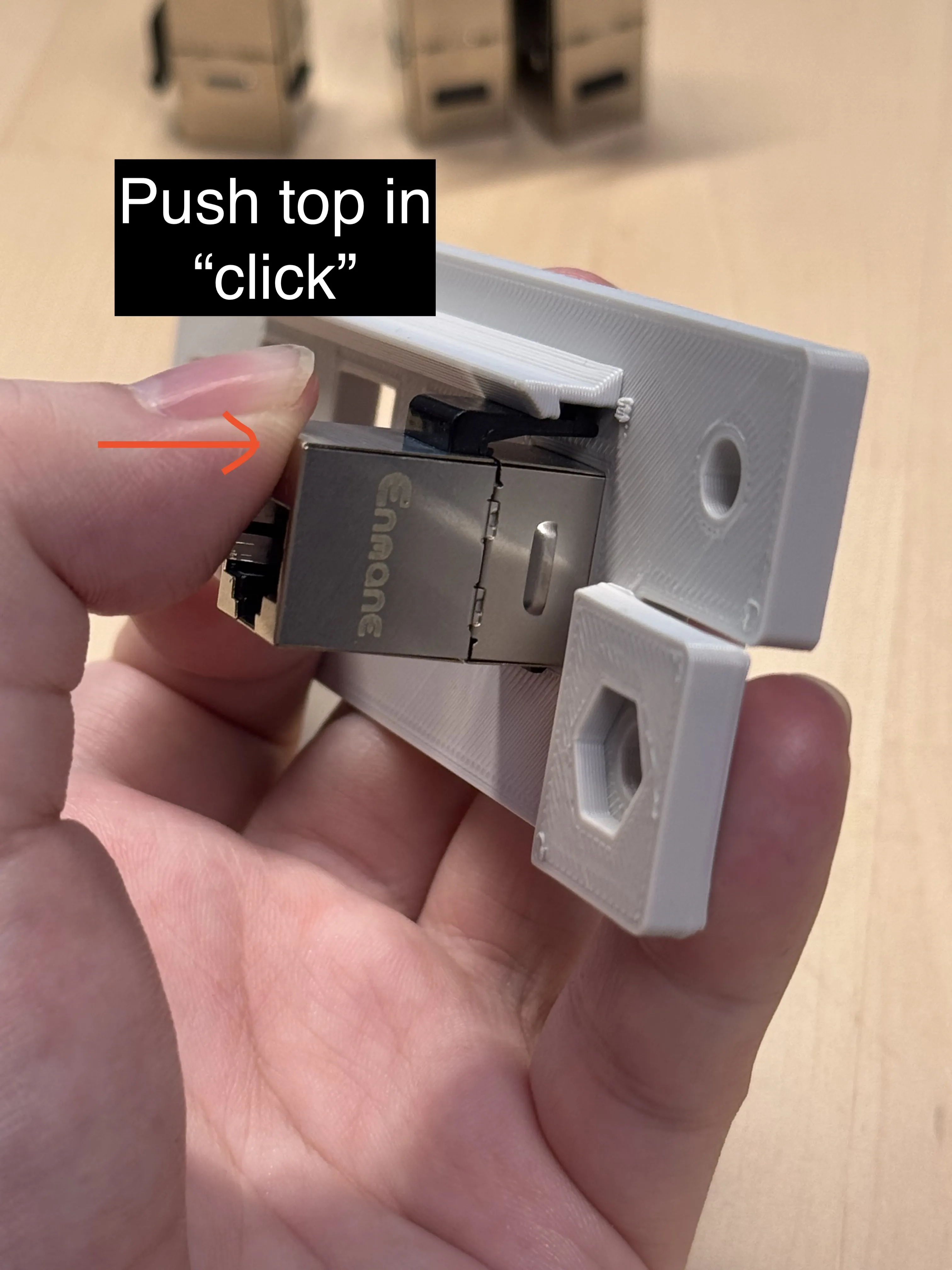

Push in, to the top part of the jack. The jack will be installed with a ‘click’:
How to remove jacks

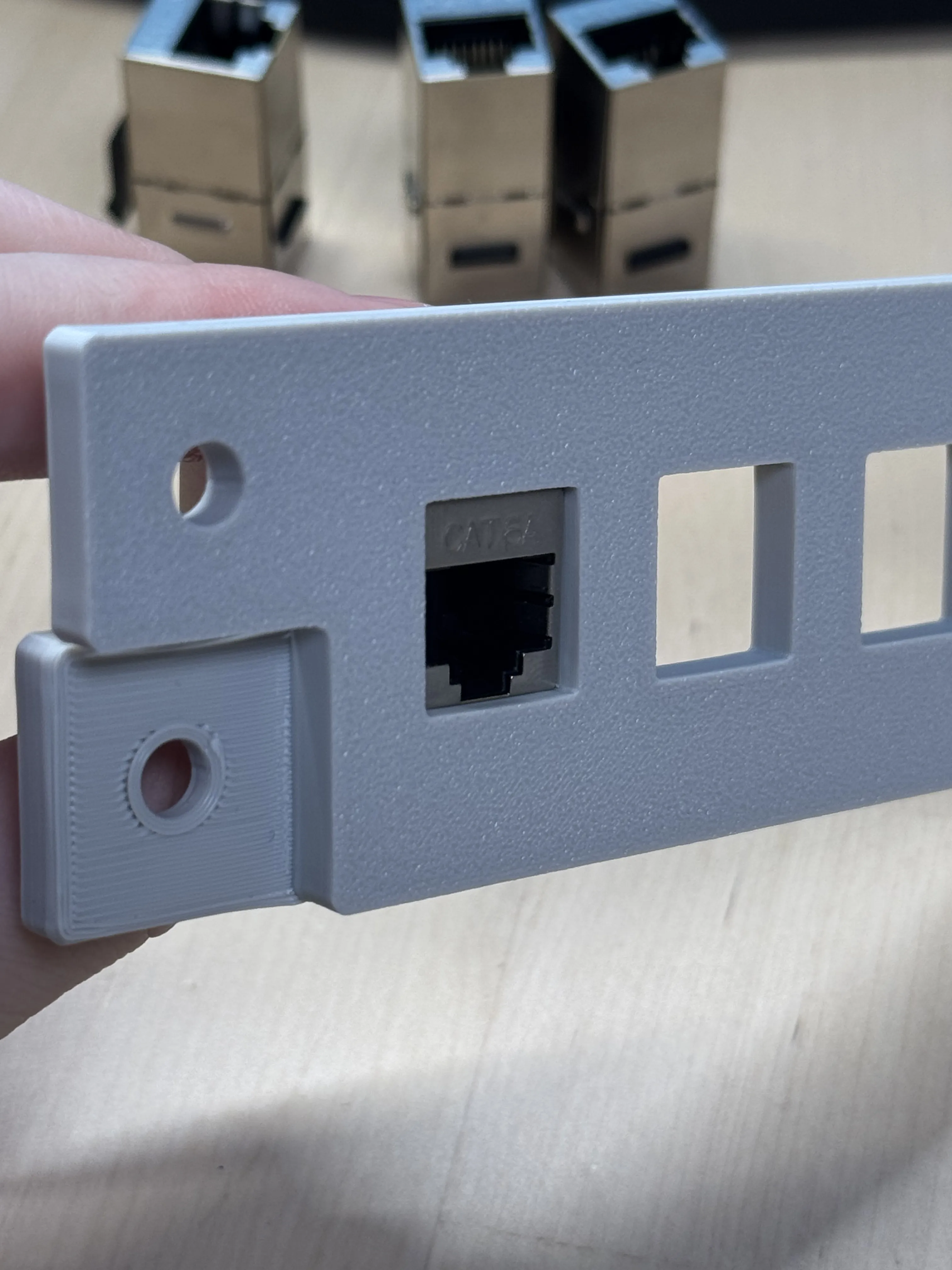

To remove a keystone jack, first push back the jack to the end, from the front side of the module:

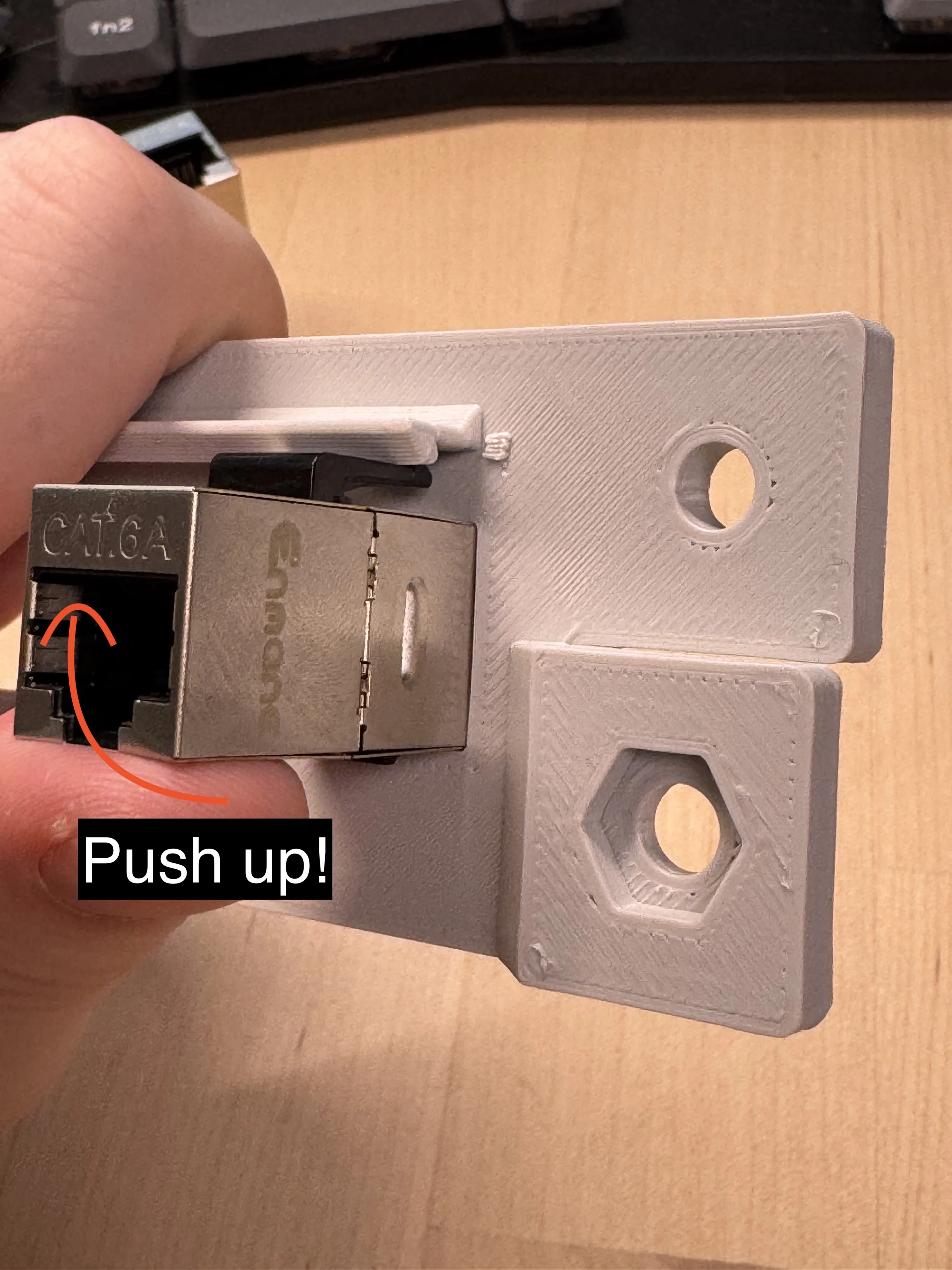

Hold the rear part of the jack, softly push up, the jack should be off:
