Interlocking Chess Board

4-Part chessboard

AMS is required for this print

I had this idea for a chessboard that snaps together in 4 parts. It is easily transportable and doesn't require a lot of filament. The pieces are NOT part of this print, and I will leave the link to the print files down below.

Details:

• Each square is 45mm²
• Tolerance between pieces is 0.1mm
• Needs a minimum of 225mm space on the bed (unless you shrink it a little)
• IMPORTANT: Let it cool down before removing it from the bed to ensure that it does not warp
• There are two different boards (Print 2 of each)
  • White corner
  • Black Corner

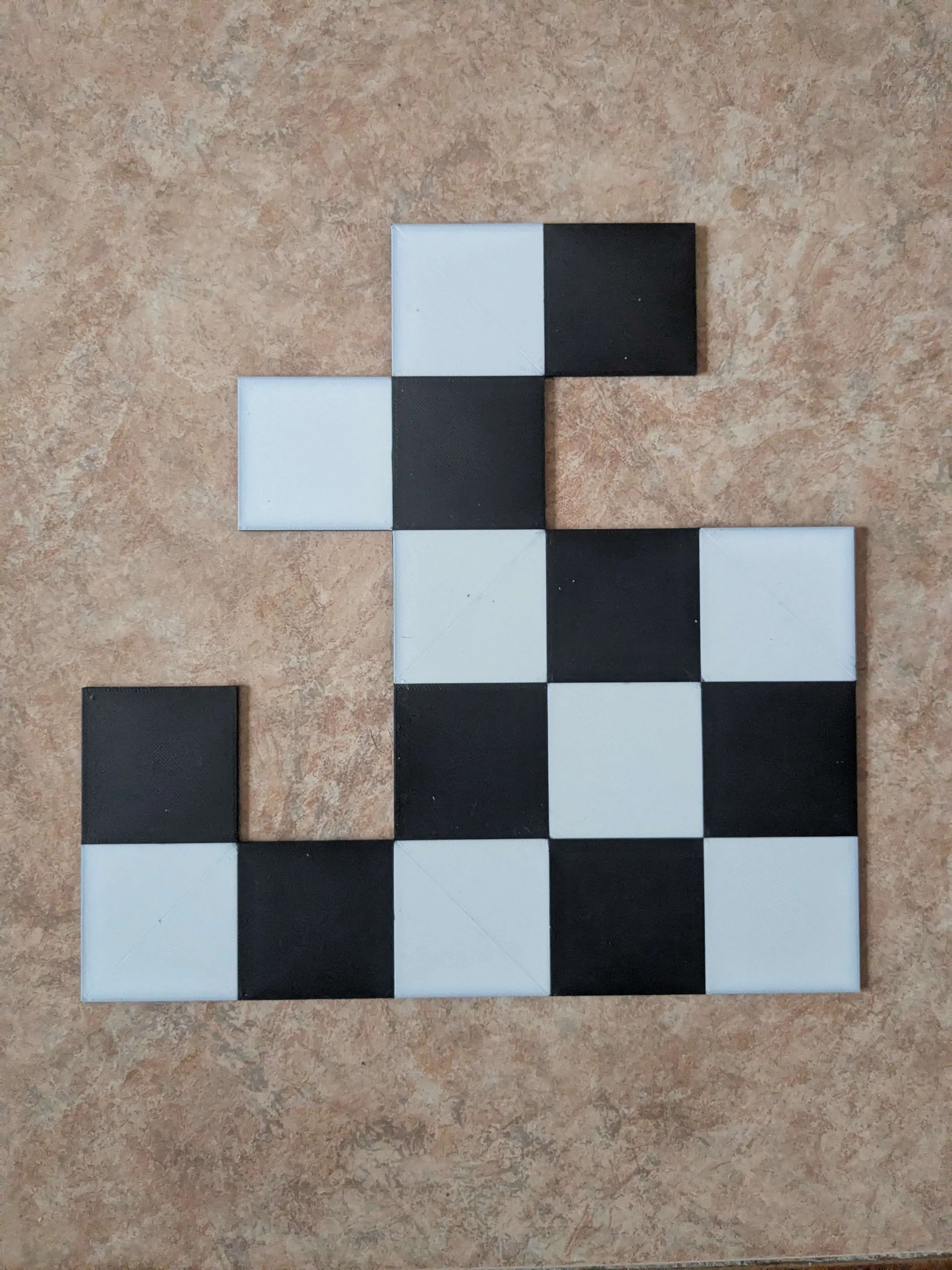

Example of the White Corner Piece

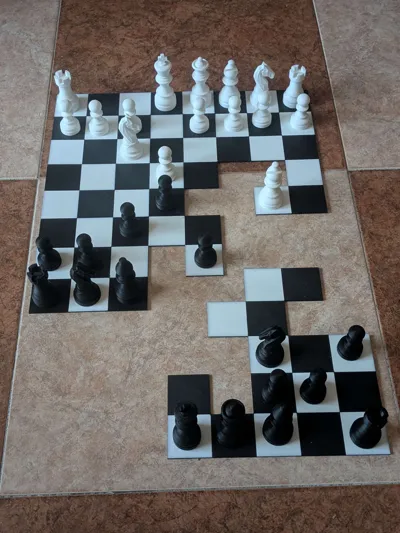

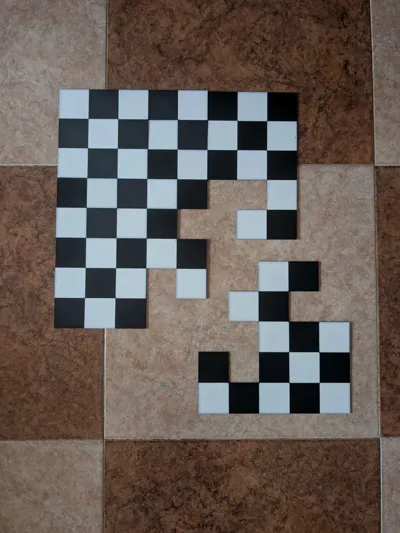

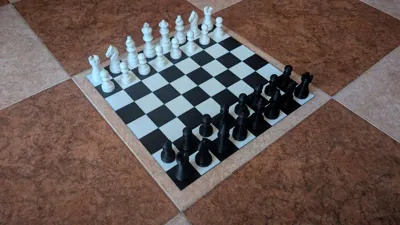

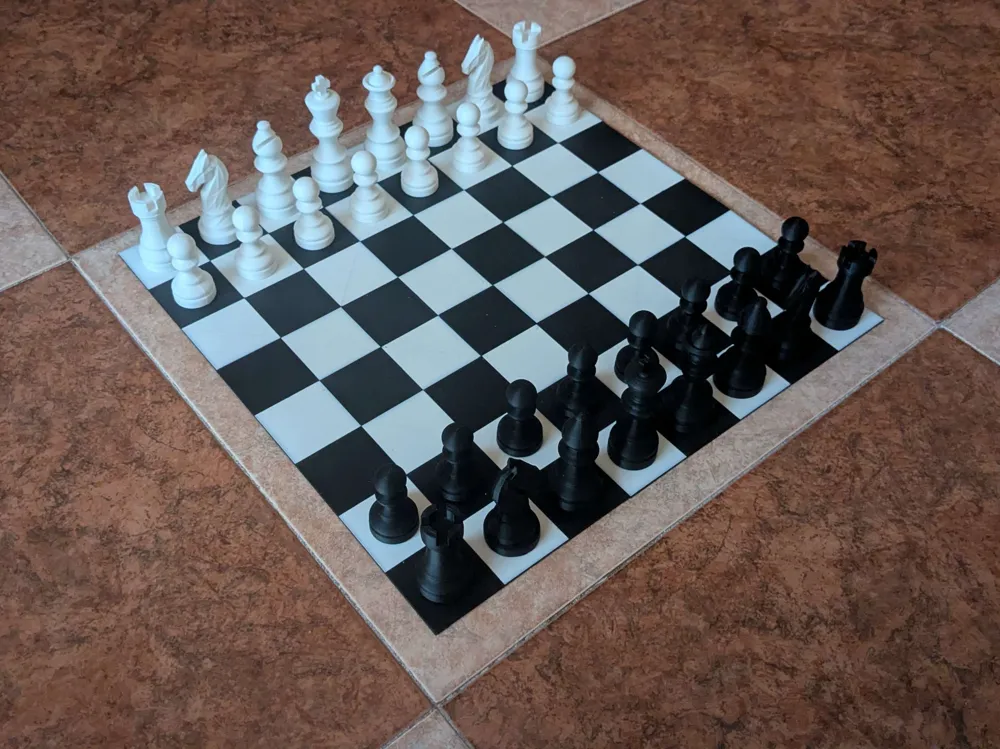

Prints shown in the photos

Support Free Chess - ColdHeart3D

Monarch Noir “Knight” - GraFabLab
