CHESS PRESTIGE

All-in-One Chess Set with Integrated Board and Storage

Portable & Foldable, Combining Practicality with Convenience

Advanced & Hidden Print-in-Place Hinges for Superior Functionality

Includes Embedded Magnet Versions for Each Board Size with Multiple Magnet Options

Print Instructions & Recommendations

It is highly recommended to clean the build plate with warm water and soap prior to printing to eliminate the potential adhesion problems.
No support is required.
This chess set has been successfully printed multiple times using PLA, making it the recommended filament choice. Other filaments, including PLA blends like PLA-CF, may have different thermal expansion properties, affecting print accuracy and fit.

Assembly Instructions

Assembly requires no additional tools, materials or post-processing. It is a simple print and play model. The caps securely hold the board and the pieces together.
For embedded magnet versions:
- Each print profile includes 10 plates. Caps and checker pieces do not have magnet slots and should be printed in all cases. The remaining eight plates are for the board and pieces, designed for four magnet sizes: 8x2mm, 6x2mm, 5x2mm, and 4x2mm. To ensure compatibility, select and print only two plates, one for the board and one for the pieces, that match your chosen magnet size.
- During printing, the profile will pause automatically at the designated layer, allowing you to insert the magnets before resuming. If your nozzle is magnetic, it may pull the magnets out of the slots when printing continues. To prevent this, apply a small amount of glue before resuming to secure the magnets in place.

Model Information

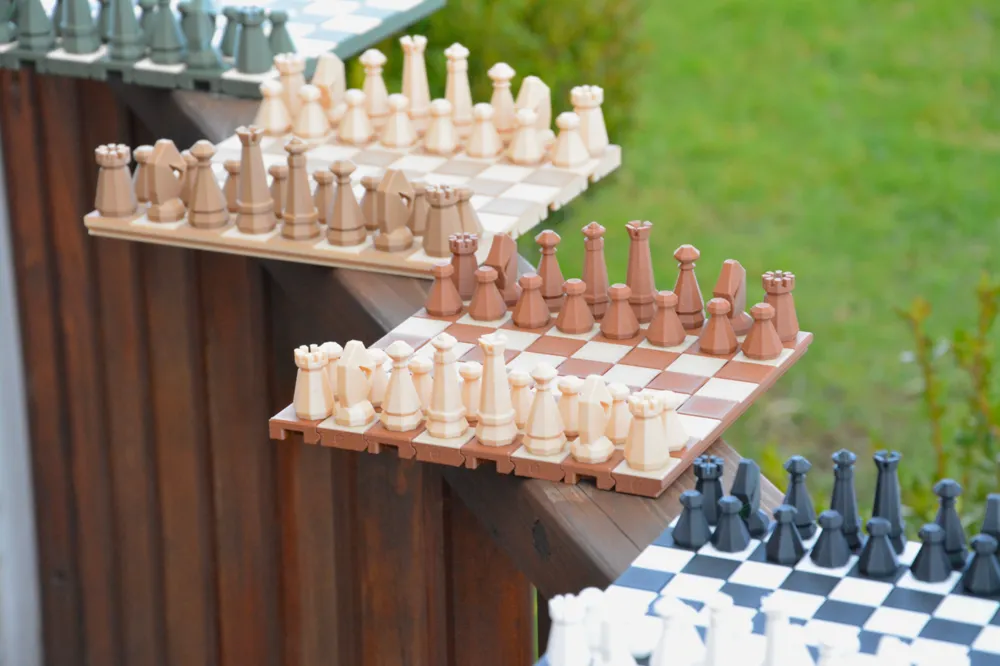

Dimensions (X-Y-Z) | Large ~ Board: 225 x 225 x 11.25 mm
Dimensions (X-Y-Z) | Large ~ Chess Pieces: 21.4 x 21~26 x 43~56 mm
Dimensions (X-Y-Z) | Large ~ Checker Pieces: 22.5 x 22.5 x 6.1 mm
Dimensions (X-Y-Z) | Standard ~ Board: 200 x 200 x 10 mm
Dimensions (X-Y-Z) | Standard ~ Chess Pieces: 19 x 19~23 x 38~50 mm
Dimensions (X-Y-Z) | Standard ~ Checker Pieces: 20 x 20 x 5.4 mm
Dimensions (X-Y-Z) | Mini ~ Board: 175 x 175 x 8.75 mm
Dimensions (X-Y-Z) | Mini ~ Chess Pieces: 16.6 x 16~20 x 33~44 mm
Dimensions (X-Y-Z) | Mini ~ Checker Pieces: 17.5 x 17.5 x 4.7 mm
Dimensions (X-Y-Z) | Extra Mini ~ Board: 150 x 150 x 7.5 mm
Dimensions (X-Y-Z) | Extra Mini ~ Chess Pieces: 14.3 x 14~17 x 29~38 mm
Dimensions (X-Y-Z) | Extra Mini ~ Checker Pieces: 15 x 15 x 4 mm
Commercial Use: Terms and conditions are available on Patreon.

Interested more in chess?

Minimalist Chess Set

Chest of Chess

ENJOY!

Boost Me (for free)

Your support means a lot. Boosting the models goes a long way in helping me create and share more with you!

Bill of Materials

Maker’s Supply Kits and Parts

D8x2mm Round Magnet (20PCS) - CA005

B-CA005

2.85 USD

× 5

D6x2mm Round Magnet (20PCS) - CA004

B-CA004

2.29 USD

× 5

D5x2mm Round Magnet (20PCS) - CA003

B-CA003

2.26 USD

× 5

D4x2mm Round Magnet (20PCS) - CA001

B-CA001

2.19 USD

× 5

Buy Now

Download BOM

Comment & Rating (210)

@boongintnirp54

Boosted

Print Profile

Standard (200x200mm) | 0.16mm Layer, 2 Walls, 15% Infill

Great print! Pieces can be tricky so just make sure your bed has been well cleaned with soap and water!

@boongintnirp54

Boosted

I will try one more time but I've cleaned it with soap and water and rubbing alcohol but I will do all that again. will come back with updated rat8ng if that fixes it.

@ERAVIA

Replying to @boongintnirp54 :

Hello! Thank you for your support and for printing the model. I truly appreciate it. I am also sorry for the issues you have encountered. May I ask if there is a specific piece that consistently causes the problem? If so, I would be happy to check the design and make adjustments as needed. During prototype prints, I always use Bambu Lab A1 and X1C to ensure the model prints successfully on both. However, occasional issues can still arise, often due to filament properties and thermal expansion characteristics. Based on what I see in the photos, most of the pieces seem to have printed fine. I have a feeling that the knight might be the problematic piece, as it has a small overhang designed to eliminate the need for supports. If this is the case, I can take a closer look and see if any refinements are necessary. I would appreciate your feedback so we can sort this out. Looking forward to your response!

@boongintnirp54

Boosted

Replying to @ERAVIA :

Hello and thank you for the response! Yeah, I'm not quiet sure what is causing the issue. As of right now I am doing another attempt but this time I brought it into the slicer and added a small brim to every piece. I will get back to you in about 2 ½ hours with results. I'm not sure why they keep falling over because I never have issues with objects like this. (I have print tons of other chess sets for my friends) I am suspicious that the Z-axis is being lifted up enough at a certain point which just barely bumps them. So I sliced it myself in bambu studio with your settings. I'll see how this goes. Thank you, again!

@jems

Boosted

Print Profile

Standard (200x200mm) | 0.16mm Layer, 2 Walls, 15% Infill

Perfect print, simple to make and the result is excellent, just change the pawns for a more traditional model

Show original

@ERAVIA

Thank you for the support! It looks great, hope you enjoy it!

@jems

Boosted

Replying to @ERAVIA :

Thank you, it's for my son and he already loves it 👍😁

Show original

@ERAVIA

Replying to @jems :

Kind regards to you both! :)

@Gabe_p

Boosted

I just finished the board in the 225x225 size. Came out great! Printing the lids now and will then print the pieces. My son chose these colors so I'm sure he will love it :) Printed in Panchroma CoPE at Ambient temps on the Darkmoon Ice Plate. For some reason, the back row is not as "smooth" as the rest of the board but that may be a me issue. It's still great! I will add more pictures once I finish printing the rest of the set.

(Edited)

The designer has replied

@ERAVIA

Thank you for the support, the share, and your kind words! I hope your son enjoys it. This color combination looks fantastic. I will definitely give it a try with navy blue and white granite next time. Regarding the back row, if the surface quality appears rough and feels less smooth compared to the rest of the model, it is most likely due to slight warping around the corners. This often occurs when the build plate loses adhesion slightly. Fortunately, this can easily be prevented by cleaning the plate with warm water and soap before printing. For sets like this, I always recommend giving the plate a quick clean beforehand, just to be safe. Waiting for the rest of the model!

@Gabe_p

Boosted

Replying to @ERAVIA :

Yeah, I figured it was a "me problem". It wasn't due to lack of a clean plate though as I cleaned it right before. I printed with Cope filament at ambient temperature - I should have added a little heat. I'm still in the experimental stage with Cope and this was by far my longest print with Cope. I edited my post above and added a couple more photos (still need to print the white chess and checker pieces). Awesome print and profile! If there is one think I would modify, the tolerance in the lids could be a drop tighter. They unscrew a bit too easy. I can see it getting unscrewed in my sons knapsack or while traveling. It could be that's just a preference thing

@ERAVIA

Replying to @Gabe_p :

Thank you once more for taking your time to share your results and providing the feedback! Greatly appreciated. Well, none of us would want that cap to unscrew and have to find and count to see if anything is missing. I will be updating caps to make it a tighter fit. Thanks for the insight! Also, I am sending a message to you.

@NoobiusCaesar78

hello! This looks great! However, my printer does not work well AT ALL with print in place objects. I as wondering if, when you have time, you could make the board individual pieces that snap together to make the finished product (The board, that is) That way I don't have to worry about it failing, and me wasting filament. Also, my printer cannot do multi colors, so i would need to print each individual board tile in alternating colors. If you cannot do this, that is no problem.

The designer has replied

@ERAVIA

Hello, thank you for your message. I have received several requests to make the board printable in a single color with the option to assemble the tiles afterward, and that version will be made available soon. While I cannot promise a fully modular board with separate pieces, it is something I am definitely considering. I was also wondering if you have already tried printing this model or if you are sharing this concern based on past experience with print-in-place designs. If you would like, I can send you a test version of the chess board so you can check how it performs with your printer. Let me know, I would be happy to help.

@NoobiusCaesar78

Replying to @ERAVIA :

I haven't tried printing it yet, but it would be great if you sent me a test version. I have had some bad experiences with print-in-place objects on my printer, which by the way is a Elegoo Neptune 3 Pro. (I believe that's what it is) So yeah, it would be great if you could send me a prototype. Thanks!

@ERAVIA

Replying to @NoobiusCaesar78 :

No problem! I will share the test STL and 3MF files with you soon. Just remember to check your messages. Have a great day!

@hookyjnr

Boosted

Print Profile

Standard ~ Magnet Versions | 8x2mm ~ 6x2mm ~ 5x2mm ~ 4x2mm

@ERAVIA

Thank you for sharing! This color combination is so elegant. Did you encounter any issue while printing the magnet version? If you could share your insights, other users can definitely make use of it. Especially the gameplay and your magnet preference. Thanks in advance, enjoy your set!

@hookyjnr

Boosted

Replying to @ERAVIA :

I had one magnet get sucked out by the hotend, but was able to open up the cover printed over it and get it back in.

@ERAVIA

Replying to @hookyjnr :

Oh, that was a close call. Glad you got it sorted out, good job. Just curious, what size magnets did you end up using with your set? I would love to know.

@MitchMacFly

Boosted

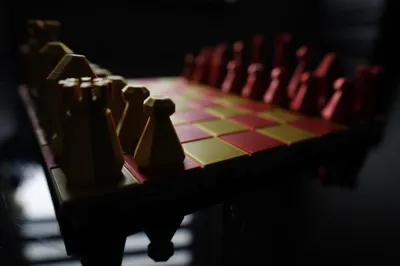

A truly exquisite chess set I am currently printing it I used gray as the base color and colored the squares gold and red The pieces are also correspondingly gold or red
