0.2mm layer, 2 walls, 15% infill

<p>Dette project konvertere en <a target="_blank" href="https://www.ikea.com/dk/da/p/styrbar-fjernbetjening-hvid-30488363/" rel="nofollow noopener ugc">IKEA STYRBAR fjernbetjening</a> om til et FUGA svagstrømstryk.</p><p>Dette er det første design, der anvender et CR2032 batteri. Batterileveltiden er derfor ikke forventet at være acceptable. De første undersøgelser har dog vist at stand-by-forbruget er det samme som med det <a target="_blank" href="https://makerworld.com/en/models/200738" rel="nofollow noopener ugc">forrige model</a>.</p><h3>Programmering af modul</h3><p>Hvis man ikke vil anvende modulet fra en orginal fjernbetjening, er det nødvendigt at omprogrammer det. Alexander Bruhn Blindbæk har lavet en guide til dette. Se Flash-guide_J-link.zip under downloads.</p><h4>PCB layout</h4><p><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000200740/design/2024-02-24_n4dojikzyg5l.png" alt="image"></p><h4>Diagram</h4><p><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000200740/design/2024-02-24_8qbkx4vvkib4.png" alt="Diagram"></p><h4>Bill of Materials</h4><figure class="table"><table style="border: 1px solid rgb(242, 242, 242)"><thead><tr><th>Designator</th><th>Value</th><th>LCSC Part</th></tr></thead><tbody><tr><td>C1</td><td>10uF</td><td>C1710</td></tr><tr><td>C2</td><td>100nF</td><td>C15008</td></tr><tr><td>C3</td><td>10nF</td><td>C1710</td></tr><tr><td>C4</td><td>10nF</td><td>C1710</td></tr><tr><td>C5</td><td>10nF</td><td>C1710</td></tr><tr><td>C6</td><td>10nF</td><td>C1710</td></tr><tr><td>C7</td><td>10nF</td><td>C1710</td></tr><tr><td>D1</td><td>LED</td><td>C84262</td></tr><tr><td>F1</td><td>FUSE</td><td>C136339</td></tr><tr><td>R1</td><td>N/A</td><td> </td></tr><tr><td>R2</td><td>10kΩ</td><td>C17414</td></tr><tr><td>R3</td><td>N/A</td><td> </td></tr><tr><td>R4</td><td>N/A</td><td> </td></tr><tr><td>R5</td><td>10kΩ</td><td>C17414</td></tr><tr><td>R8</td><td>1kΩ</td><td>C17513</td></tr><tr><td>S1</td><td>TACT</td><td>C343618</td></tr><tr><td>S2</td><td>TACT</td><td>C83916</td></tr><tr><td>S3</td><td>TACT</td><td>C83916</td></tr><tr><td>S4</td><td>TACT</td><td>C83916</td></tr><tr><td>S5</td><td>TACT</td><td>C83916</td></tr><tr><td>S6</td><td>TACT</td><td>C221666</td></tr></tbody></table></figure><h4>Video</h4><figure class="media"><oembed url="https://www.youtube.com/watch?v=aHzt7OdAu8Y"></oembed></figure>

<p>This project converts an <a target="_blank" href="https://www.ikea.com/dk/da/p/styrbar-fjernbetjening-hvid-30488363/" rel="nofollow noopener ugc">IKEA STYRBAR remote control</a> into a FUGA low-current switch.</p><p>This is the first design that uses a CR2032 battery. Therefore, the battery life is not expected to be acceptable. However, initial studies have shown that the standby consumption is the same as with the <a target="_blank" href="https://makerworld.com/en/models/200738" rel="nofollow noopener ugc">previous model</a>.</p><h3>Module Programming</h3><p>If you do not want to use the module from an original remote control, it is necessary to reprogram it. Alexander Bruhn Blindbæk has created a guide for this. See Flash-guide_J-link.zip under downloads.</p><h4>PCB layout</h4><p><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000200740/design/2024-02-24_n4dojikzyg5l.png" alt="image"></p><h4>Diagram</h4><p><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000200740/design/2024-02-24_8qbkx4vvkib4.png" alt="Diagram"></p><h4>Bill of Materials</h4><figure class="table"><table style="border: 1px solid rgb(242, 242, 242)"><thead><tr><th>Designator</th><th>Value</th><th>LCSC Part</th></tr></thead><tbody><tr><td>C1</td><td>10uF</td><td>C1710</td></tr><tr><td>C2</td><td>100nF</td><td>C15008</td></tr><tr><td>C3</td><td>10nF</td><td>C1710</td></tr><tr><td>C4</td><td>10nF</td><td>C1710</td></tr><tr><td>C5</td><td>10nF</td><td>C1710</td></tr><tr><td>C6</td><td>10nF</td><td>C1710</td></tr><tr><td>C7</td><td>10nF</td><td>C1710</td></tr><tr><td>D1</td><td>LED</td><td>C84262</td></tr><tr><td>F1</td><td>FUSE</td><td>C136339</td></tr><tr><td>R1</td><td>N/A</td><td> </td></tr><tr><td>R2</td><td>10kΩ</td><td>C17414</td></tr><tr><td>R3</td><td>N/A</td><td> </td></tr><tr><td>R4</td><td>N/A</td><td> </td></tr><tr><td>R5</td><td>10kΩ</td><td>C17414</td></tr><tr><td>R8</td><td>1kΩ</td><td>C17513</td></tr><tr><td>S1</td><td>TACT</td><td>C343618</td></tr><tr><td>S2</td><td>TACT</td><td>C83916</td></tr><tr><td>S3</td><td>TACT</td><td>C83916</td></tr><tr><td>S4</td><td>TACT</td><td>C83916</td></tr><tr><td>S5</td><td>TACT</td><td>C83916</td></tr><tr><td>S6</td><td>TACT</td><td>C221666</td></tr></tbody></table></figure><h4>Video</h4><figure class="media"><oembed url="https://www.youtube.com/watch?v=aHzt7OdAu8Y"></oembed></figure>

Print Profile(1)

Description

Module Programming

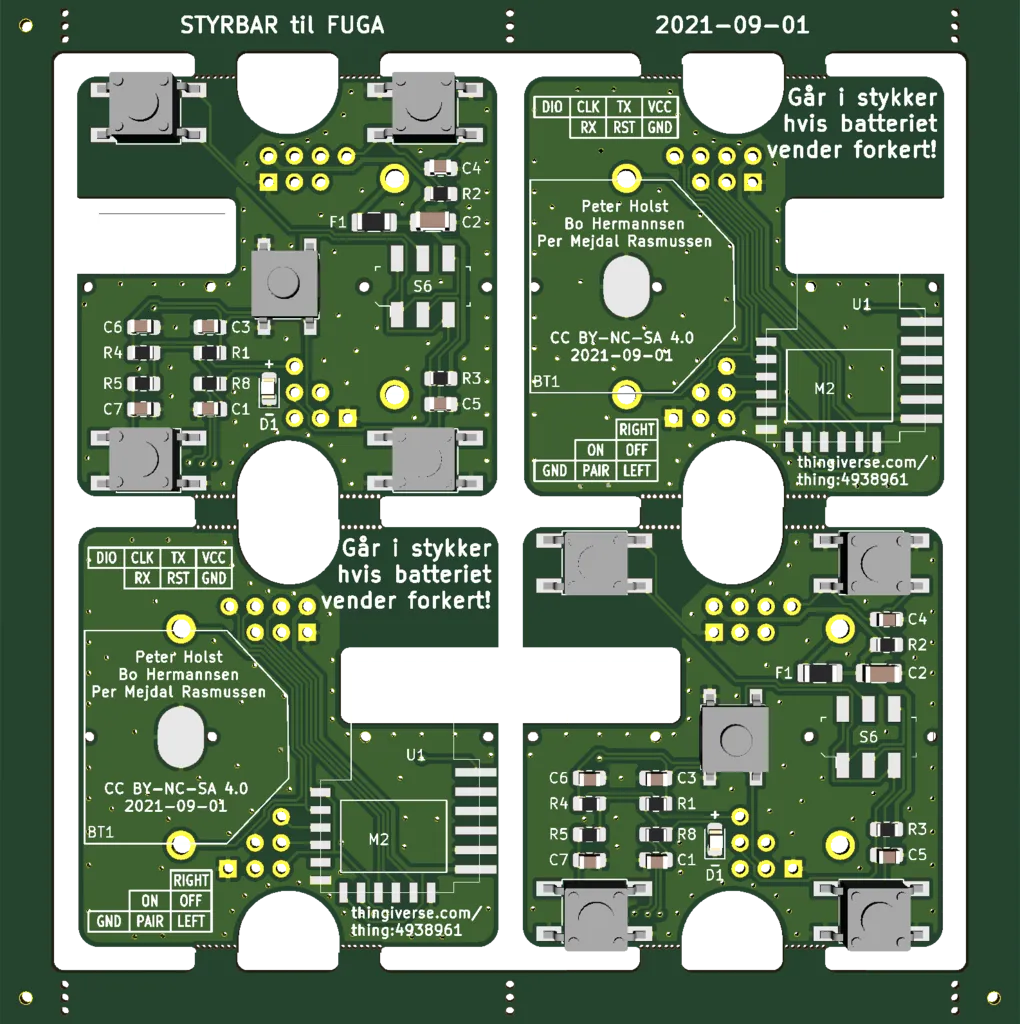

PCB layout

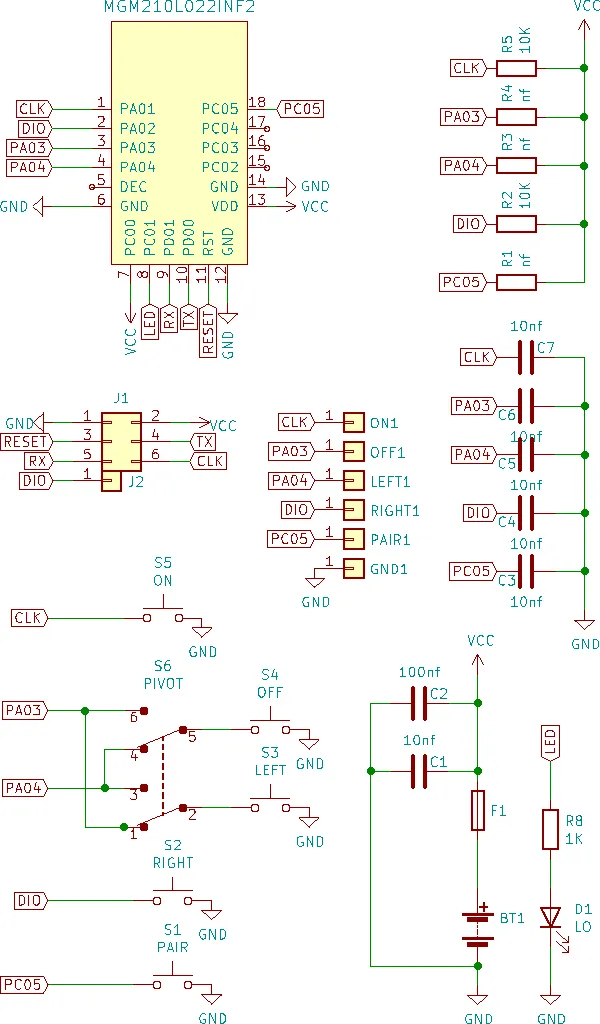

Diagram

Bill of Materials

Video

Comment & Rating (1)

License

Related Models

Designator	Value	LCSC Part
C1	10uF	C1710
C2	100nF	C15008
C3	10nF	C1710
C4	10nF	C1710
C5	10nF	C1710
C6	10nF	C1710
C7	10nF	C1710
D1	LED	C84262
F1	FUSE	C136339
R1	N/A
R2	10kΩ	C17414
R3	N/A
R4	N/A
R5	10kΩ	C17414
R8	1kΩ	C17513
S1	TACT	C343618
S2	TACT	C83916
S3	TACT	C83916
S4	TACT	C83916
S5	TACT	C83916
S6	TACT	C221666

STYRBAR til FUGA konvertering
