Ball Stepper Conveyer
Print Profile(2)
Bill of Materials
Description

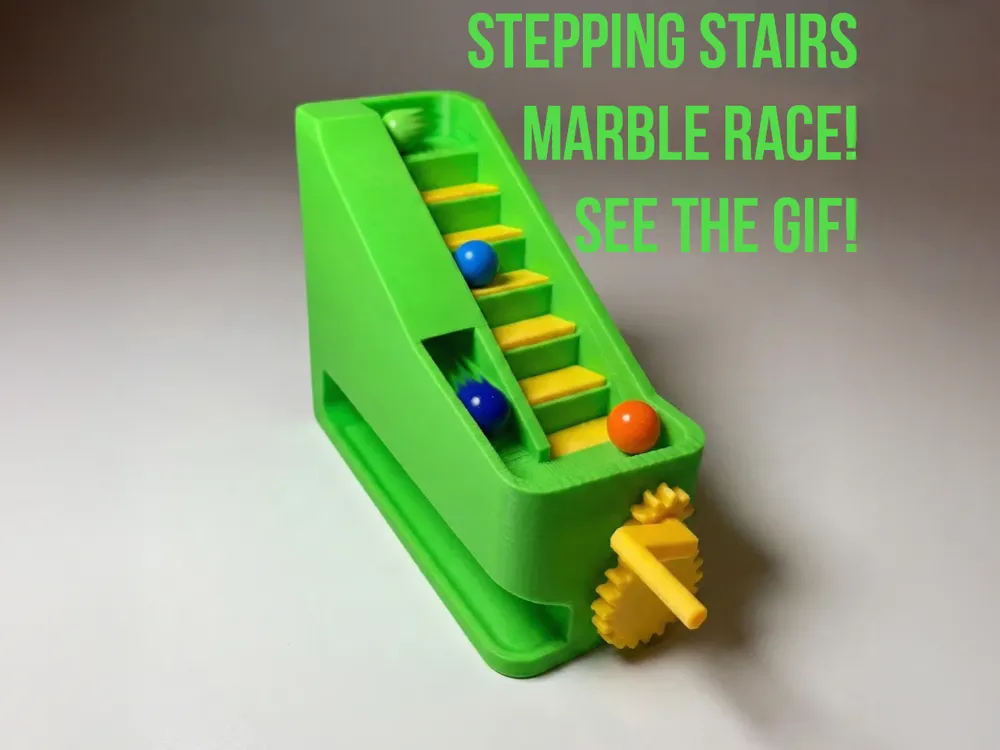

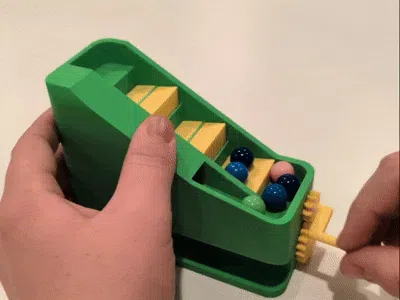

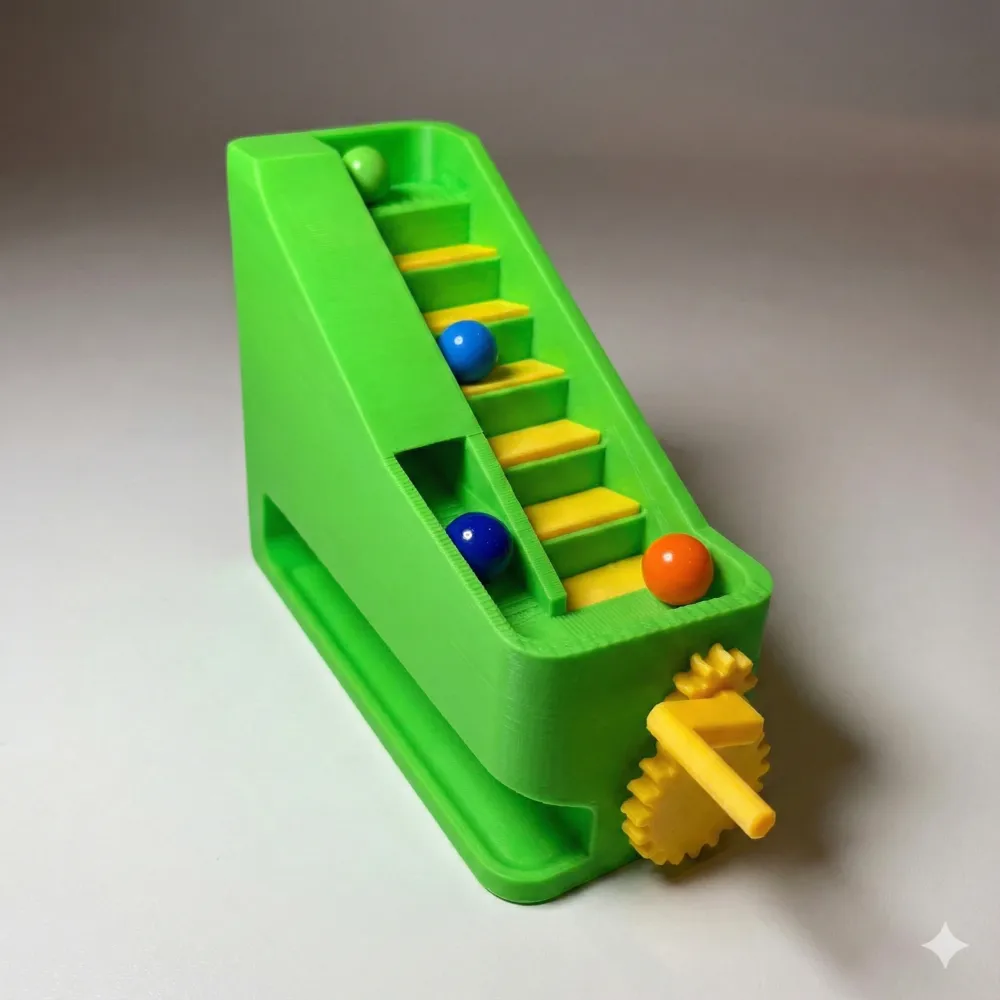

This is a type conveyer belt specifically designed to lift marbles up using a stepping mechanism. It's very satisfying to watch and requires minimal assembly.
- No Screws
- No Glue
- No Support or Overhangs
- 100% Printed Parts.
- A1 mini Compatible
This took about 3 weeks of designing, printing, testing, and redesign. Now I know that a pro could probably whip-up something like this in about 10 minuets, but this really tested my design skills and pushed me to my limits. I hope you enjoy this more than I did designing!
Boost Me (for free)
A boost would really help all this designing make it worth my time! Thank you!
ASSEMBLY INSTRUCTIONS:
Print all the parts (the balls are optional depending on if you want to print or buy them).
Tools: Super Glue.

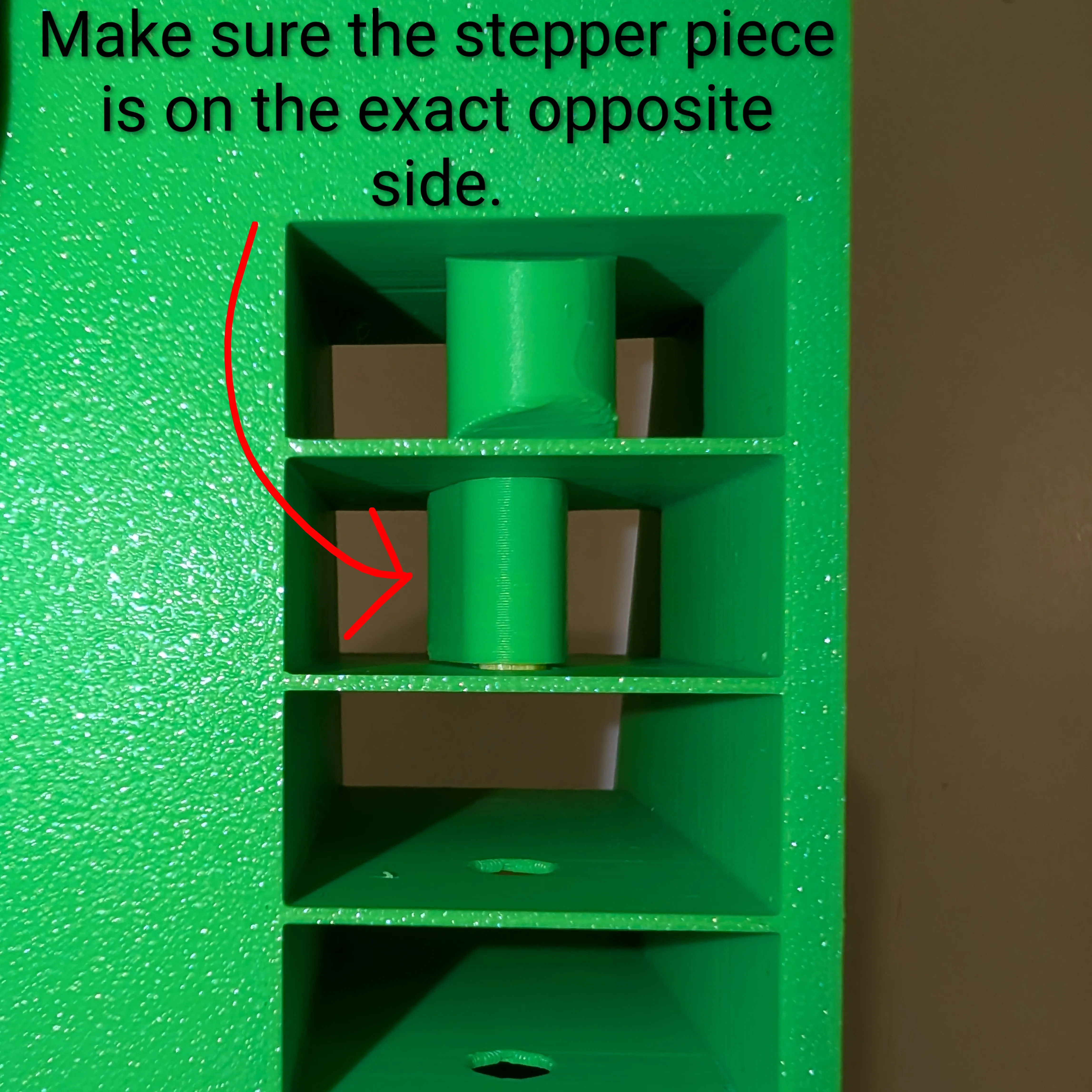

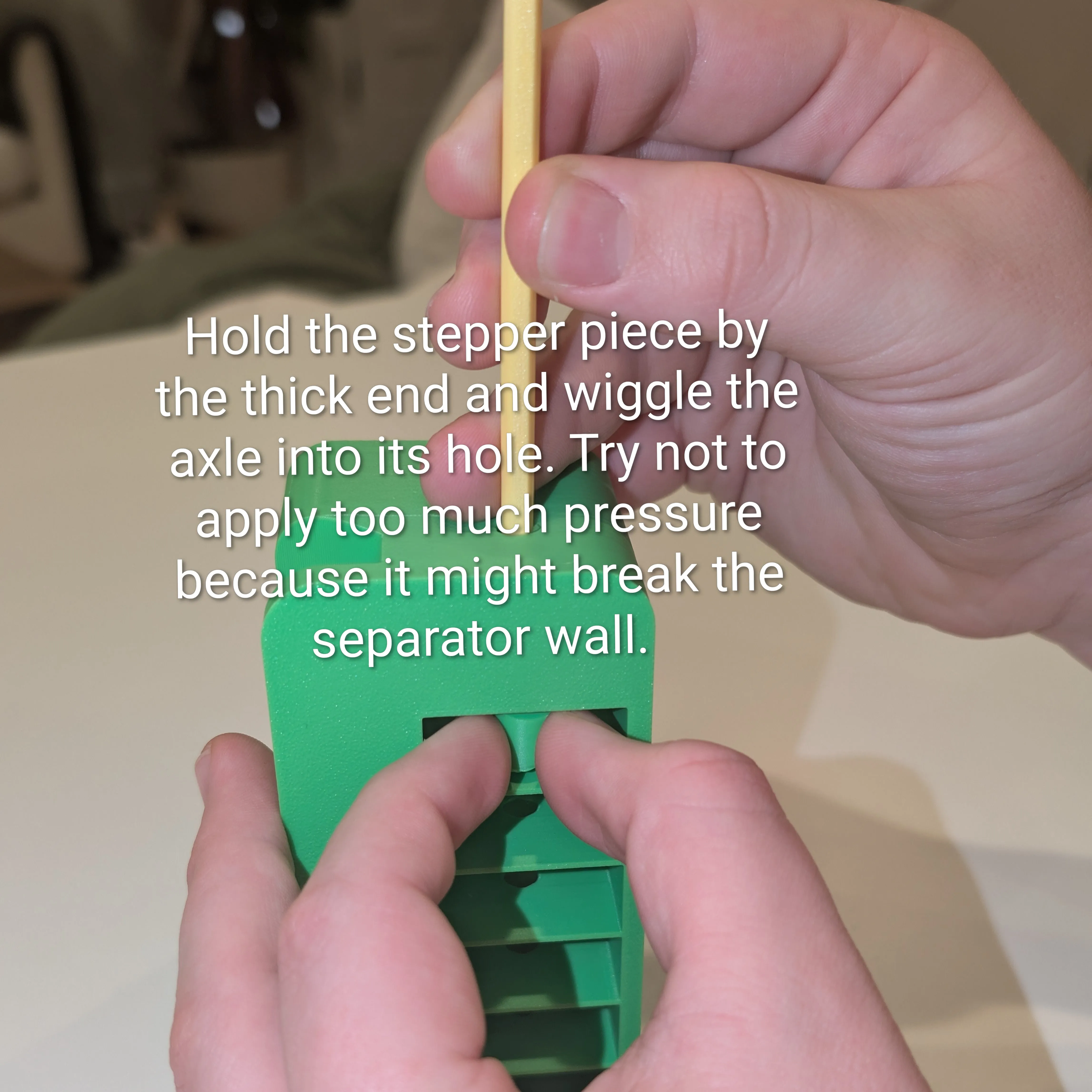

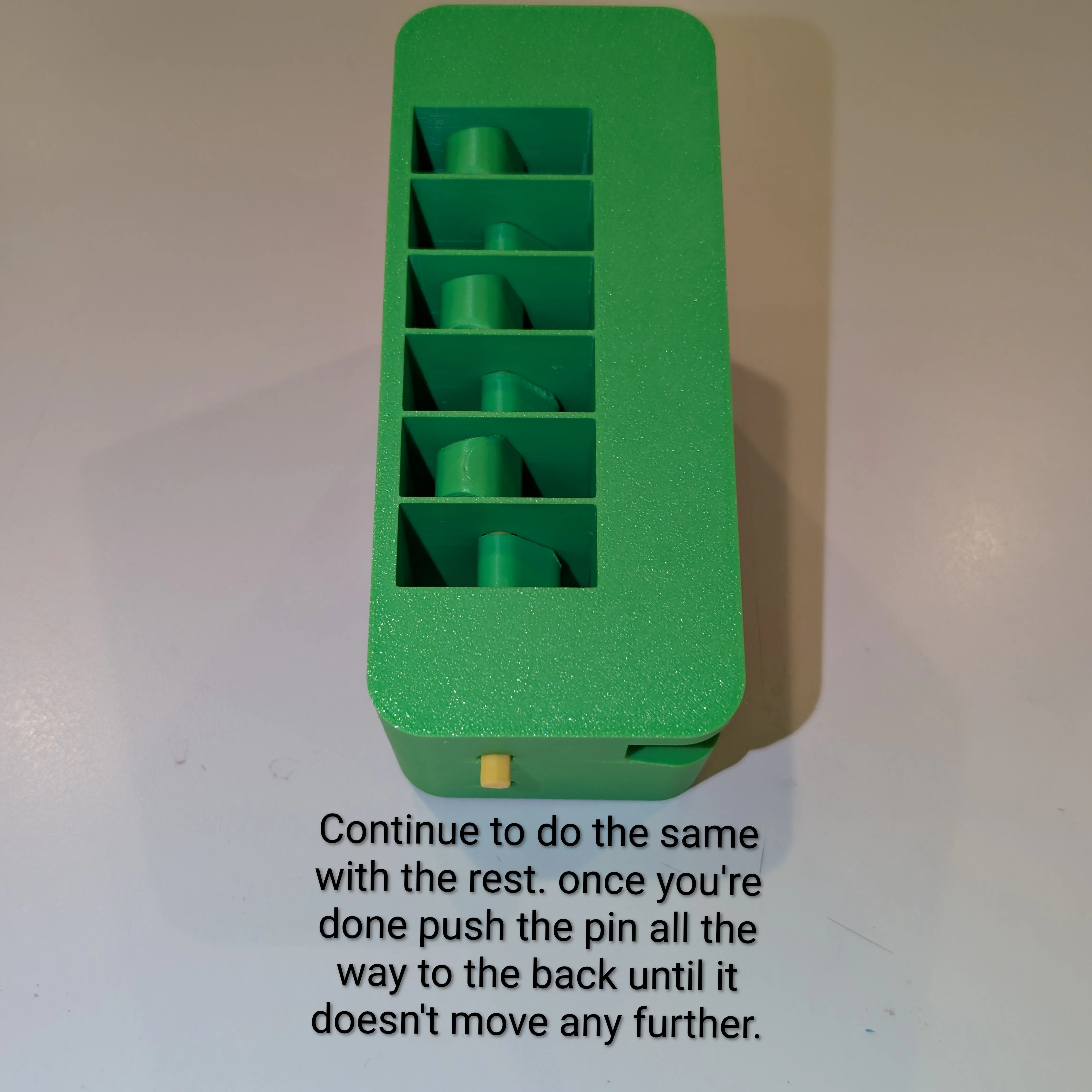

Step 1: This step is fairly tedious.
For the first step, you will need the Body, the Axle, and the “Steppers” (or “Cams”).
PARTS:
STEPS:

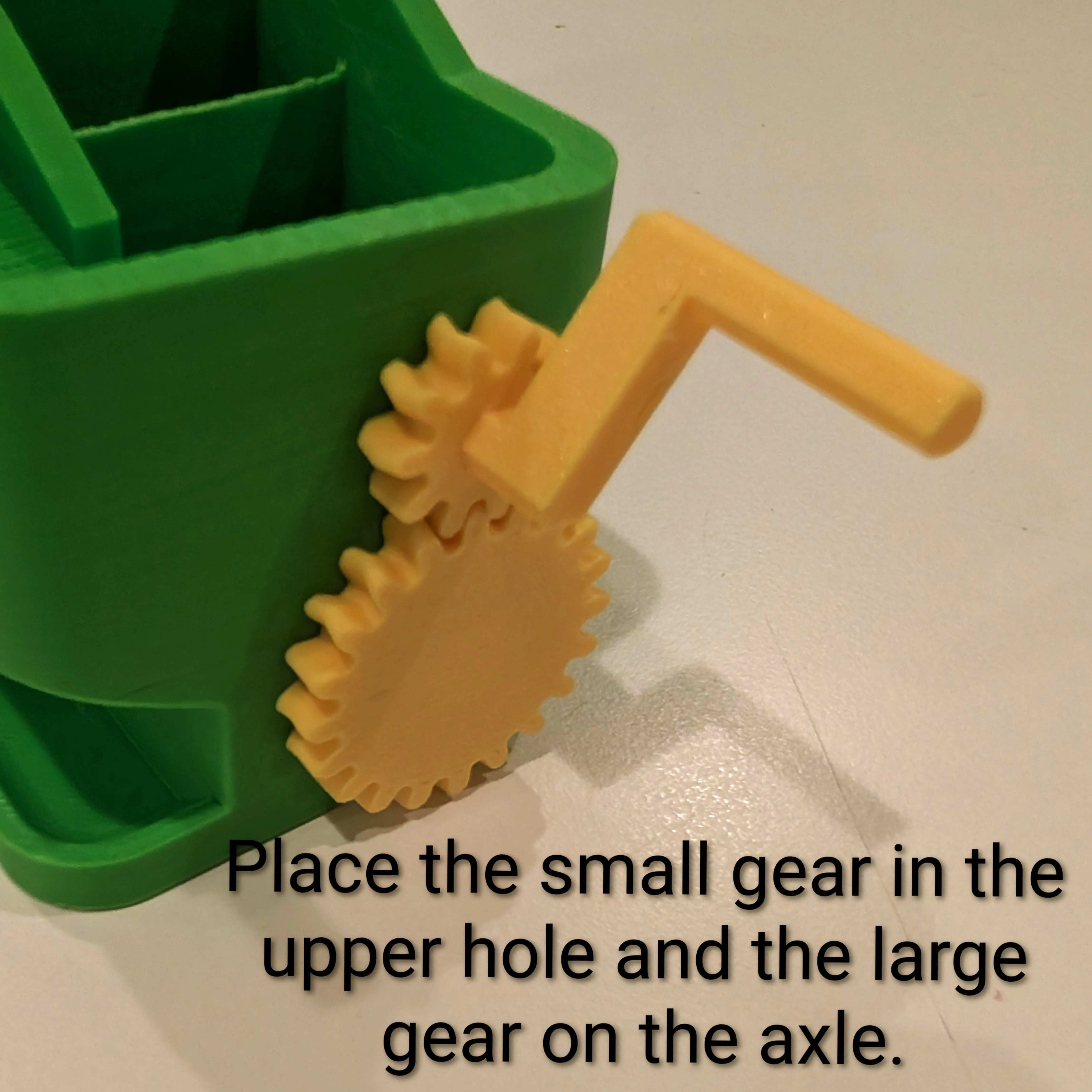

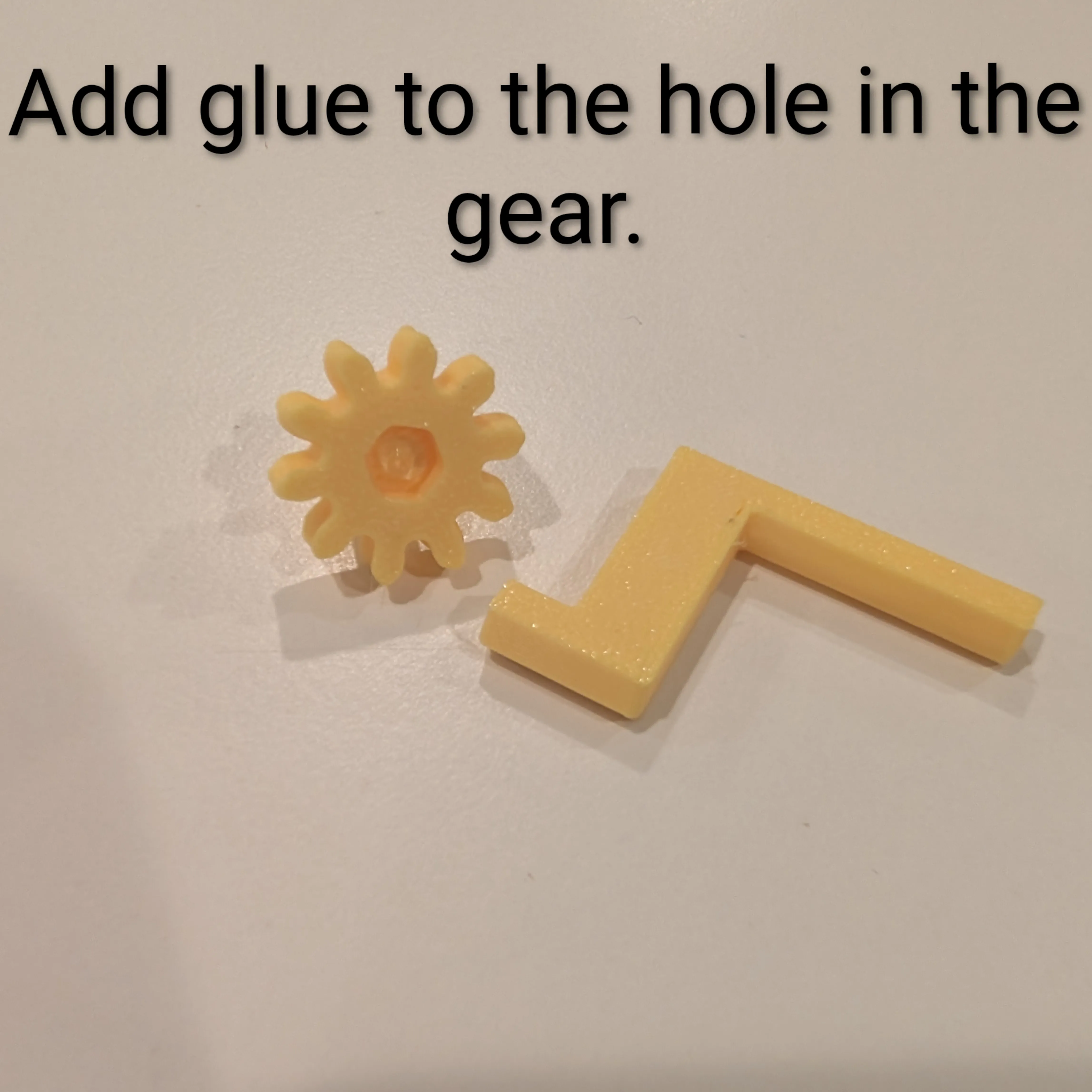

Step 2: This step requires some Super Glue.

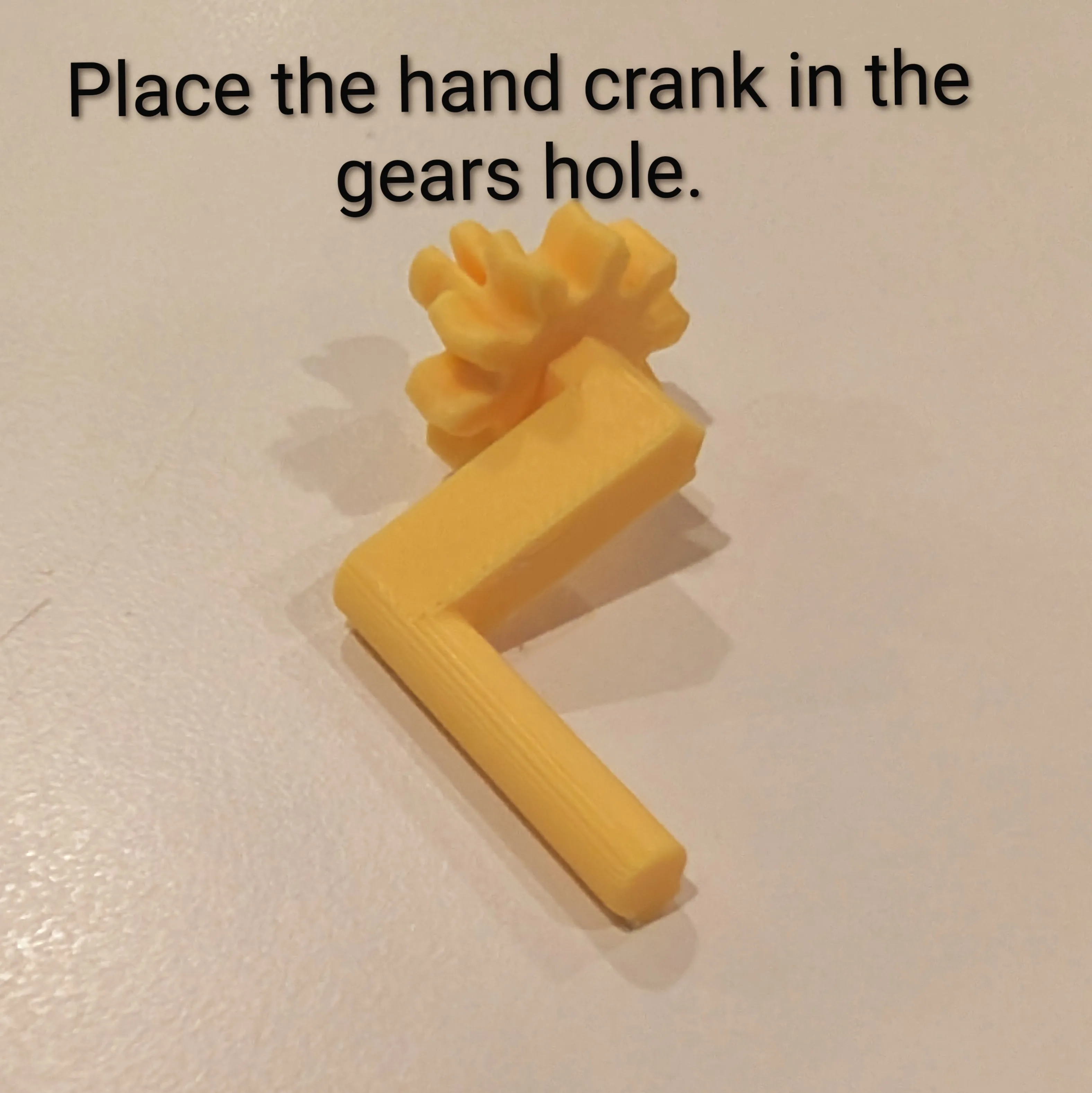

For the next step, you will need the Gears and the “Hand Crank”.
PARTS:
STEPS:

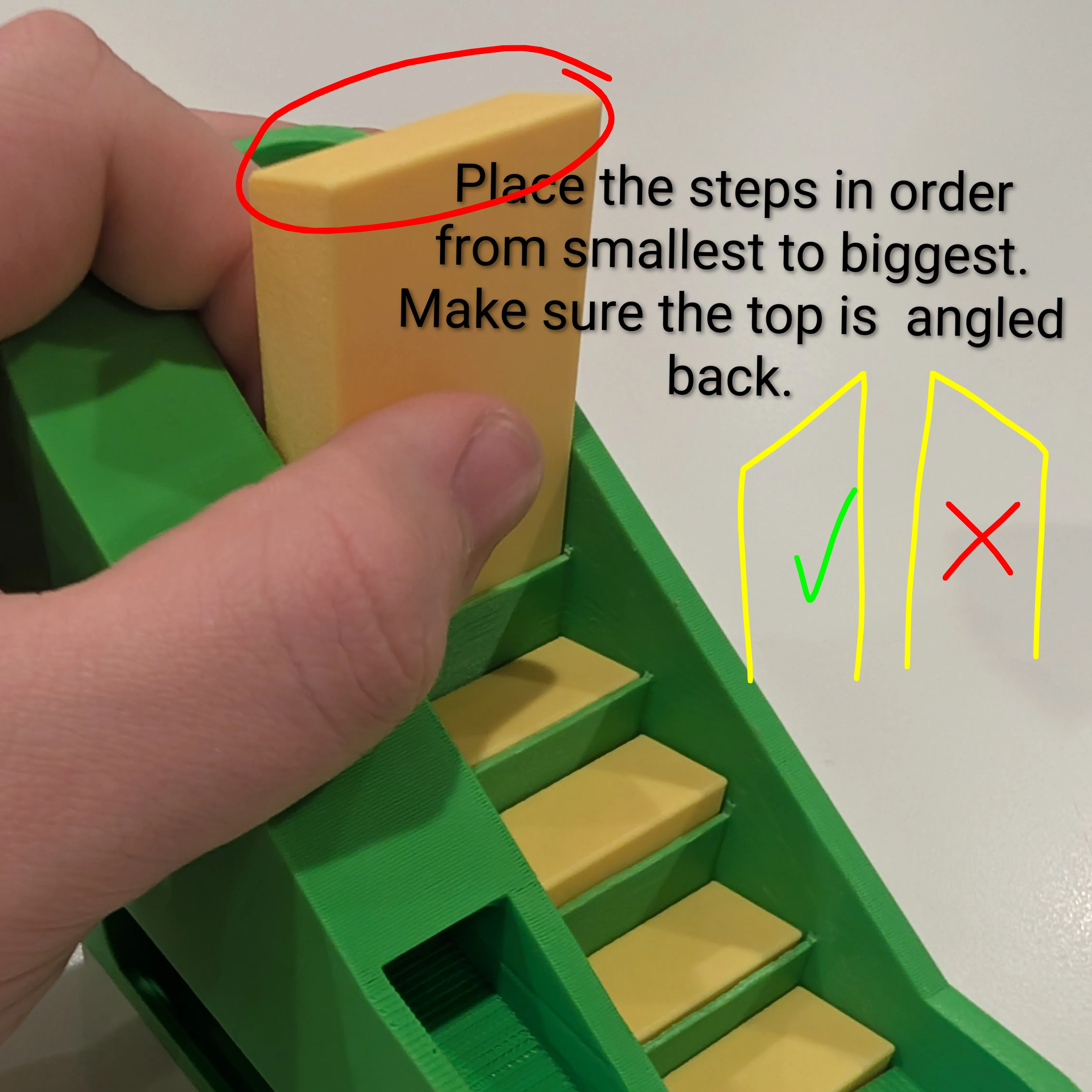

Step 3: Pay attention to the photos.
Finally, you will need the Steps.
PARTS:
STEPS:
DONE! Enjoy!
