Tools for concealed hinge

Hi,

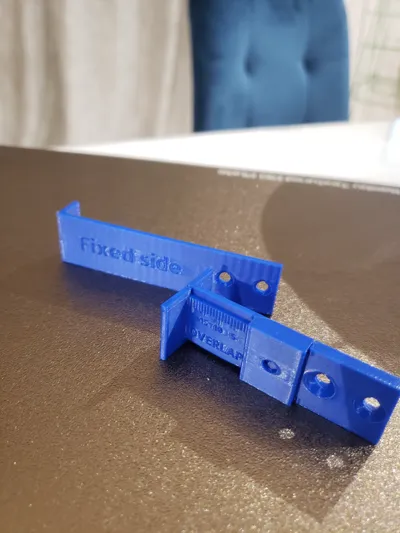

This model consist in two tools designed to help drilling holes at the right place when installing a concealed print in place hinge.

(model here : https://makerworld.com/en/models/195411#profileId-215987)

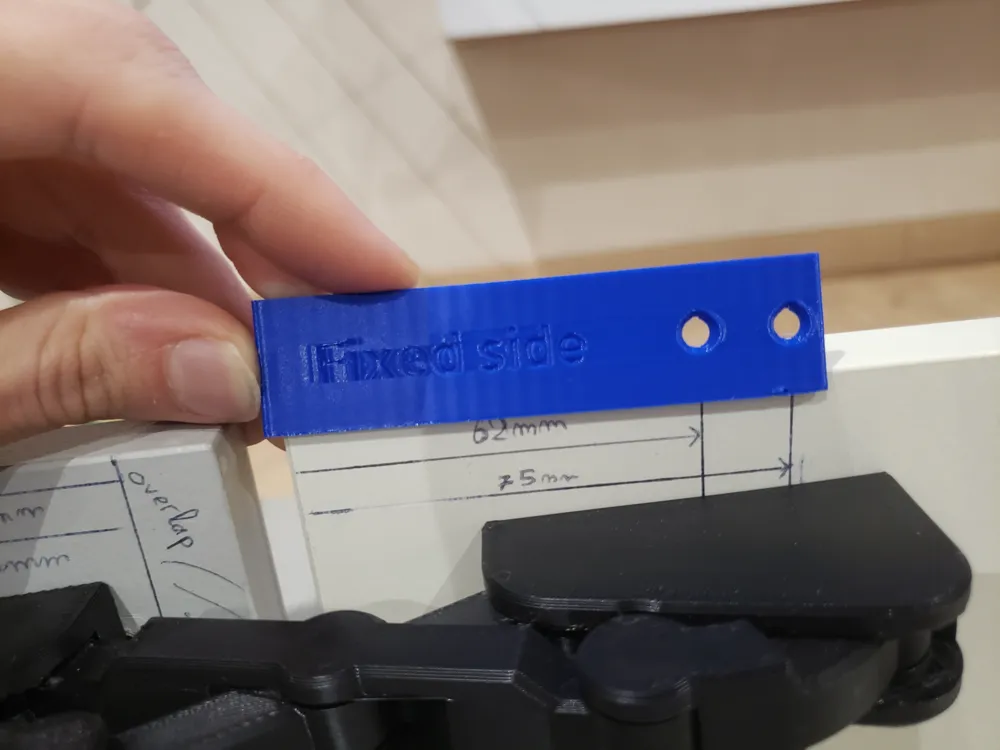

The first tool is a basic L shaped print with 2 holes where you should drill.

This tool must be used on the furniture side (the fixed part).

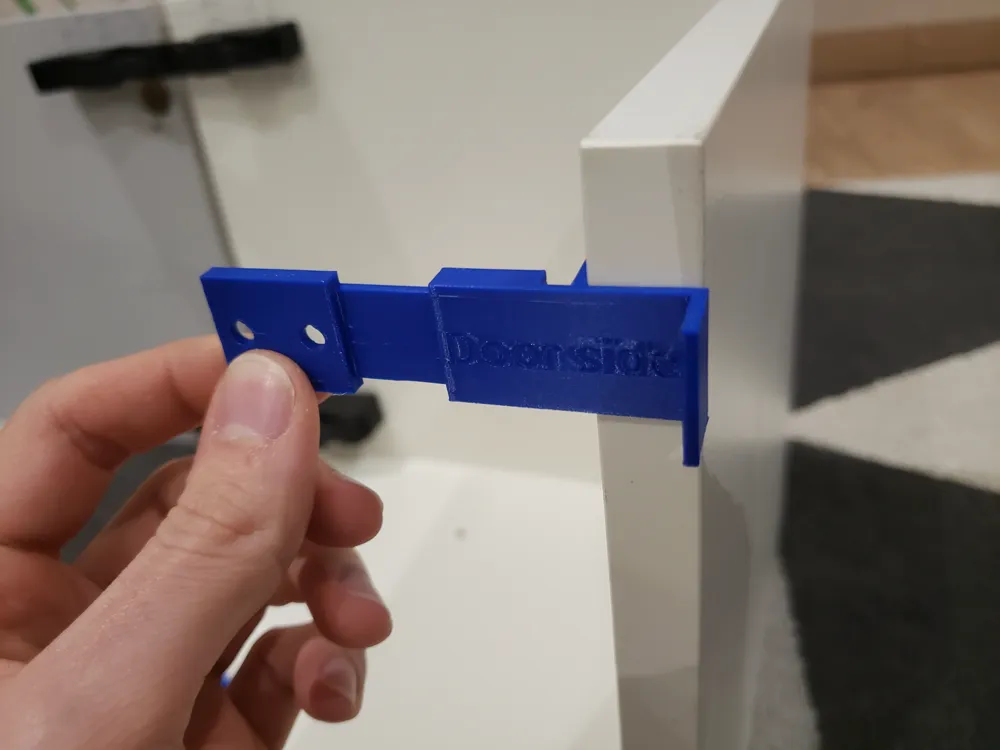

The second tool is more complex.

You can screw a M4 screw in the hole to tune the friction of the caliper.

It then has two functions:

• Measure/Visualise the overlap you want
• Report it on the door

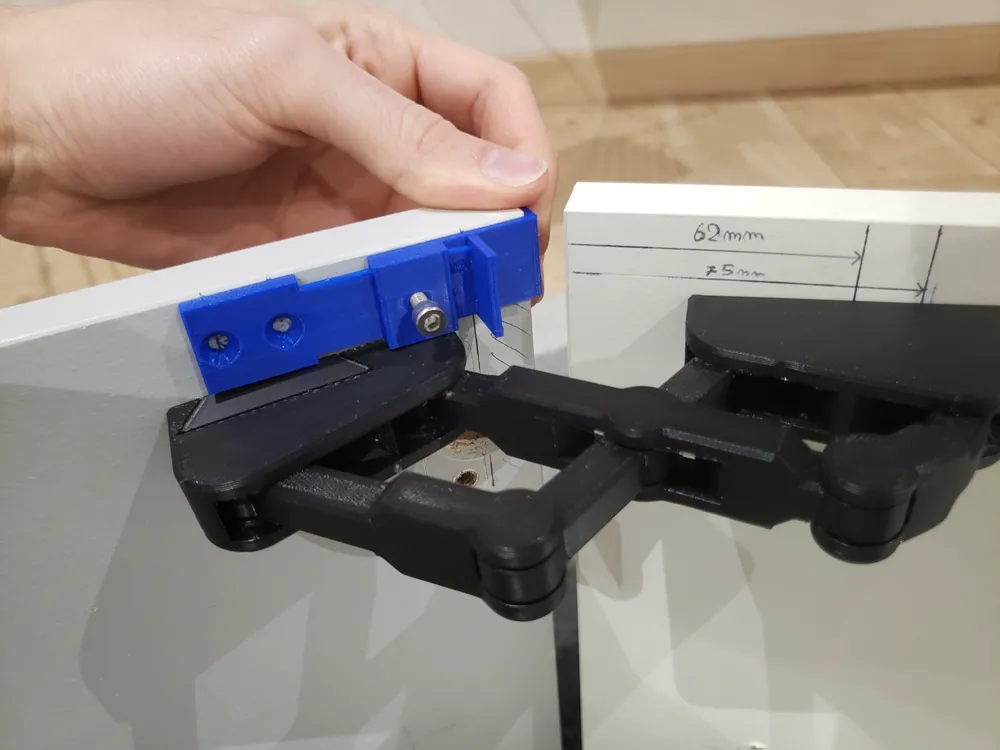

(You will undestand how it works by looking at the photos)
