Description

I was making lightweight organizers for office and household.

The motif is based on honeycomb lattice in both zigzag and armchair patterns.

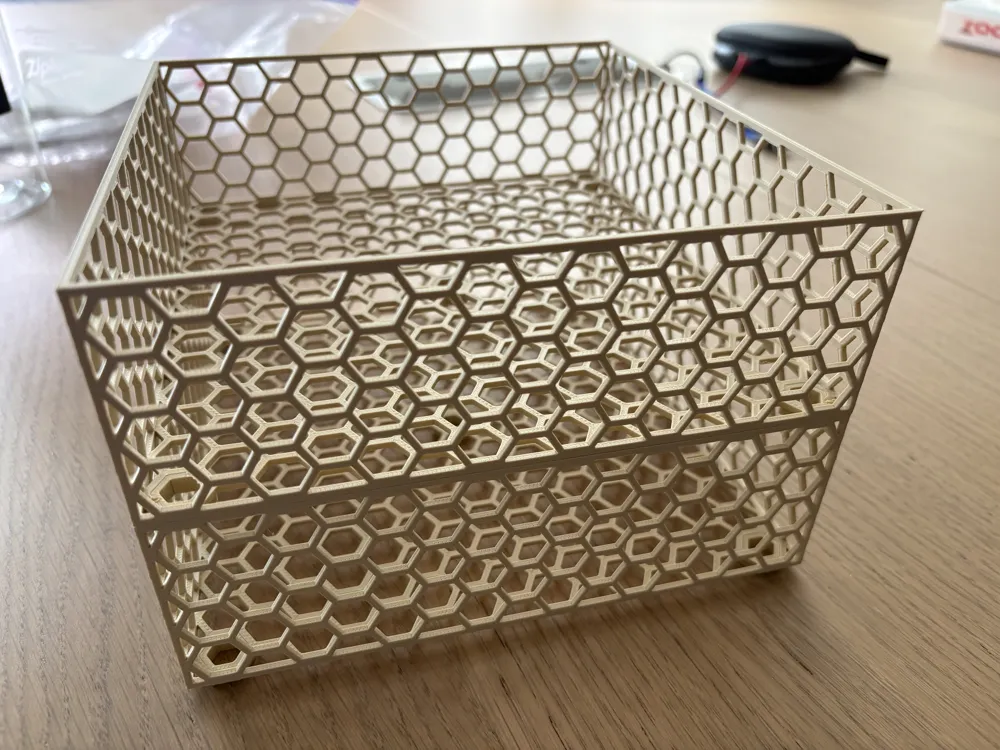

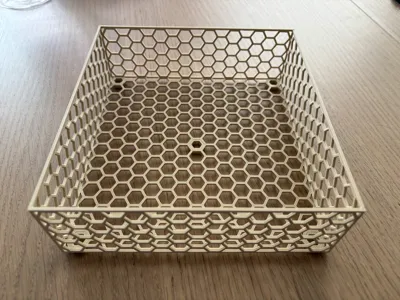

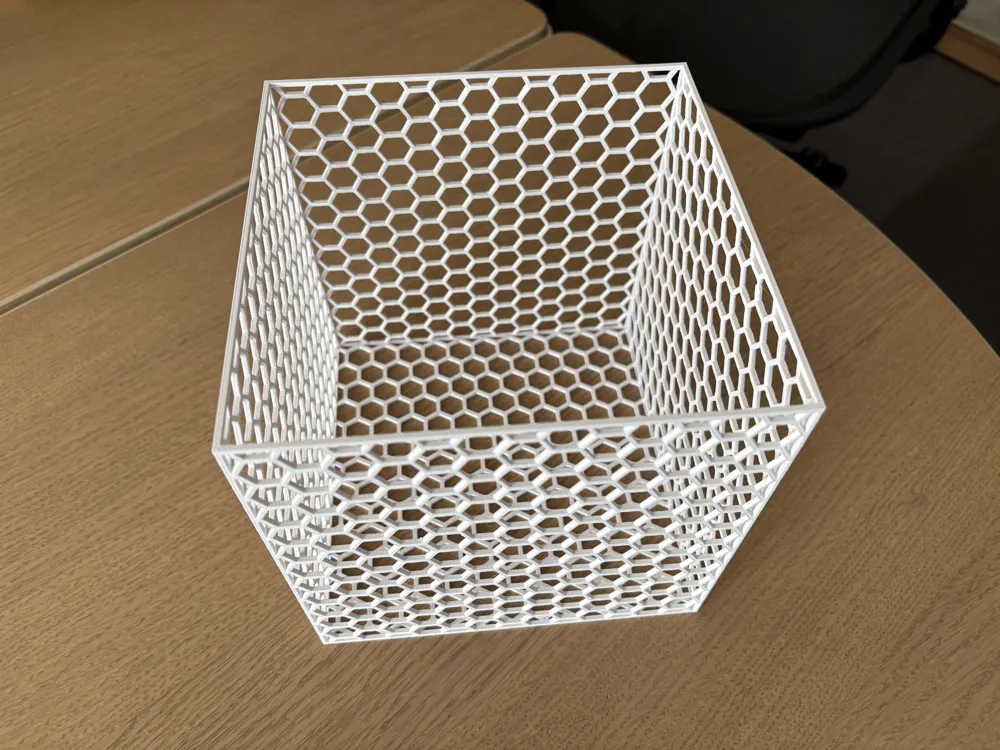

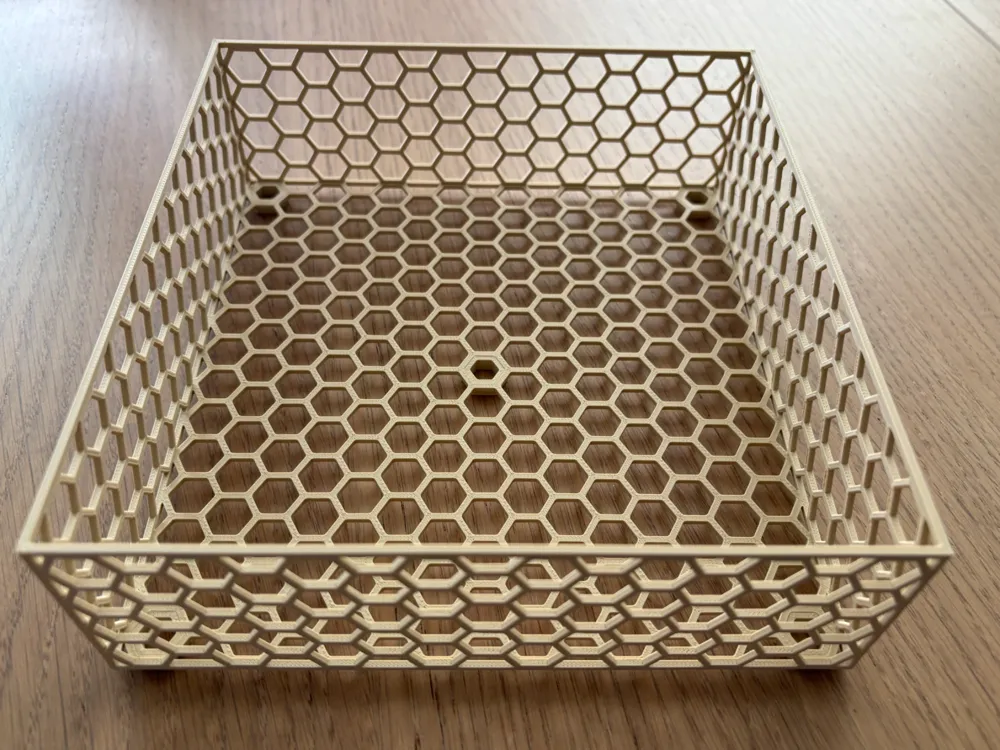

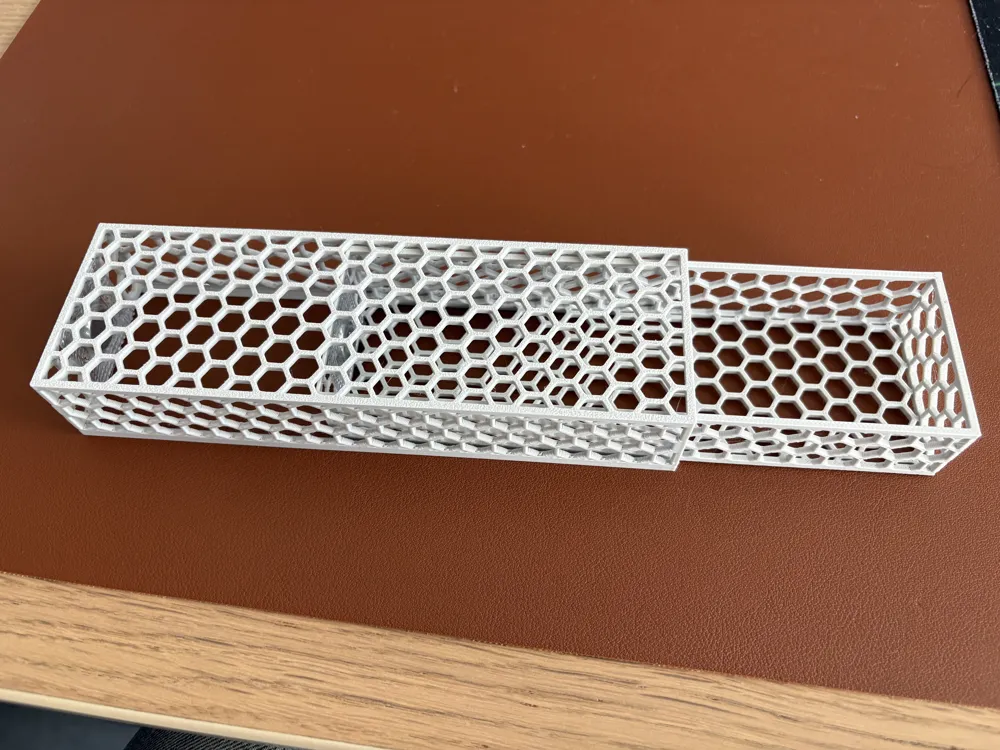

Examples are (1) stackable baskets with feet (2) somewhat tall basket (3) pencil holder (sliding).



Please feel free to edit all scad files for customized box dimension, and lattice size including the thickness.

  1. In OpenSCAD: adjust parameters, render, and export stl files.
  2. In BambuStudio (or printing app): import the stl to print the models

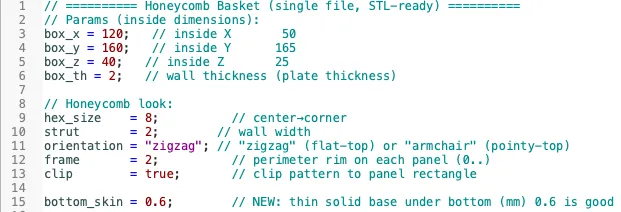

scad example:

line3-5: dimension of box(or basket)

line9-10: honeycomb size and width

line11: geometry

line15: bottom layer

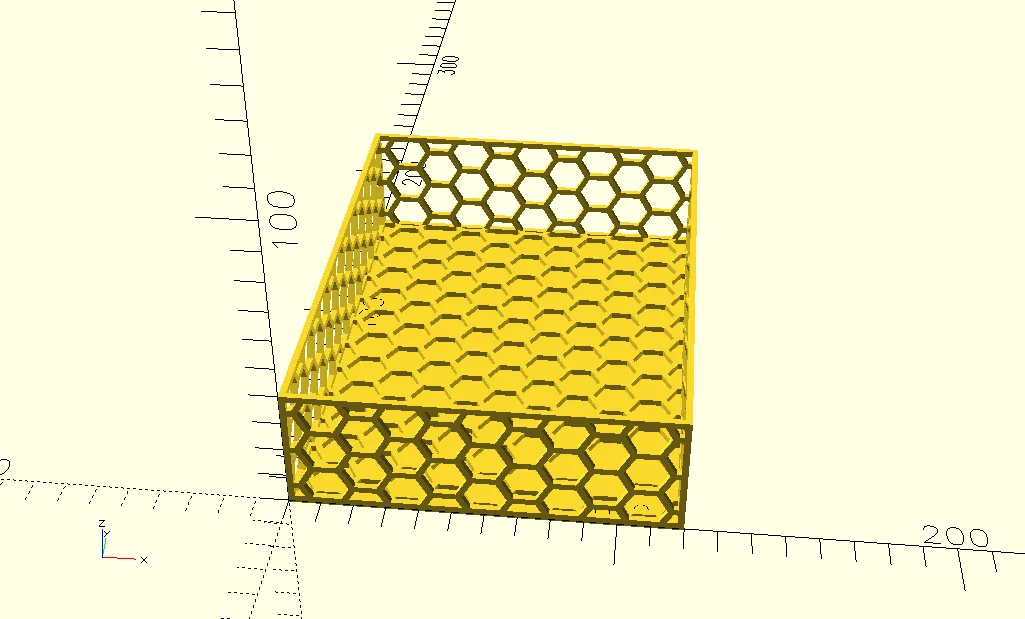

This will yield:

Enjoy your customized baskets(boxes)!
