Parametric LEGOs Frames for IKEA SKÅDIS – Modular
IP Report
This model is created by Parametric Model Maker
Make Your Model
Print Profile(3)

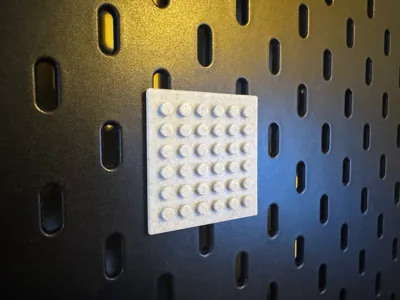

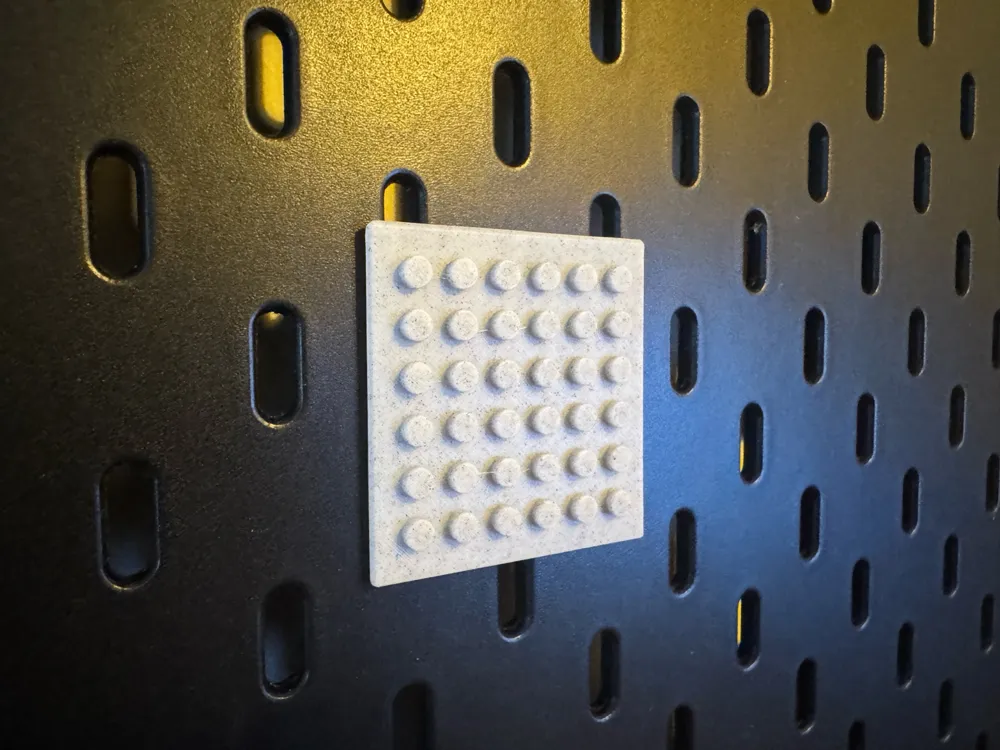

Standard frame (6*6 studs)
Designer
1.2 h
1 plate
Long Vertical Frame (6 * 18 studs)
Designer
2.8 h
1 plate
Long Horizontal Frame (18 * 6 studs)
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
52
268
14
2
43
24
Released
Description
Generate your own fully-custom LEGOs wall-mount frames - any size, any build, any theme.

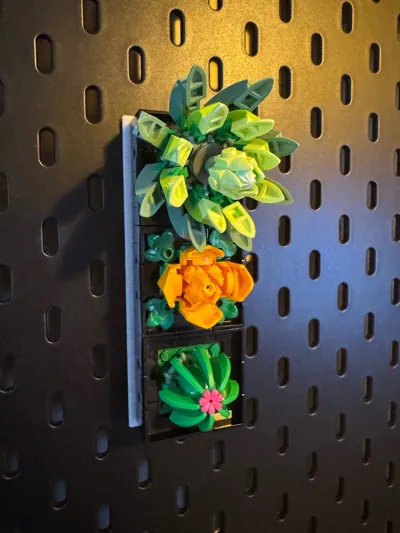

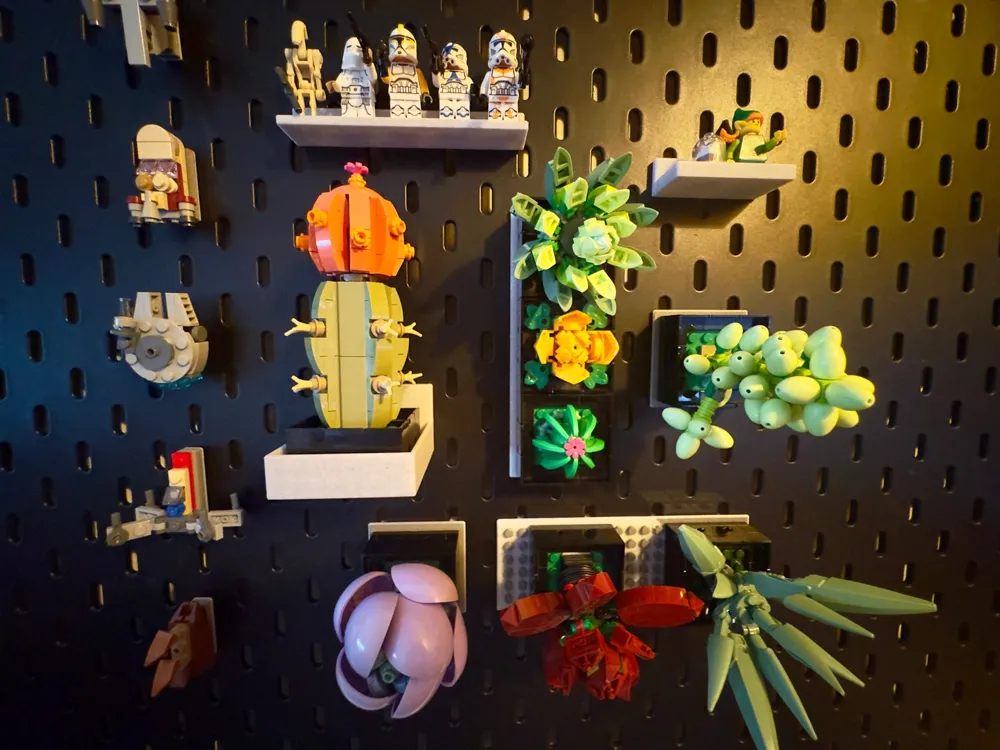

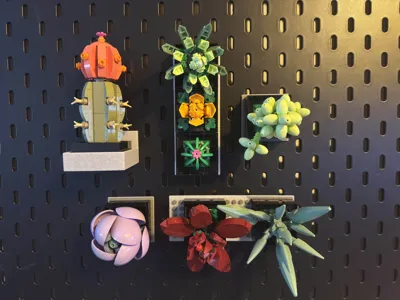

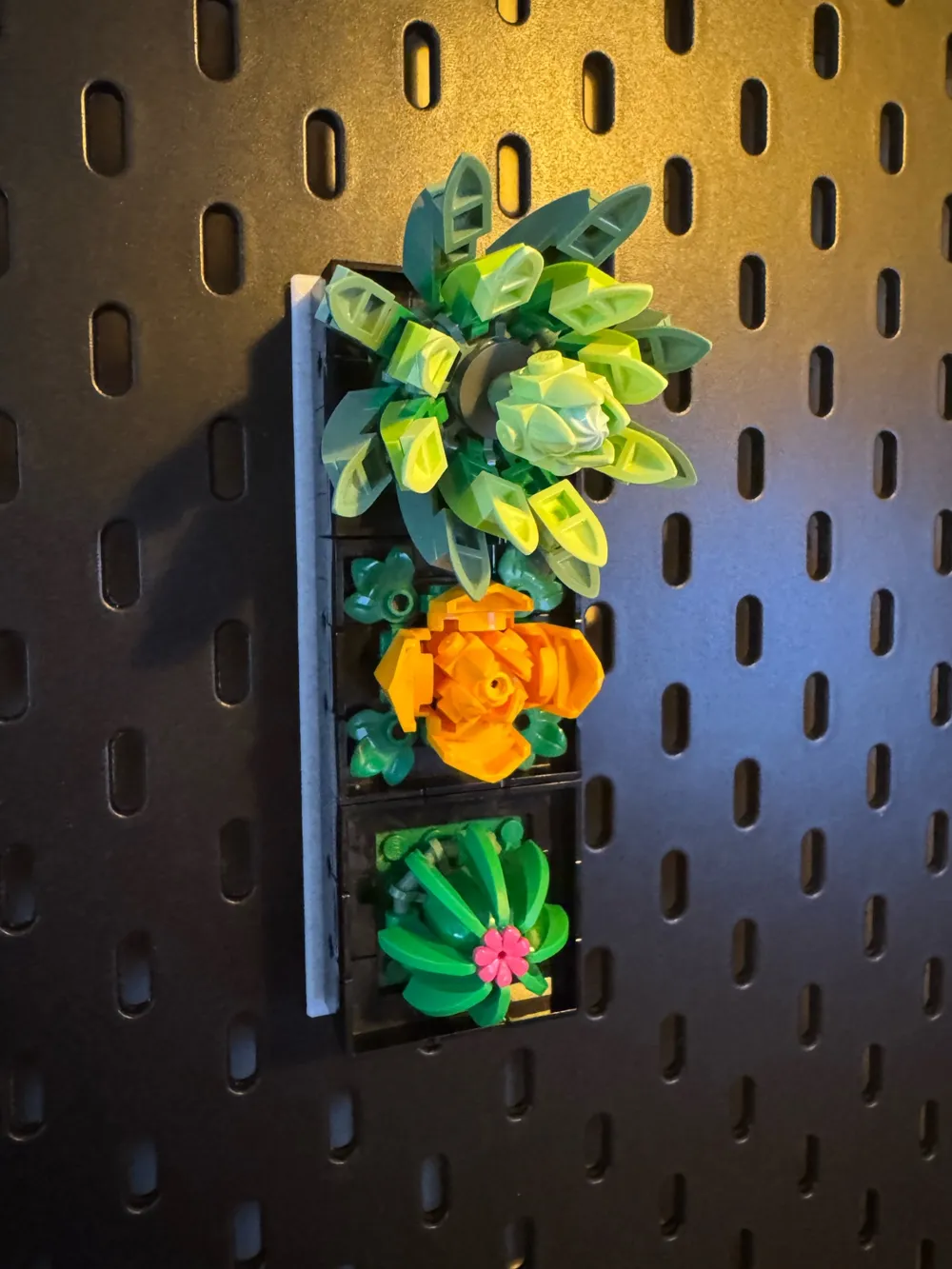

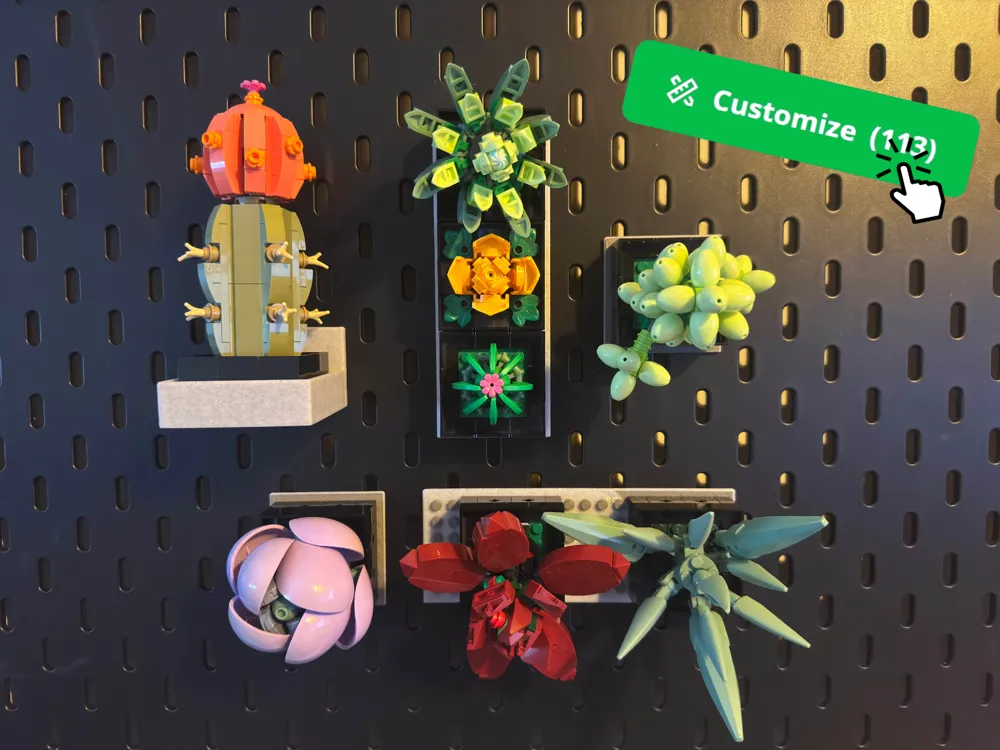

This parametric model allows you to create frames that snap directly into the IKEA SKÅDIS pegboard, ranging from tiny 2×2 stud tiles to full-board displays (31×31 studs). Works with LEGOs Botanicals, Star Wars microships, MOCs, minifigs, display plates, mosaics, and anything else you can build.
Features:
- 🔧 Fully parametric OpenSCAD model – generate any frame size
- 🧱 Works with any LEGOs build from 2×2 to 31×31 studs
- 🪝 Built-in SKÅDIS hooks (prints in place) – snaps in, no screws, no hardware
- 🧩 Stack, tile, arrange however you want — true modular system
- 🔀 Works for Botanicals, microships, minifigs, MOCs, art tiles, etc.
- ⚙️ Includes “looser fit” option for filament / printer tolerance
- 🧠 Perfect for display walls, swap-out panels, rotating collections
Boost Me (for free)
If you like this project, a boost helps more makers discover it.
Thanks for supporting parametric design on SKÅDIS!
🖨️ Recommended Print Settings
| Setting | Value |
|---|---|
| Walls/perimeters | 4 |
| Supports | On ✅ |
| Wall generator | Arachne (recommended) |
| Nozzle | 0.4 mm |
| Infill | 15–20% gyroid / grid |
| Material | PLA, PLA+, PETG |
This design is part of my ongoing “Skådis LEGOs System” - a modular, parametric approach to turning IKEA’s pegboard into a creative LEGOs display wall. Check out my other models!
