Riser Drawer System

I have created a drawer system that will integrate onto most riser systems (if they sit flush around the inner ring). Or even no need for a riser. There is an adapter ring that will hold the glass if you want.

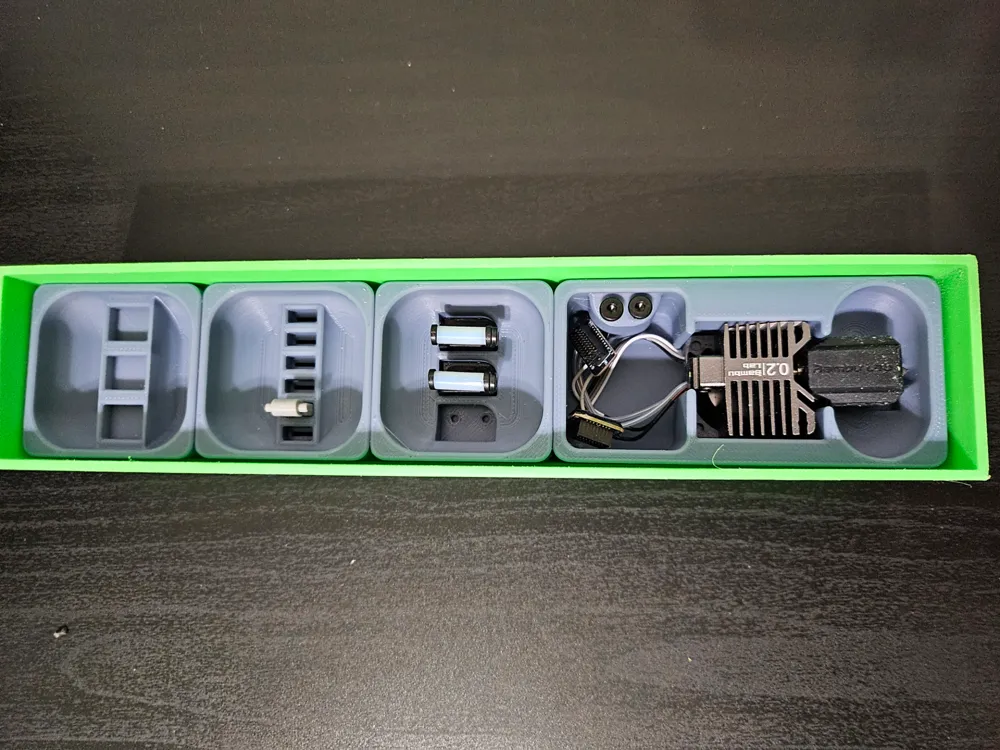

This is built off the Gridifinty Dimensions. So any inserts that are based off that should work. (I used the inserts from the FOBOS system Works perfectly)

Five sets of Drawer sizes.

1. 1 wide x 5 long x 5 Tall
2. 1 Wide x 5 long x 10 tall
3. 2 wide x 5 long x 5 Tall
4. 2 Wide x 5 long x 10 tall

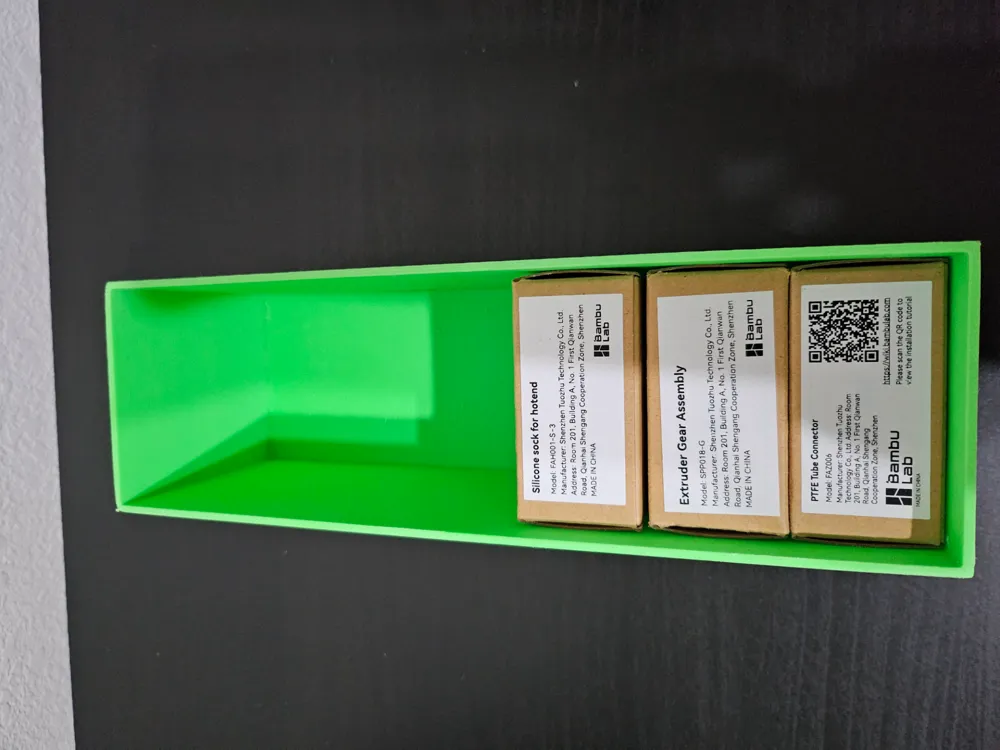

5. 62mm wide x210mm long x 71mm tall. This one was made specifically for the small Bambu Spare Part cardboard Boxes.

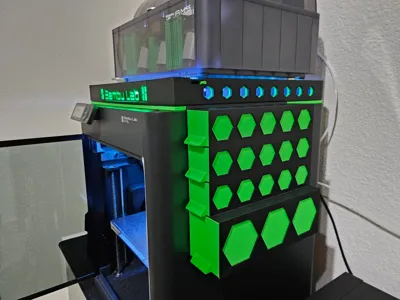

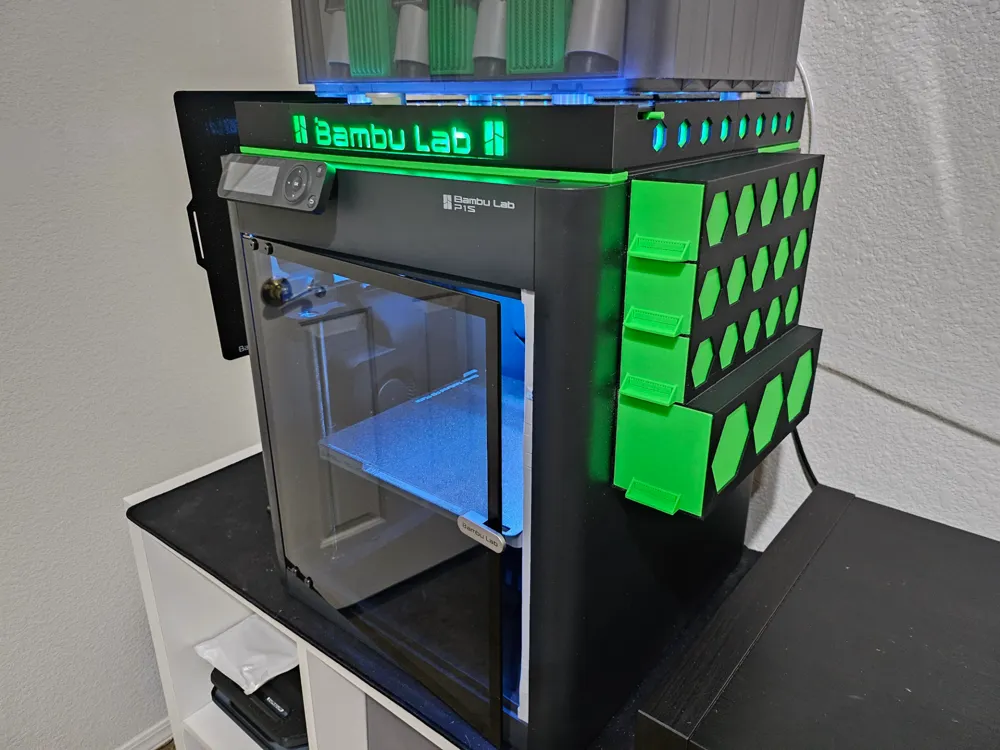

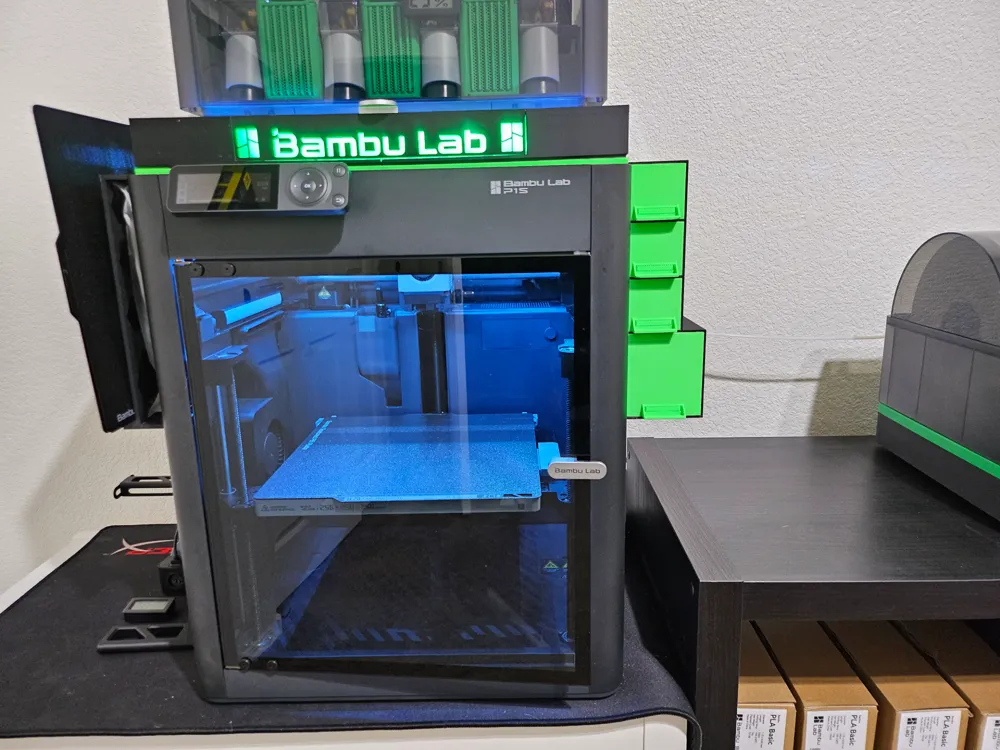

There are 4 different cabinet styles. All mirrored so you can pick and choose what works best for your set up.

1. 3 small Gridfinity Drawers + the Bambu spares drawer
2. 3 small Gridfinity Drawers + a tall Gridfinity Drawer
3. 3 small double wide Gridfinity Drawers + a tall double wide Gridfinity Drawer

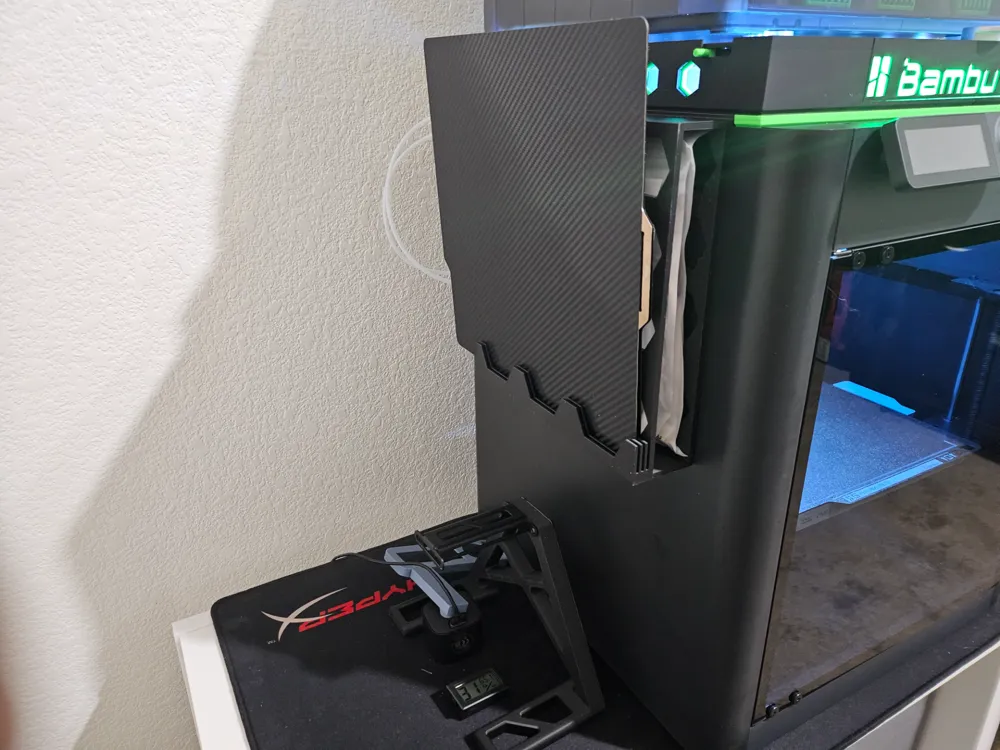

4. A cubby hole plate holder. I am using it to stash the bag of extra PTFA tubing I have for my AMS with a plate holder on the side. Should hold 3-6 plates.

The adapter uses pegs and holes to hold it together. The gap is snug around the top lip. I wanted it to be a tight fit to decrease any movement. I used CA glue on the pegs to ensure it is secure. There are nameplates if you want to create labels for the drawer handles.

Sorry no fancy renders, I prefer to take real pics of the real outcome of my models. Nothing worse than downloading a model spending a bunch of time and filament on a project that looked awesome in a render only to find out the end product is a let down.

**ALSO CHECK OUT THE RISER I CREATED IN THE PIC HERE**https://makerworld.com/en/models/185439#profileId-204181

Thanks
