Description

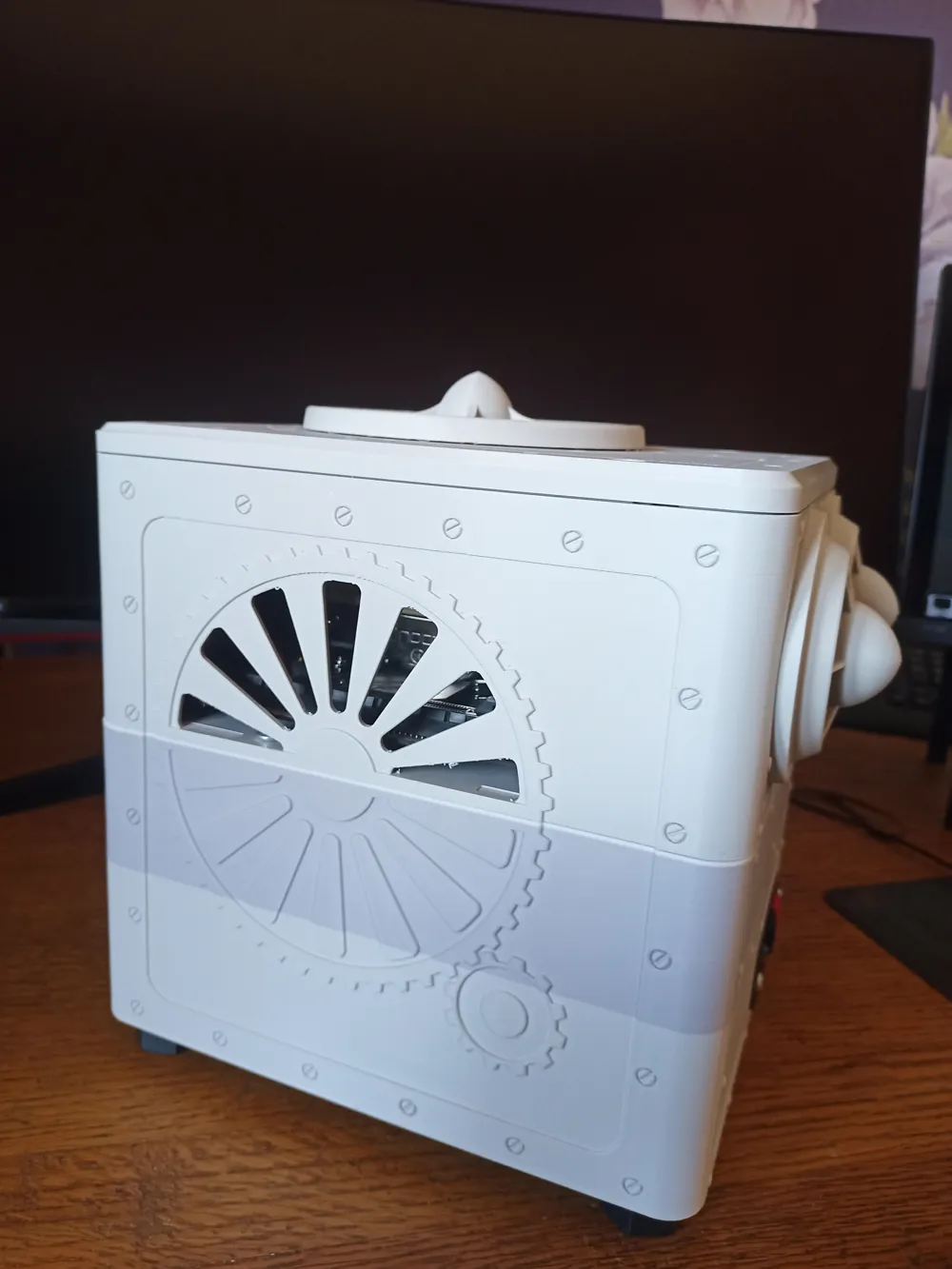

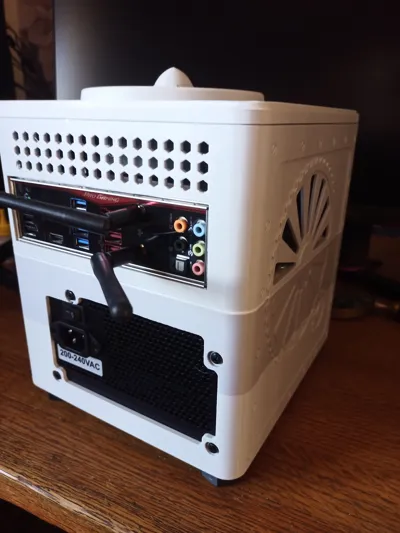

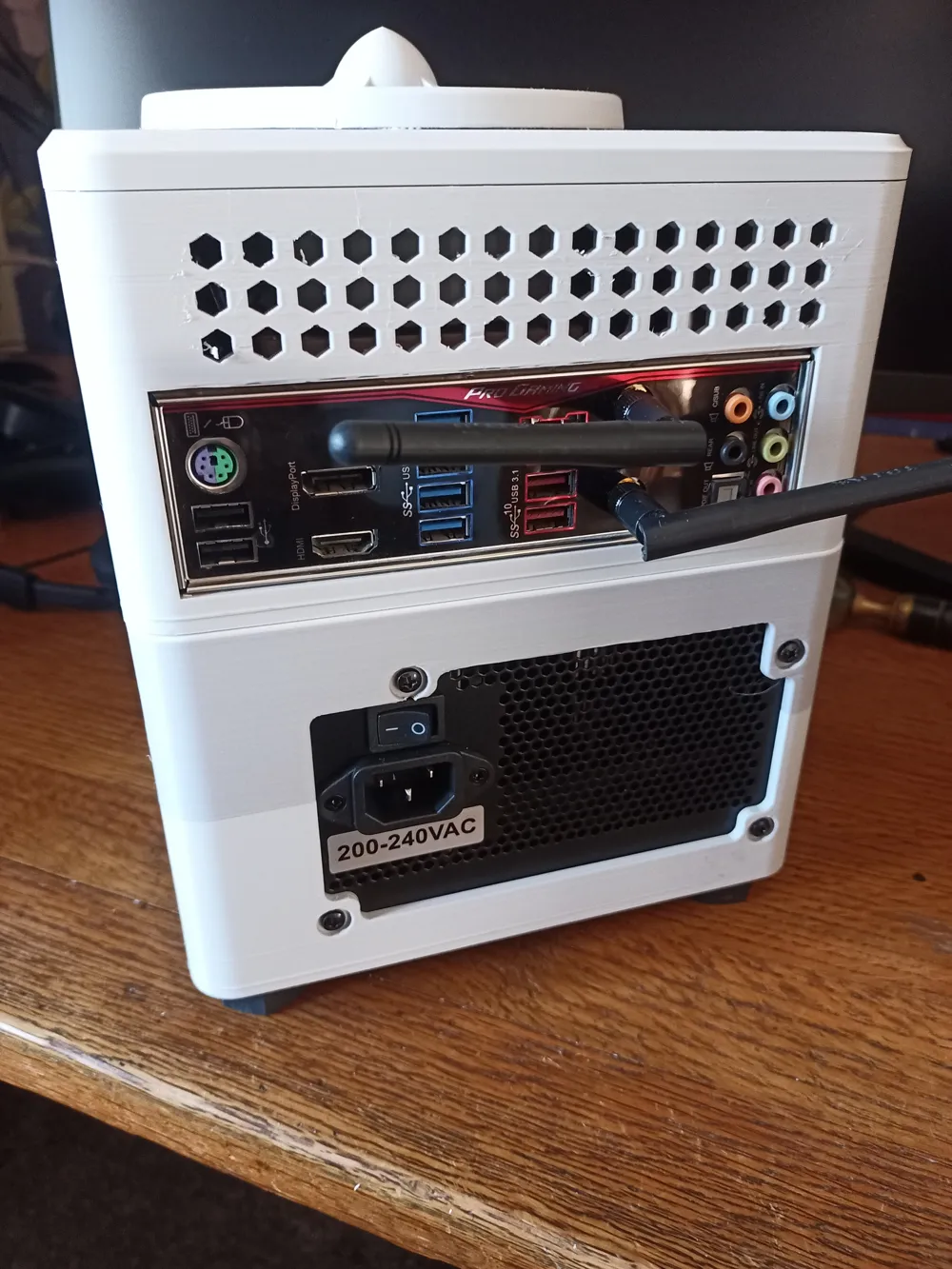

I designed this case to use an old ASUS 1701 mother board which was surplus, I also had a 650 w power supply which I wanted to use.
The motherboard has on board graphics and has a low profile Noctura fan .
The case needs heat inserts
M5 for the lid and joining of the case
M6 for the feet
M3 for the mother board mount

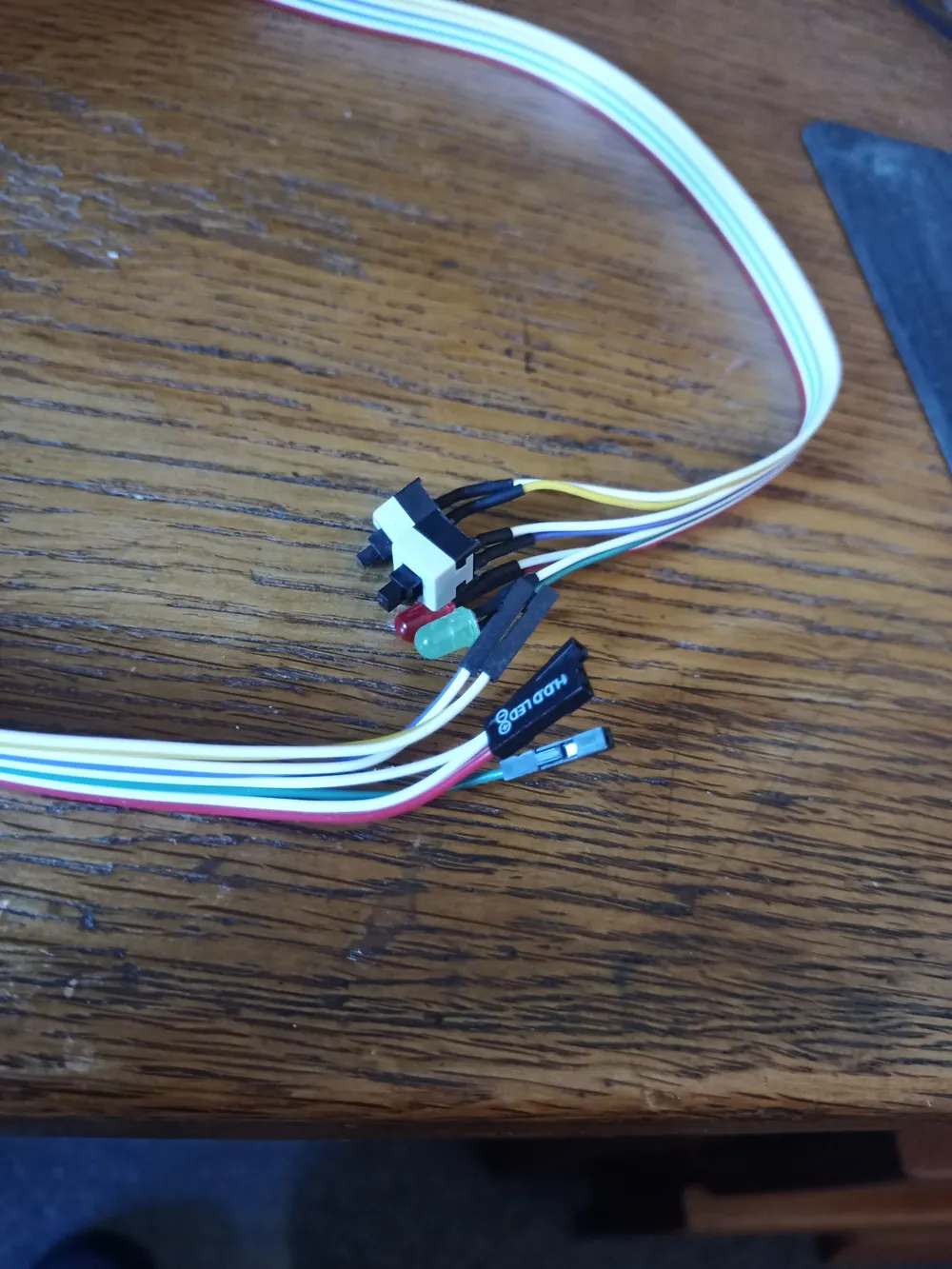

The front panel switch is a bare bones cable from Amazon

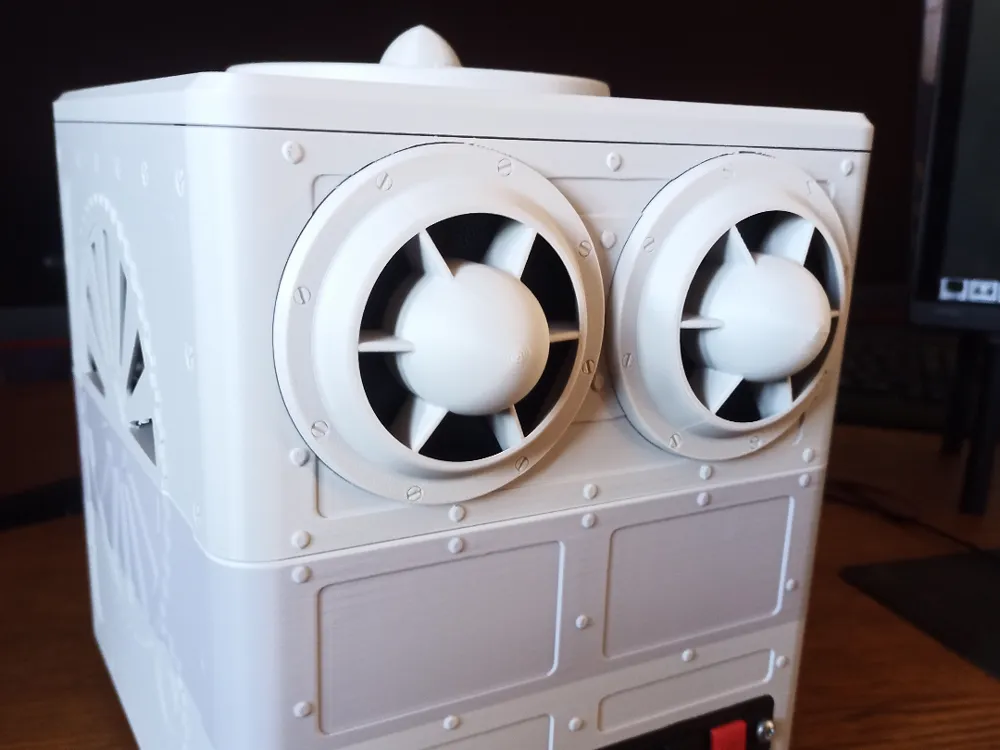

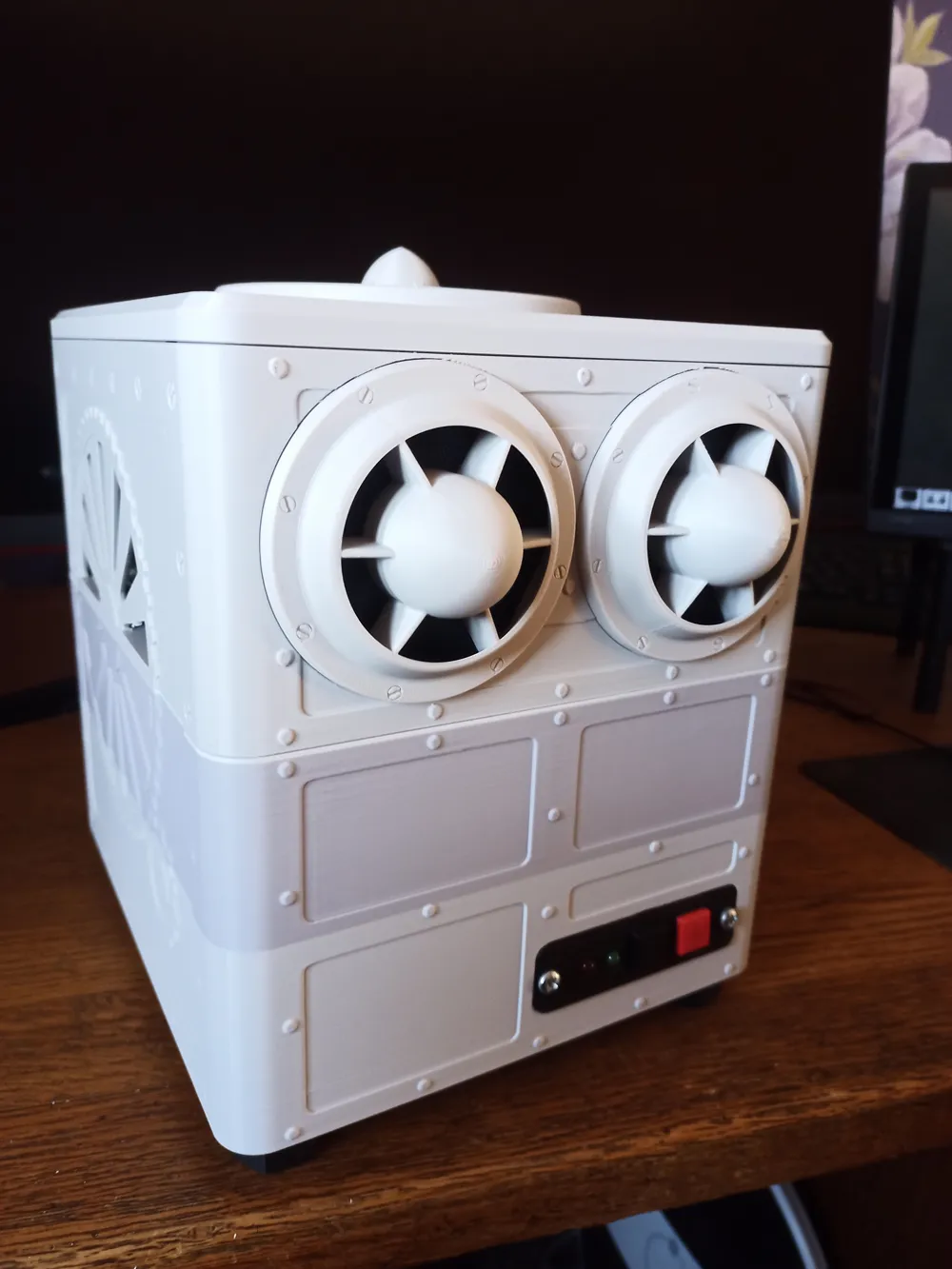

The front fans are 2x 80mm Noctura
the Hard mounts in the base
