Light Balls

This is an adaptation for fire chains, sometimes you can't use fire so I created an aerodynamic and durable skeleton for this specific discipline like fireshow. Many years of experience were reflected in the design and overall concept of this work. Designed for standardized 12V single-color and RGB LED strips.

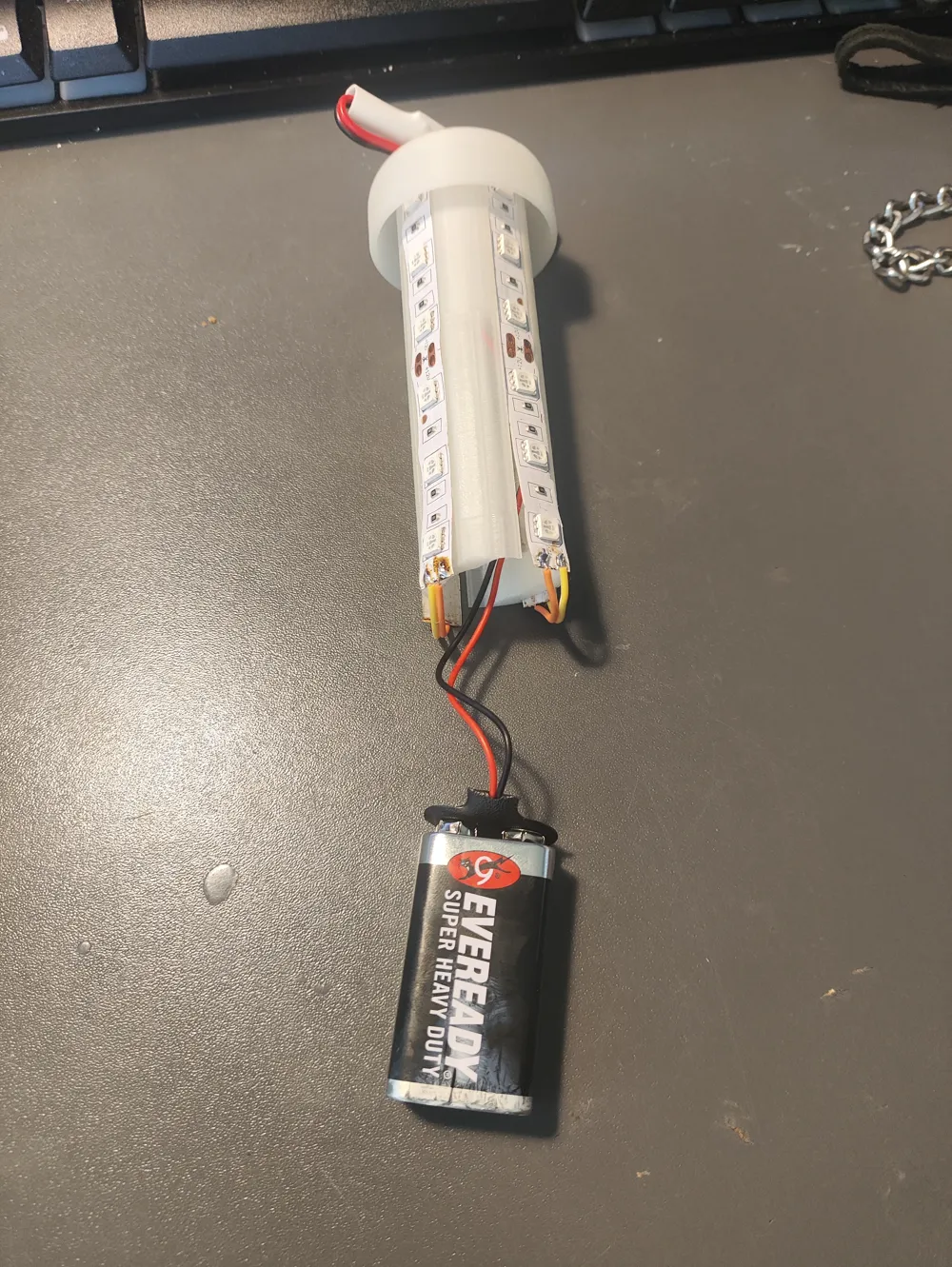

Power supply: 9V battery is enough for many hours of fun.

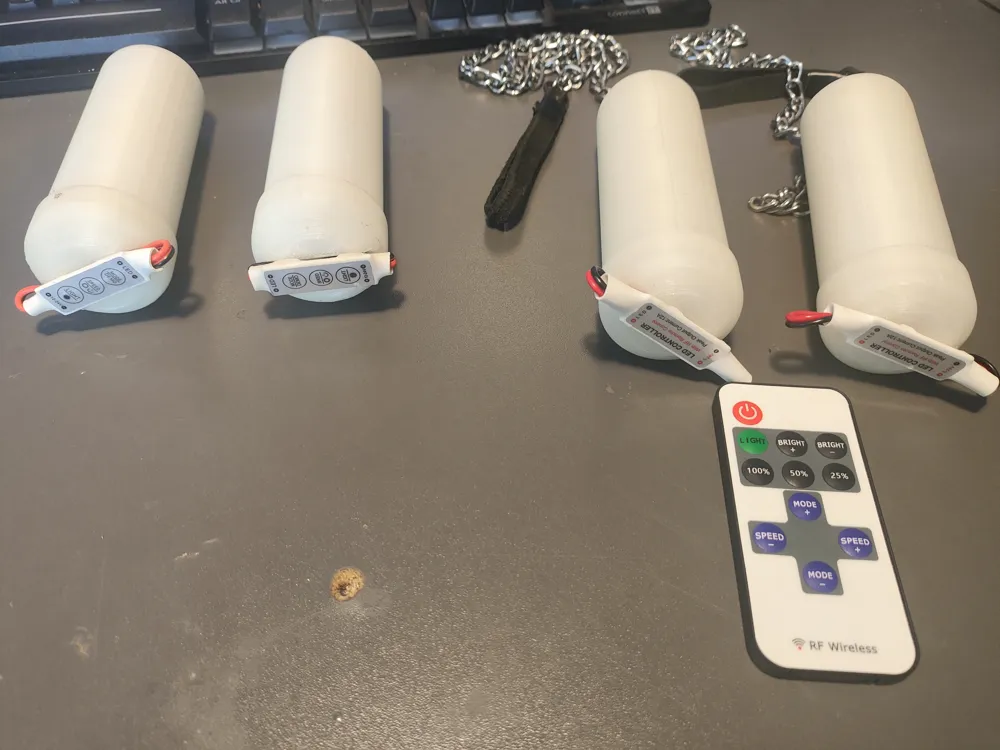

Switch: Option 1 is a regular LED strip controller. Option 2 is an RF wireless remote control.

LED strip: I chose blue but you can also use RGB

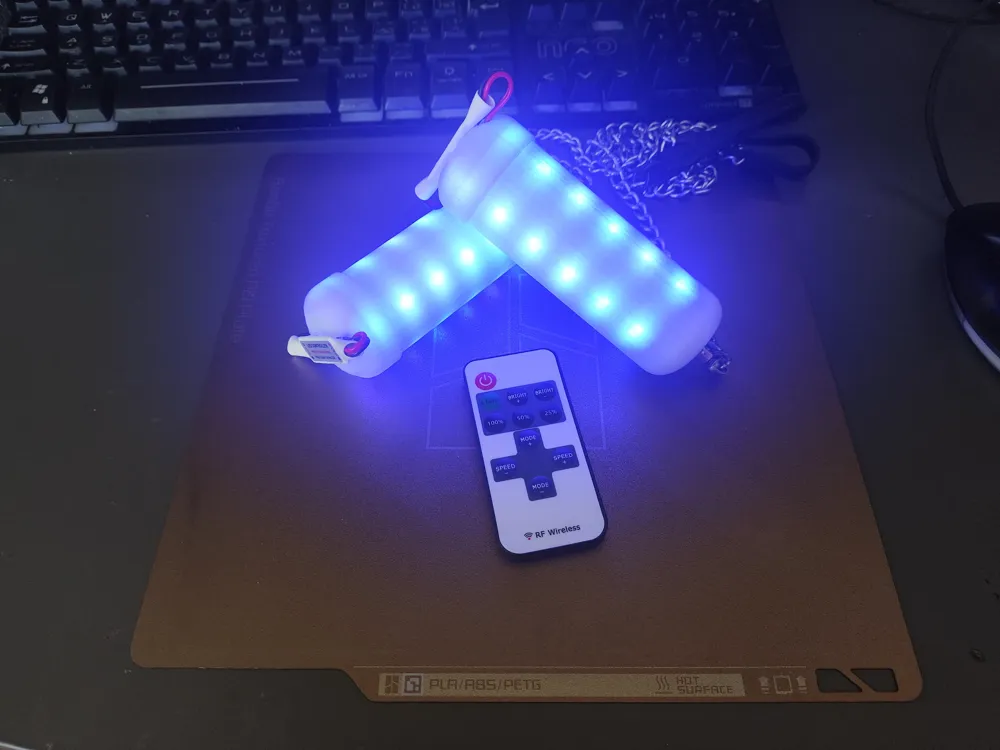

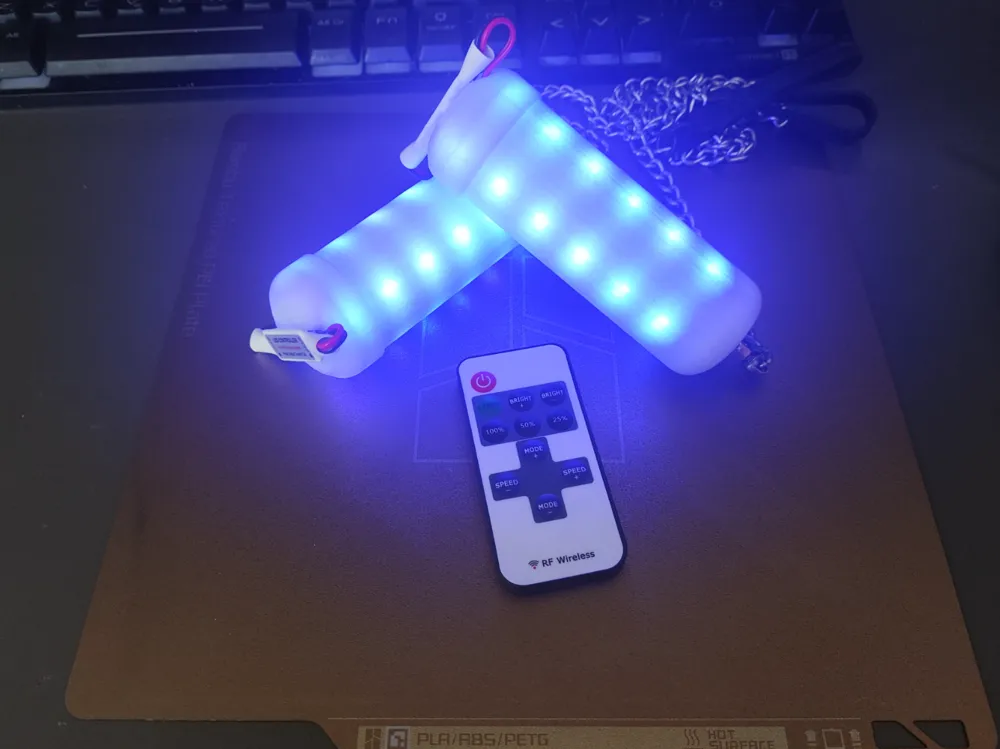

Filament: I chose fluorescent - in combination with bright blue light, it glows beautifully in the dark even after the power is turned off.

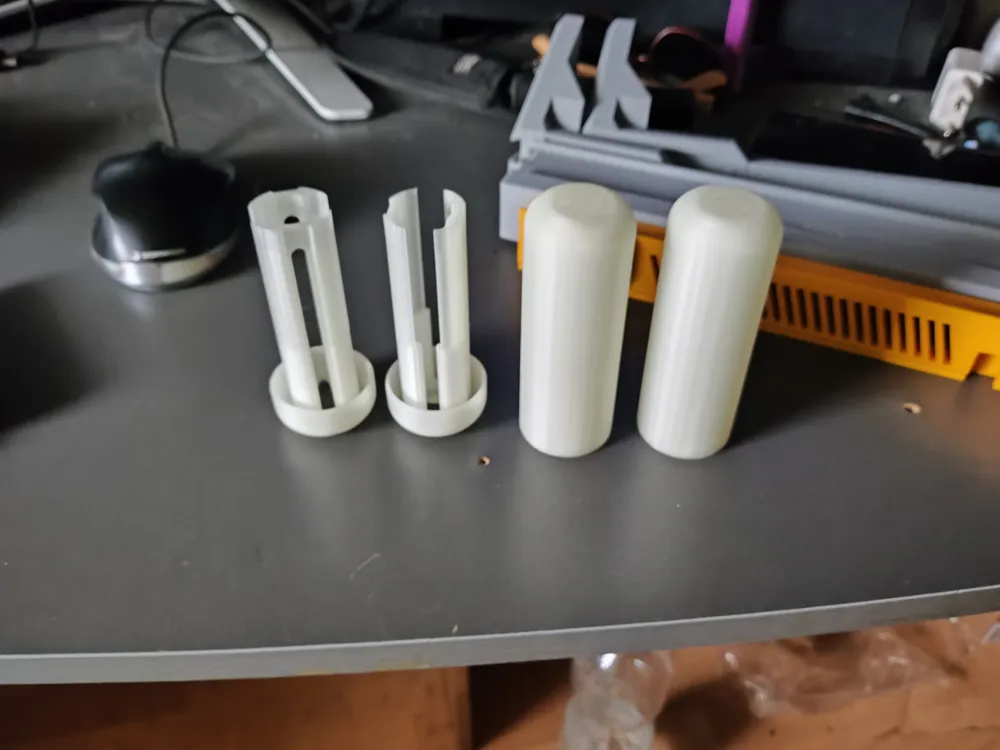

Print settings:

• 3 perimeters
• -3D honeycomb infill
• Layer 0.2mm
• Nozzle 0.4mm
• Filament: PLA + Firefly 1.75mm -Print time approx. 4 hours

Parts list for 2pcs:

• 2x switch (dimmer for single-color LED strip 12V - 144W)
• 2x connector for 9V battery
• 2x 9V batteries
• 16x LED strip: (1pc 10x50mm 3 diodes)
• Copper wires 2x0.75mm approx. 400mm
• tin: S-Sn60Pb
• solder paste (not needed for more experienced tinkerers)
• instant glue: PATEX precision Liquid 5g

Tools:

• micro soldering iron
• 3 hand
• tweezers
• skillful hands and patience. :-)

Assembly time depends on the individual, approx. 1 hour.

Enjoy and Fun.
