Bosch - Sortimo L-Boxx Rack Rail, Mounting System

Description of the Mounting System

The design is used to build a storage solution for various Sortimo boxes, such as

• L-Boxx
• T-Boxx
• W-Boxx
• LT-Boxx
• Sortimo-Box

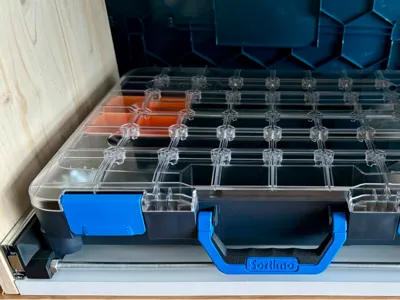

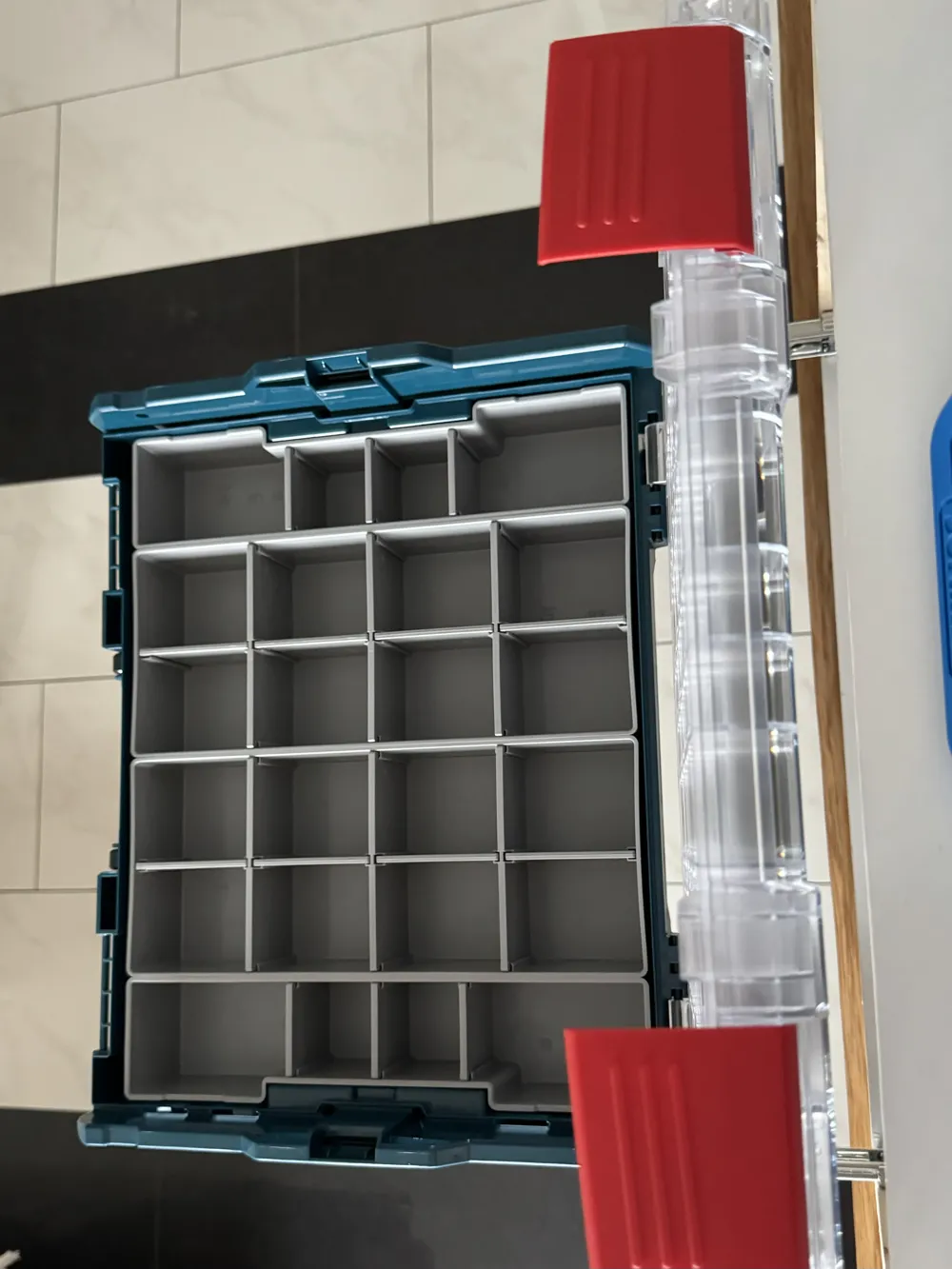

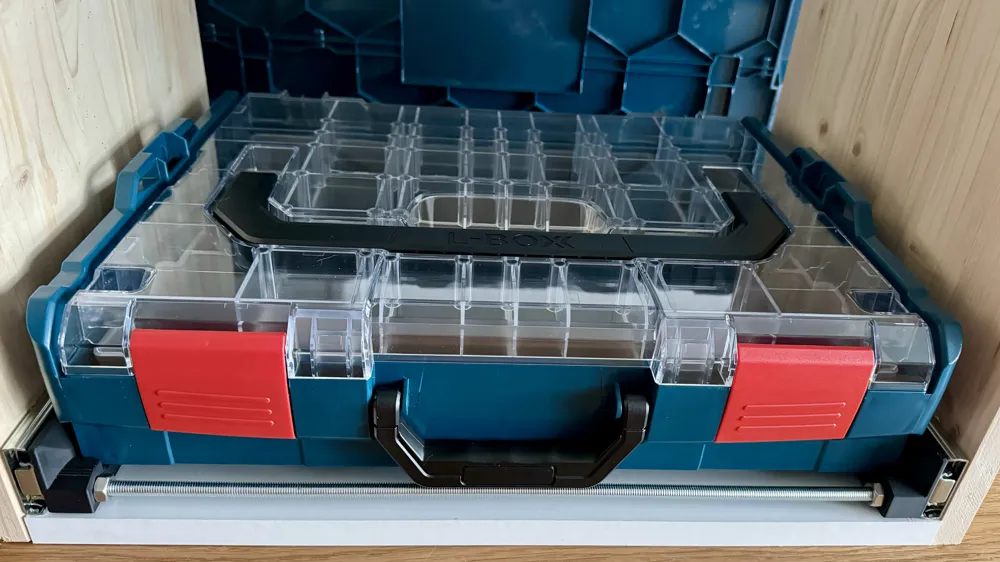

The advantage is that you can pull out the mounting rails and remove something from the box without having to take out the box. If you want to move the box to another location, you can remove it from the storage system without pulling out the mounting rails

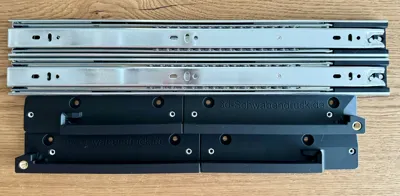

I use full extension slides for mounting. If you want to mount the rails in a cabinet, you don't need the full extension slides

The width is without slides 458mm + - 1mm, the depth 452mm, the height depends on the box in which you want to store the boxes

With slides, a cabinet width of 483mm + - 1mm is required

Material list:

Qty                 Description                           Length

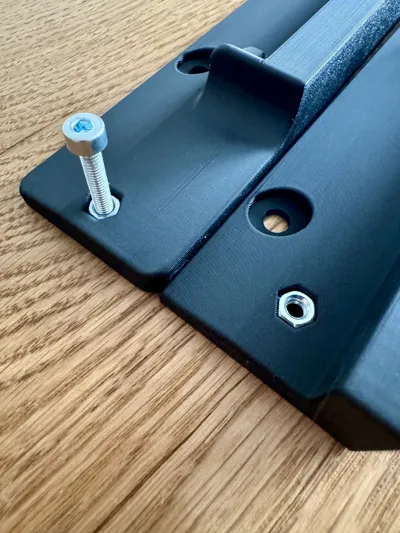

8x                    Flat head screws                M4 x 8
4x                    Spax                                          optional

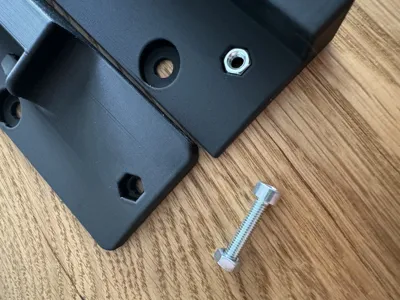

8x                    Nut                                       M4
8x                    Nut                                       M8

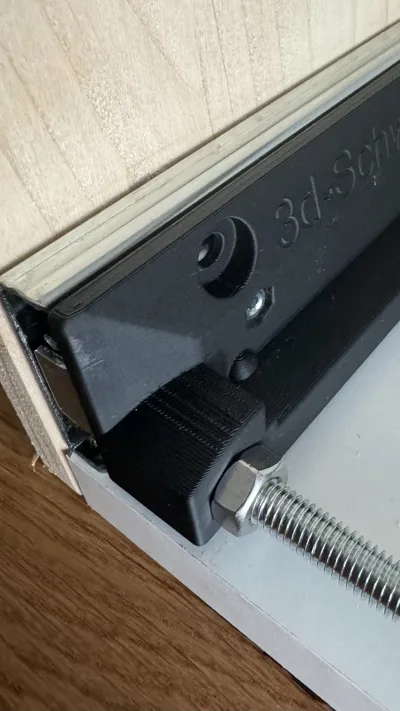

1x                    Threaded rod                         M8 x 435 + - 3mm


1x                    Full extension slide SO-Tech

Full extension slide 45 Kg with self-closing KV2-45-H45-SE 450 mm


1x                     Alternatively full extension slide with locking mechanism

TELESCOPIC SLIDE 450MM WITH LOCKING MECHANISM

The rails have been tested with great passion and over a long period, so I would be very happy about a BOOST
