sorting/insert boxes V3 fitting bosch/sortimo

Boxes meant for organisazion, used as sorting or insertboxes. The boxes are mostly compatible to bosch/sortimo and their i-boxx and l-boxx, my boxes share the 5,2 x 5,2 mm grid and the 6,2 mm hight.

I made multiple versions of the boxes, V3 has still the same size but a grid on the bottom of 48 x 48 mm so a grid pattern can be used to hold the boxes in place when used in drawers or such (still working on the grid pattern itself, let me know if you need it).

Additionally I gave the boxes a little lip on top that can be used for the lids I designed, in case you just need to take a box of screws somewhere and don#t want to bring an i-boxx for example.

A “lip” set in a bit on top of the boxes serves as both a grip to pull out singular boxes from a grid if needed as well as room for labeling. The lip is 12 mm wide in case you want to use a labeling machine.

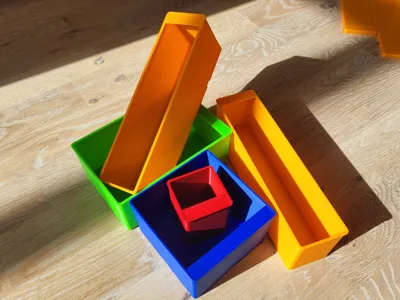

As of now 5 different sizes are aviable, these are the most commonly used. If you need different or more sizes let me know and I will update this post.

Sizes:

1x1 = 5,2 x 5,2 cm

1x2 = 5,2 x 10,4 cm

1x4 = 5,2 x 20,8 cm

2x2 = 10,4 x 10,4 cm

2x3 = 10,4 x 15,6 cm
