Description

Boost Me (for free)

The creator will be greatly motivated by your ratings and boosts. ⭐⭐⭐⭐⭐

General Printing Tips:

*For beginners* Brim or Glue is Recommended, and/or the plate initial temperature can be increased by 8°C to improve bed adhesion, especially for A1 and other “bed slinger” type printers.
Keep the print settings as it is for optimized print quality.
Printer calibration is essential for successful prints, especially for challenging models. If you have altered the nozzle and fan settings, i.e. flow rates, temperature and cooling speed, the designer is not responsible for failed prints.
If fitting is too tight, it will loosen up over time. You can also cure the print by gently heating it up with a hairdryer or wash it with warm water.

Specific Printing Tips

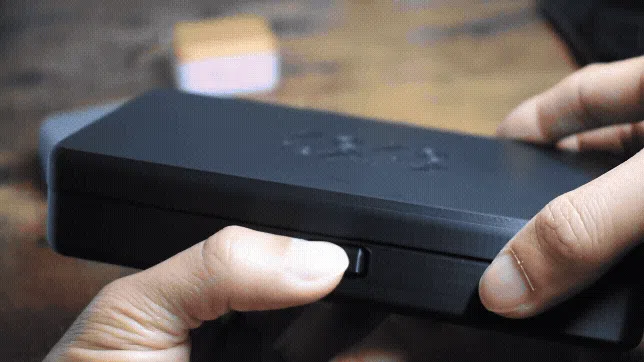

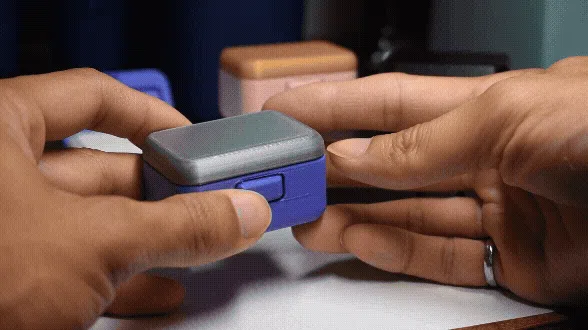

Push button can be pushed with some force for the first time to activate the internal springs. If it cannot be pushed, please warm it up with a hair dryer, but avoid overheating the box as it will deform the spring and hinge mechanism.
You can ignore the warning message below in the slicer. The print-in-place push button mechanism will print fine.

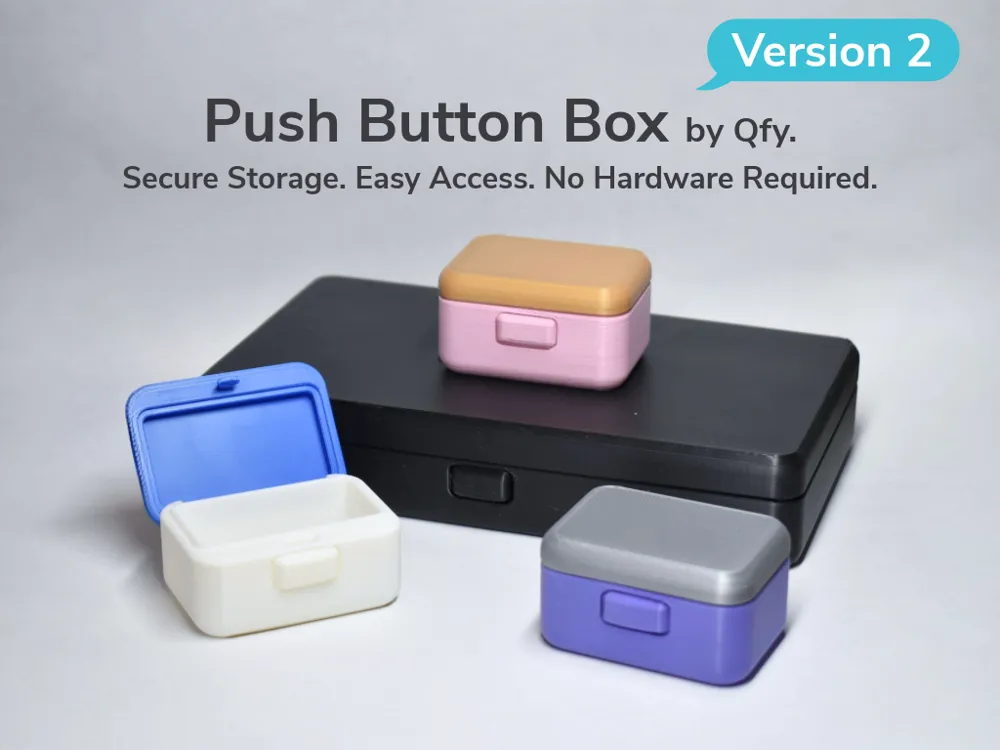

A versatile storage solution for small parts and gadgets, featuring an integrated Gridfinity grid for compatibility with Gridfinity components.

Key Features

Print-in-Place Push Button Mechanism – reliable opening and secure closure
Detachable Lid – Interchangeable lids, easy assemble
Gridfinity Standard Dimensions – 42×42 mm per grid unit, 7 mm per height unit

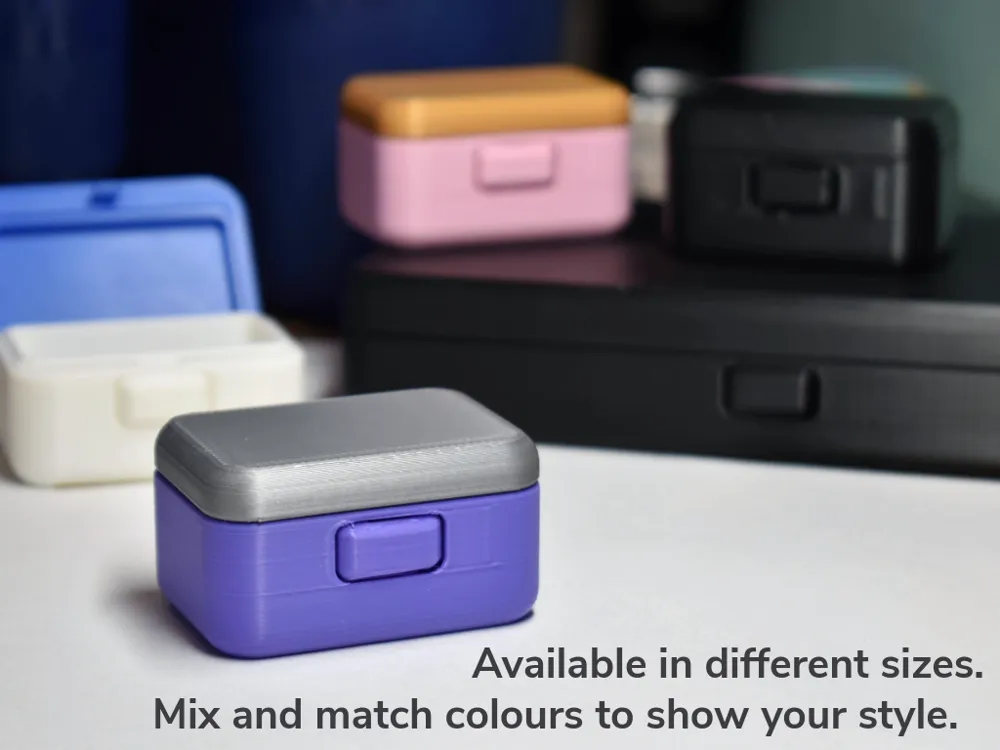

Multiple Options – available in various sizes, with or without Gridfinity grid at the base

Credits

Special thanks to Zack Freedman, the creator of the Gridfinity system, for making such a versatile standard possible.

Update Log
v2
Lid and Box height adjusted to minimize clashes between bins and lids.
Compliant mechanism is added to improve hinge fitting and durability.
Overall geometry is adjusted to improve appearance.

Designed by Qfy.
