I was feed up to always had to use and find the right Allen key to be able to remove the toolhead cover. So I made this thumb screw to facilitate its removal. It's quick and easy now :)
2x M3 x 4mm SHCS - 0.77g screw included - Super glue needed
2x M3 x 6mm SHCS - 0.96g screw included - Super glue needed *
2x M3 x 8mm SHCS - 1.18g screw included - Super glue needed *
2x M3 x 6mm HHCS - 0.91g screw included *
2x M3 x 8mm HHCS - 1.15g screw included *
* Most of the thumb screw versions are interfering with the AI Camera. So I recommend you to install the M3 x 4mm SHCS version if you have a camera installed.
Material : PETG / ASA / ABS
Layer height : 0.1
Wall count : 3
min Top/bottom thickness : 0.8 mm
Infill : 30%
No Support

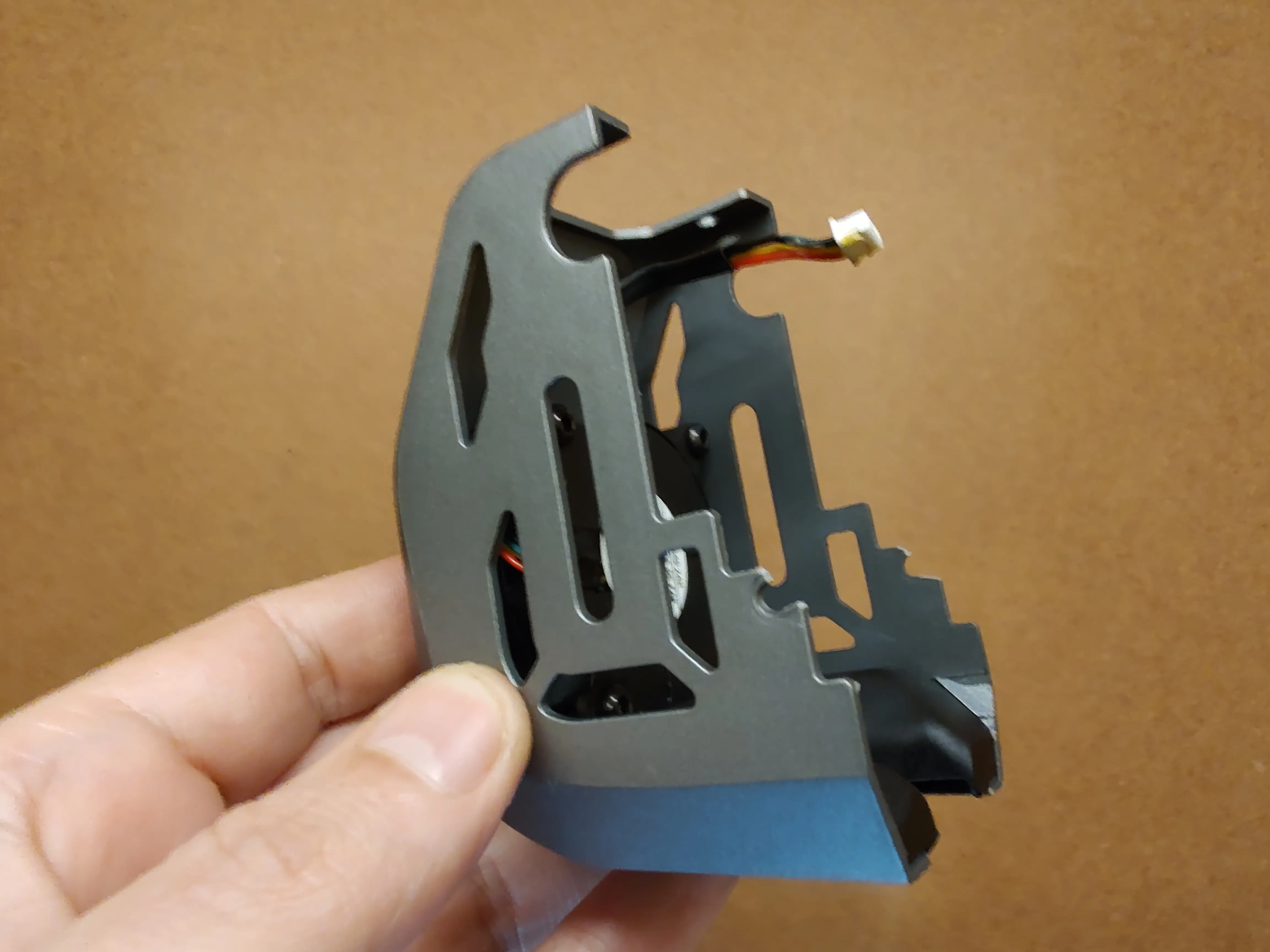

Extra modifications done on the toolhead

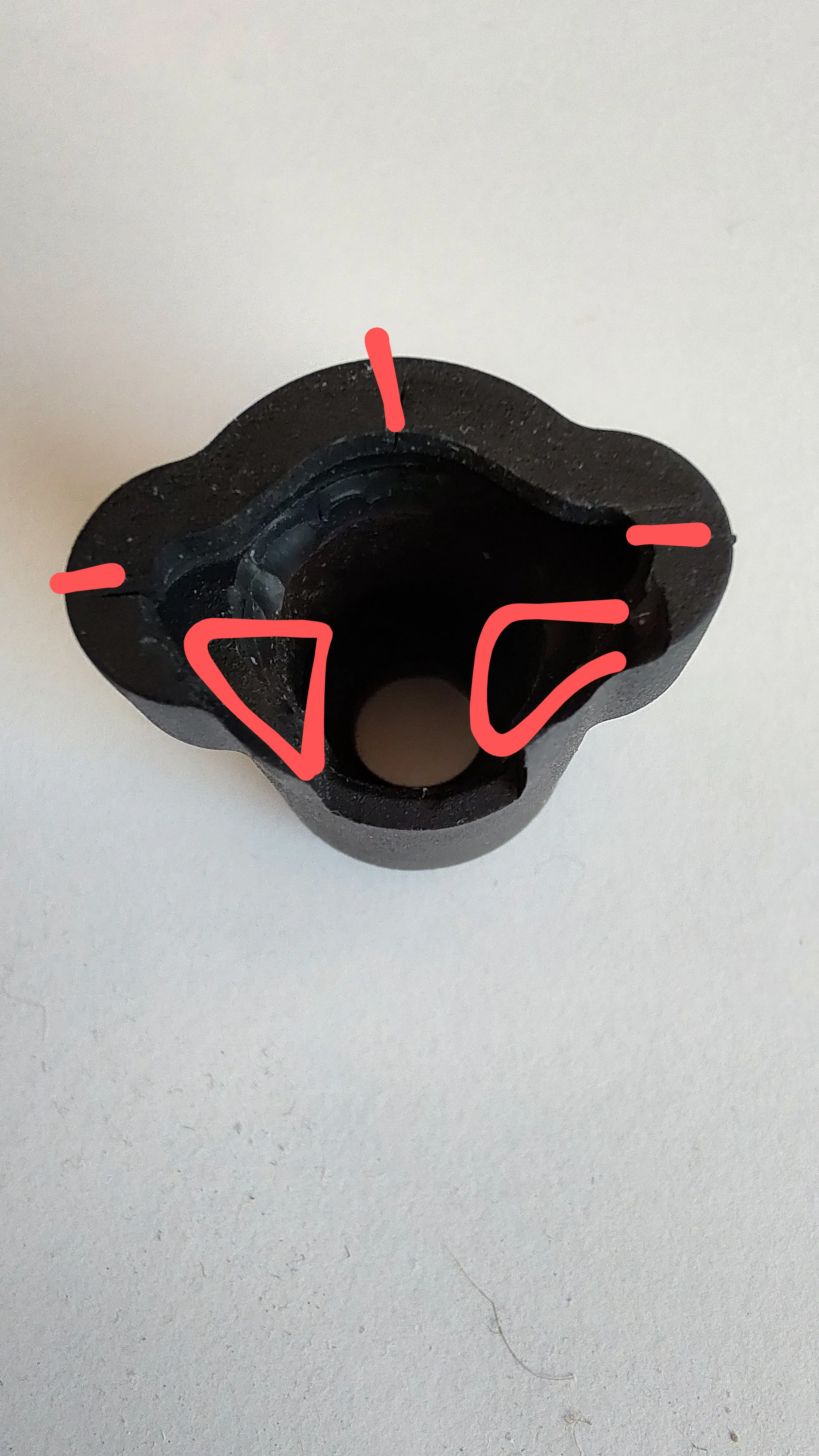

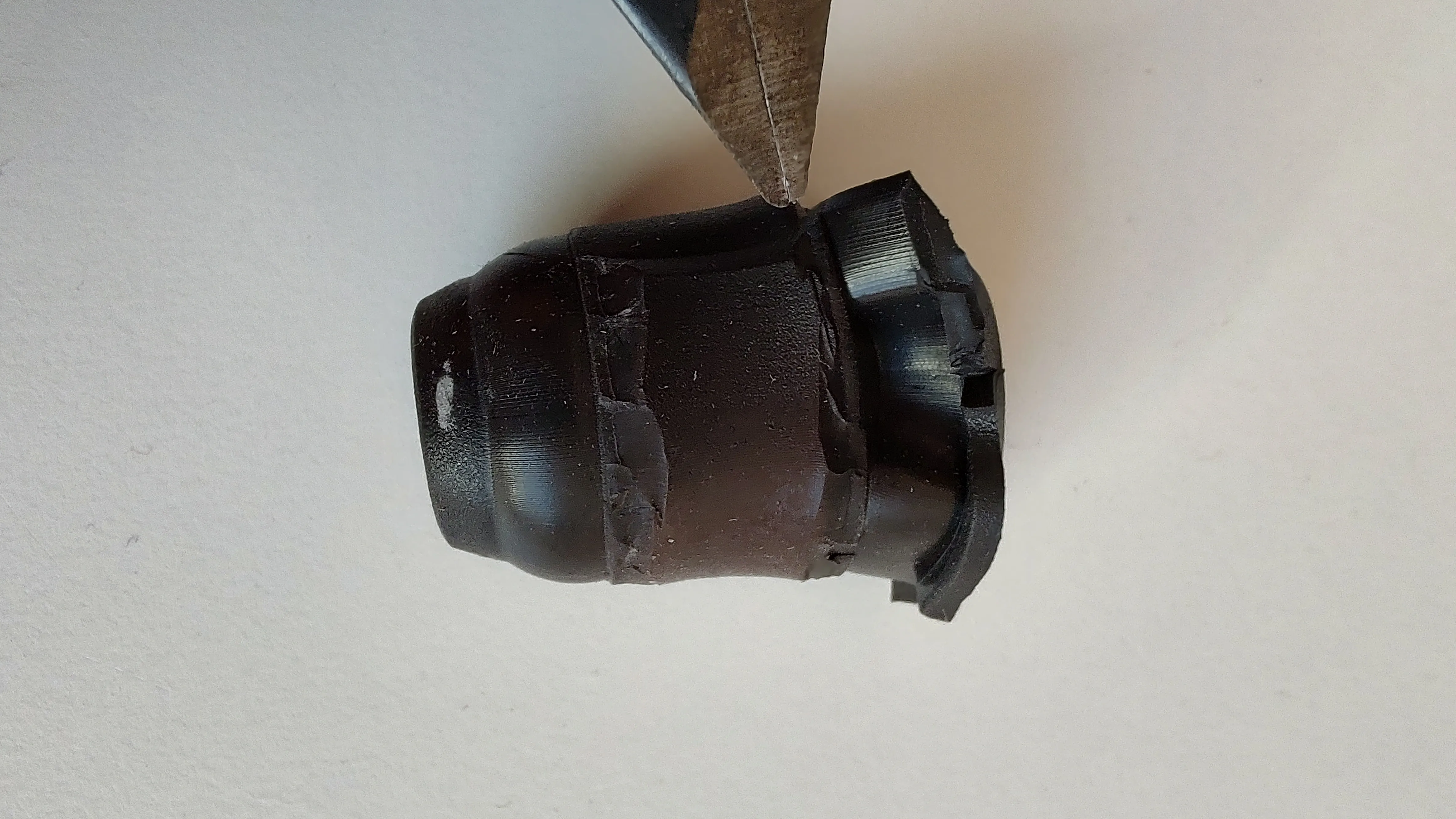

Extra modifications done on the sock
22 December 2023
Multiple screws options added
17 December 2023
First release
