Stackable Organizer/Basket
Print Profile(2)
Description

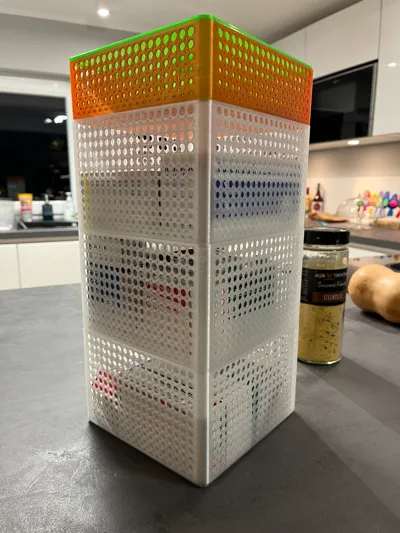

Stackable Baskets/Organizer System in 18 sizes with lids and stackable as desired (Circle Edition)
| Length [mm] | Width [mm] | Height [mm] | |
| Model XL | |||
| High Profile | 204.0 | 124.5 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
| Model XL Square | |||
| High Profile | 187.5 | 187.5 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
| Model L | |||
| High Profile | 187.5 | 101.5 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
| Model M | |||
| High Profile | 124.5 | 101.5 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
| Model M Long | |||
| High Profile | 204.0 | 62.0 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
| Model S | |||
| High Profile | 101.5 | 62.0 | 117.5 |
| Standard Profile | 60.0 | ||
| Low Profile | 31.25 | ||
Each of the baskets has two lid variants. One with and one without a handle.

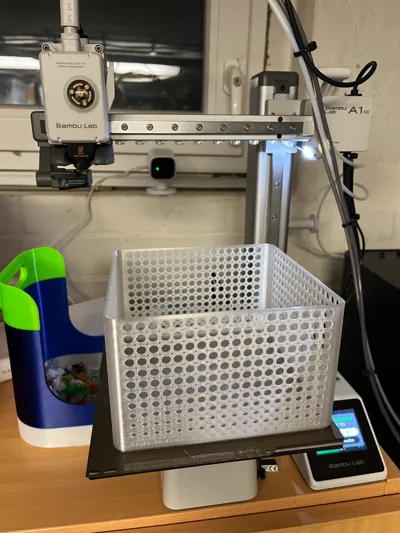

Printing
All parts can be printed without supports. A 0.4 mm nozzle and a layer height of 0.20 mm with printer default settings for infill, etc. are sufficient for printing.
If you use the STL files, you should pay attention to the alignment of the lids. You should print them with the top side facing down (on the print bed).
Assembly
There is nothing to assemble. They are ready to use.
Remix & Scaling
If you scale the size of the boxes, make sure that you maintain the aspect ratios in length, width and height, as otherwise the circles in the side walls could overhang too much and the boxes may no longer print correctly. If you need special sizes, don't hesitate to write me a message or leave one in the comments.
