Description

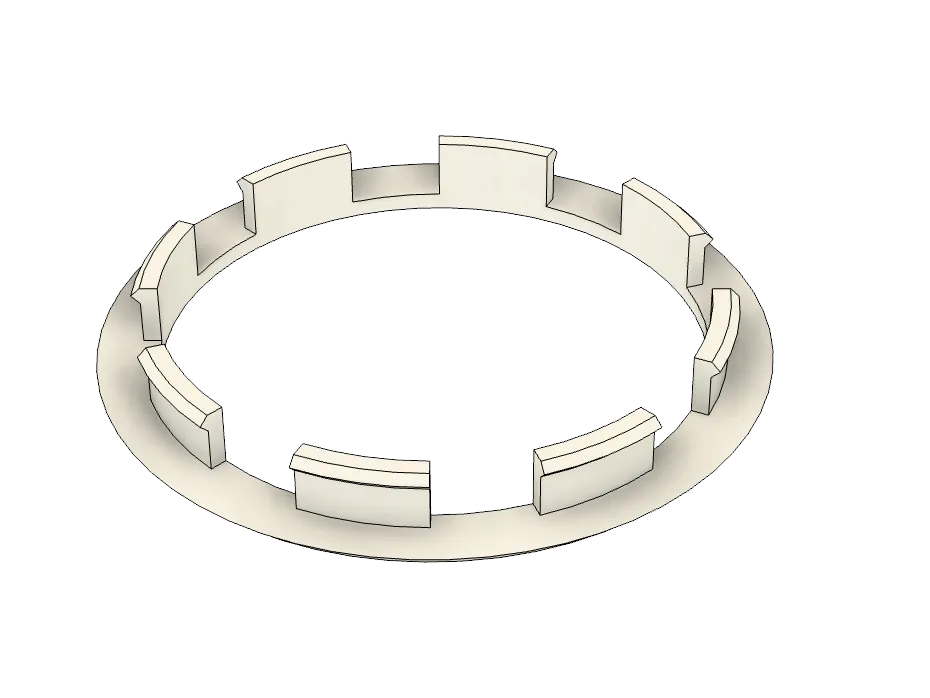

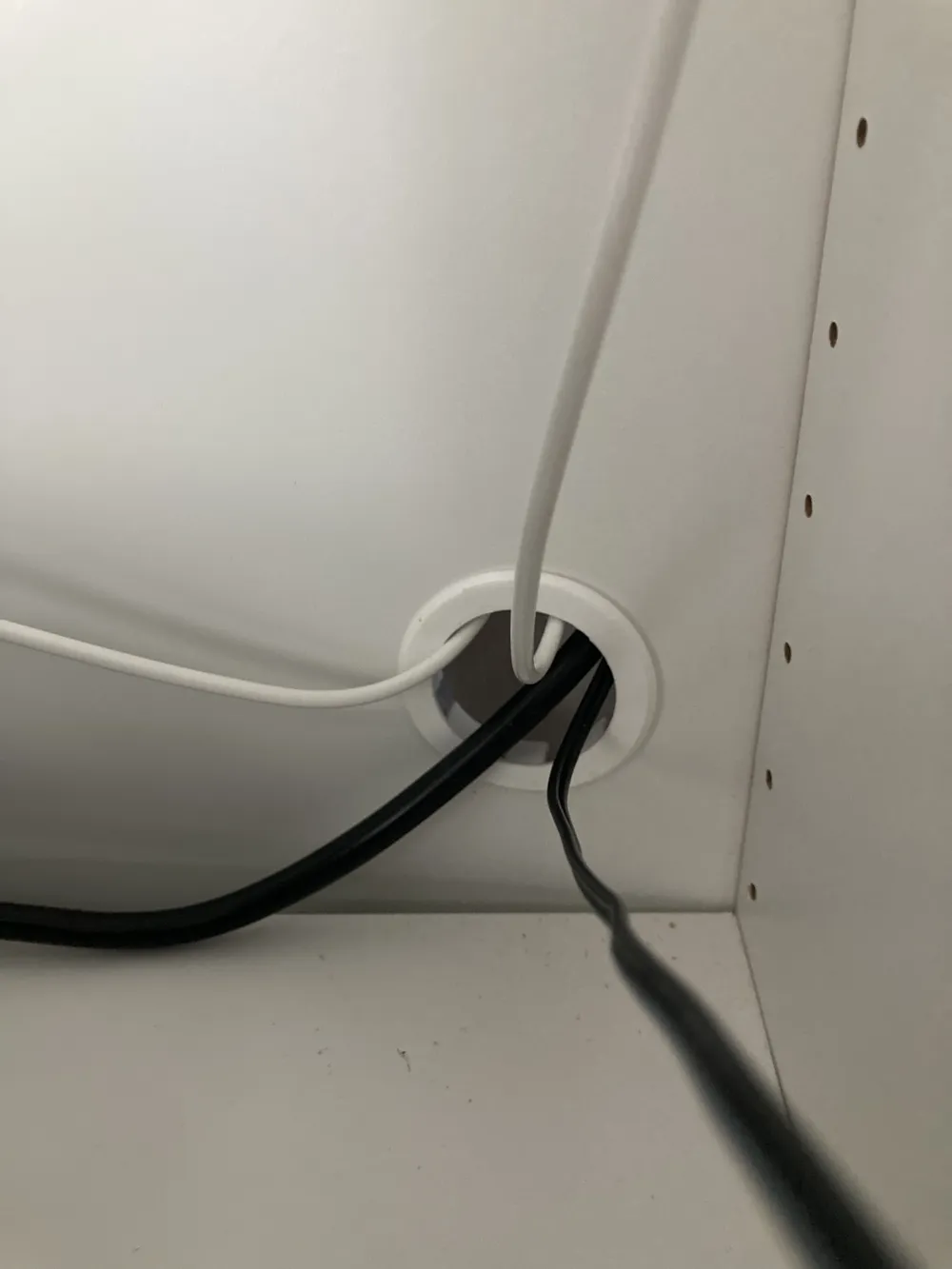

Parametric fitting cable entry. I have used it in my Ikea Platsa and Ikea Metod cabinets to pass cables through
Change the parameters to fit your needs.
Note on the parameters:
- inner_diameter corresponds to the diameter of your hole
- outer_diameter corresponds to the diameter of the outer circle
- clip_height corresponds to the total height of the clips that will fit inside the hole. You can leave it as the default value of 7mm for Platsa and Metod back panels
- clip_thickness corresponds to the thickness of the clips that fit inside the hole. You can leave it set to the default value of 2mm
- ring_thickness corresponds to the thickness of the visible ring. You can leave it set to the default value of 2mm for a seamless look
Print in 0.16mm for better results
