Elegoo Saturn 4/Ultra/16k Drip Handle

Remixed by

Print Profile(1)

All
A1 mini
H2S
A1
X1E
X1
H2D Pro
H2D
P1S
X1 Carbon
P2S
P1P
H2C
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
6.9 h
2 plates
4.9(12)

Open in Bambu Studio
Boost
152
396
35
17
848
341
Released

Description

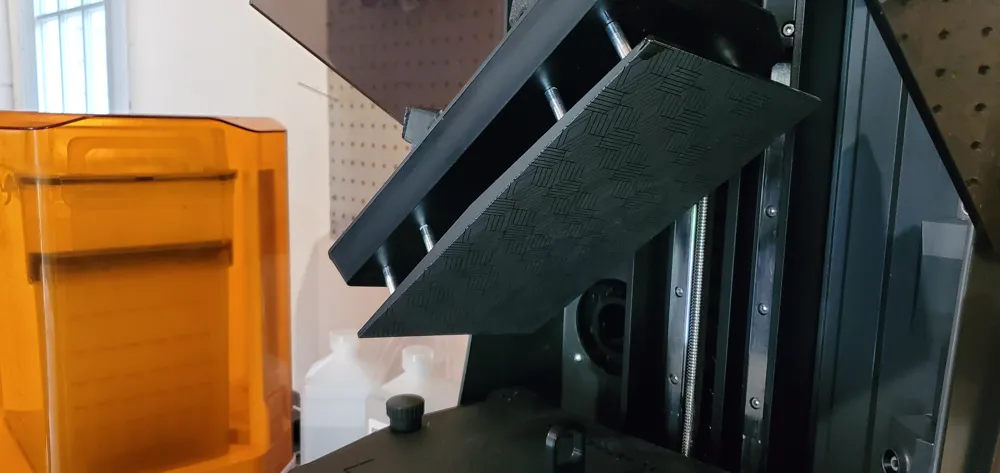

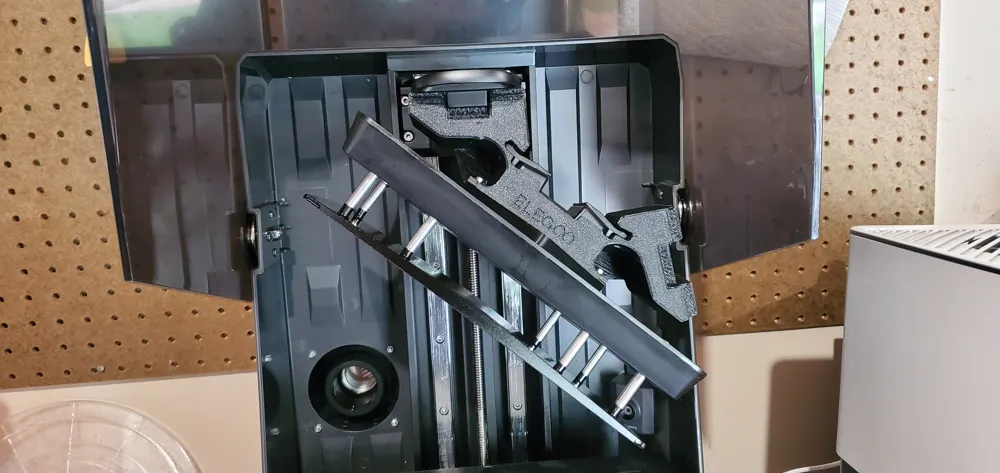

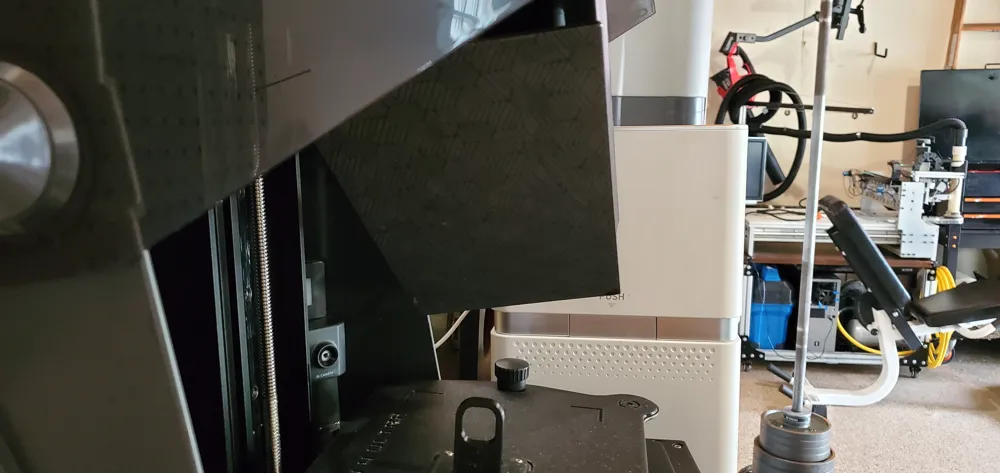

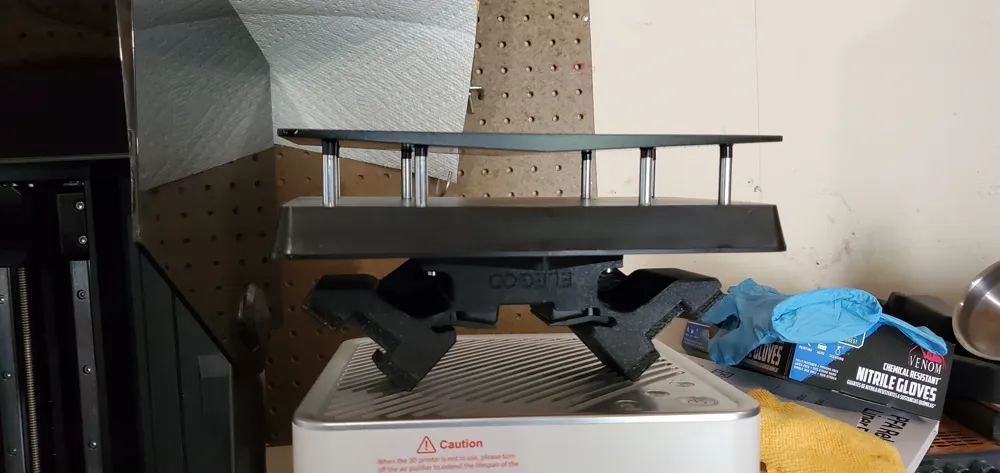

I wanted a drip bracket integrated into my build plate so that I didn't have to hold the dripping build plate with one hand and try installing the bracket with the other, but the double-sided ones that I found didn't have clearance for the S4U 16k build plate handles. This one also tilts the build plate 5 degrees to the rear corner, allowing the resin to drain better and allowing you to tilt the build plate that direction during attachment to reduce the chance of dripping outside of your vat. The bracket also allows you to set the build plate upside down on a table.

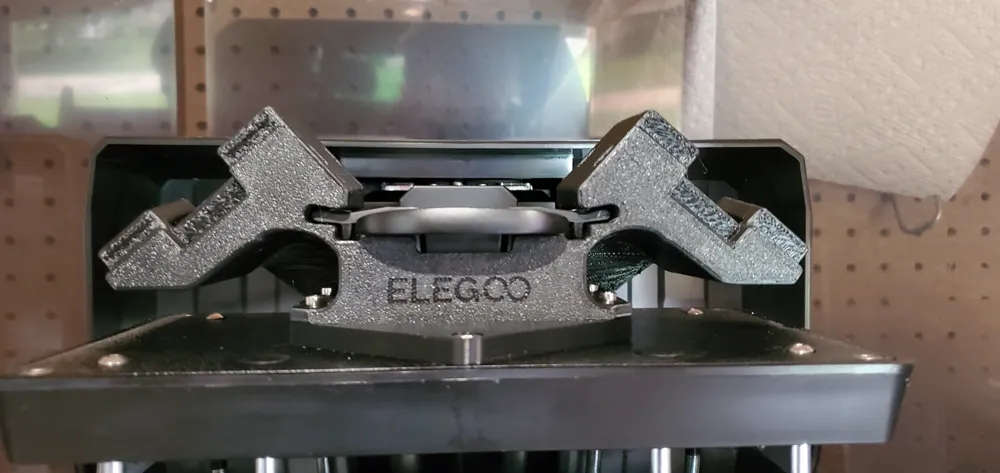

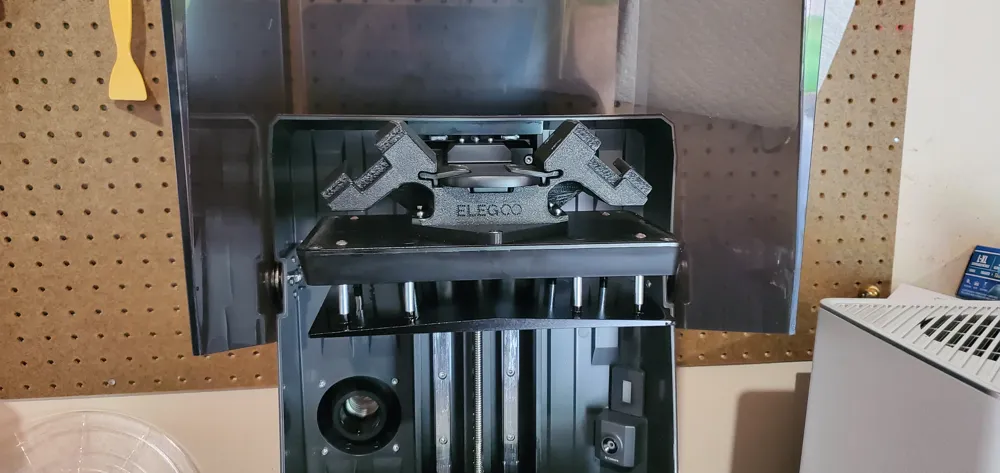

You do have to remove the handles to install. Reinstalling the handles locks in the bracket into place in addition to the two screws on the build plate.



Took aspects from Vin Dinh and Mike Jackson's models to make exactly what I was wanting.
