4-Way Vise attachment for modular clamp system

Hello everyone !

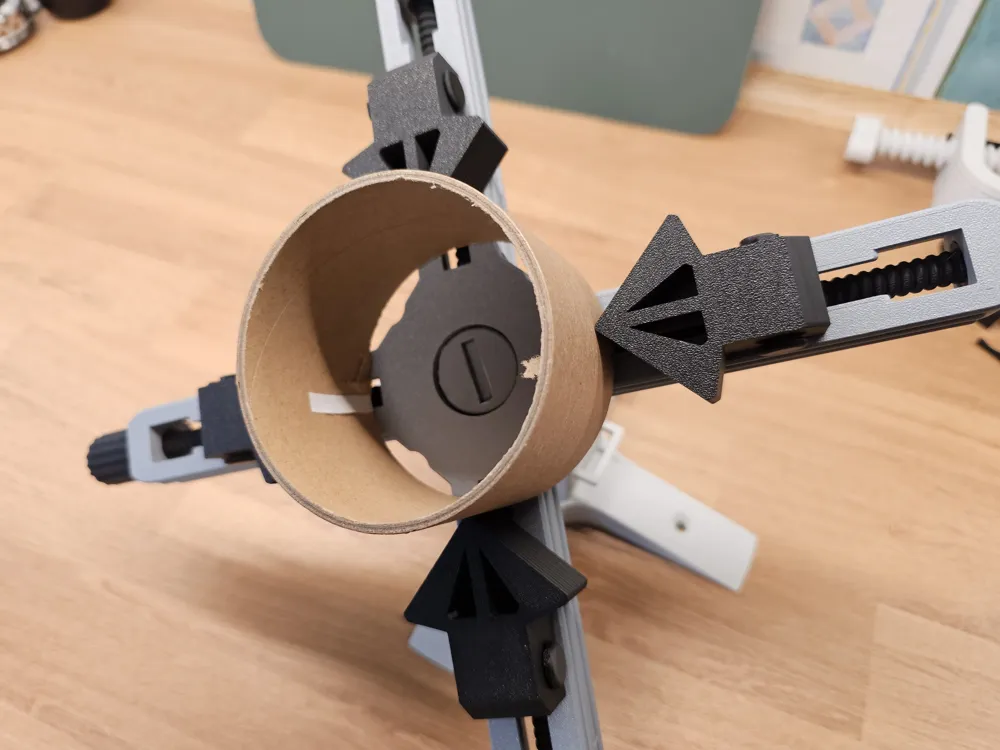

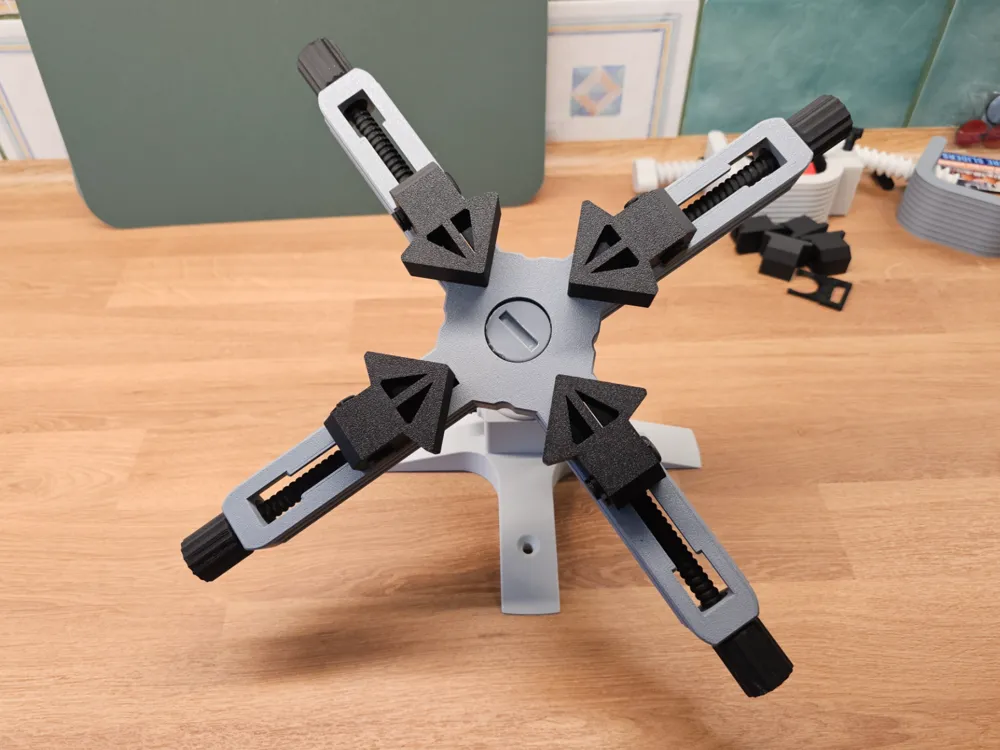

This 4-way 3D printed vise is a versatile, fully printable clamping tool designed for makers, engineers, and hobbyists. With four jaws clamping from different directions, it provides excellent grip for irregular or delicate objects during tasks like gluing, soldering, modeling, or inspection.

The vise features interchangeable jaws, allowing you to swap between flat and 90-degree angled (and other comming soon!) clamping surfaces to suit your needs. No metal hardware is required – everything is 100% 3D printable, including functional threads and connectors.

Whether you’re working on a small electronics project or need a stable hold for craft assembly, this vise offers a clever, compact solution for your workbench.

Key Features:

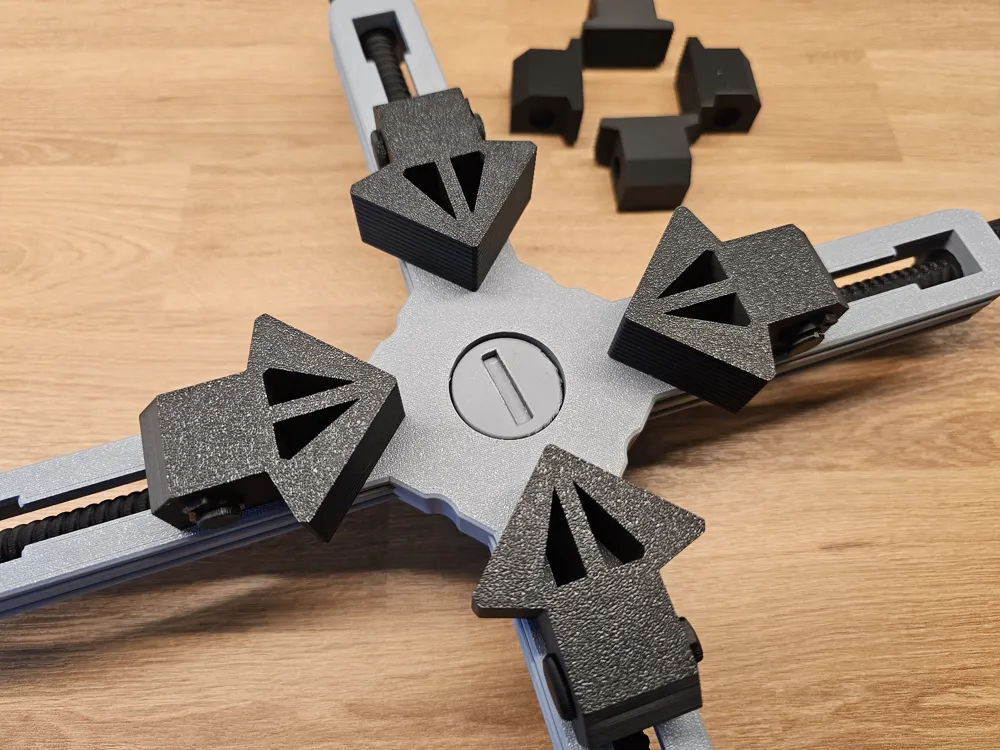

• Four jaws for multi-directional clamping

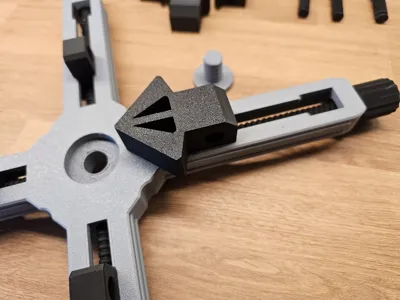

• Modular, interchangeable jaw system (flat, 90° angle, etc.)
• No screws or bolts needed – fully 3D printable
• Great for electronics, modeling, small repairs, and more
• About 170mm max clamping distance with 90 degree jaws, and aobut 230mm with flat jaws


🛠️ Assembly Instructions:
All parts snap or thread together easily but i suggest to print all threaded and small parts in 0.16 layer for better fit (included in second print profile).

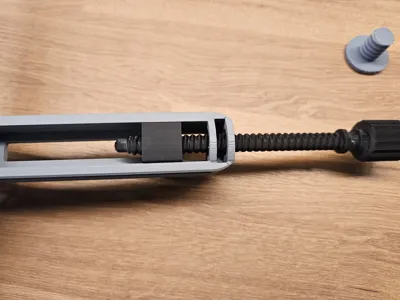

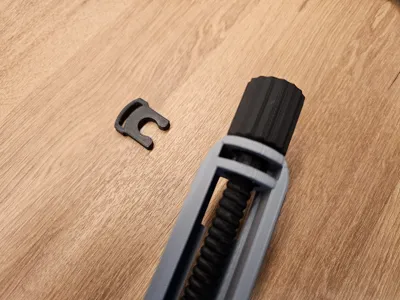

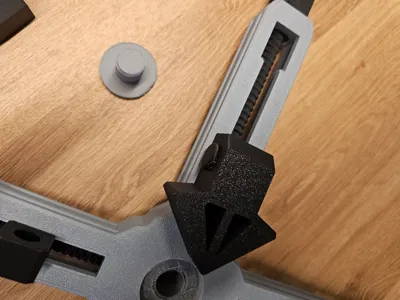

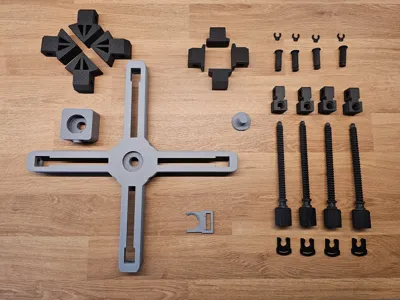

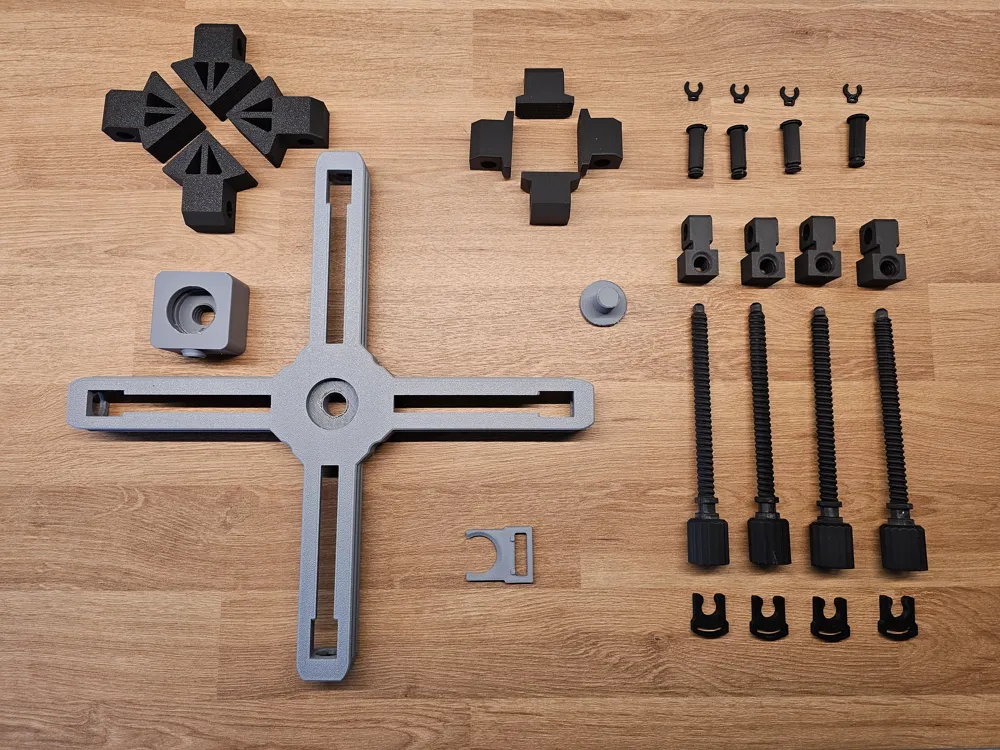

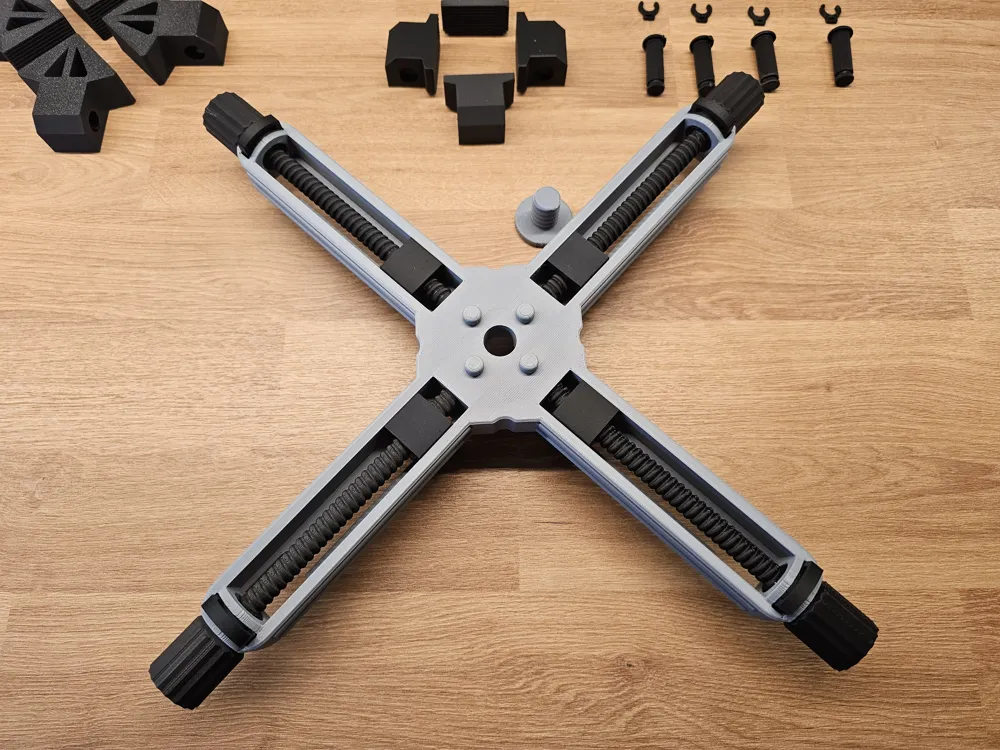

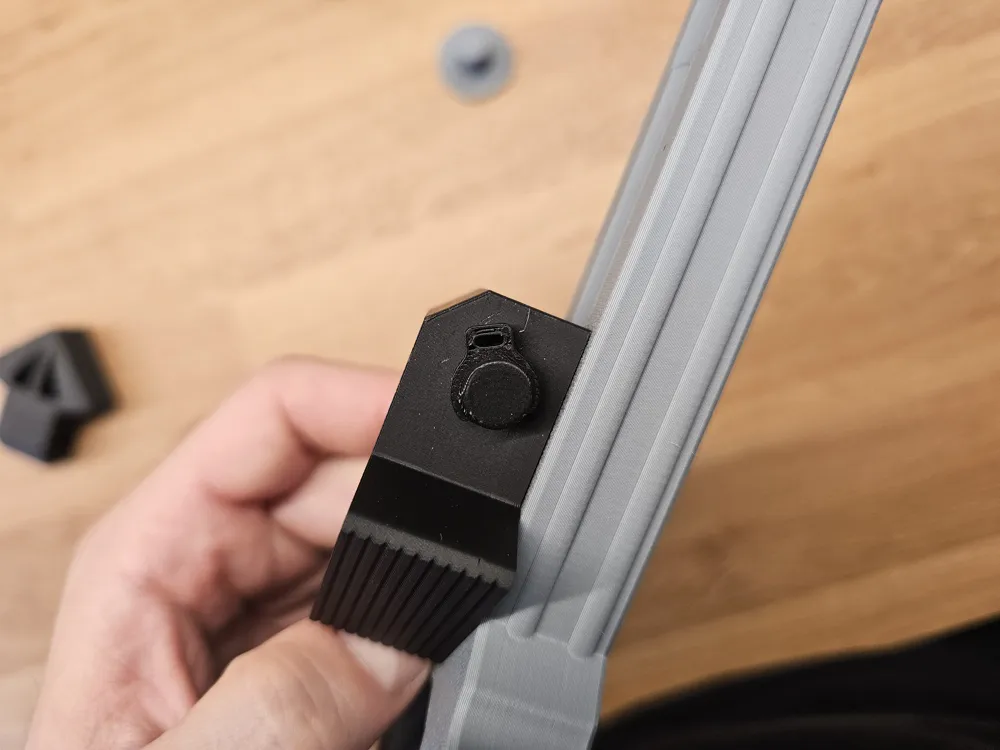

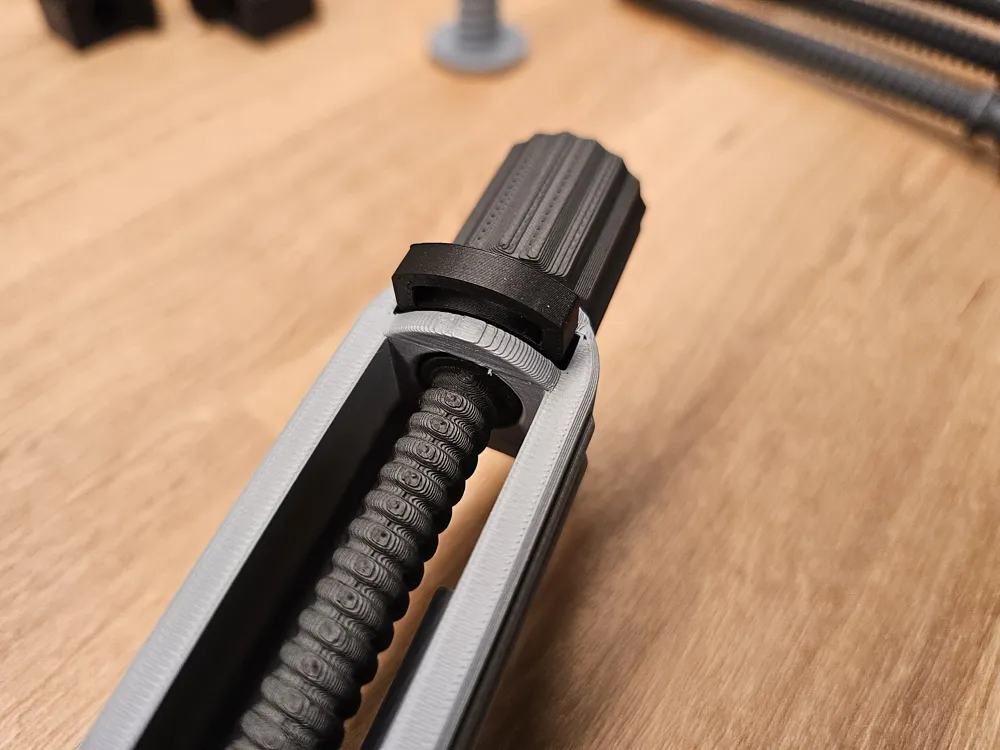

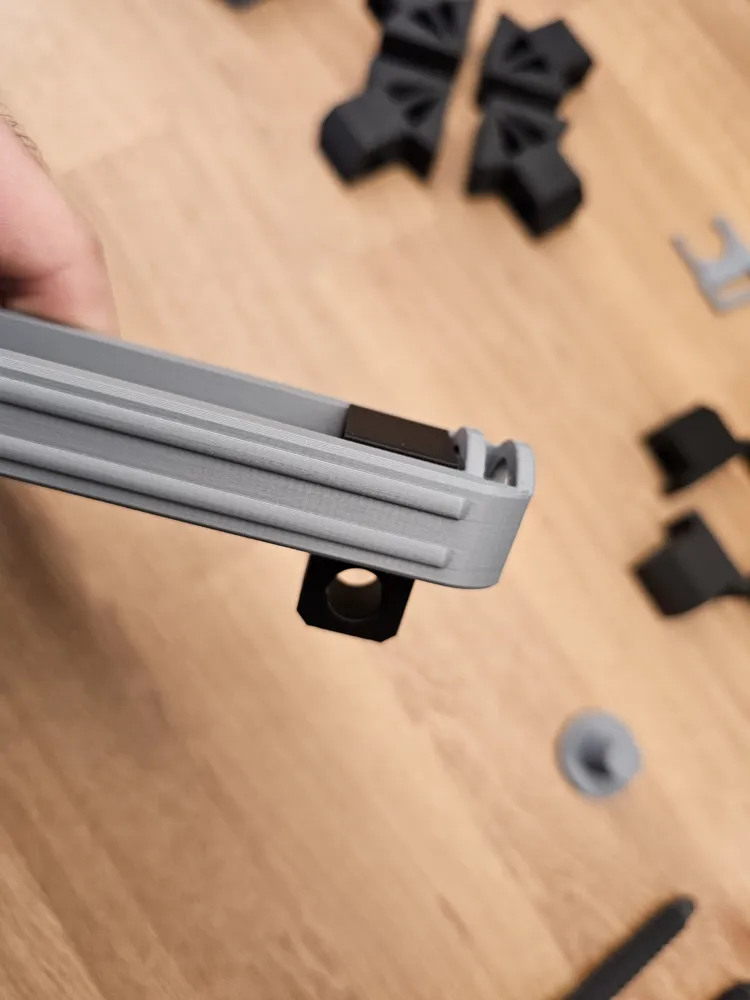

See included images for assembly instructions.

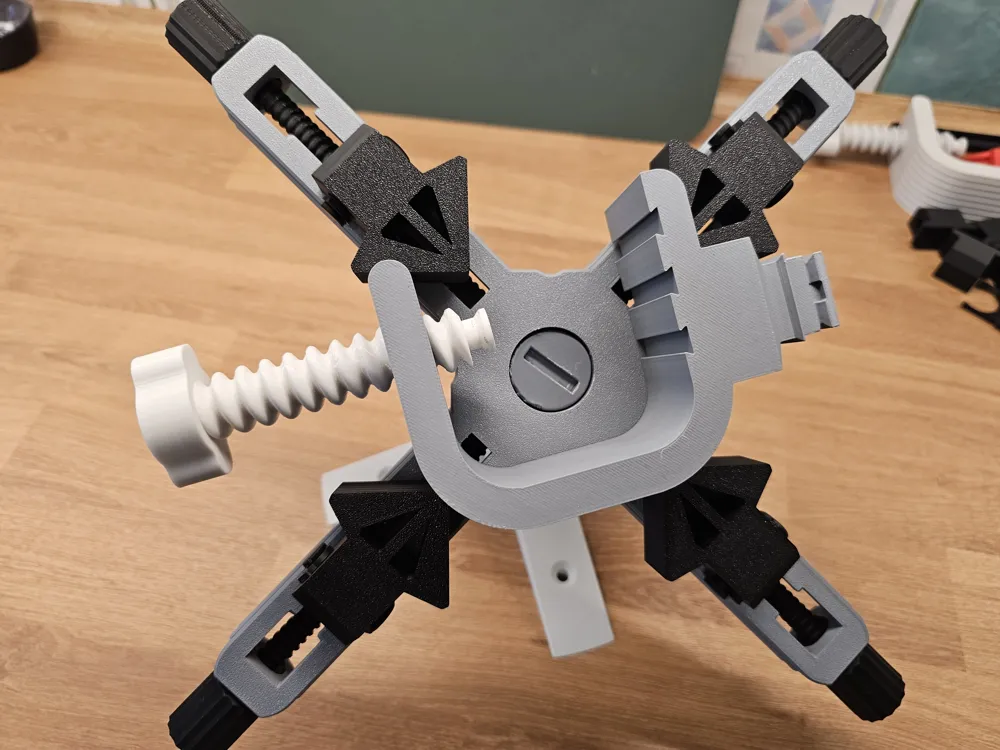

for mounting it to table etc you will need clamp from my modular system:
Modular CLAMP
