Description
You see shelves for small bottles of paint everywhere, but if you're looking for something for larger bottles it gets really difficult. I wanted something that I could put on my table and hang away when I no longer needed it.
The print settings are: firs layer 0.2mm
layer height 0,2mm
infill 15% gyroid
3 walls
bottom layer 4
top layer 4
Assembly instructions

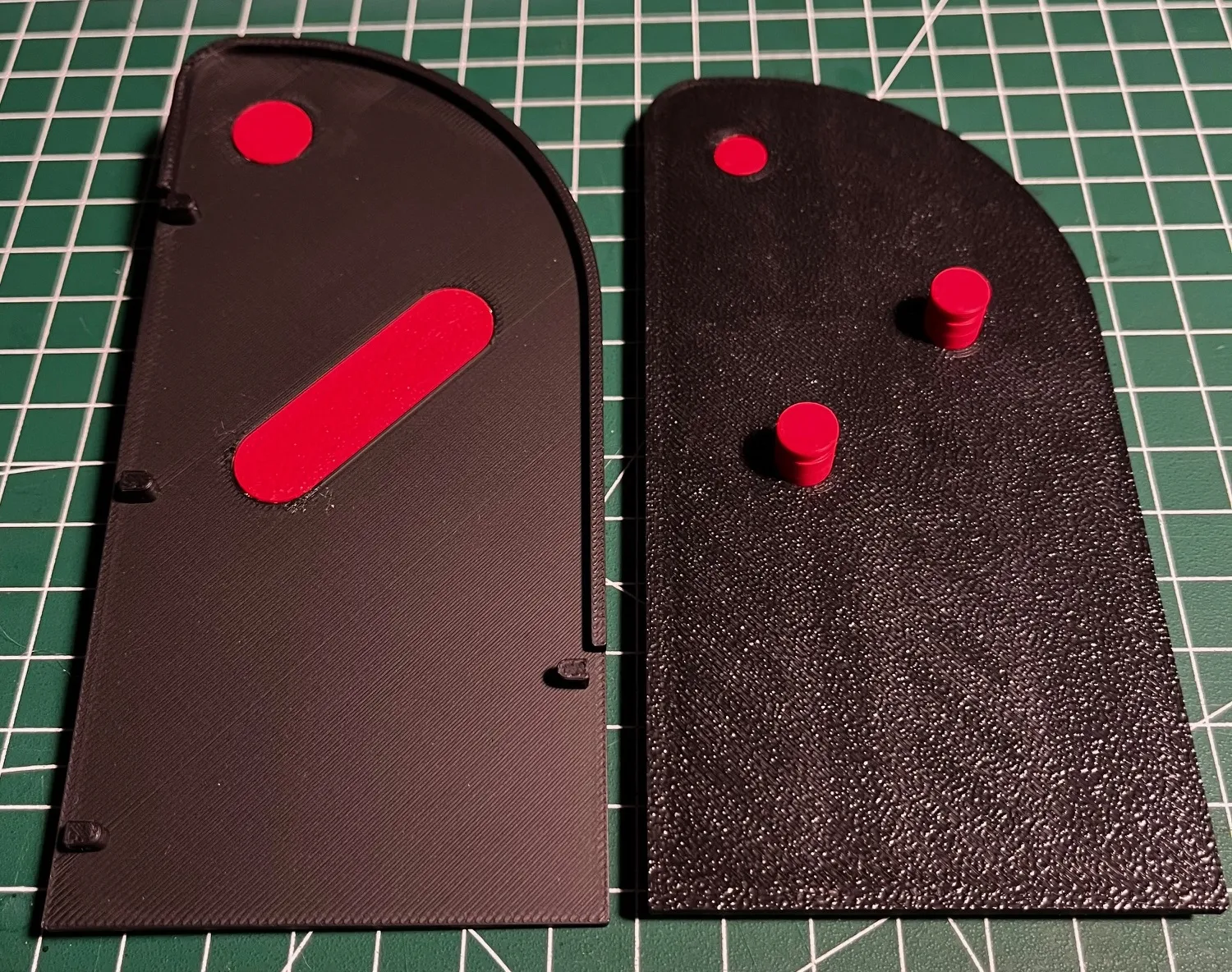

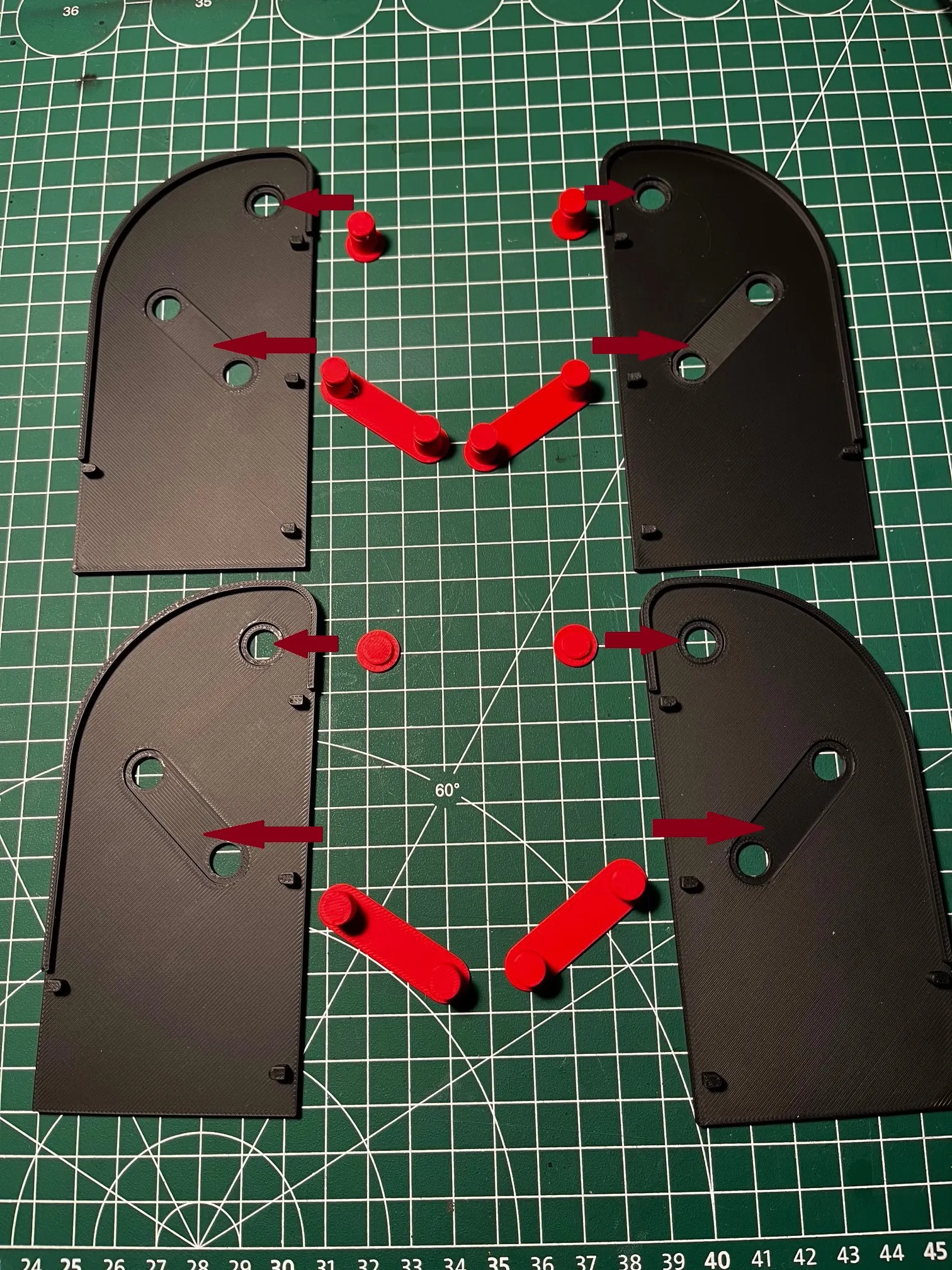

First, glue the bolts into the side panels from the inside. So that it looks like the picture below.
( Instead of the bolts, caps are inserted into the upper hole in the lower side parts )

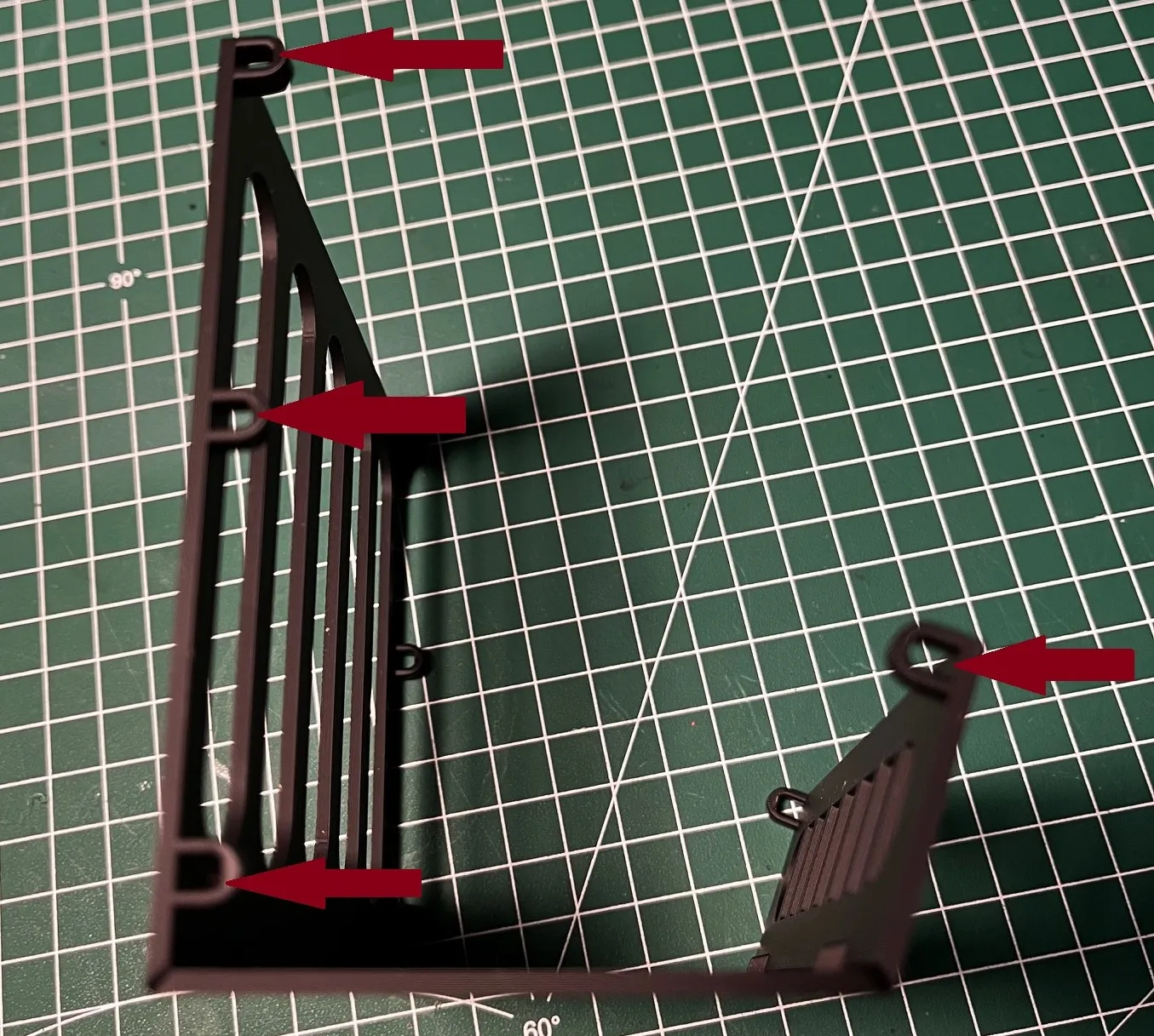

Now you can take the main part and fold it. Then spread a little glue at the indicated point and glue it to the side parts.
( You can also apply a little glue to the edges)

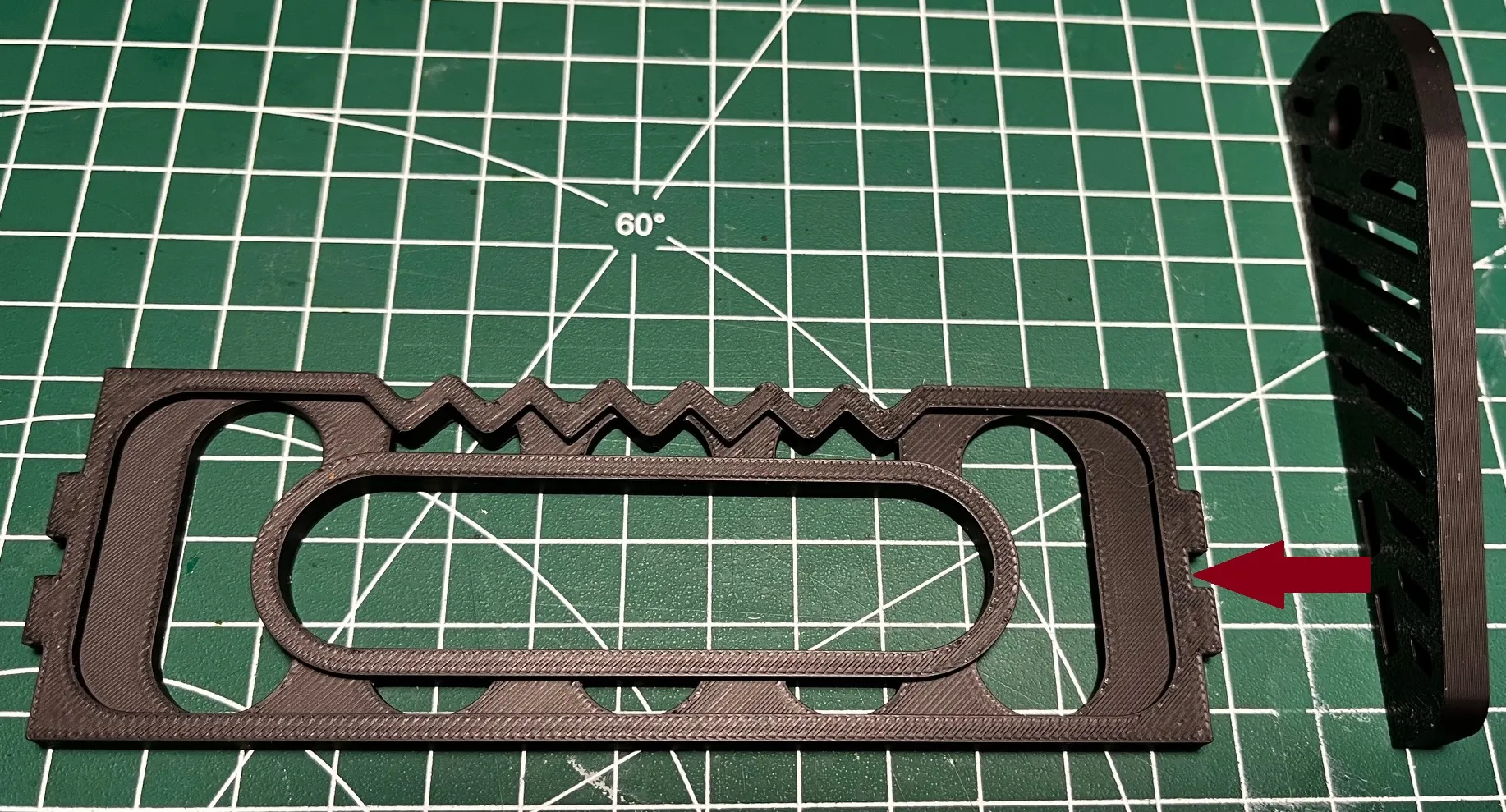

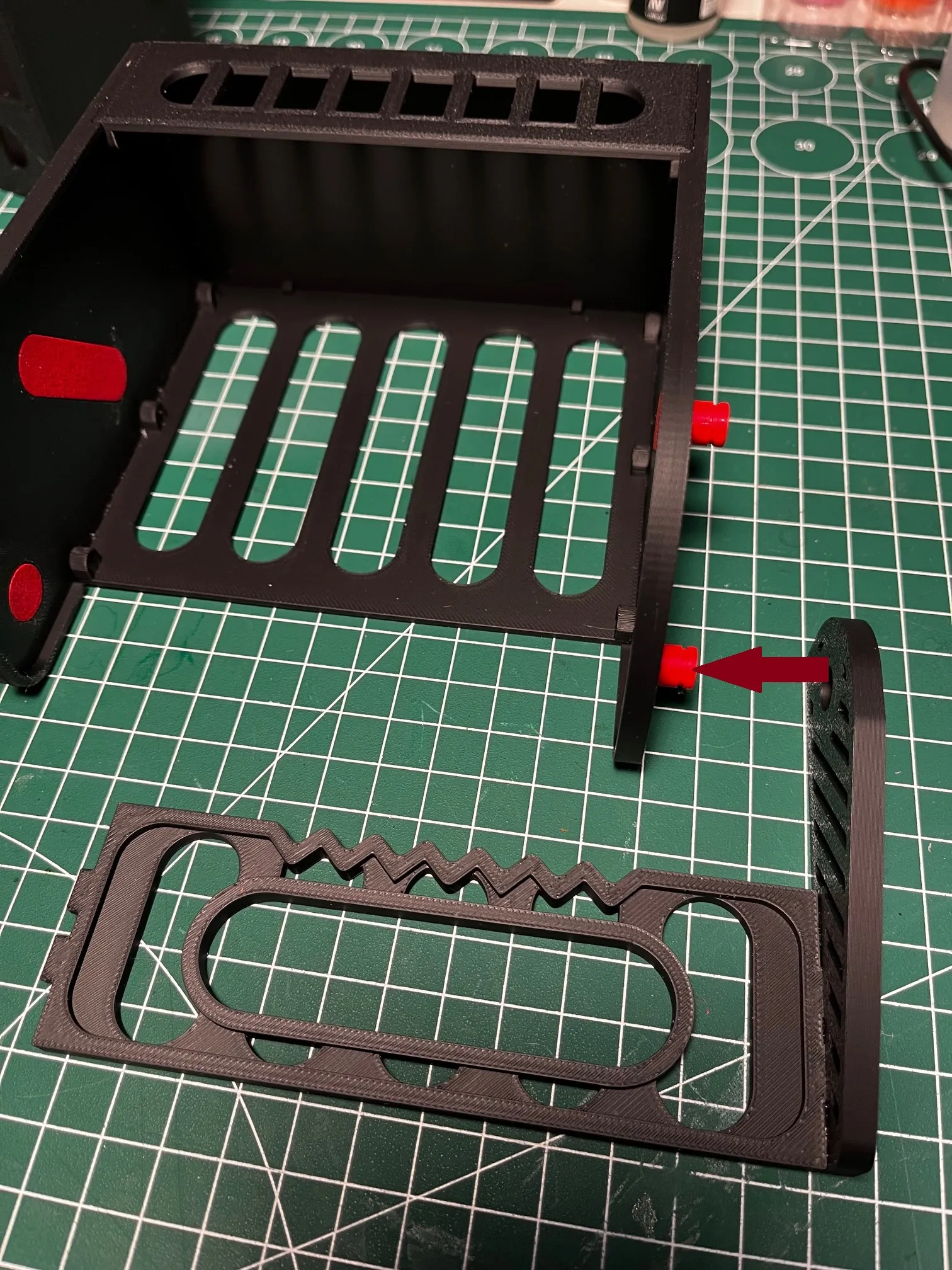

Next, we glue one side of the handle to the handle and attach it to the side panel.

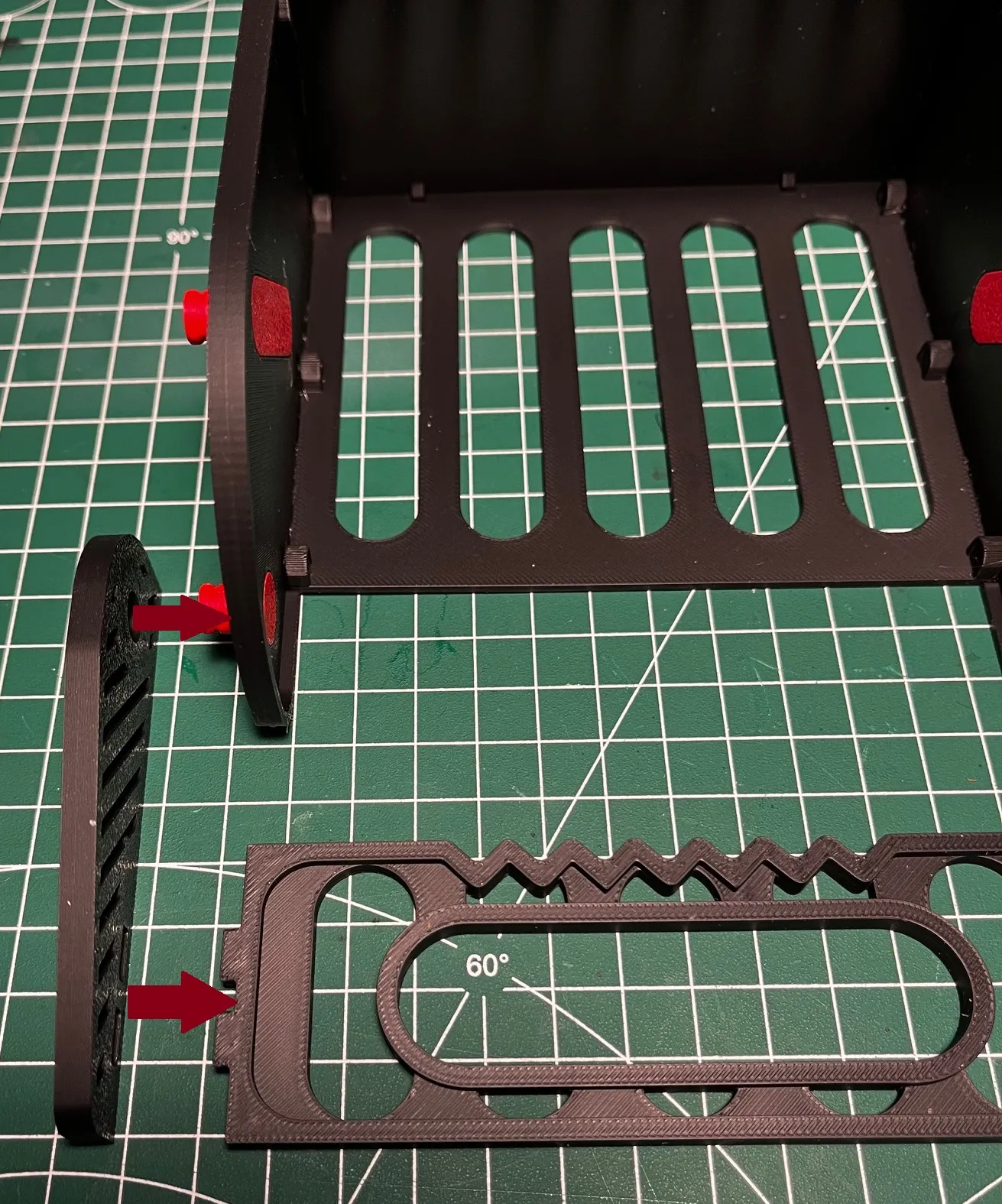

Now take the second side panel and stick it on the other side, at the same time gluing it to the handle.

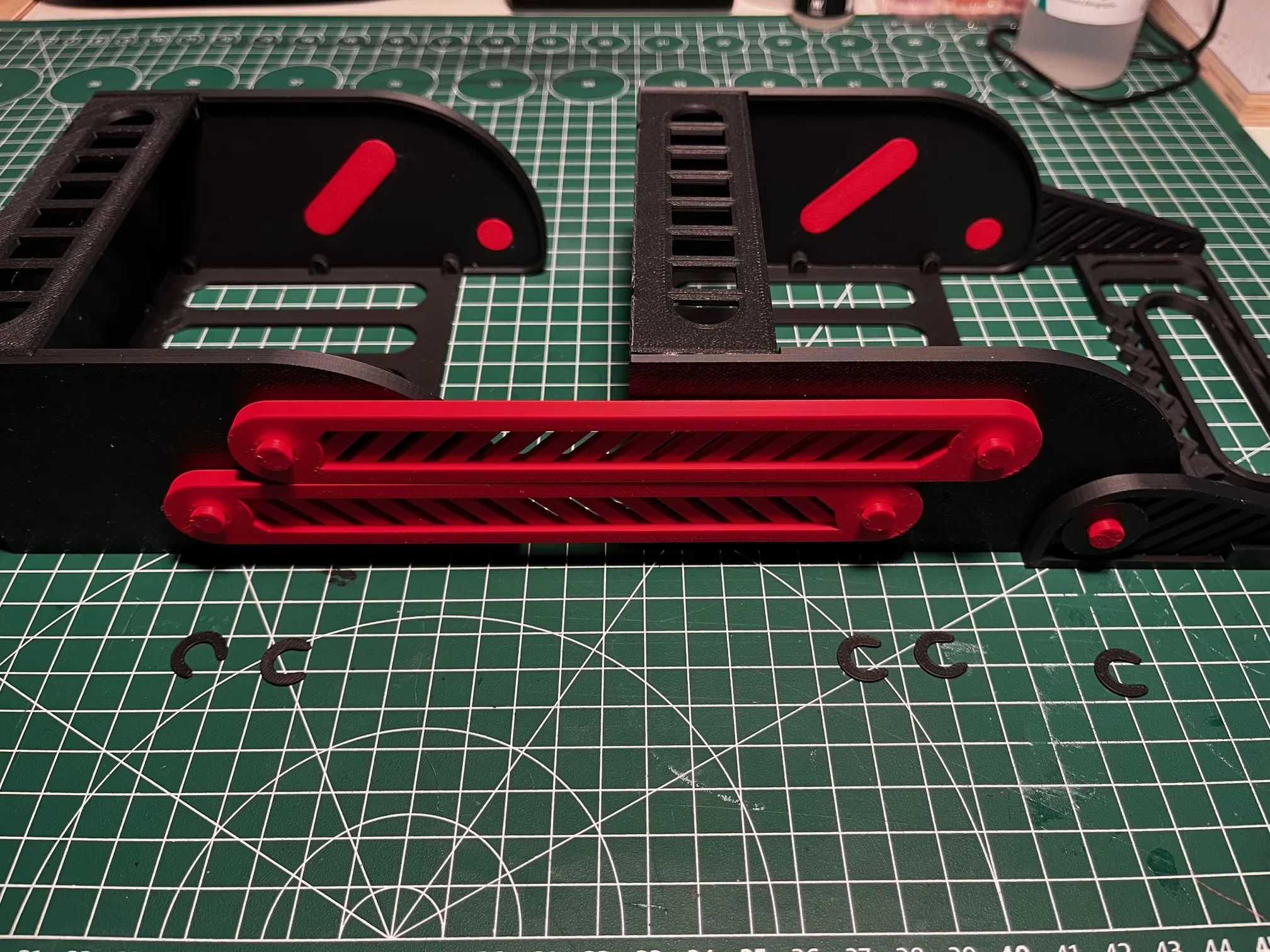

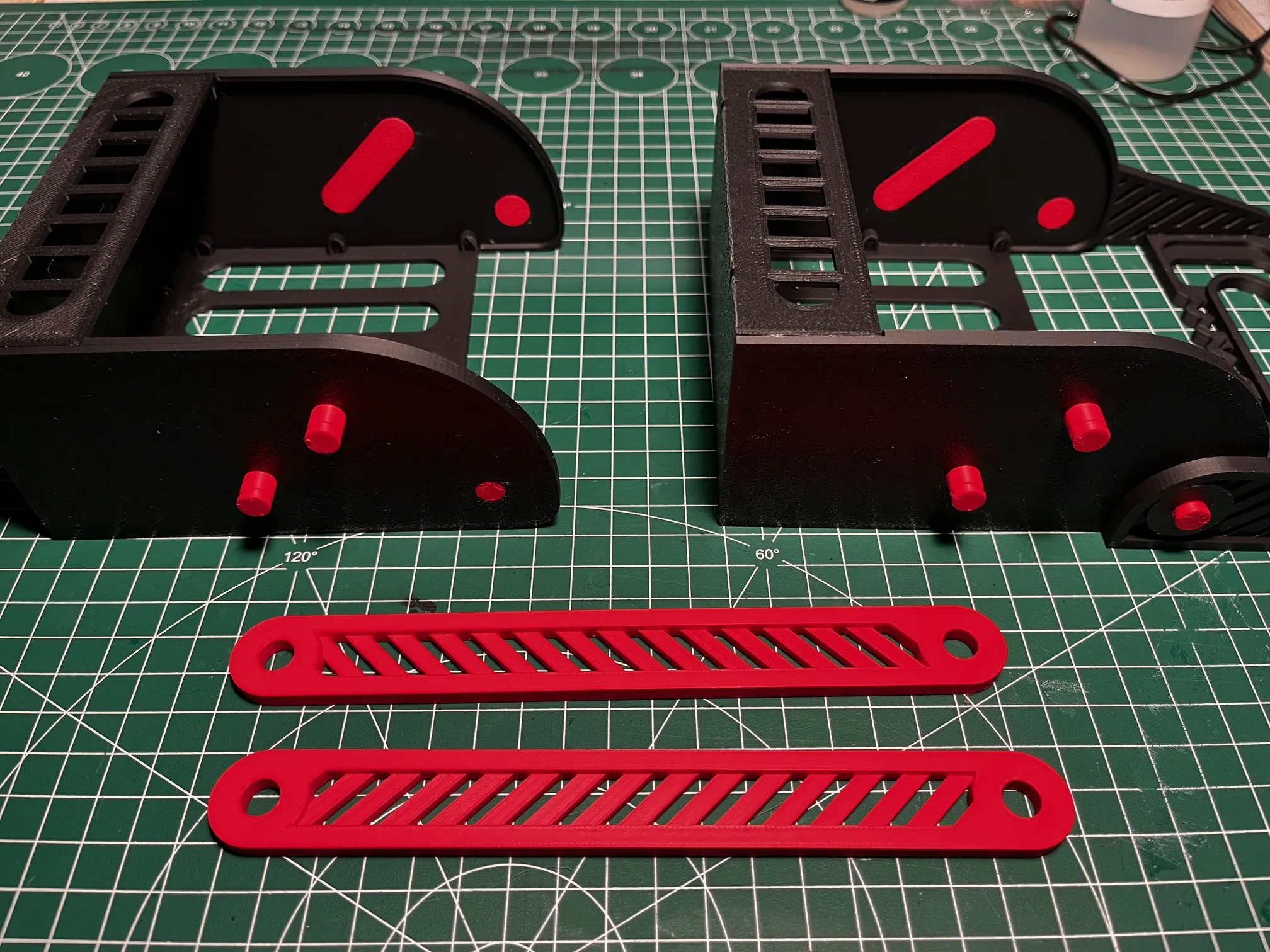

Almost done, just put on the bars and secure with the snap rings.
Thank you for downloading and have fun printing and crafting.
