Clip Board with Pattern

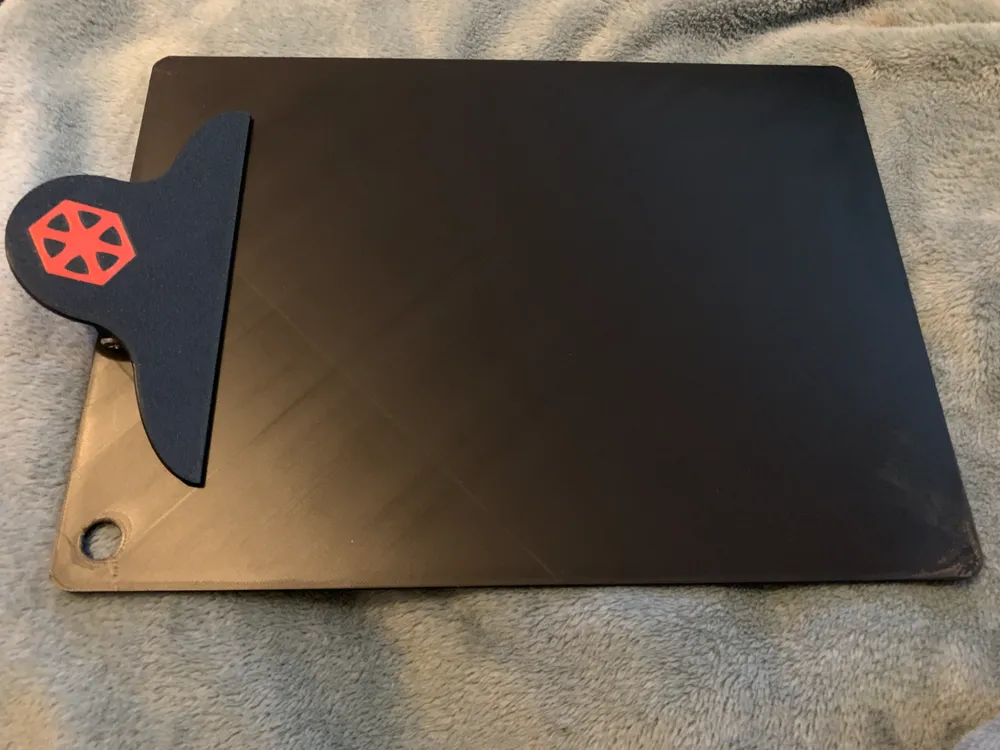

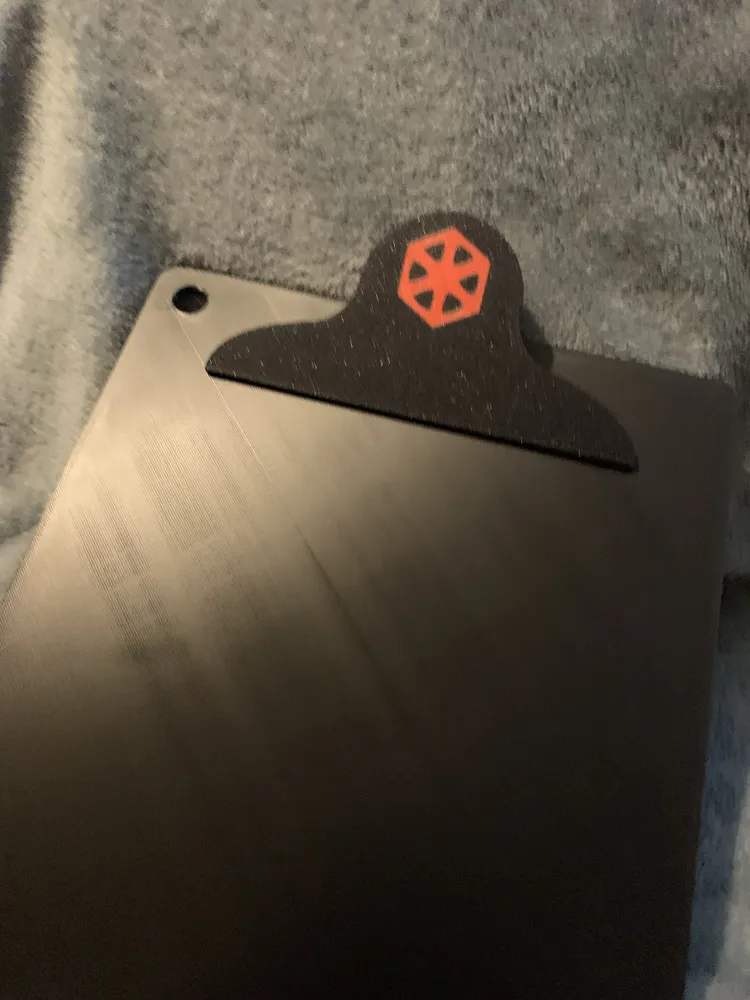

Full sized Clipboard that fits a Letter size or A4 size paper.

Fully printed on H2D due to bed size.

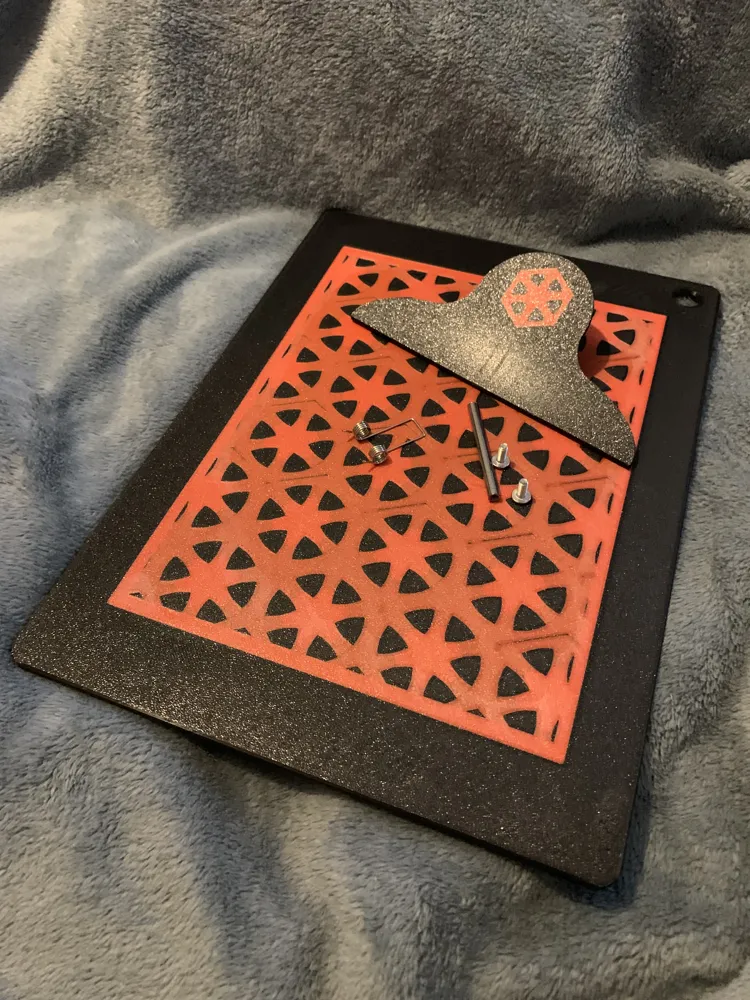

The Pattern was added  to show that it was possible.

There is no doubt that you will want to customize the the clips board with you own design, Picture or Logo.

Great for you or your kids favourite Coach, Teacher, Team, School.\

Please post Photos of your unique creations.

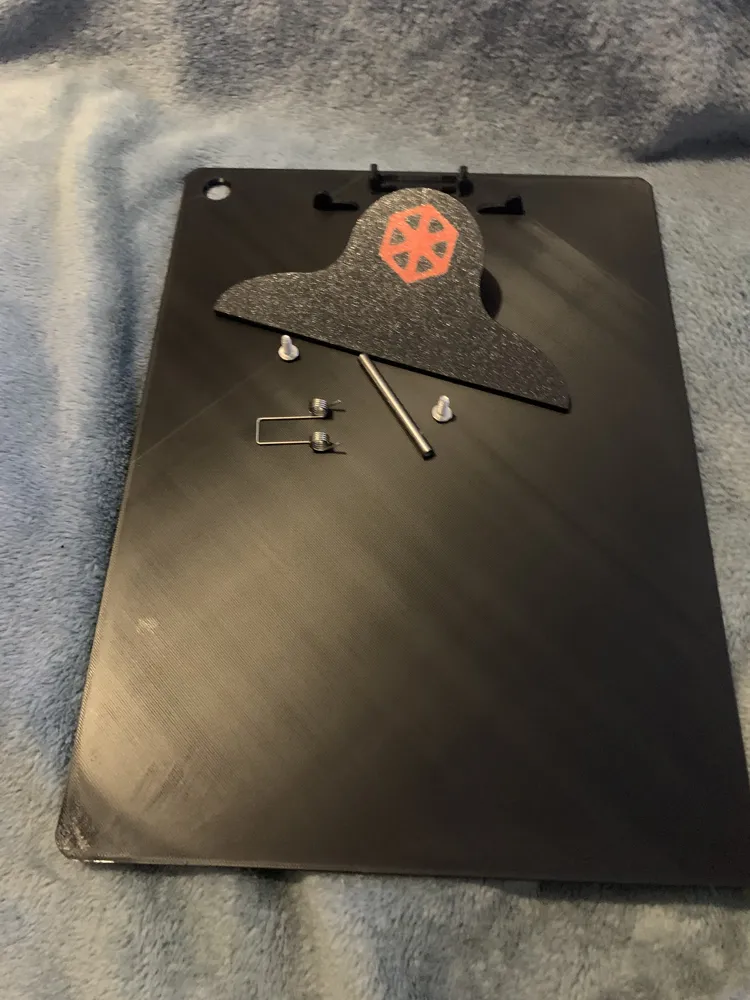

Model will need assembly to attach the clip to the plate.

• Holes for rod will need to be reamed to 5.4mm ( I used a 7/32 drill) for smooth operation.

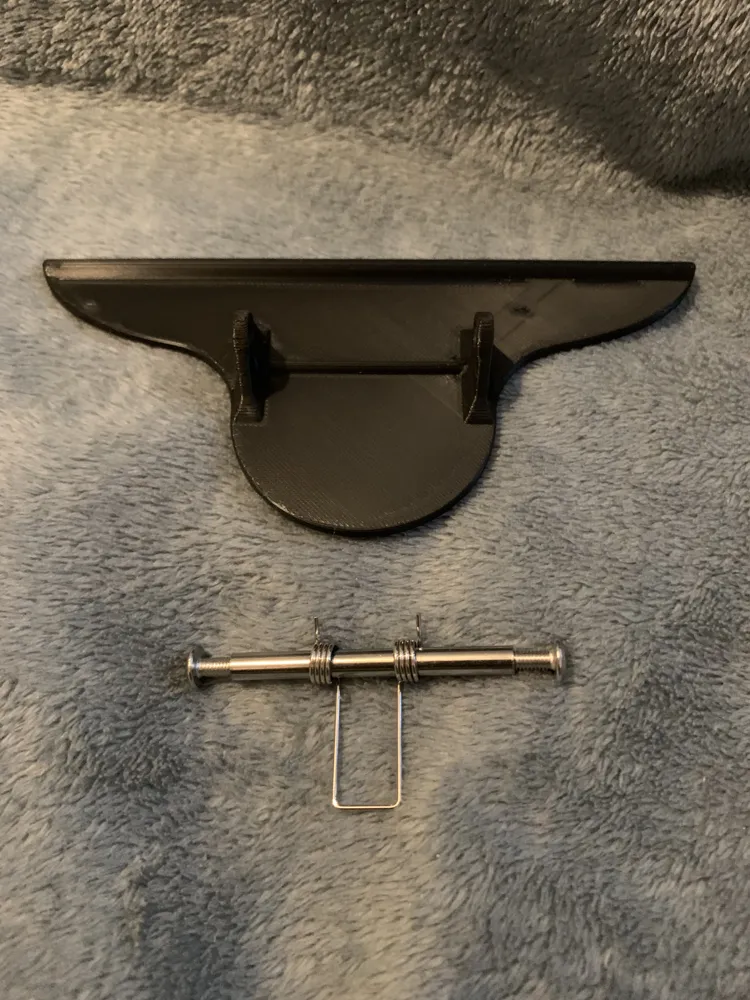

• Attach the screw to one end of the rod.

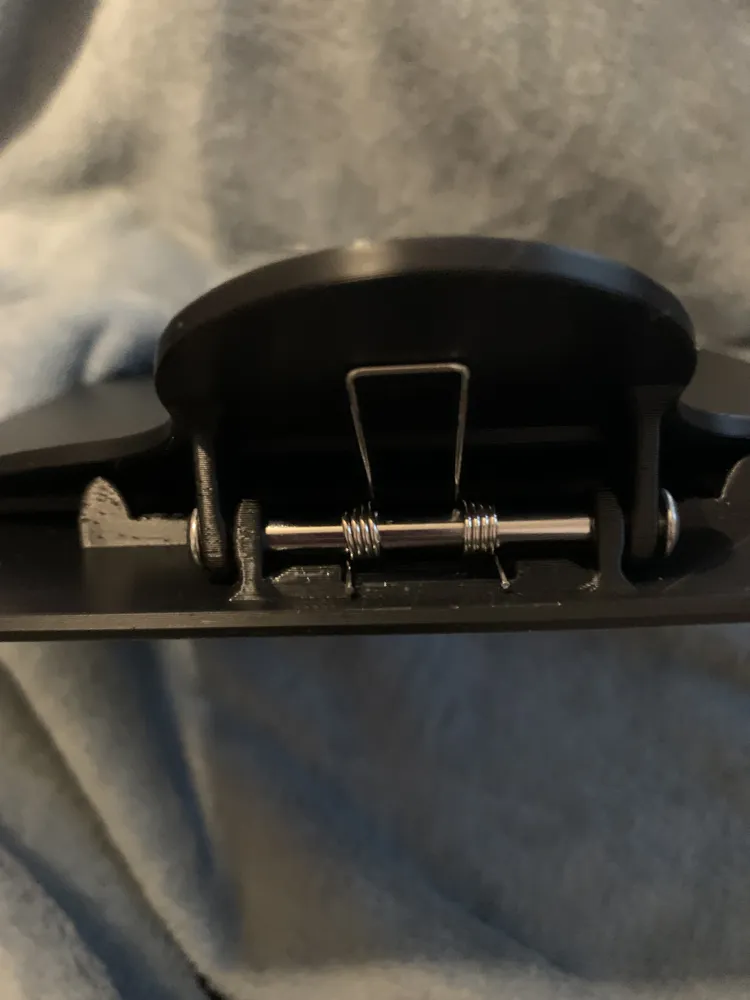

• align the plate and clip then slide the rod in and insert the spring.

        This may take some effort as there needs to be pressure applied to the spring while aligning the rod and spring.

• Slide the rod all the way through to the outer edge and insert the screw.
• Tighten up the screws to be snug. do not overtighten.  Youmay want to apply some a dab of locktight to secure the screw before fully tightening.

This will give firm pressure to secure even a single sheet onto the clipboard.

Parts used:

Screw: https://www.amazon.ca/dp/B0CYYP9FN2?th=1 (M4x10mm)

Spring: https://www.amazon.ca/dp/B0DNFJ2LCK  (1x8mm double leg spring)

Rod: https://www.amazon.ca/dp/B0DK982HF1?th=1 (55mm)

I added a pattern to enhance the aesthetics. You can personalize the clipboard and clip by adding your own logo etc.
