Mini tripode
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
31
91
0
0
82
23
Released
Description
Content has been automatically translated.
Boost Me (for free)

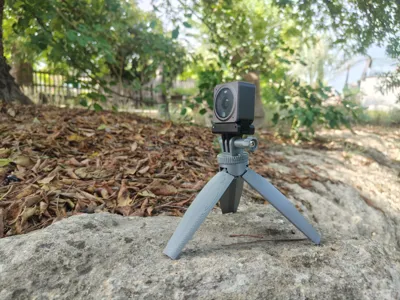

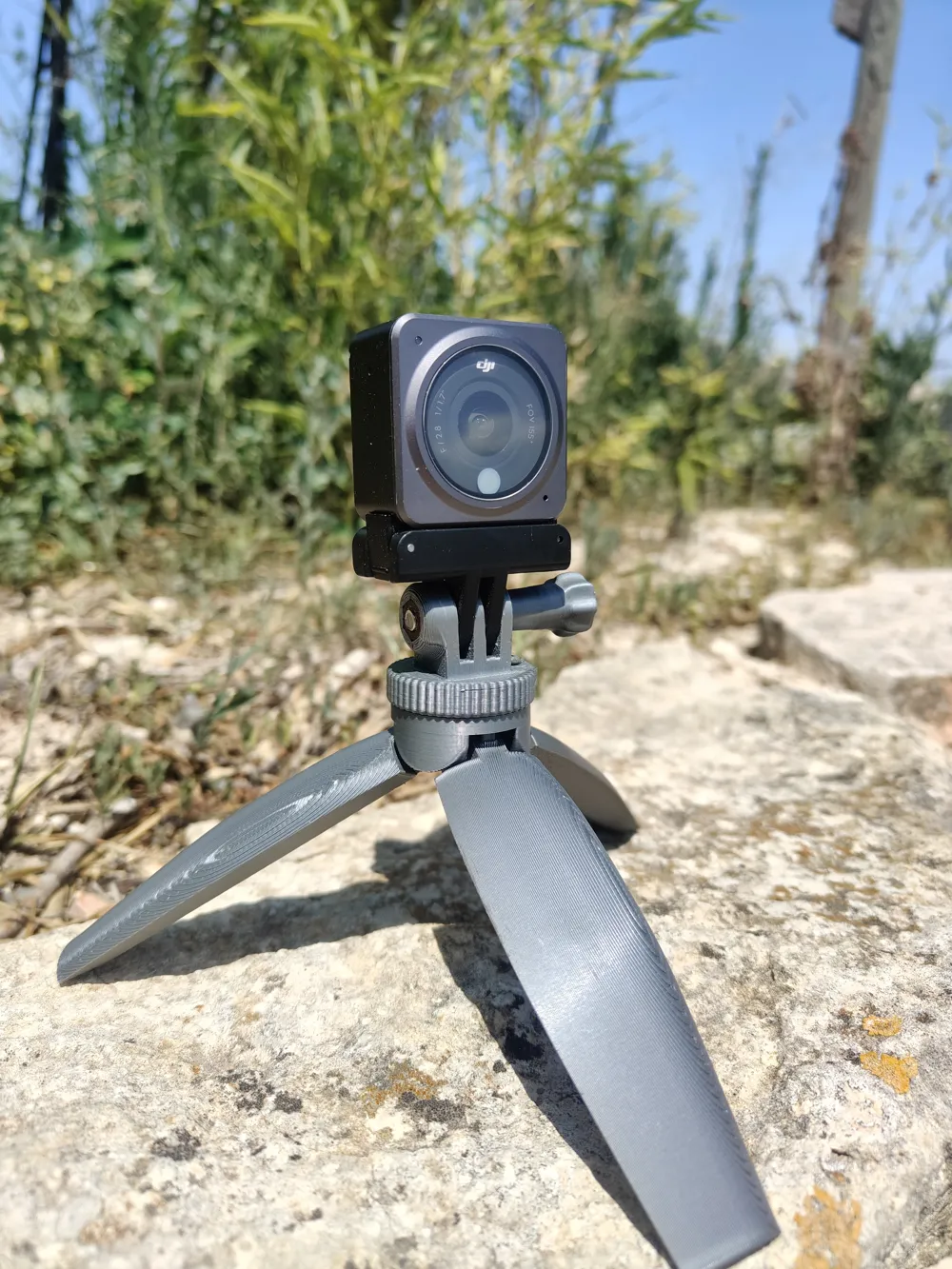

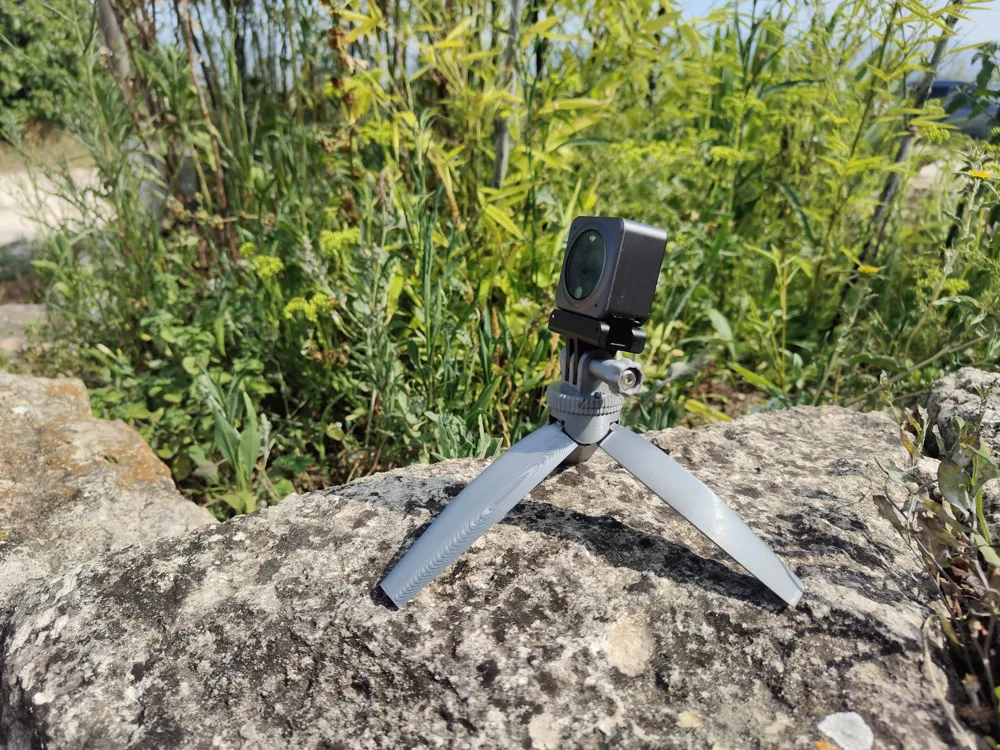

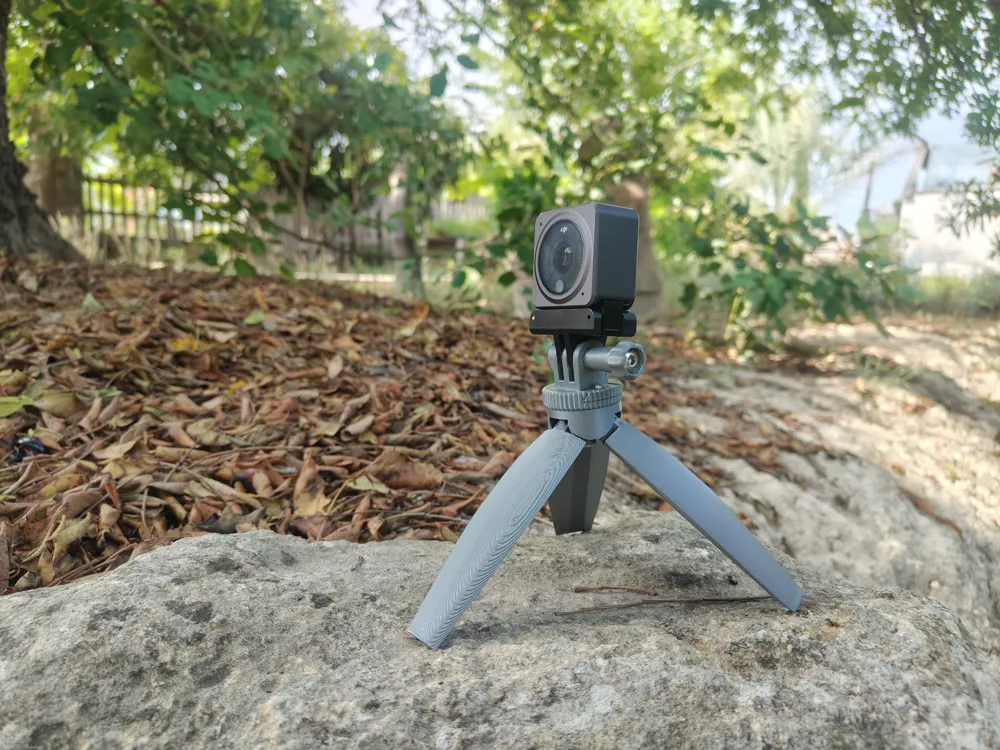

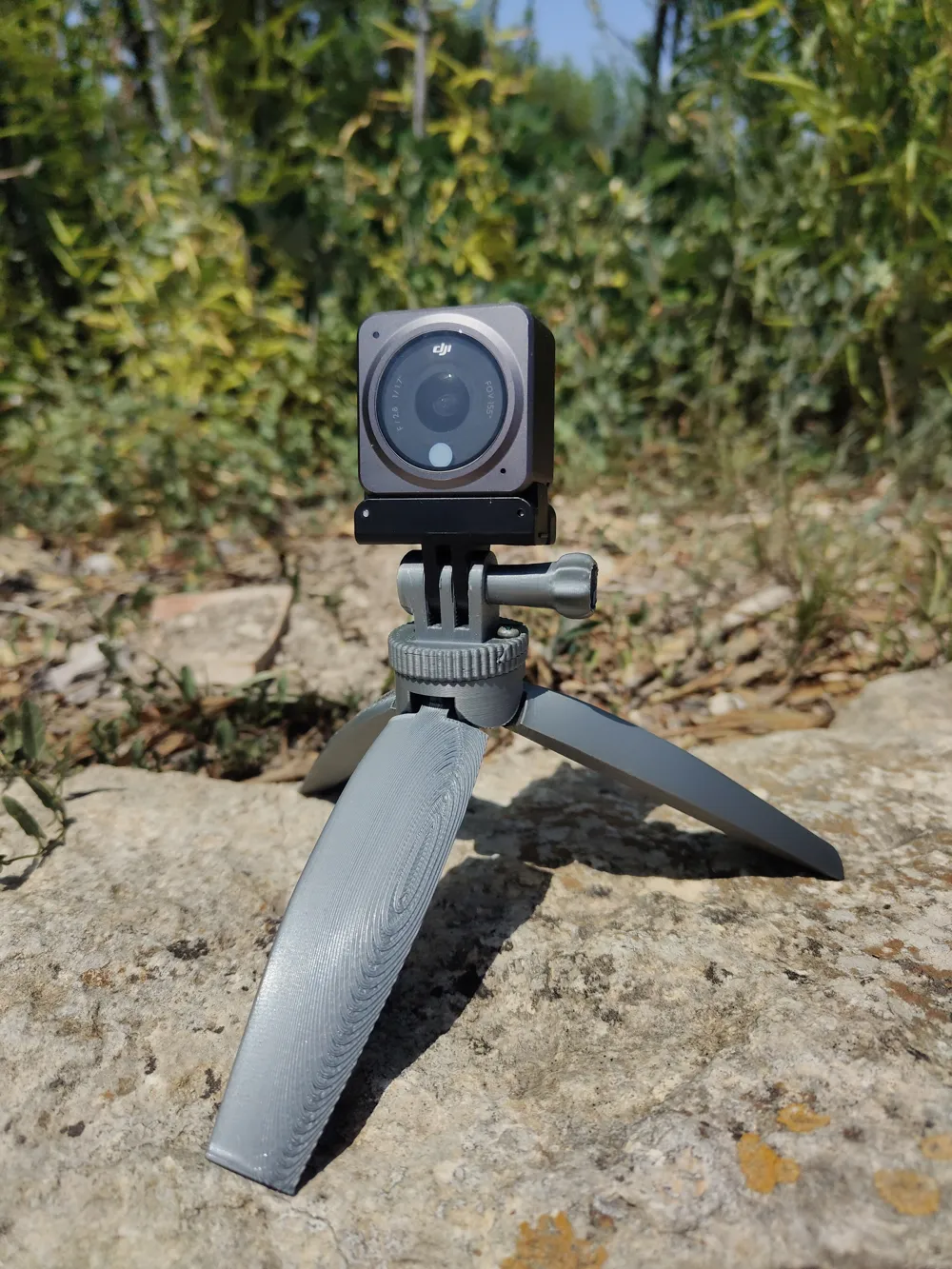

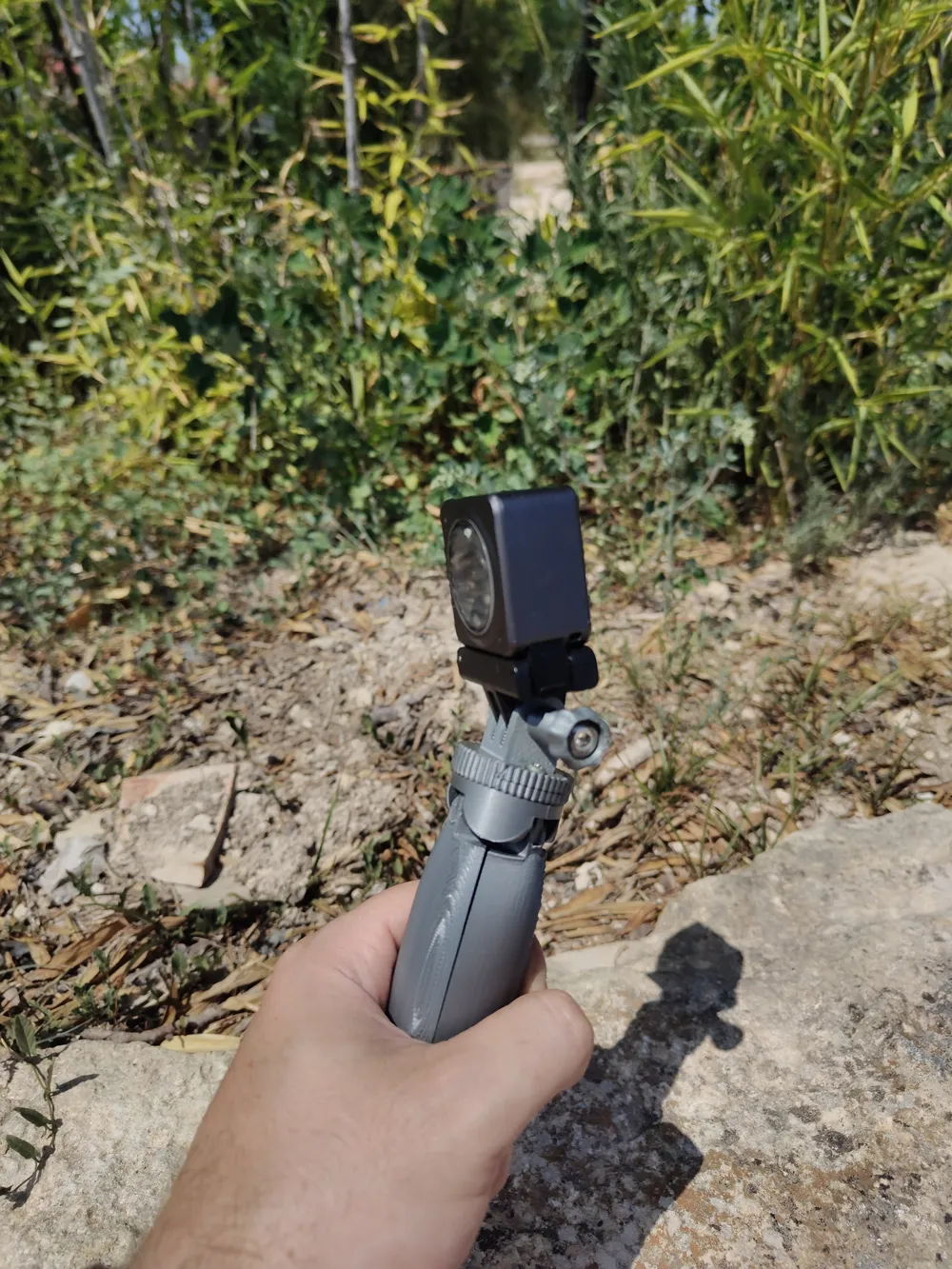

A compact and functional mini tripod design compatible with GoPro and similar cameras. Its structure allows dual use as a tripod or mini selfie stick, ideal for quick recordings, vlogs, or travel shots.
🛠️ Key Features:
- Integrated standard GoPro mount.
- Foldable and compact design, easy to carry.
- Allows two-axis adjustment, ideal for finding the perfect angle.
Optimized for FDM printing with PLA or PETG.
🔩 Assembly Materials Required:
- 3 M3 x 10 mm countersunk screws to secure the legs.
- 1 M3 x 25 mm countersunk screw with 1 self-locking M3 nut to join the top section to the leg base.
- 1 M5 x 40 mm screw with 1 nut to create the wingnut.
- 1 M5 nut to secure the wingnut.
- 1 self-tapping M2 screw (~6 mm) → acts as a safety pin to prevent the mount from slipping.
