5W LED Softbox / Light Panel

This is a powerful little softbox using the Bambu CMYK LED Backlight Board, perfect for photography and videography!

No additional parts required, just the LED Backlight Board!

In my tests, it consumed about 5W of power, which is much more powerful than Bambu Labs LED Lamp Kit (1.8W).

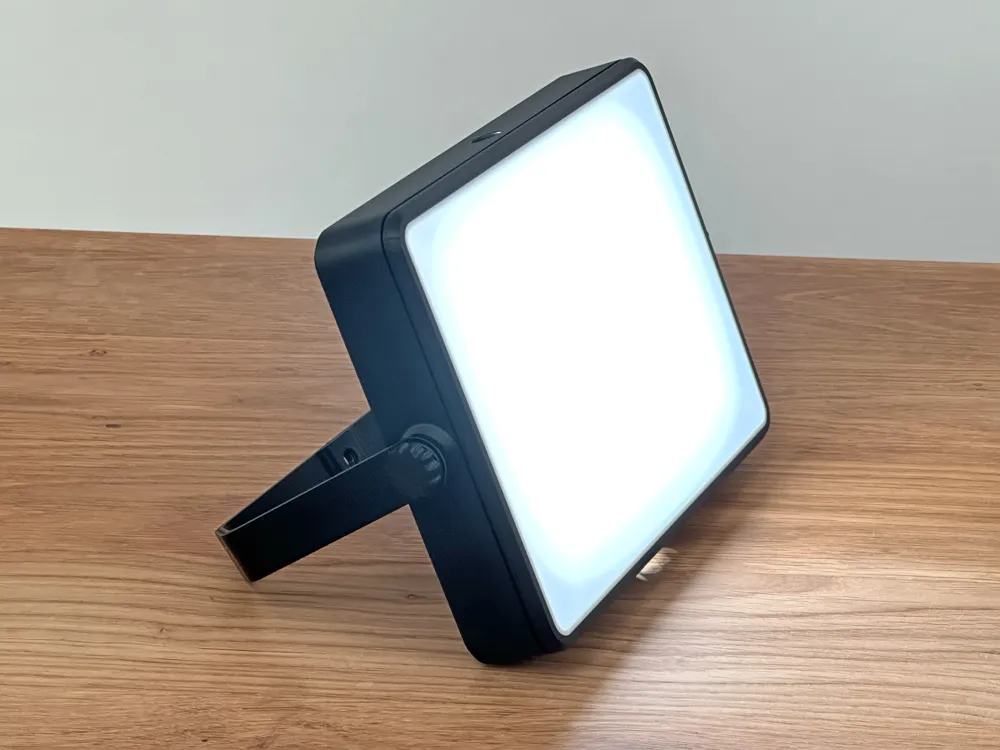

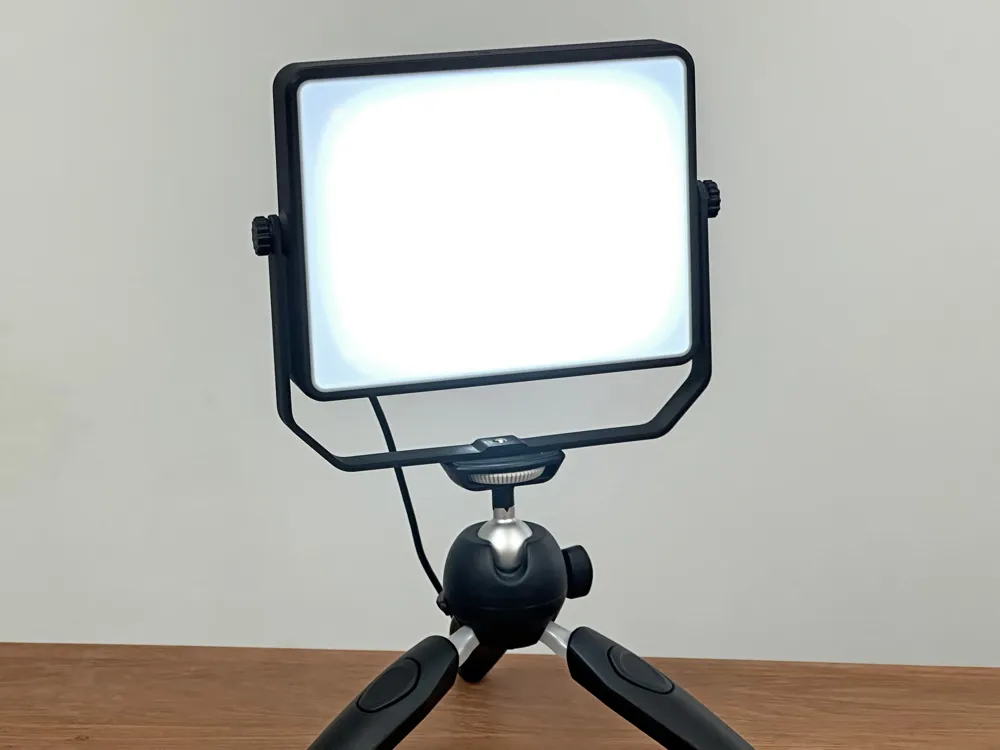

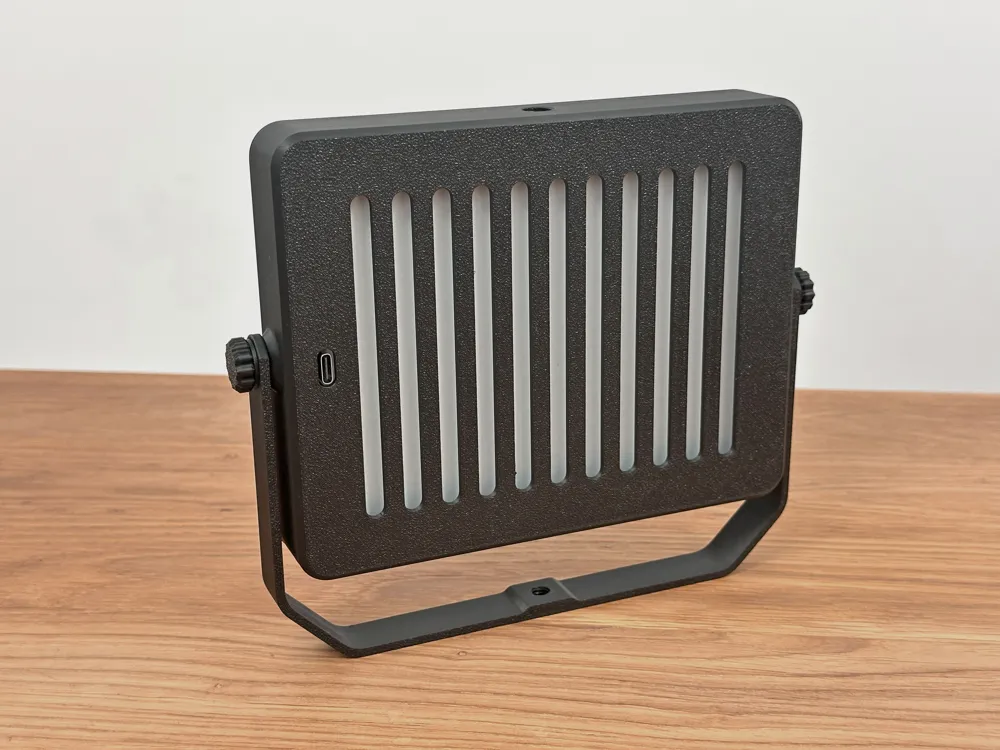

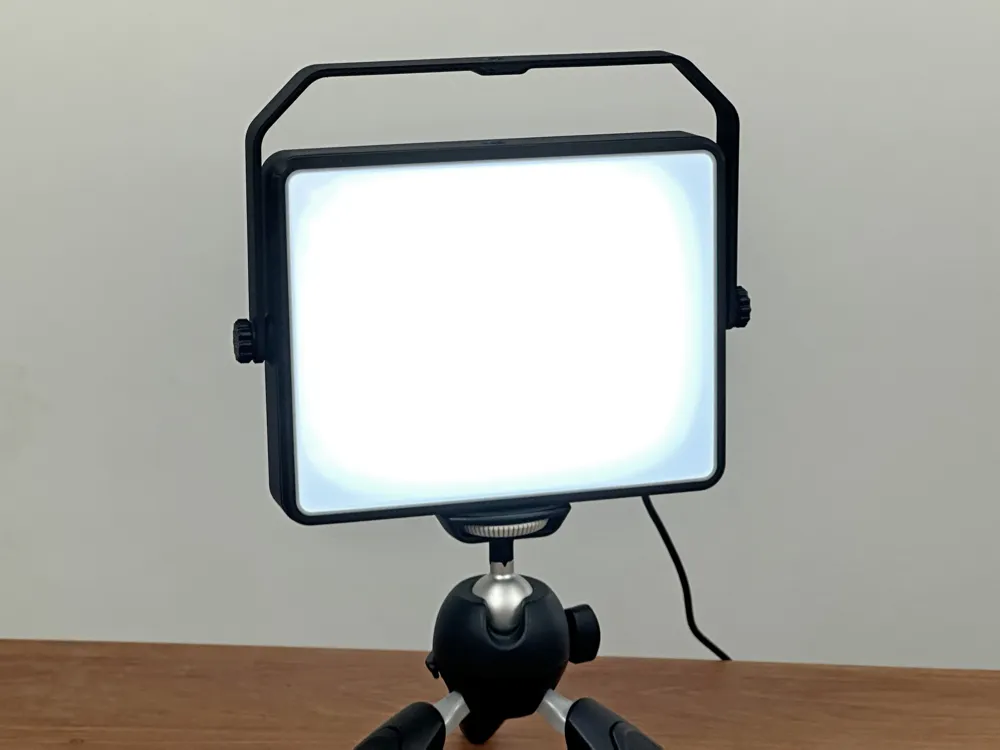

The bracket has a 1/4 Inch tripod thread, which makes it compatible with most tripods. There is an optional bracket with 3/8 inch thread available. The case itself also has 1/4 and 3/8 inch threads, so you can directly mount it to a tripod and use the bracket as a handle. Finally, the bracket can also be used as a stand - See the photos for all configurations!

The upper case with the diffusor needs to be printed on PEI or another plate that releases after cool down! Do not use cold plates. I recommend a smooth PEI plate, but textured also works. After printing, let it fully cool down and remove it by carefully flexing it or use a spatula.

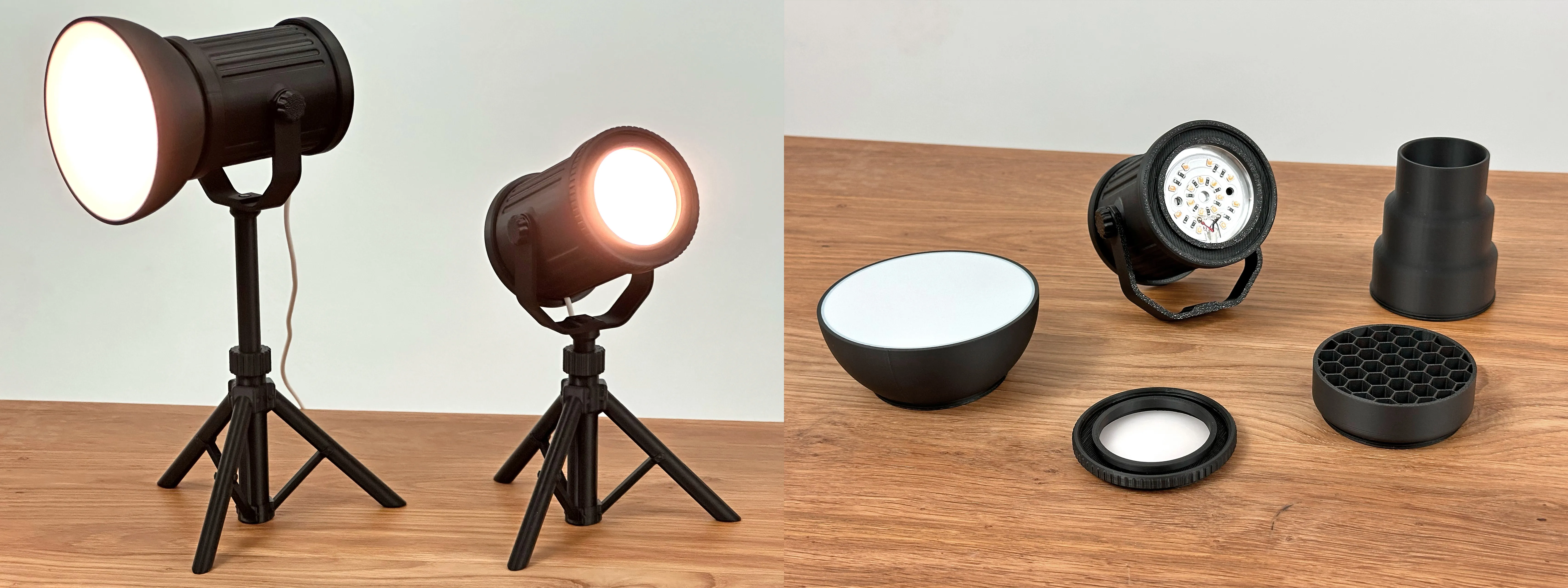

If you are looking for the small tripod from the thumbnail, it's part of my other studio light! Make sure to print the 1/4 inch rod! You can find it here: https://makerworld.com/en/models/1514457

Assembly

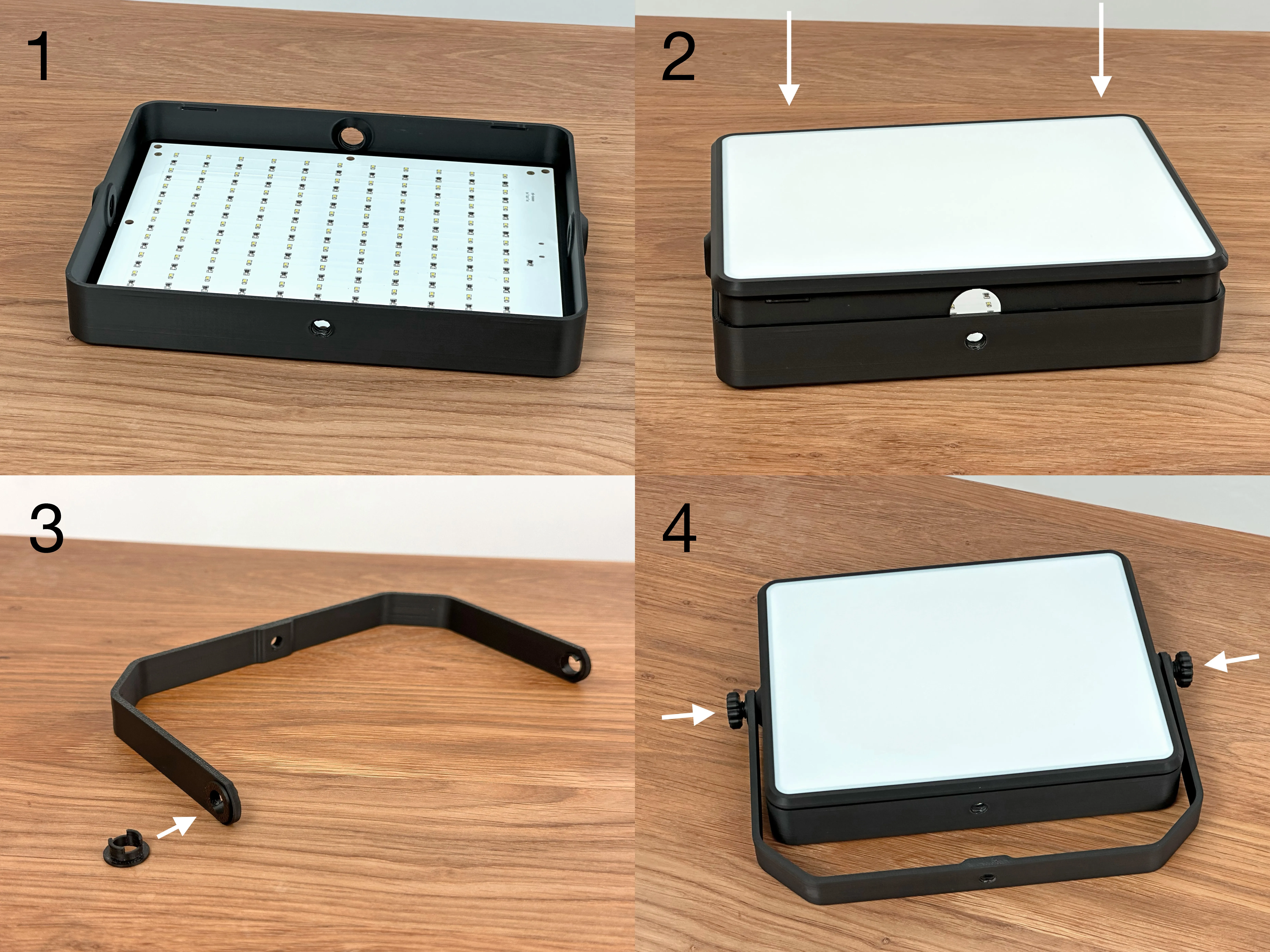

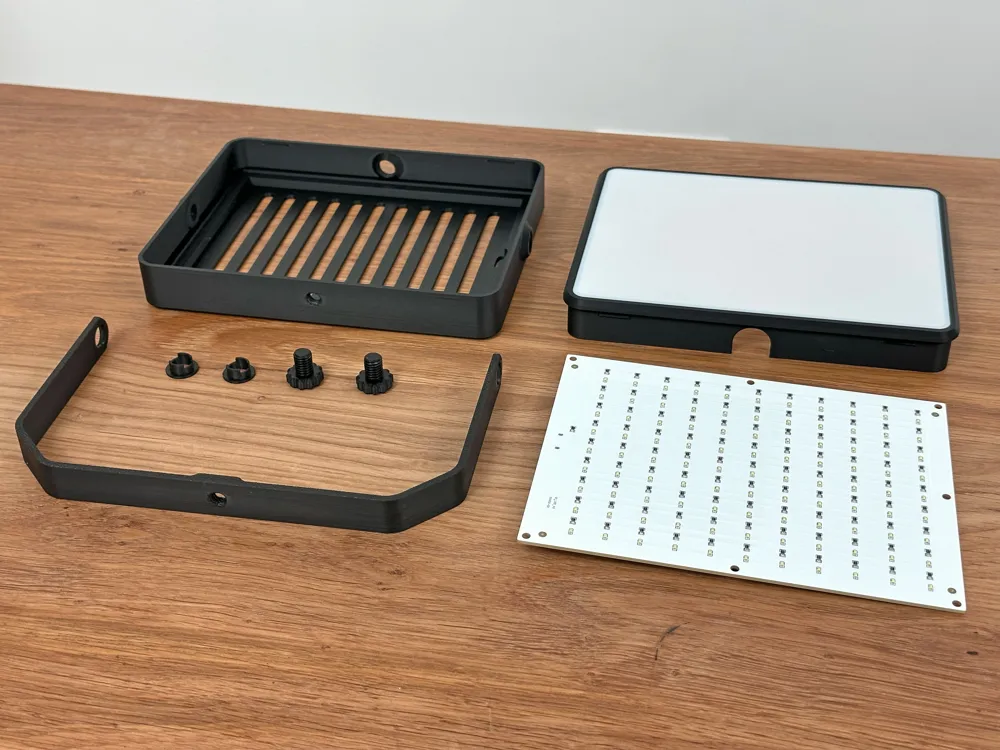

Put the LED Board in the lower case and click the upper case in place. Make sure to align the USB socket correctly and don't press on the diffusor! Now put the clamps into the bracket and align them with the case (They only fit in one orientation). Finally, secure it with the printed screws.

Also check out my Mini Studio Light system: https://makerworld.com/en/models/1514457

Commercial license available on MakerWorld and Patreon. Check out my profile for more designs!
