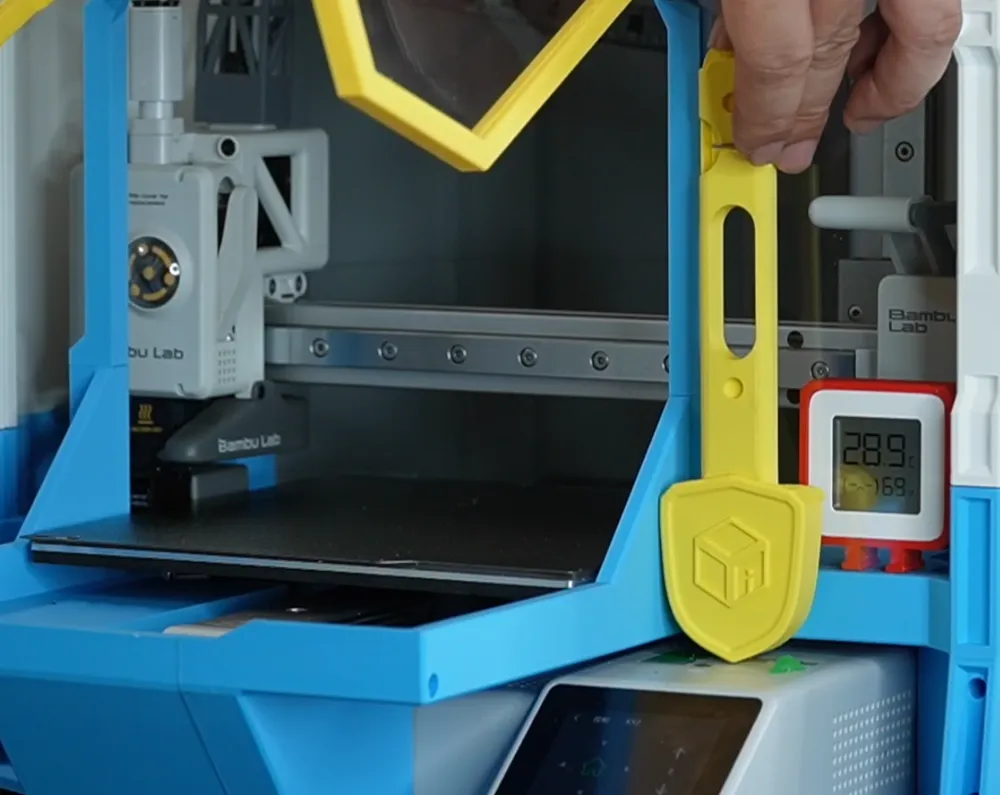

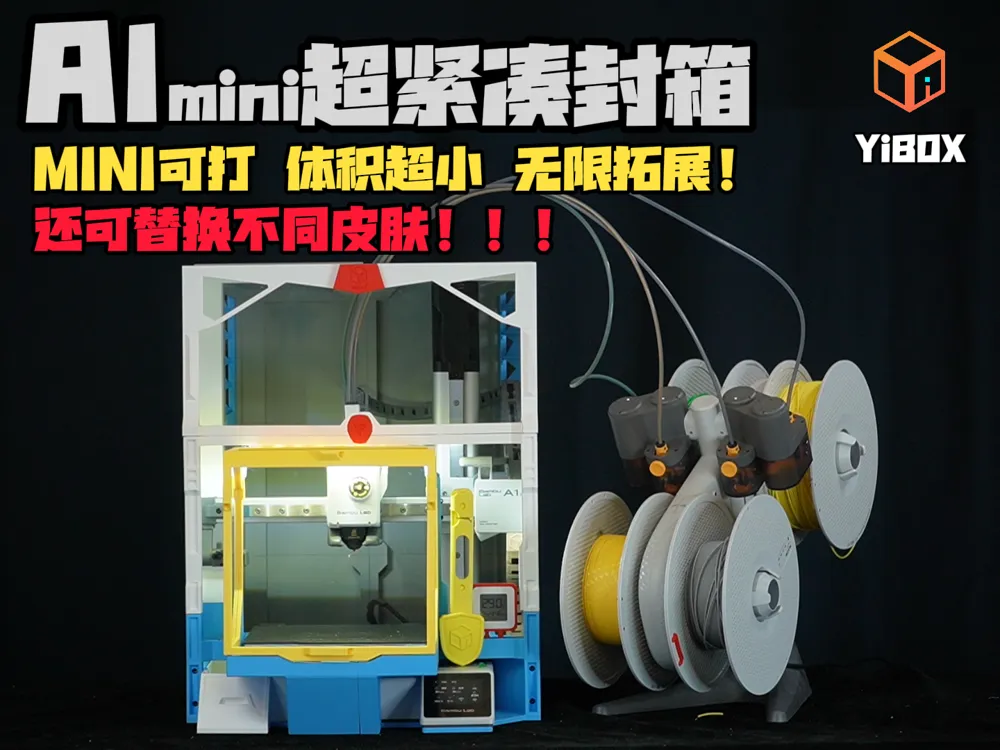

YiBOX-A1 mini Super Compact Enclosure
Print Profile(6)
Description
Kindly specify the filament type and brand in your comments to aid in optimization analysis.

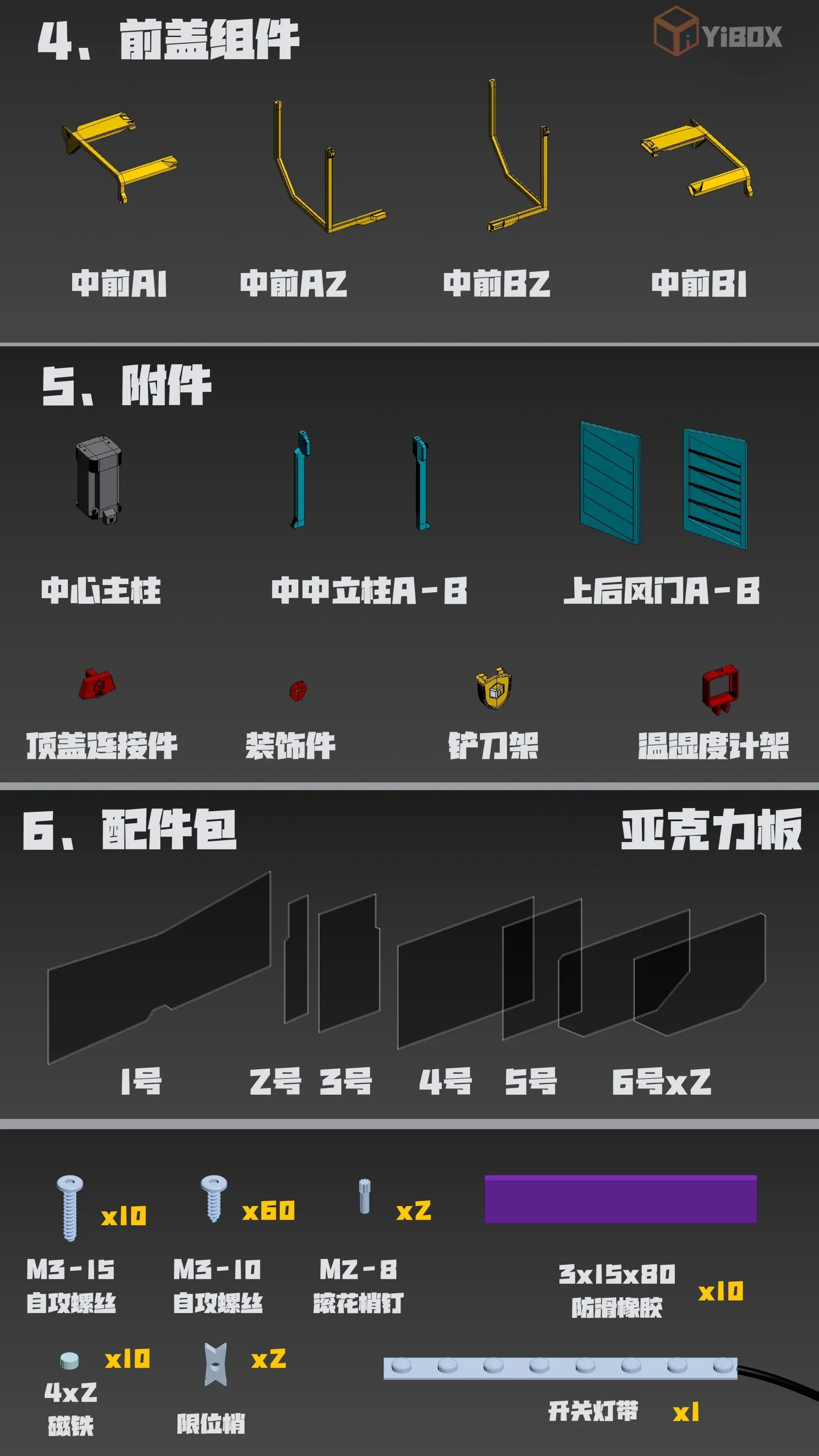

The necessary acrylic panels and all other components for customization have been conveniently packaged for you. The link is provided below:
https://item.taobao.com/item.htm?ft=t&id=944146138317&skuId=5848661837485

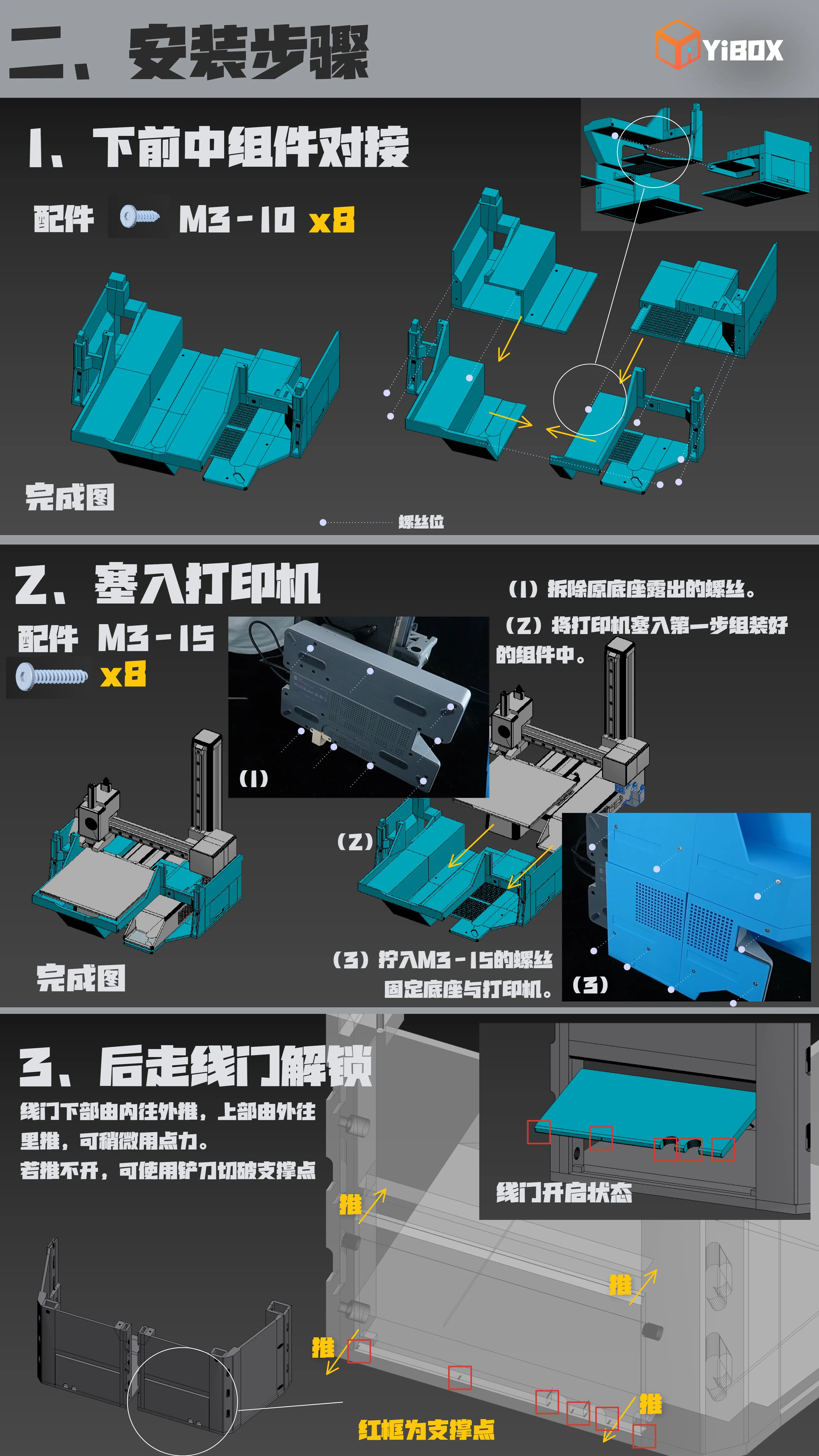

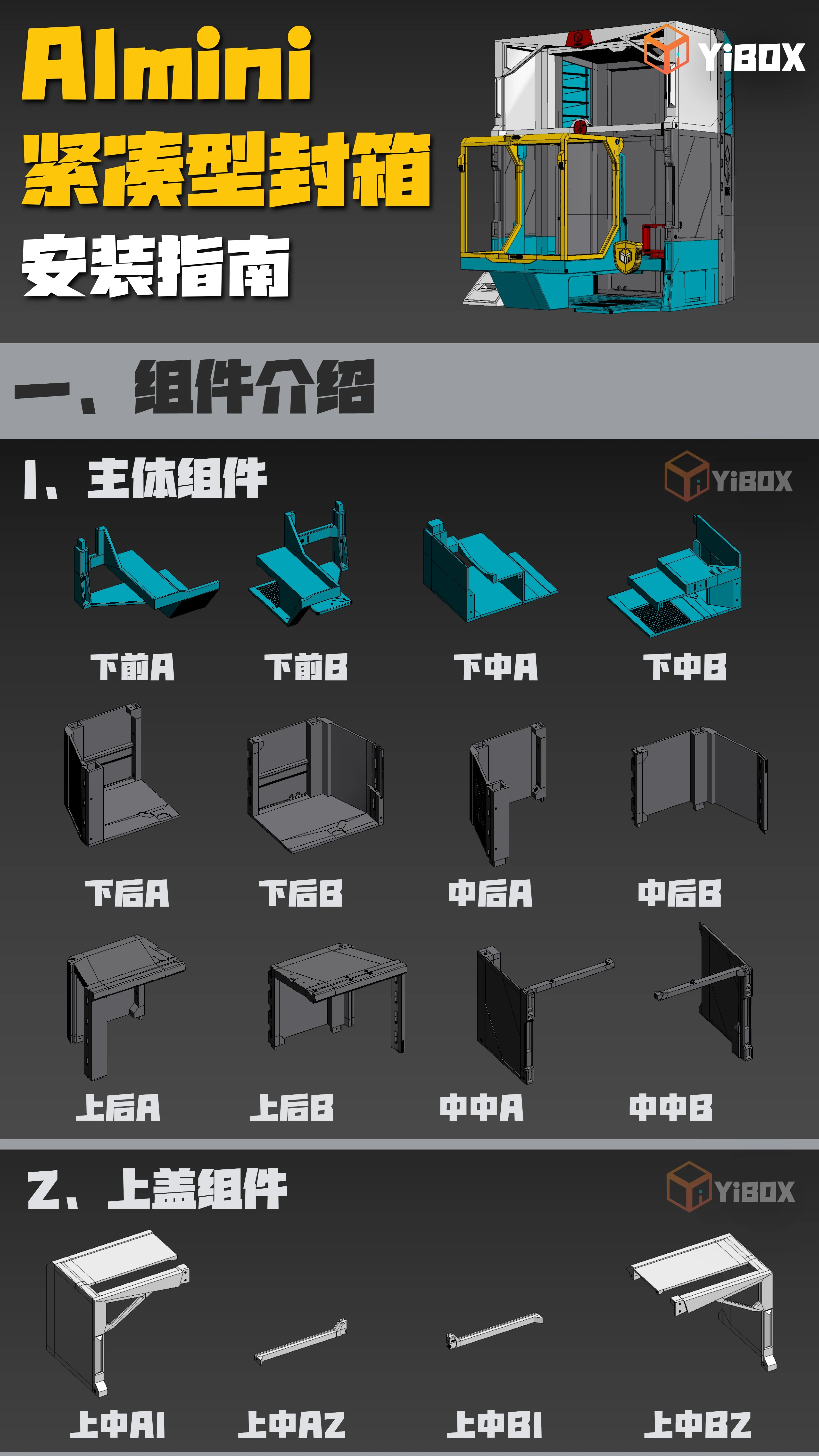

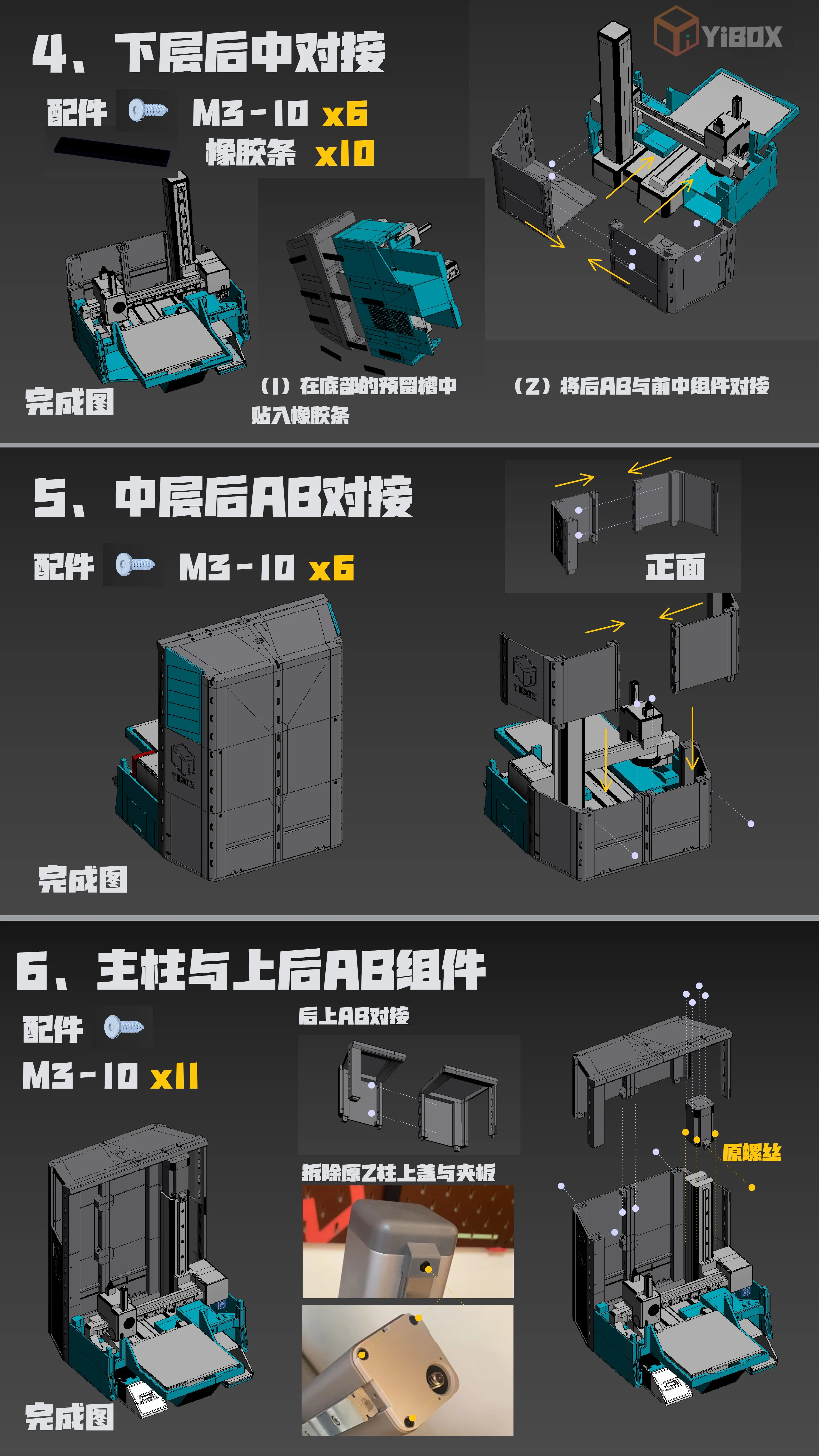

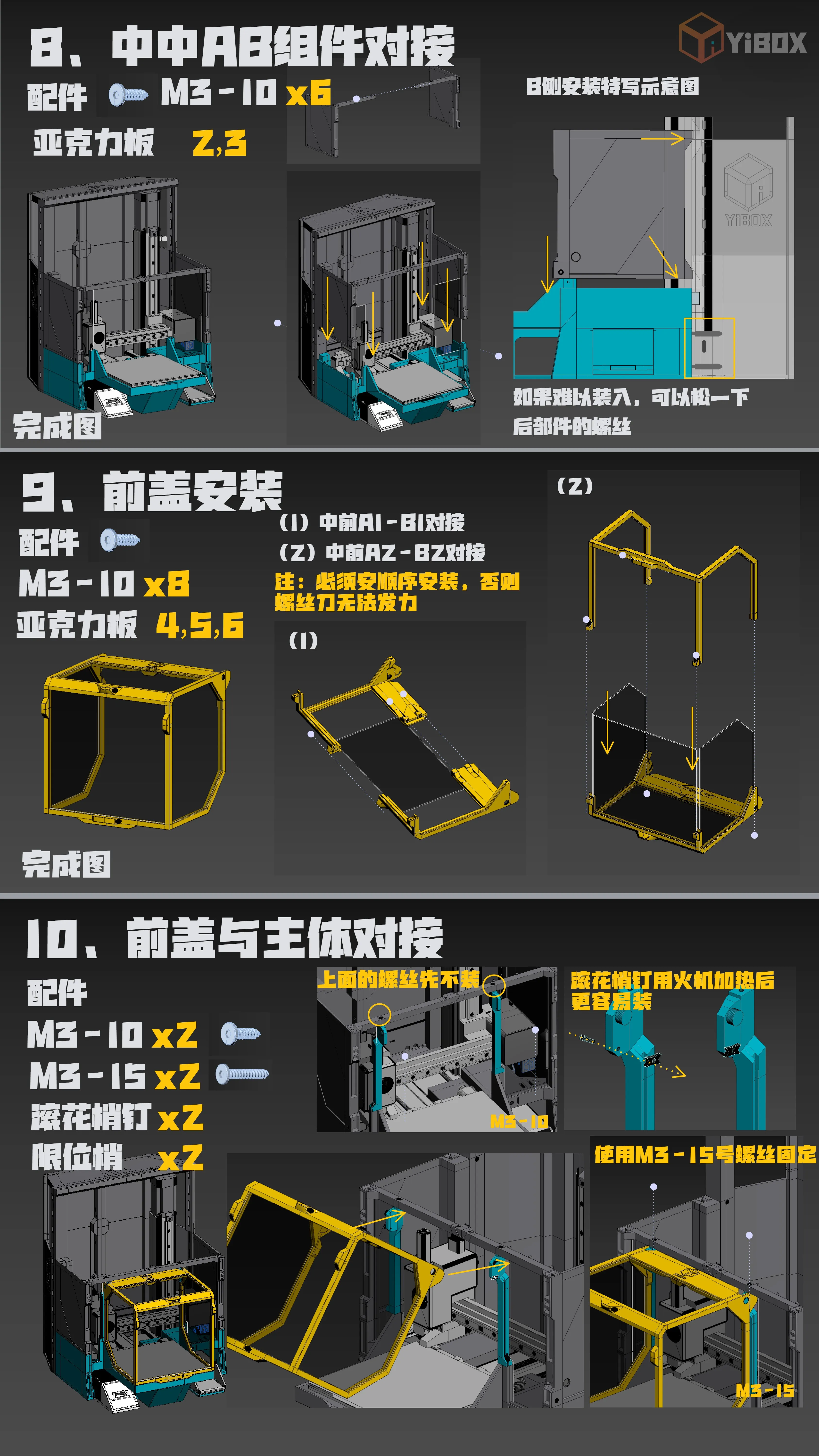

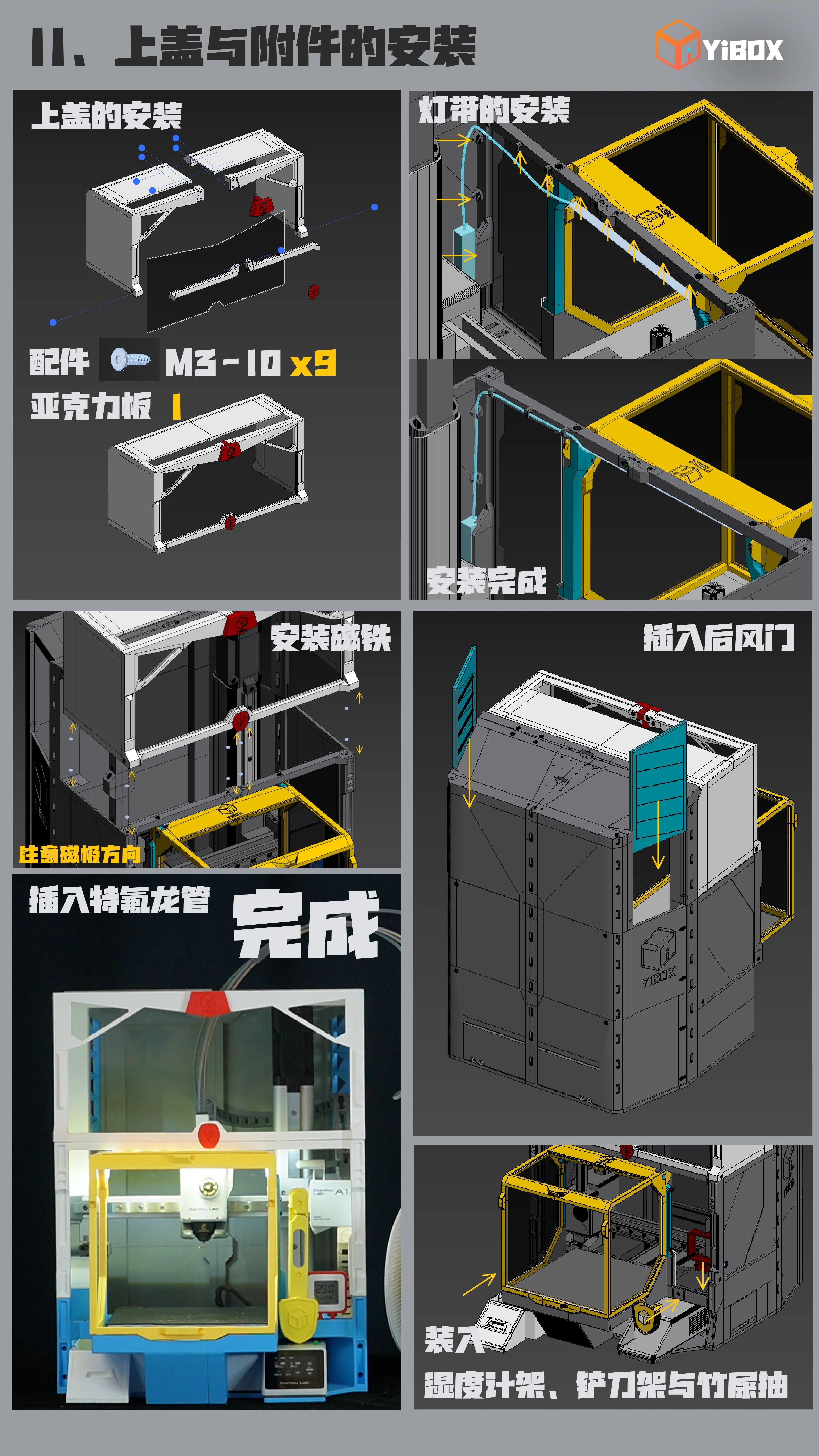

Design rationale, installation videos, and assembly instructions are available below.
Model Optimization Log:
Configuration Four AMS Bracket Modification Version 1.01: 2025.07.19
Optimizations: 1: Adjusted the spacing of the front clamp holes
Main Body Version 1.05: 2025.07.01
Optimizations:
1, Minor adjustments made to the lower front AB and lower center AB base screw positions for enhanced compatibility with the A1 MINI original base screw holes.
2, Hand-drawn skirts added to the lower front AB and lower center AB slices to reduce the likelihood of warping in certain areas.
Version 1.04: 2025.06.14
Optimizations:

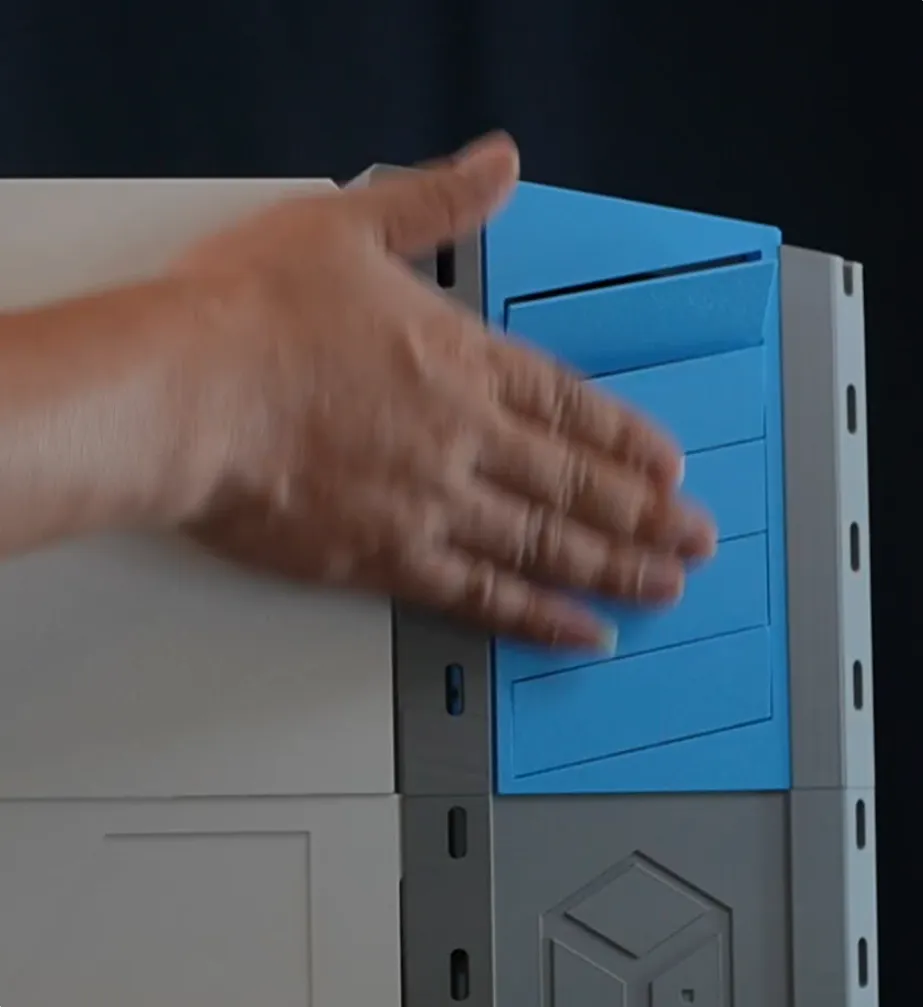

1, Refined the structure of the AMS port access door to mitigate nozzle collision-induced print failures
Version 1.03: 2025.06.13
Optimizations:
1, Addressed the acrylic panel mounting issue on the standard version top cover.
2, Resolved the missing support issue for the MINI filament retraction unit B part.
Version 1.02: 2025.06.11
Optimizations:
1, Adjusted the height of the center A-B to reduce the likelihood of nozzle collision with components at maximum height
2, Adjusted the tolerances of some screw holes
3, Adjusted the placement and structure of supports on some parts
4, Fixed a bug preventing the limit stop slots from being printed on the cover's AB parts
Version 1.01: 2025.06.09
Optimizations: Adjusted the support point location and shaft tolerance of the lower rear AB component's rear door to accommodate a wider range of filaments.
It is strongly recommended to install the YiBOX A1mini X-axis cable chain and Z-axis cable chain before installing the YiBox-A1MINI compact enclosure to prevent cable entanglement within the enclosure. Model links are provided below:
YiBOX's A1/A1mini Accessories Collection | Favorites - MakerWorld
