BAMBU LAB X1C - X1E PURGE CHUTE COVER WITH NOZZLE WIPER
BAMBU LAB X1C - X1E PURGE CHUTE COVER WITH NOZZLE WIPER
Print Profile(2)
Description
NOTICE: REMIX ARE NOT ALLOWED
NOTICE: DO NOT POST ANY OF YOUR PROFILE
I design this a purge chute cover with a silicon nozzle wiper.
Benefits:
- Purged filament doesn't jump on the plate
- Nozzle is better cleaned
- Pieces of purged filament don't go everywhere , each corner of the printer remains clean

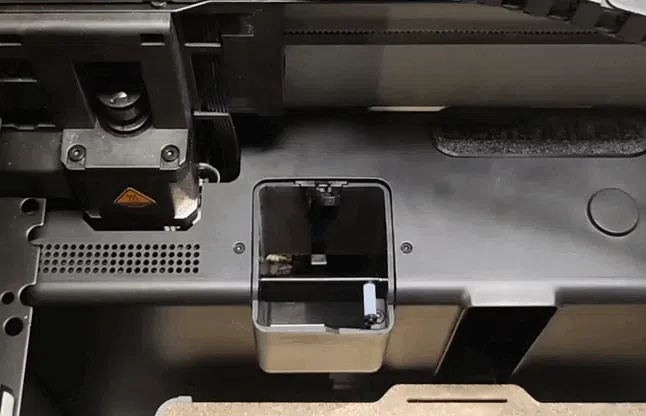

How to install the X1C and X1E MODELS:

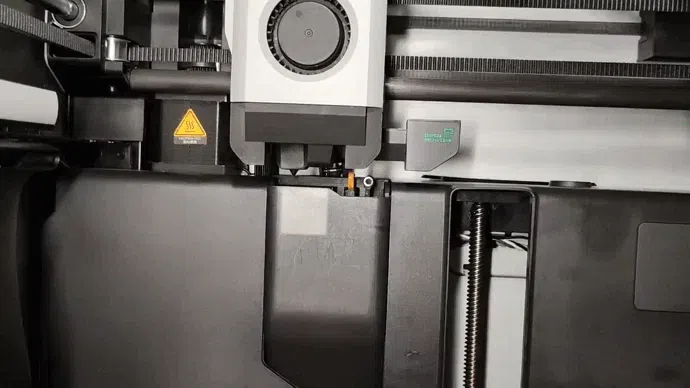

How it works:
INSTRUCTIONS
What is the nozzle wiper made of?

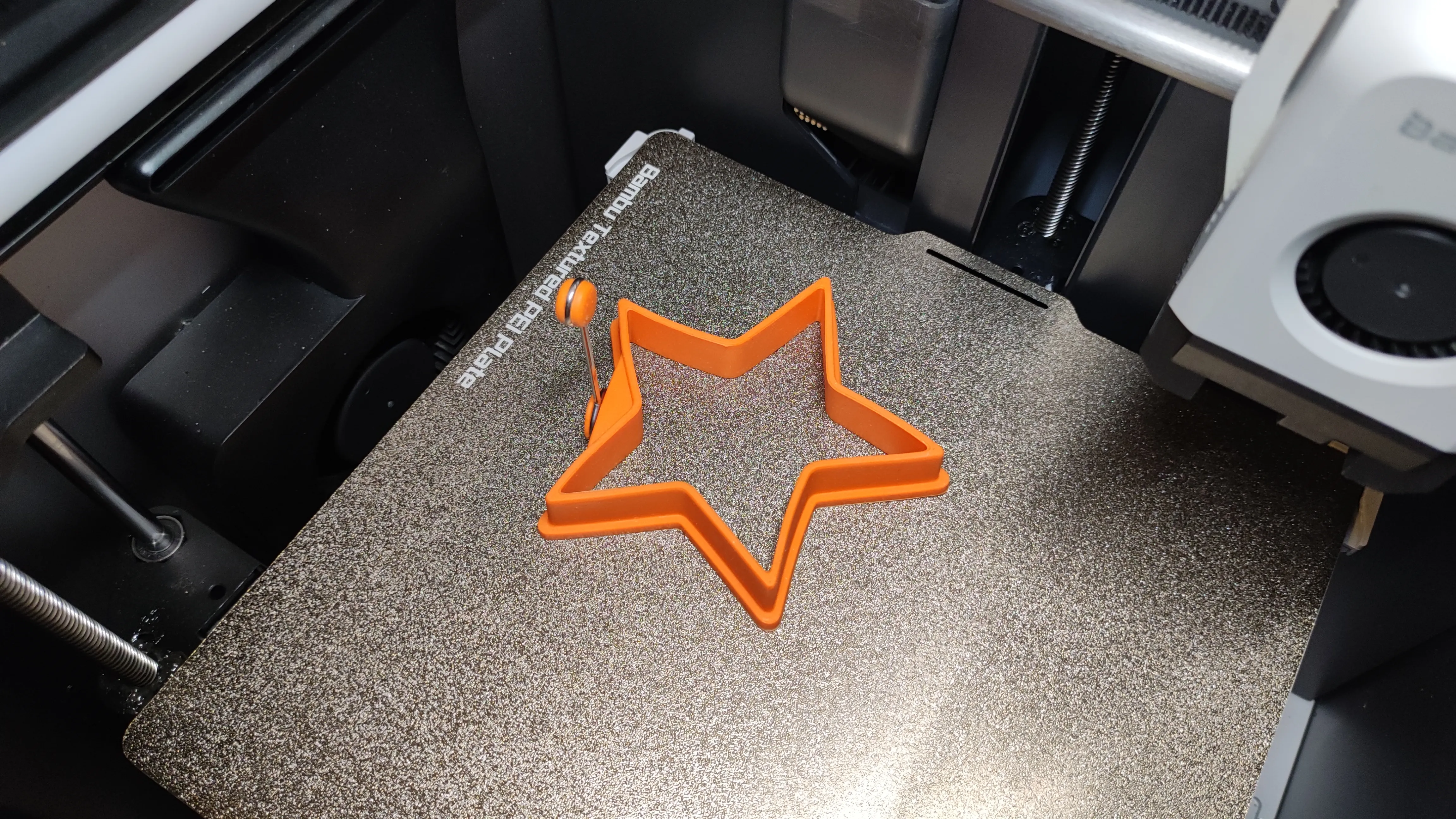

It is made from a piece of silicone from the molds used to make pancakes. Like this one you see in this pic:
Β
How big should the silicone piece to be cut be?
10mm x 2mm x 15mm
PRINT THE POOP STOP WITH THE NOZZLE WIPER
CUT THE PIECE:
APPLY THE SILICON PIECE IN THE SEAT OF THE POOP STOP AND INSTALL THE POOP STOP IN THE POOP BUCKET
AS YOU SEE IN THIS PIC , MY MODEL IS SUPER FLAT, SO WARPING MUST BE ON IT TO AVOID CRASHED OR SCRATCHES AGAINST THE HOTEND, TOOLHEAD OR FAN DUCT:
BE SURE WHEN YOU'RE PRINTING , THE PRINT IS NOT WARPING!!
With what materials should it be printed?
I recommend PAHT-CF and PET-CF. This is because, when the printer is performing the "nozzle cleaning tip" function, the nozzle temperature is 200Β°C.
So I recommend printing it with materials that resist high temperatures to avoid deformation or future problems.
Do you want to use ABS? Ok, you're free to do so, but don't give me a bad rating for YOUR CHOICE!
I have tested this model so many times and it works smoothly! No issue.
ALL THE MODELS ARE AVAILABLE ON MY PAGE.
NOTICE:
DON'T MODIFY THE ORIENTATION!

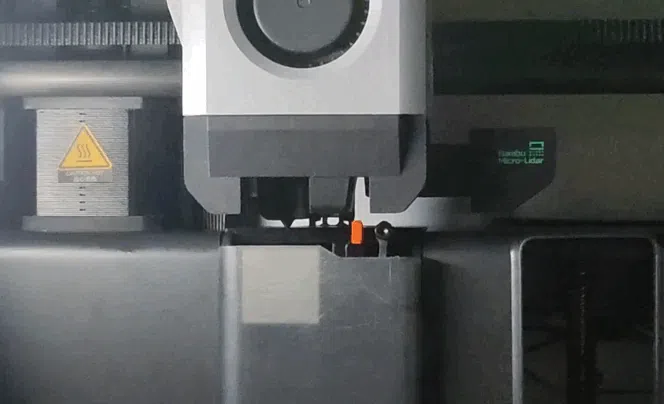

NOTICE: THE FOLLOWING PHOTO SHOWS THE EXTRUDED FILAMENT BEING HELD ON THE SILICON NOZZLE WIPER, BEFORE PRINTING.
THIS IS ONE OF THE MAIN REASONS WHY I DESIGNED THIS MODEL. THAT EXTRUDED FILAMENT COULD RUIN YOU FIRST LAYER!
PLEASE CHECK ALWAYS IF THE SILICON NOZZLE WIPER IS CLEAN AND IF YOU SEE THAT SOME EXTRUDED FILAMENT HAS BEEN DEPOSITED ON IT, REMOVE THE EXTRUDED FILAMENT AND ENJOY 3D PRINTING.
THE PHOTO WAS MADE AS EXAMPLE AFTER 3h PRINTING.
MY MODEL HAS ALREADY BEEN TESTED, FOR A MONTH AND I DON'T FIND ANY PROBLEMS.
THE MODEL ,AS TEST EXAMPLE IN THE PIC, WAS PRINTED IN ABS, BUT I STILL RECOMMEND SUPERIOR FILAMENTS LIKE PC , PATH OR PET.
π½πΎππΈπ²π΄:
ππ·πΈπ πΈπ π° ππΈπΌπΏπ»π΄ πΏππΈπ½π. π°π ππΎπ ππ΄π΄ πΈπ½ ππ·π΄ πΏπΈπ²ππππ΄π , πΌπ πΌπΎπ³π΄π» πππΈπ²πΊ π π΄ππ πΆπΎπΎπ³ πΎπ½ ππ·π΄ π±π΄π³. ππΎ π±π΄π΅πΎππ΄ ππΎπ πΆπΈπ π΄ π±π°π³ ππ°ππΈπ½πΆ ππΎ πΌπ πΏππΎπ΅πΈπ»π΄π, π±π΄ ππππ΄ ππΎπ π·π°π π΄ π° πΆπΎπΎπ³ π±π΄π³ π°π³π·π΄ππΈπΎπ½ π°π½π³ π°ππΊ ππΎ ππΎππππ΄π»π΅ , ππ·π ππΎπ π³πΎπ½'π π·π°π π΄ π° πΆπΎπΎπ³ π±π΄π³ π°π³π·π΄ππΈπΎπ½. πΈ π³πΎπ½'π ππ°π½π ππΎ ππΏπ»πΎπ°π³ π° π»πΎπ πΎπ΅ πΏππΎπ΅πΈπ»π΄π π΅πΎπ π΄π°π²π· ππΈπ½πΆπ»π΄ πΏππΎπ±π»π΄πΌ ππΎπ π·π°π π΄ π°π½π³ π΅πΎπ π΄π π΄ππ ππΈπ½πΆπ»π΄ πΌπΎπ³π΄π»! π΄π π΄π½ ππΎπ ππ°π½π ππΎ ππ·π°ππ΄ πΎπ½π΄ , πΈπ π³πΎπ΄ππ½'π πΌπ°πΊπ΄ ππ΄π½ππ΄ π΅πΎπ ππ·π΄ ππΈπΌπΏπ»π΄ πΌπΎπ³π΄π» πΈπππ΄π»π΅!
πΏπ»π΄π°ππ΄, π»πΈπΊπ΄ πΈ ππ°πΈπ³ ππ·π΄ πΌπΎπ³π΄π» πππΈπ²πΊπ πΎπ½ ππ·π΄ π±π΄π³ π΄π°ππ! π½πΎπ π°π»ππ°ππ ππ΄π³ππ²πΈπ½πΆ ππ·π΄ ππΏπ΄π΄π³ π²π°π½ π·π΄π»πΏ ππΎπ ππΎ πππΈπ²πΊ π΄π π΄ππ πΌπΎπ³π΄π» πΎπ½ ππ·π΄ πΏπ»π°ππ΄! ππ·π°π½πΊ ππΎπ π΅πΎπ ππ·π΄ ππ½π³π΄ππππ°π½π³πΈπ½πΆ!
α΄΅αΆ ΚΈα΅α΅ Κ°α΅α΅α΅ α΅Κ³α΅α΅Λ‘α΅α΅Λ’ α΅α΅α΅α΅α΅ α΅Κ°αΆ¦Λ’ α΅α΅α΅α΅Λ‘, Κ²α΅Λ’α΅ Λ’α΅βΏα΅ α΅α΅ α΅ α΅Κ³αΆ¦α΅α΅α΅α΅ α΅α΅Λ’Λ’α΅α΅α΅ α΅βΏα΅ α΄΅'Λ‘Λ‘ Κ°α΅Λ‘α΅ ΚΈα΅α΅.
α΄³αΆ¦α΅α΅ α΅α΅ α΅ Λ‘αΆ¦α΅α΅ α΅βΏα΅ αΆ α΅Λ‘Λ‘α΅Κ· α΅ΚΈ α΅α΅α΅α΅.
α΅Κ°α΅βΏα΅ ΚΈα΅α΅ α΅α΅ Λ’α΅α΅α΅α΅Κ³α΅ α΅α΅ α΅βΏα΅ Κ°α΅α΅α΅ΚΈ α΅Κ³αΆ¦βΏα΅αΆ¦βΏα΅.
