Simple Caster
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
21
29
1
1
28
13
Released
Description
Maybe someone will find this useful or at least be able to adapt the ideas ¯\_(ツ)_/¯ https://www.tinkercad.com/things/83LBdOjDvUy-toy-crib-caster

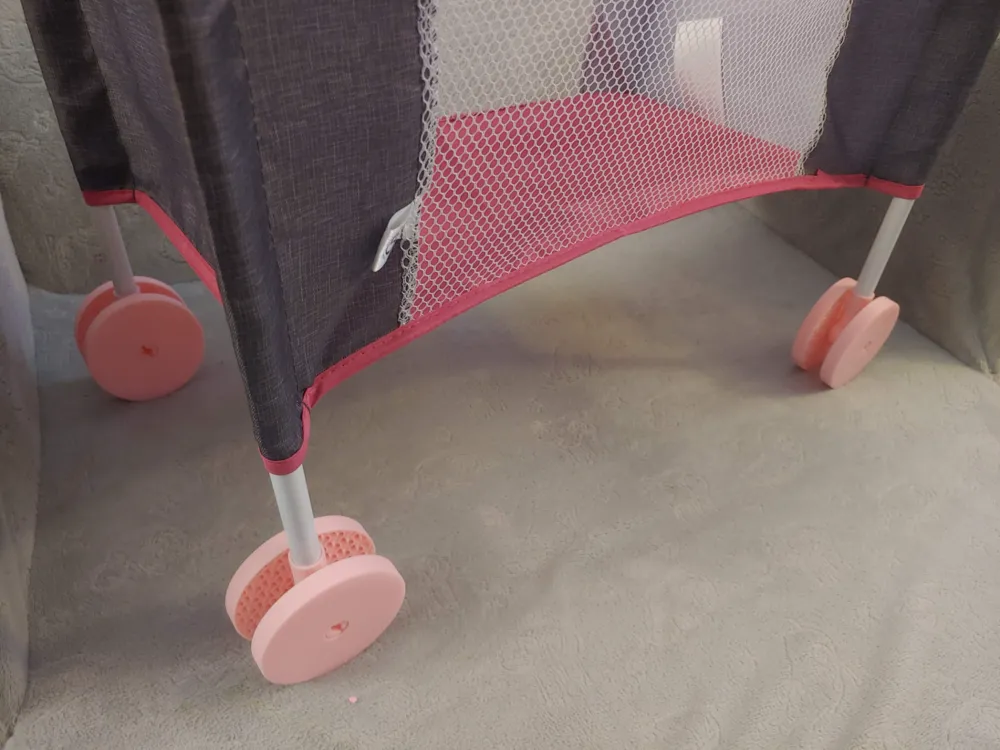

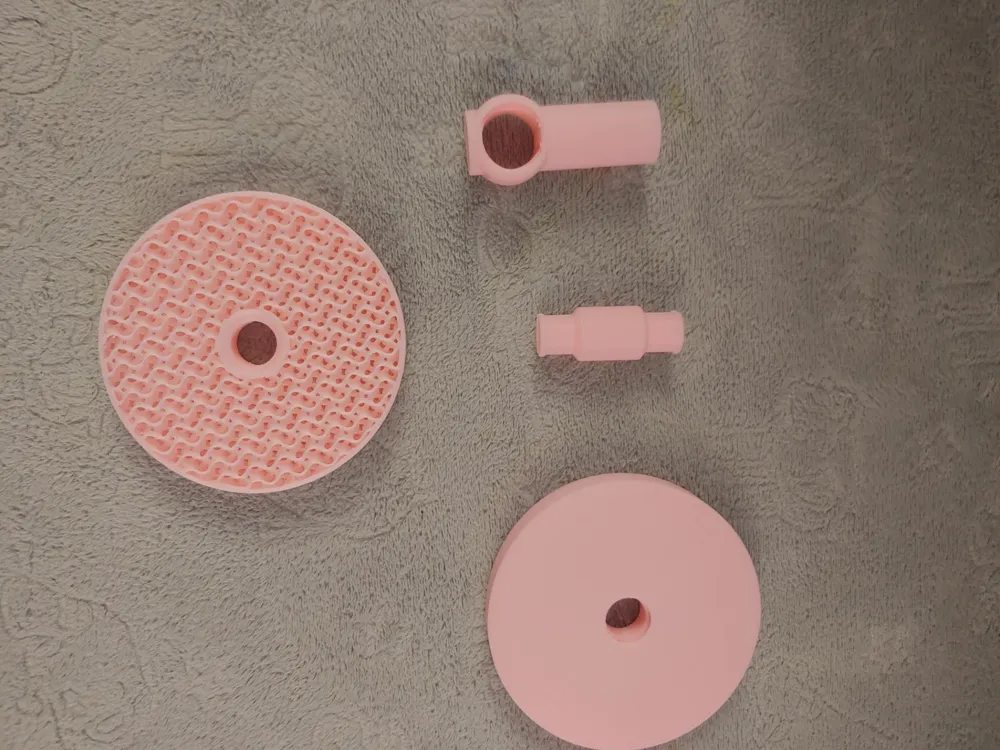

This is a simple rigid caster I designed in response to “why doesn't my baby's wagon have wheels?" These slot onto the feet of a 509 Crew toy crib and the hole has a slight taper for gripping the leg without being too difficult to remove to disassemble. All of the hardware is printed and it spins pretty freely. The axle will need a brim and make sure your bed is clean and filament is dry as blobbing can knock it off the plate.
Update 1/22/2024: Made brim around axle wider. Fixed profile to not leave gap between the skinny and thick portion of the axel which was causing them to snap.
