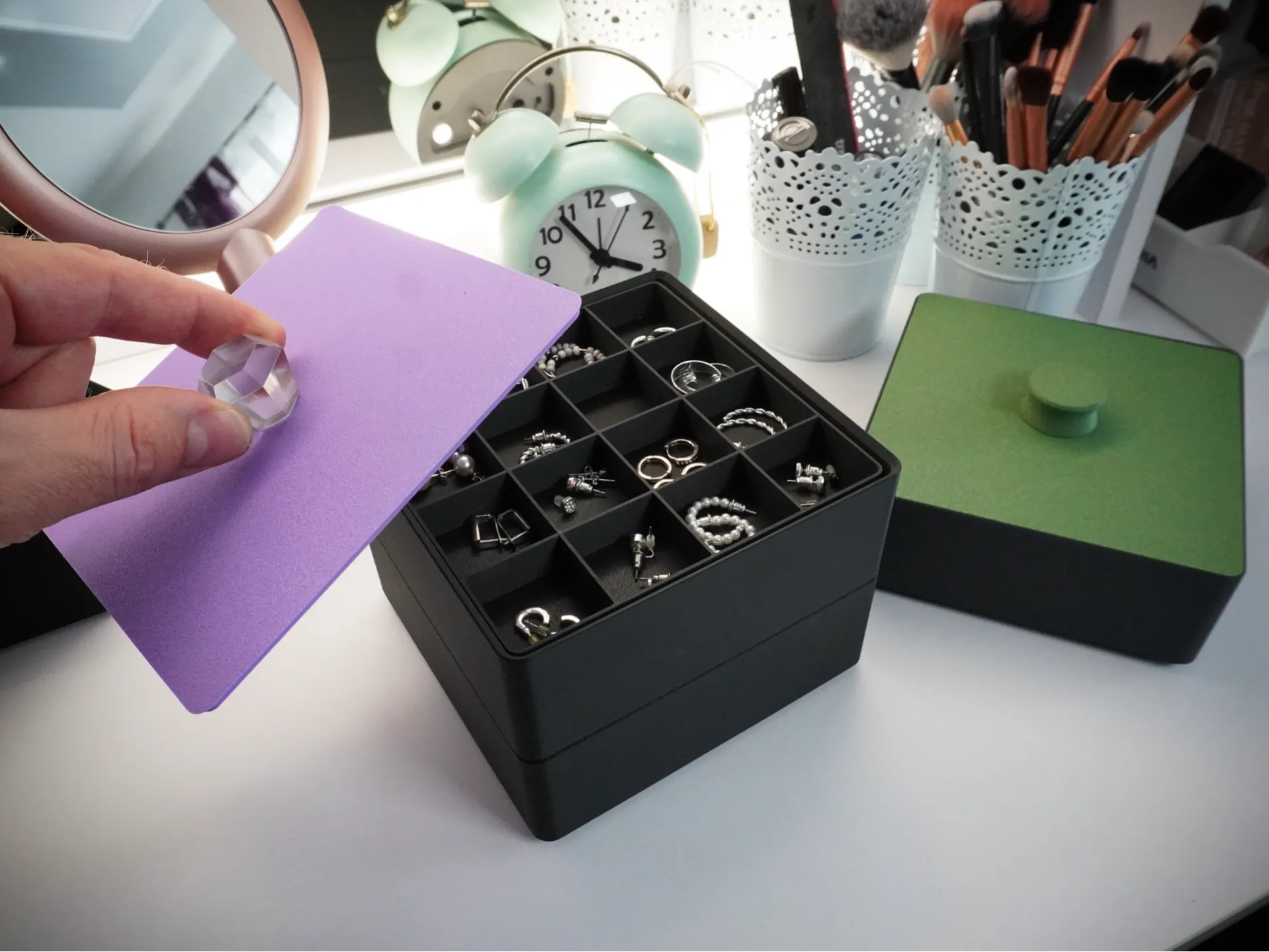

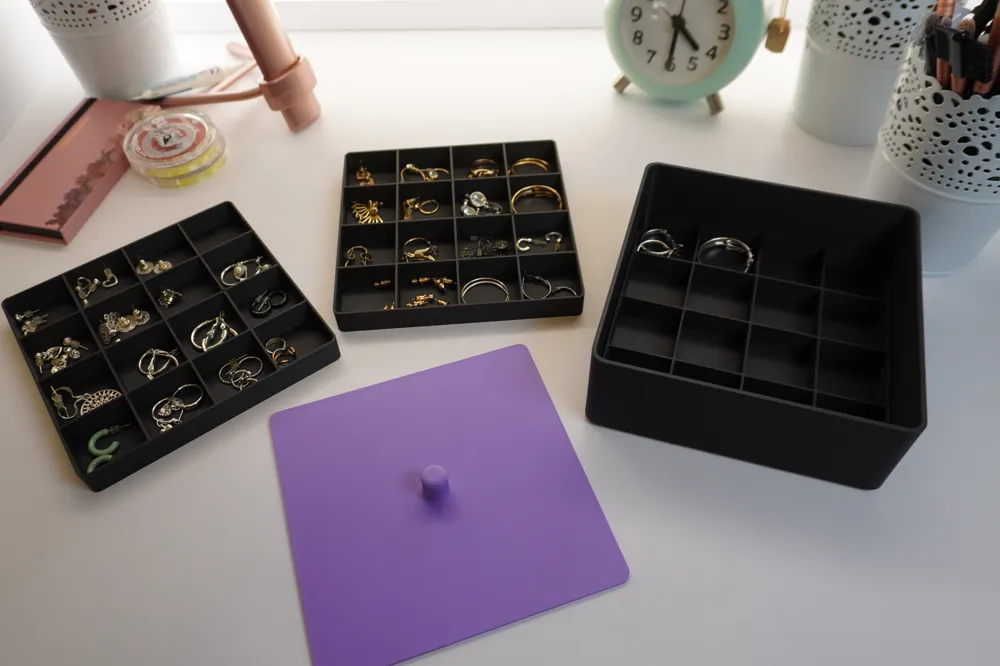

Jewellery Box - stackable & modular

Jewellery Box - stackable

• Customise your box with your favourite design!
• With up to 3 inserts

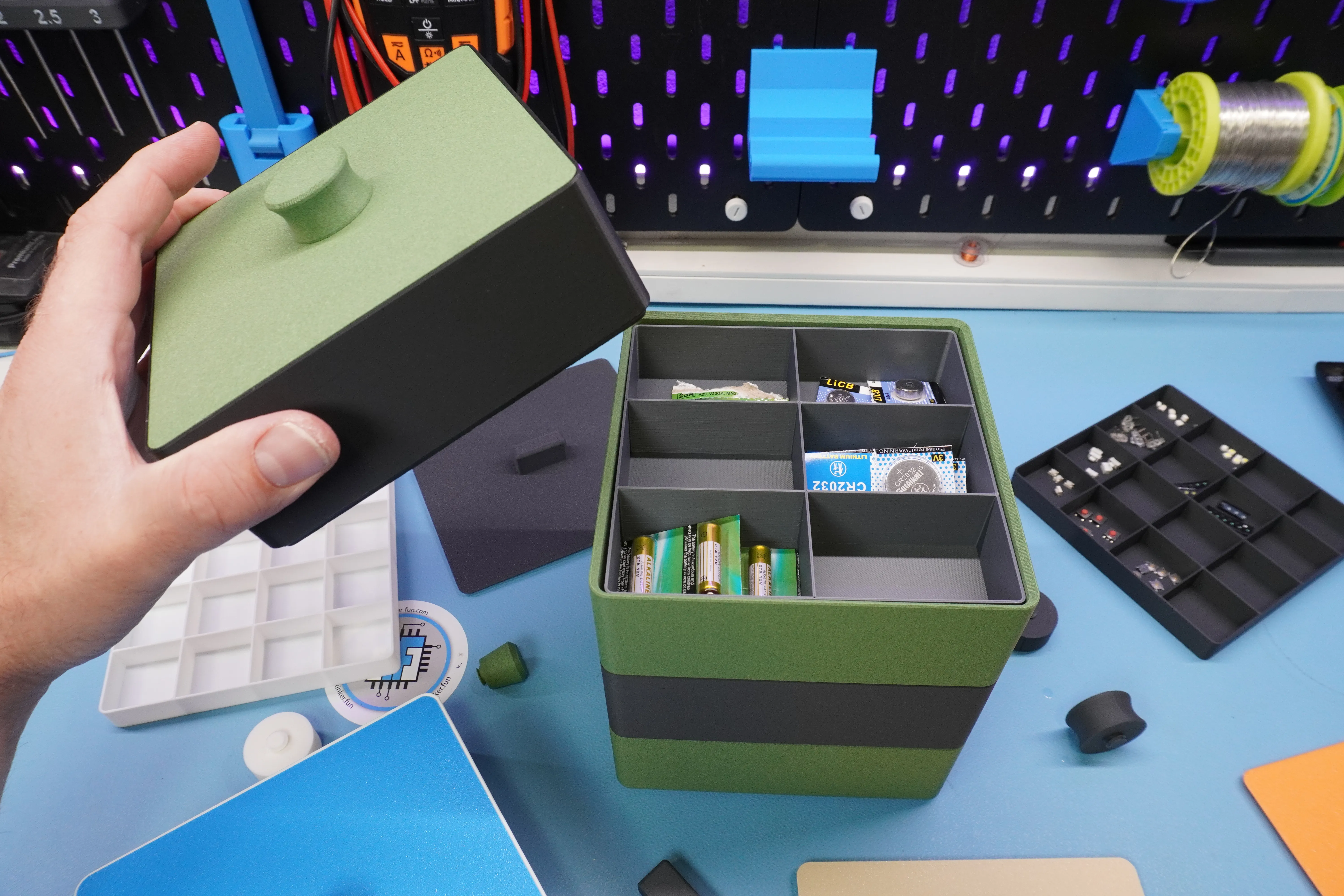

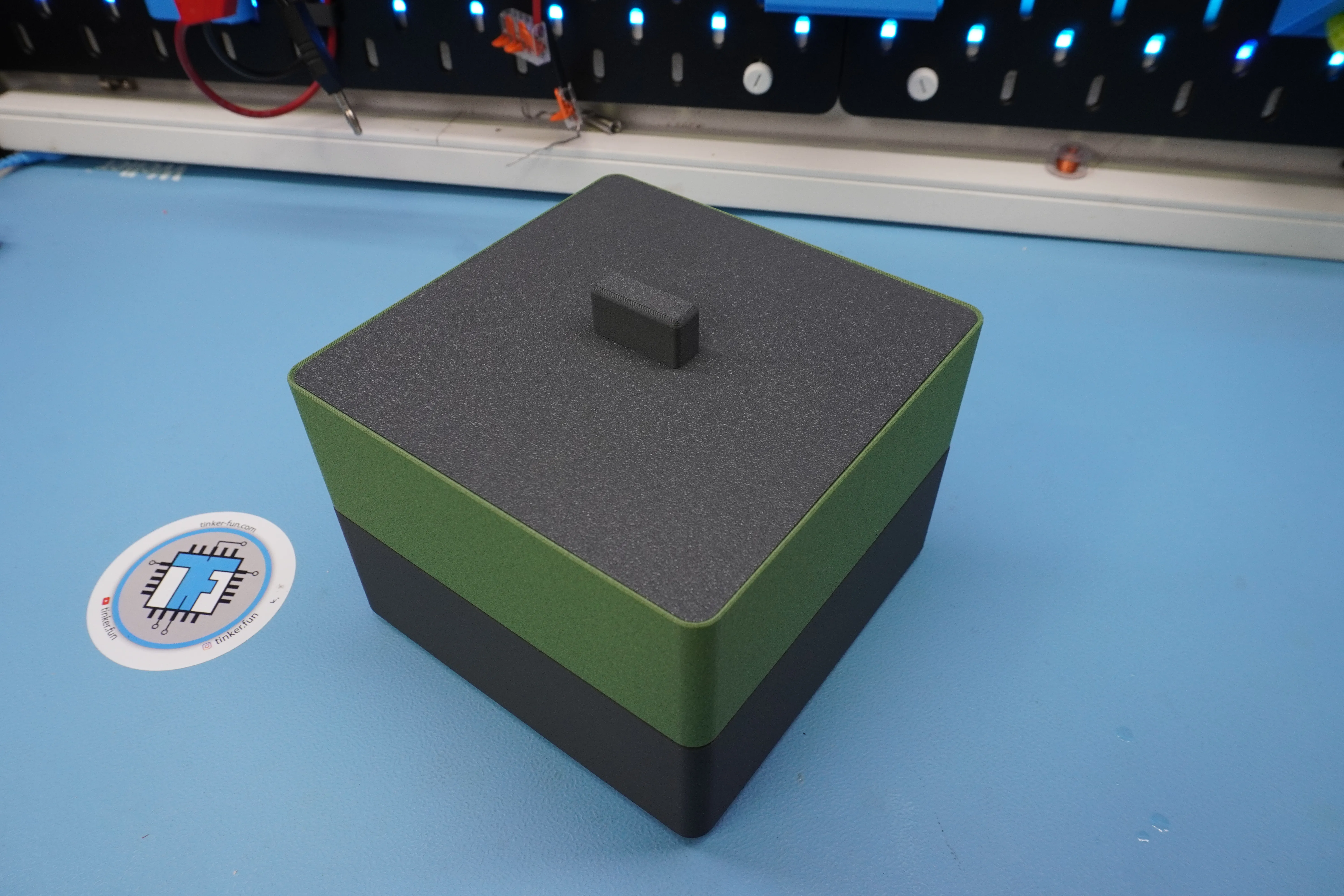

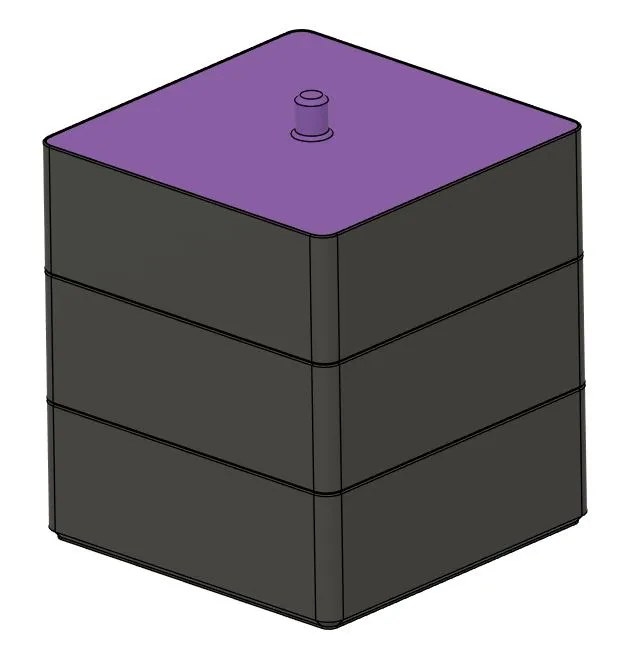

• The jewellery box is stackable

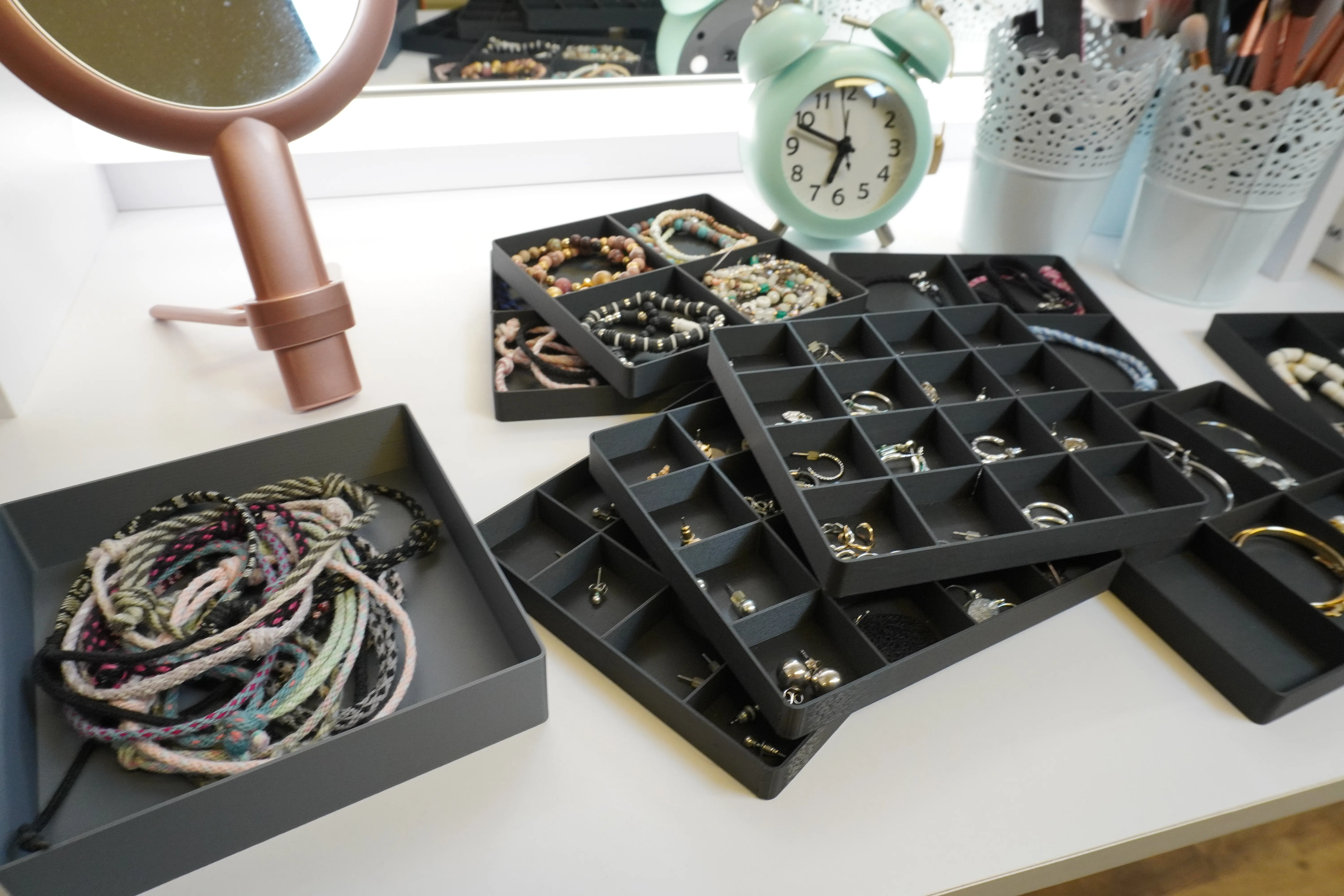

• For jewellery or other small items

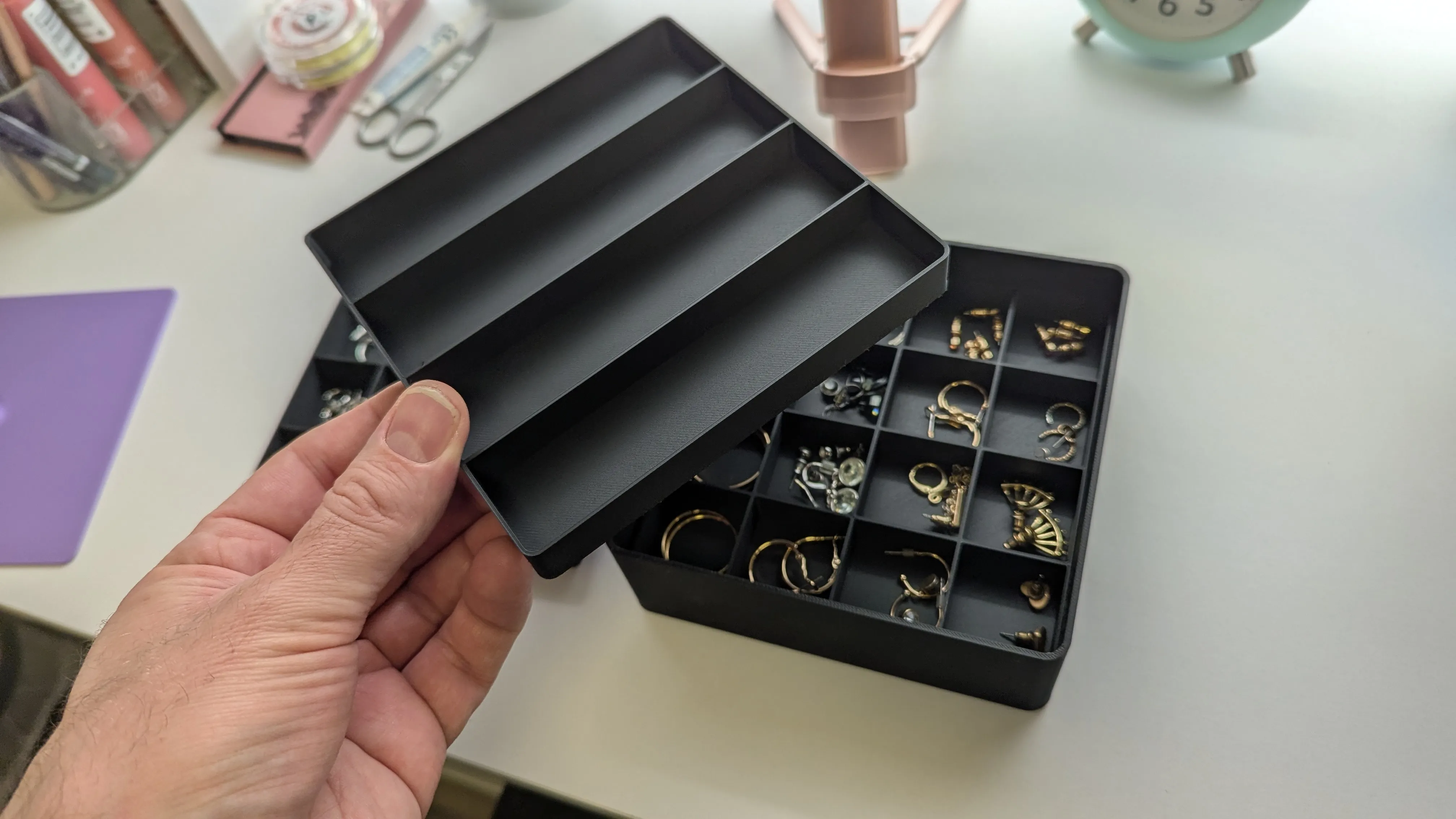

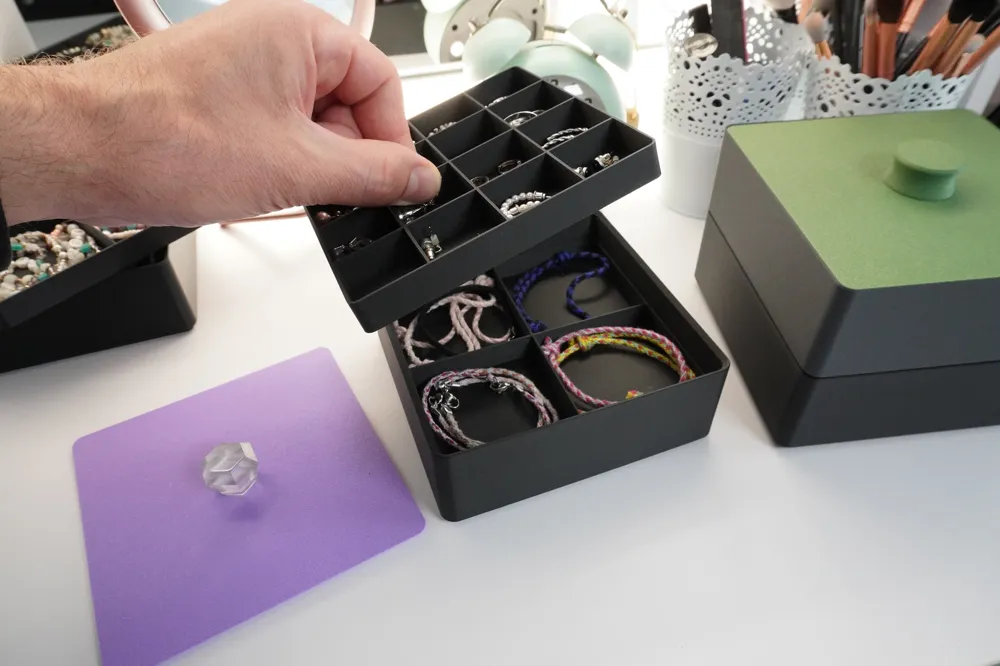

• Inserts can be removed upwards
• Various knob designs
• No support needed!
• Size: 140mm x 140mm, Height (without knob): 53mm| 5,5" x 5,5" x 2,08"

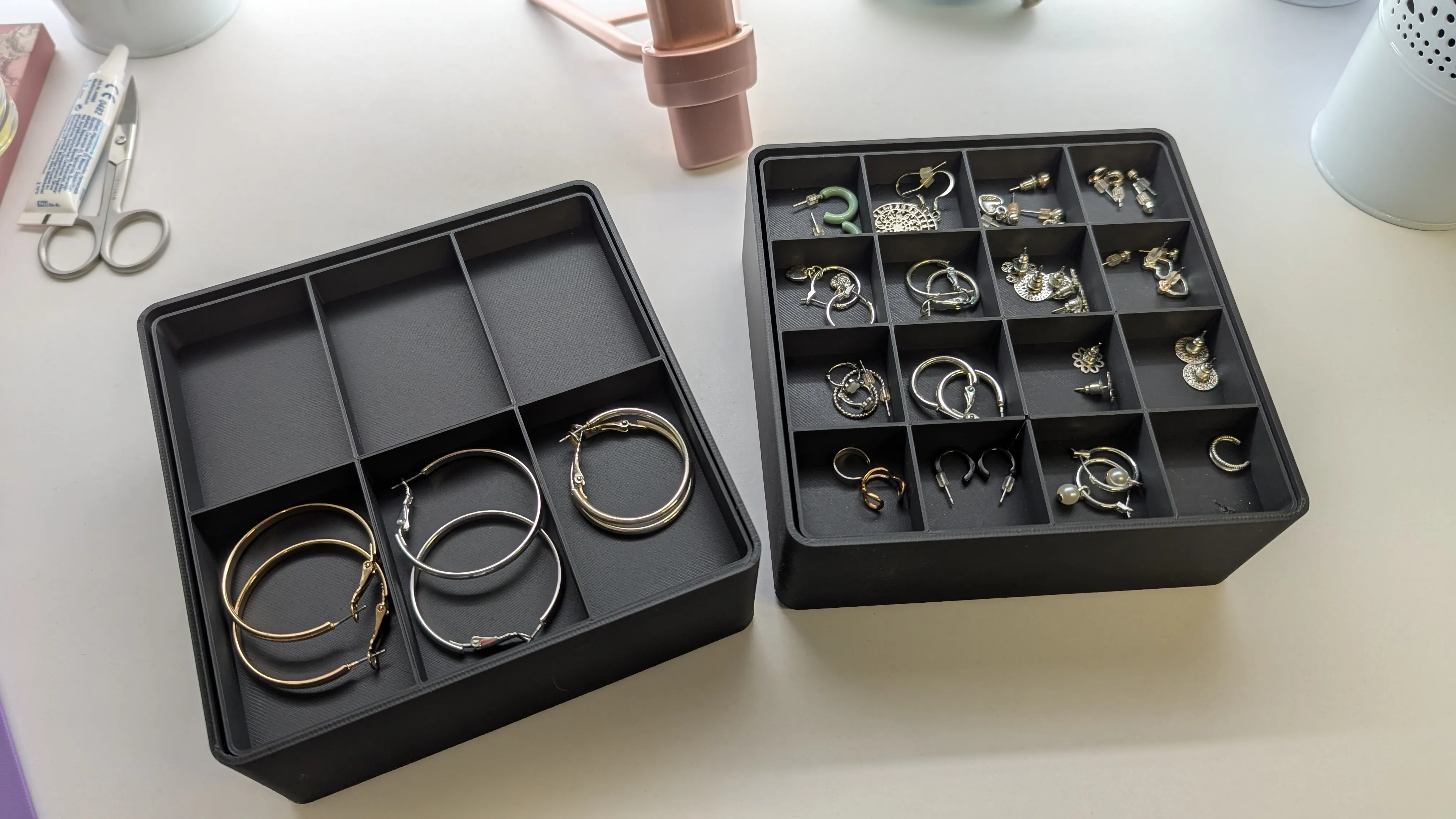

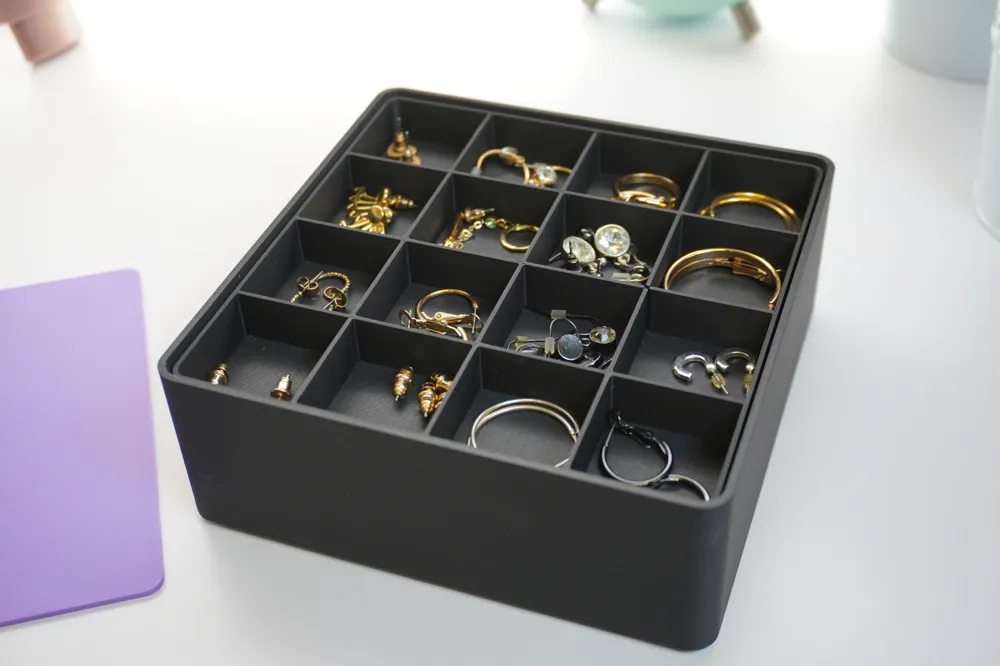

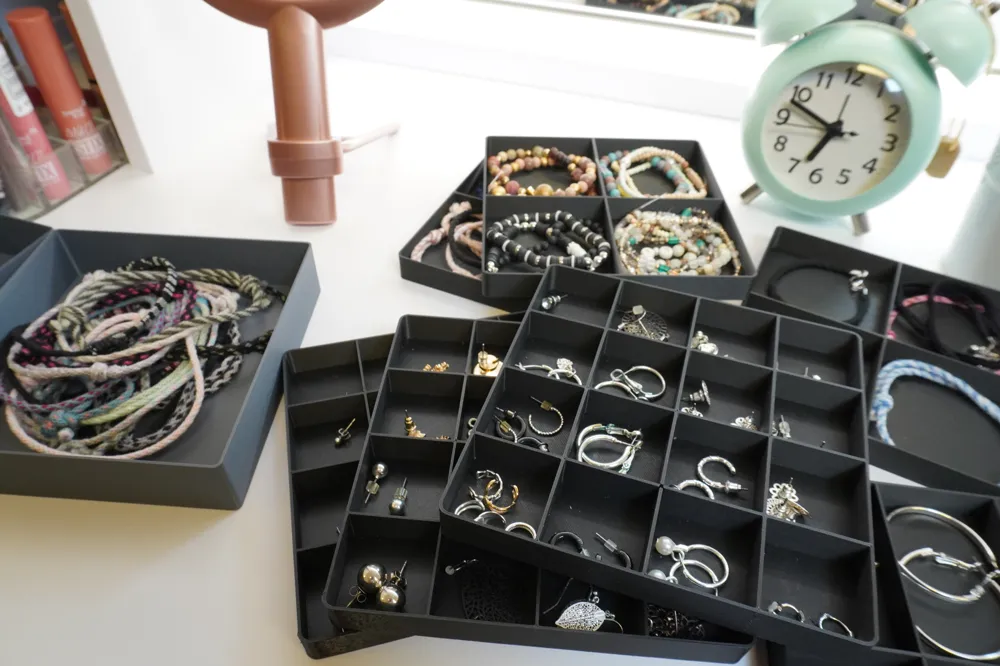

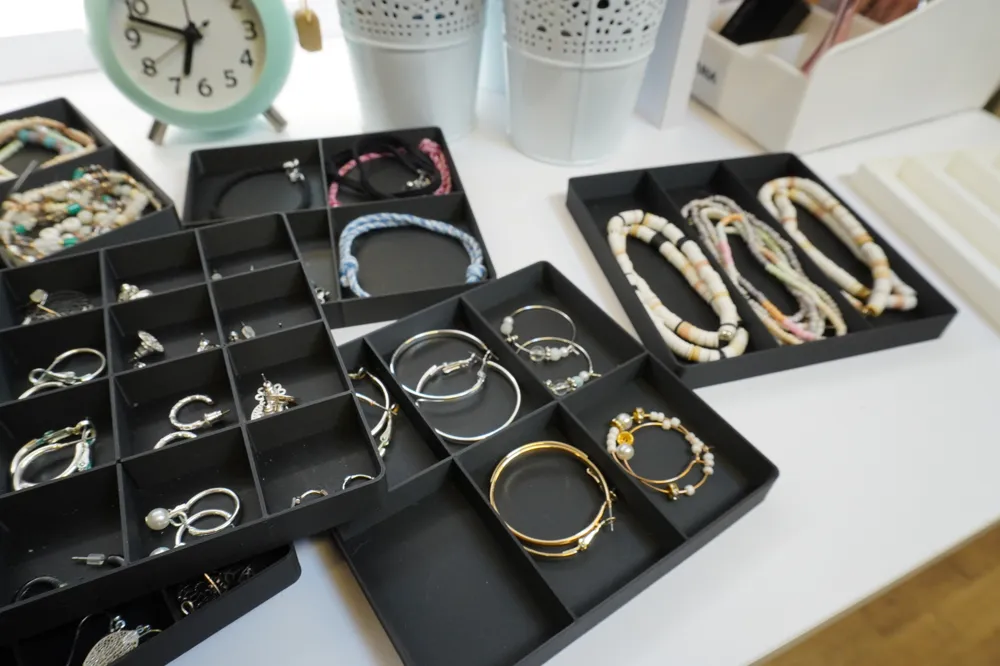

Inserts

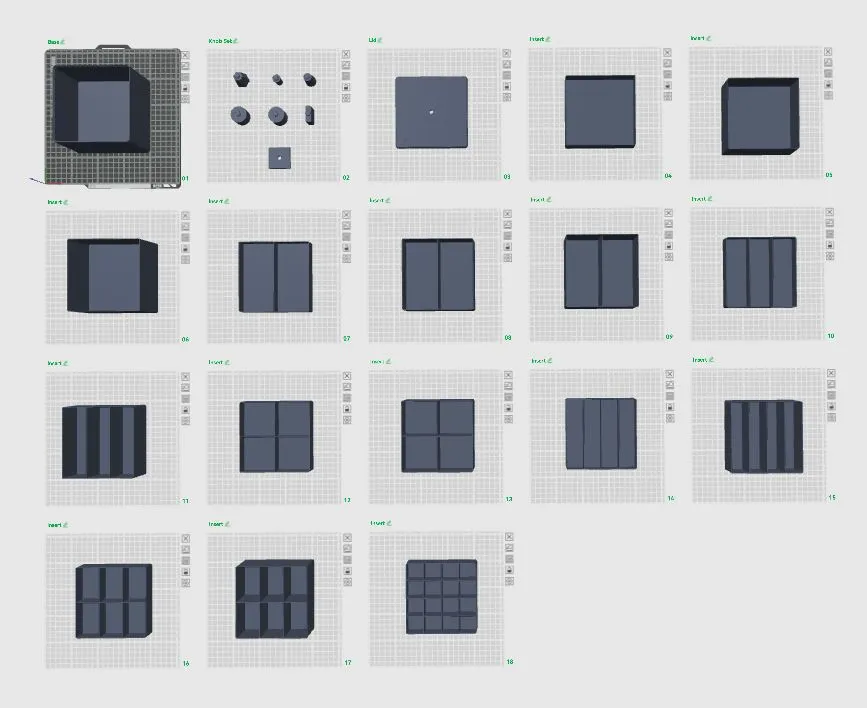

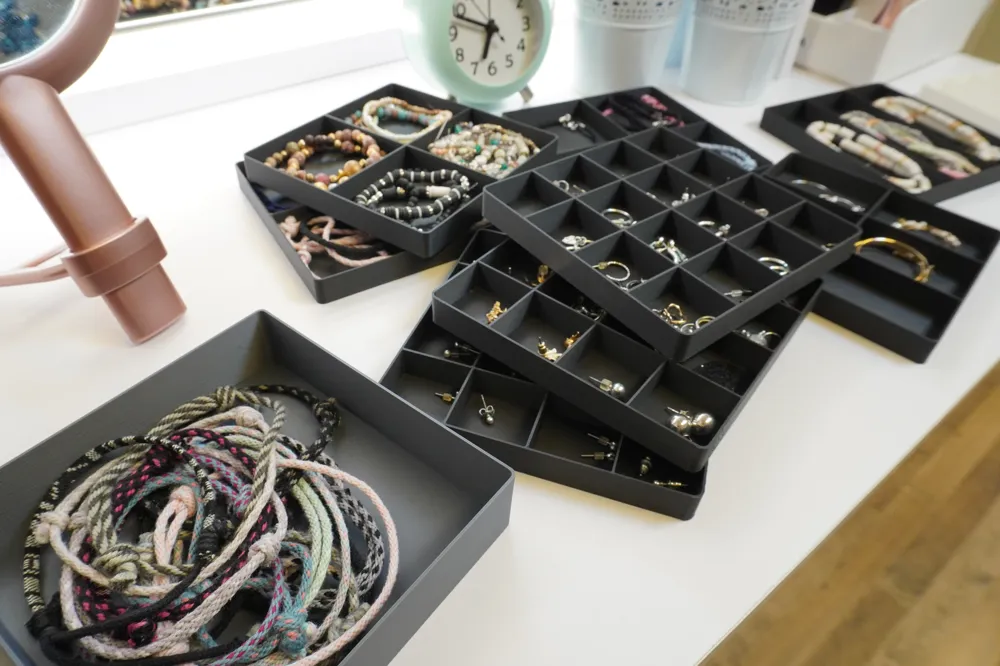

The inserts are available in many designs.

• Number and layout of compartments
• Different heights

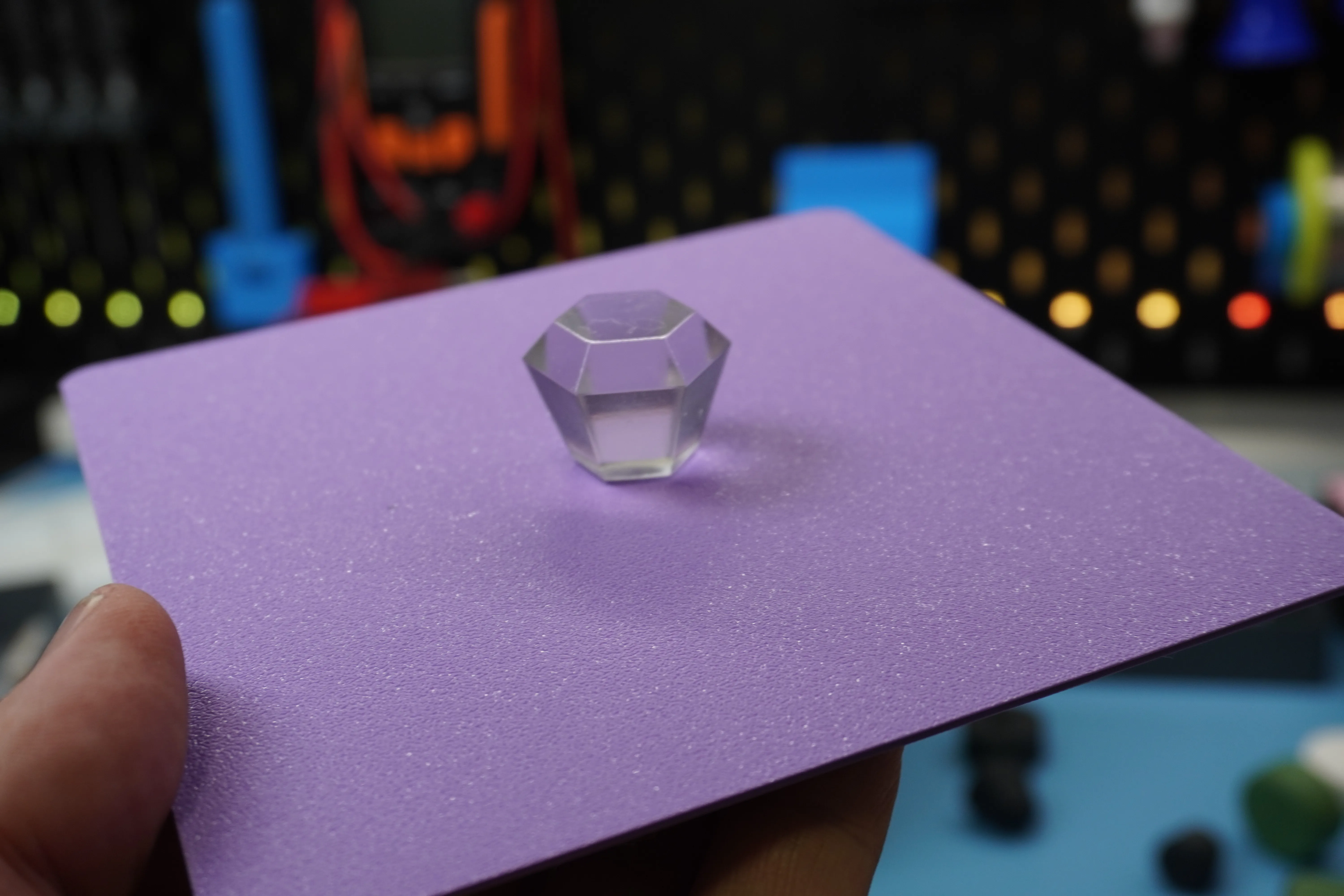

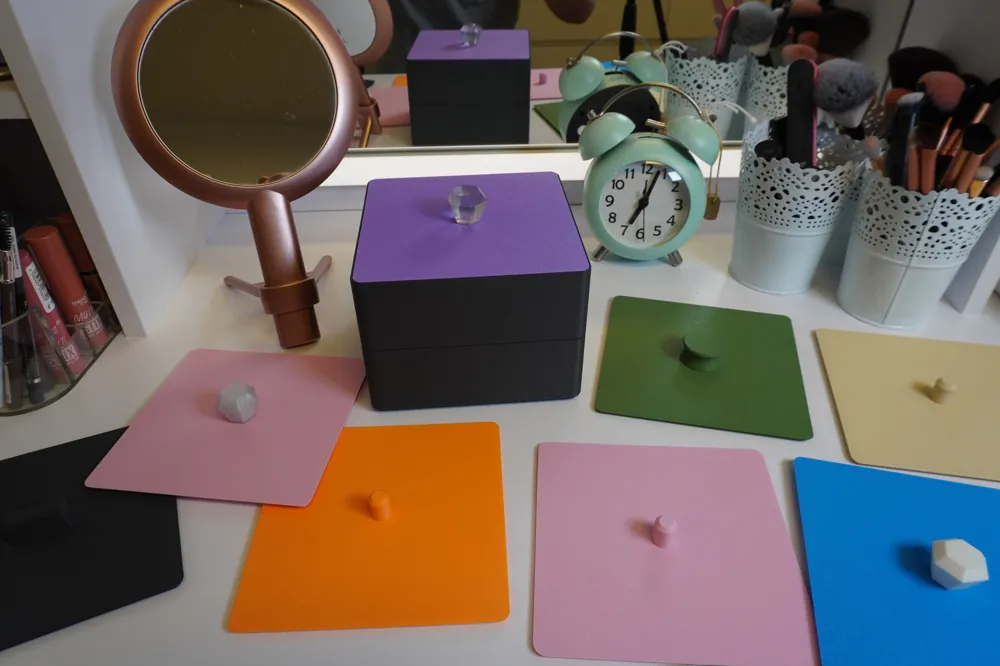

Knobs

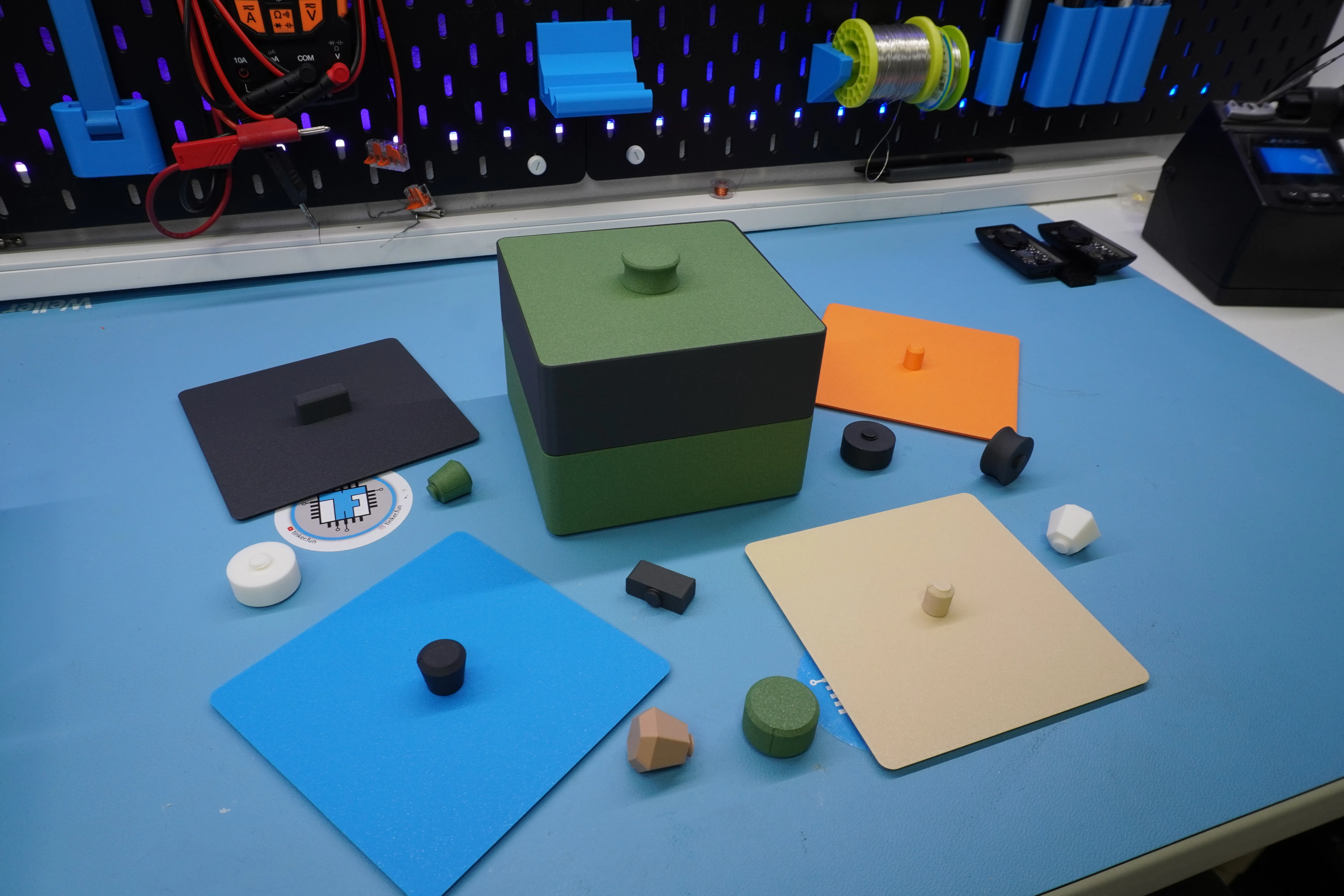

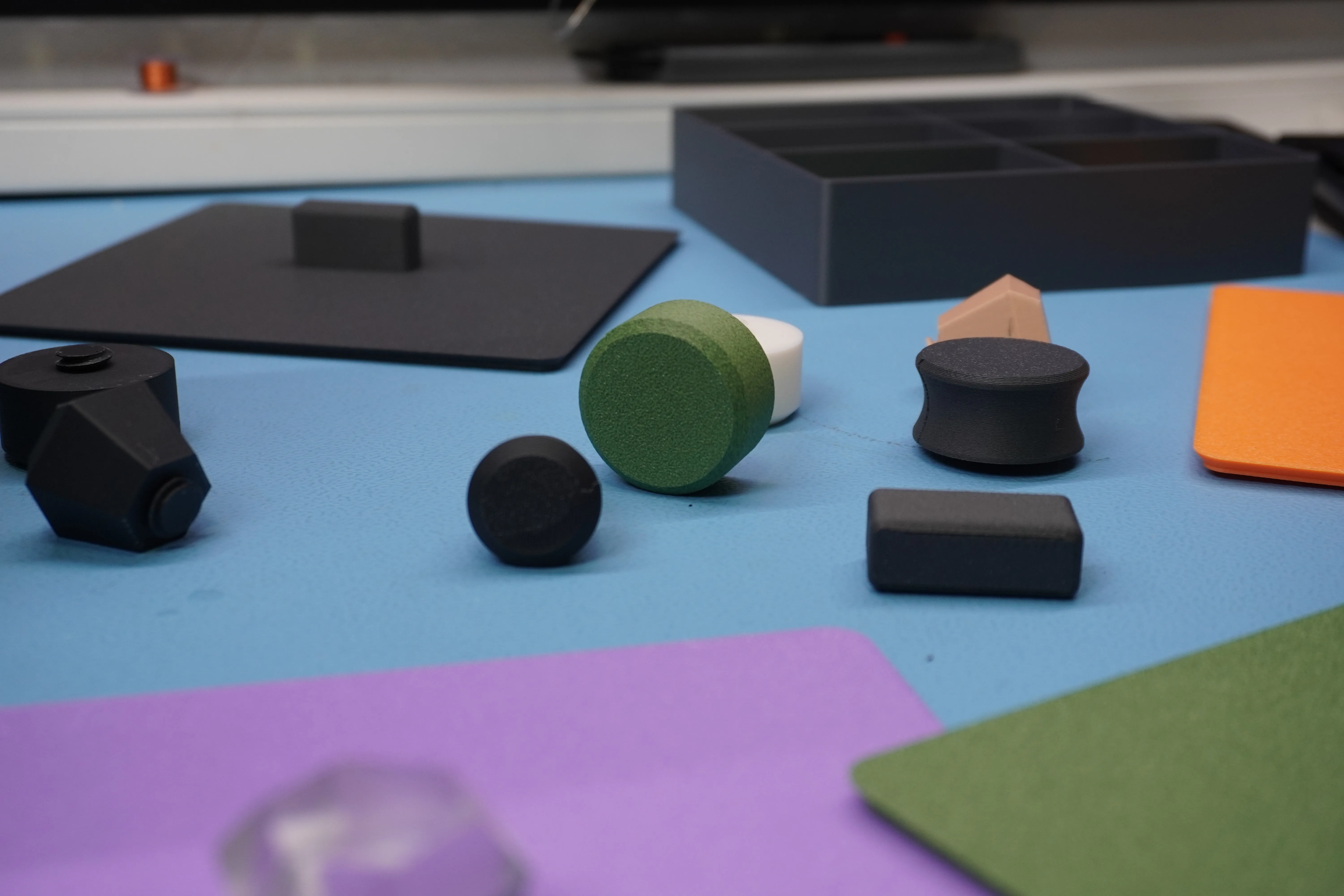

The knobs are available in many designs.

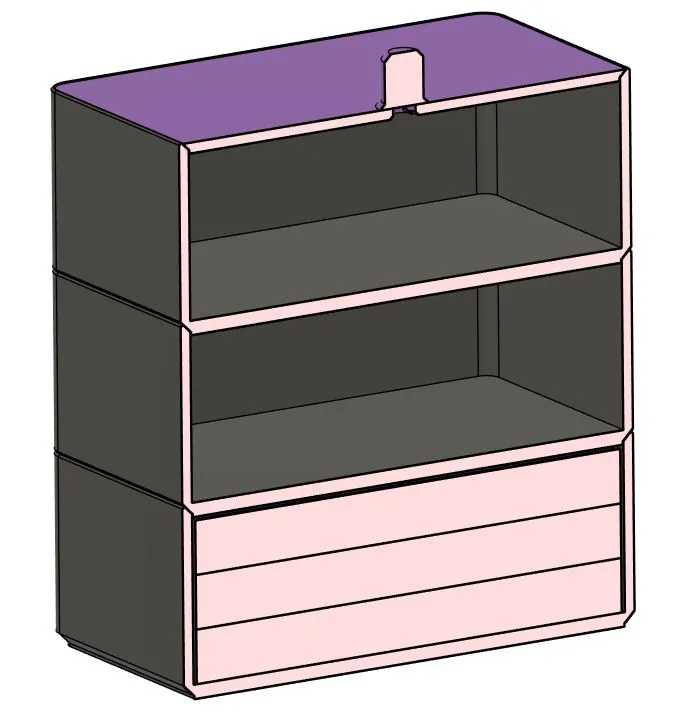

Case Stackable

Filament

All the jewellery boxes I printed were made of PLA. The material is sufficiently stable and easy to print.
With PLA-CF, I noticed that when the lid was printed, it often had an internal tension that bent the lid. Normal PLA/PLA matt worked better. PLA-CF worked normally well with the case.

Print Information

• All parts are printed in 0.2 mm layer height. There are exceptions for the following parts:

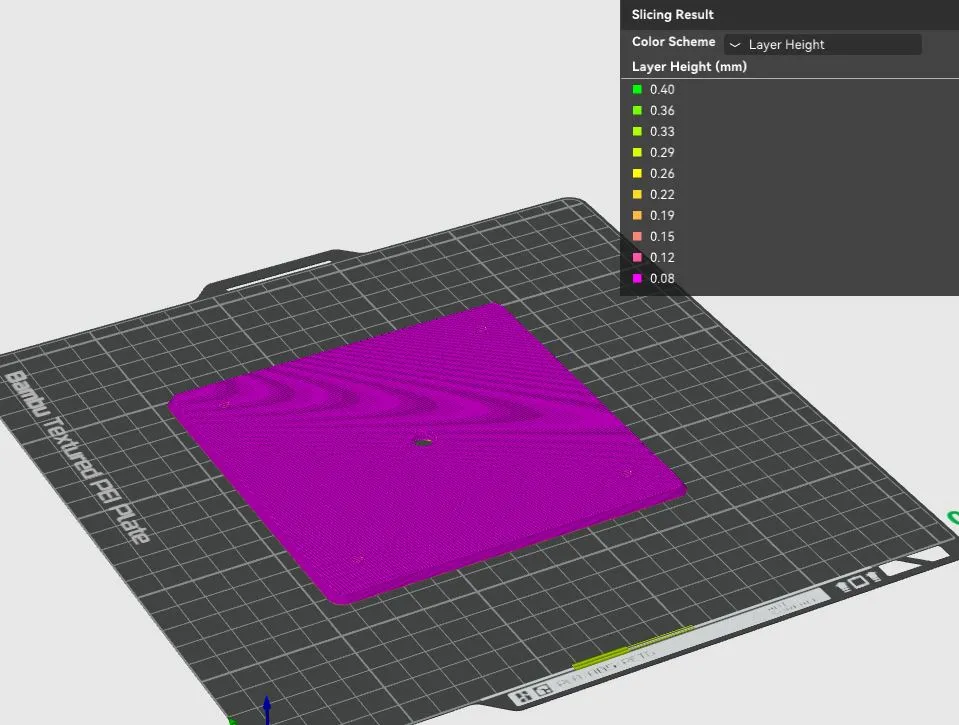

  • The lid is printed in 0.08mm layer height to improve the thread for the knob

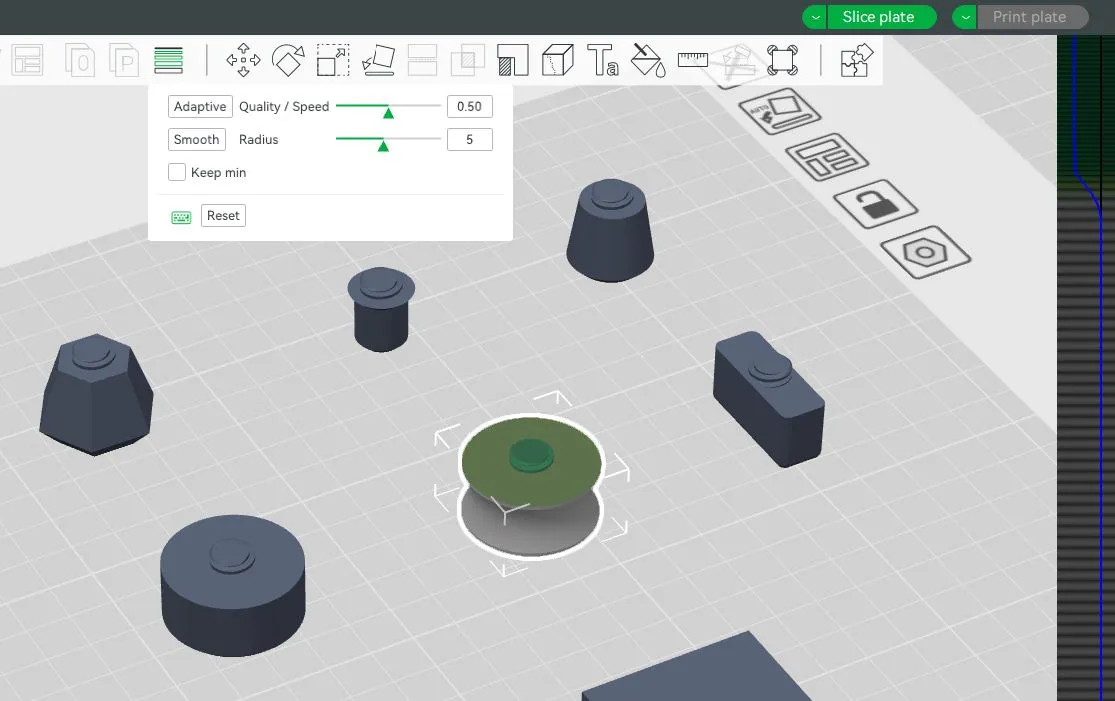

  • The threaded part of the knobs is printed in 0.08mm
• No support needed!

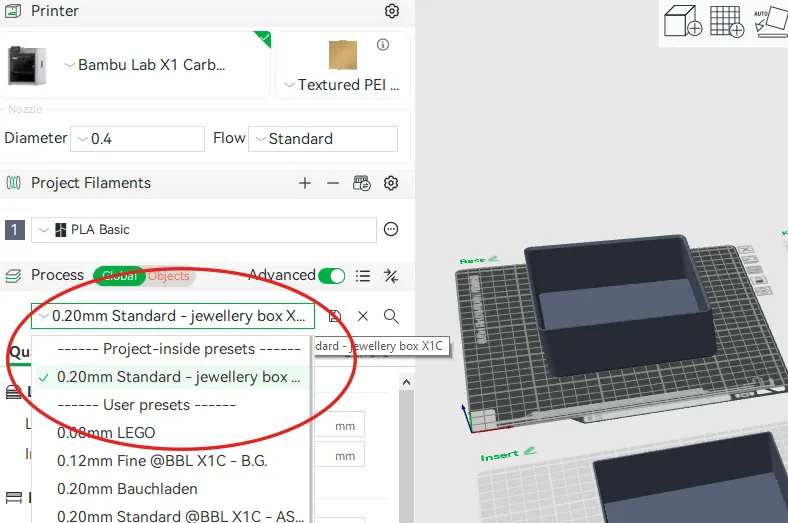

• Internal Project settings for A1 & X1C available. These are the printers I used to print and test the parts.
• The following settings are selected:

  • Quality
    Precision
    X-Y hole compensation: 0,1mm
    Precise Z height: yes


    Wall generator
    Wall generator: Arachne


    Advanced

    Order of walls: outer/inner

  • Strength
    Walls
    Wall loops: 2

    Sparse infill
    Sparse infill desity: 40%
    Sparse infill pattern: Gyroid

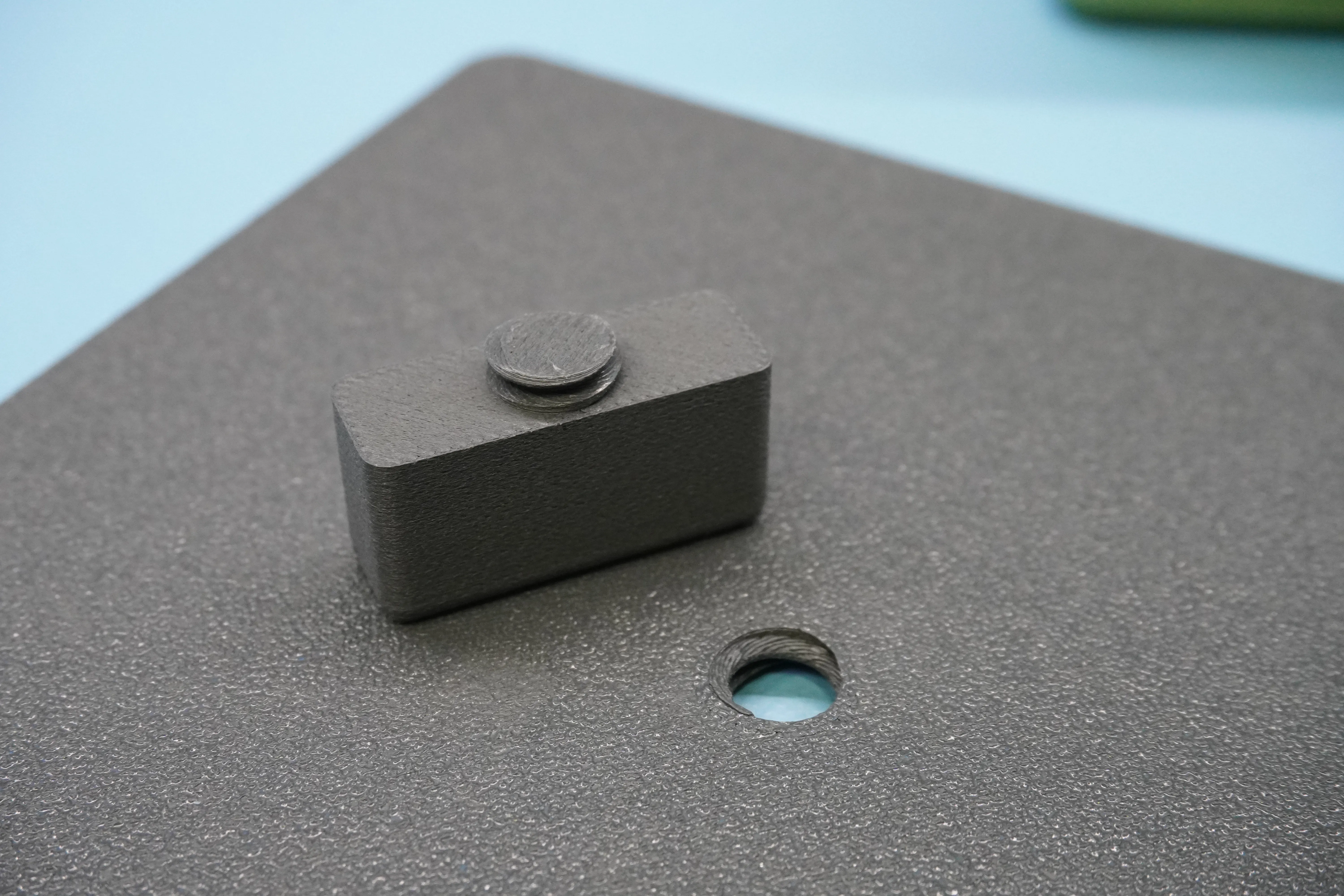

Knob assembly

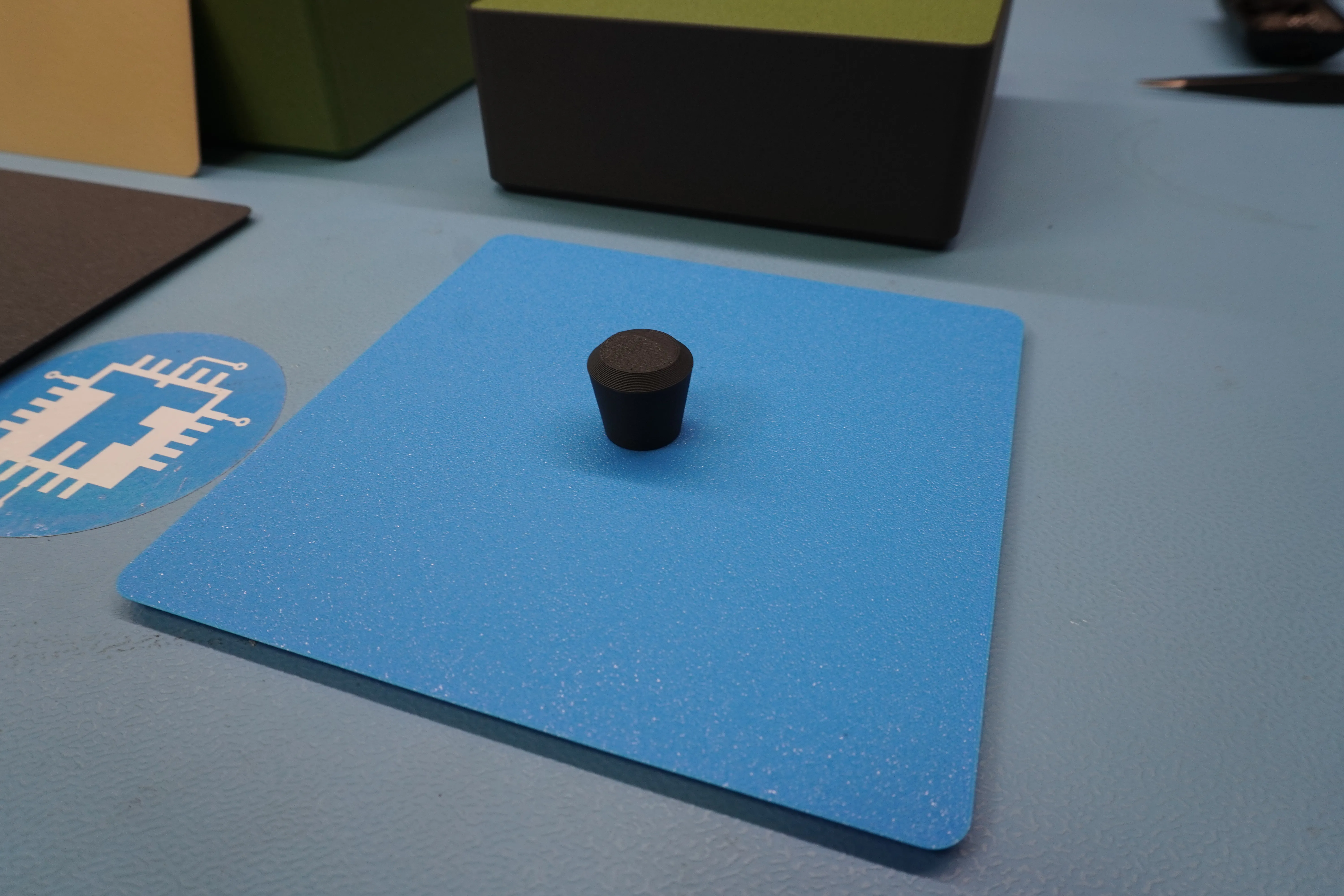

The knob is mounted on the lid with a thread. This allows you to combine your favourite design. Print out your favourite knob and attach it to the lid by turning it clockwise. Please do not overtighten!

Recommendation

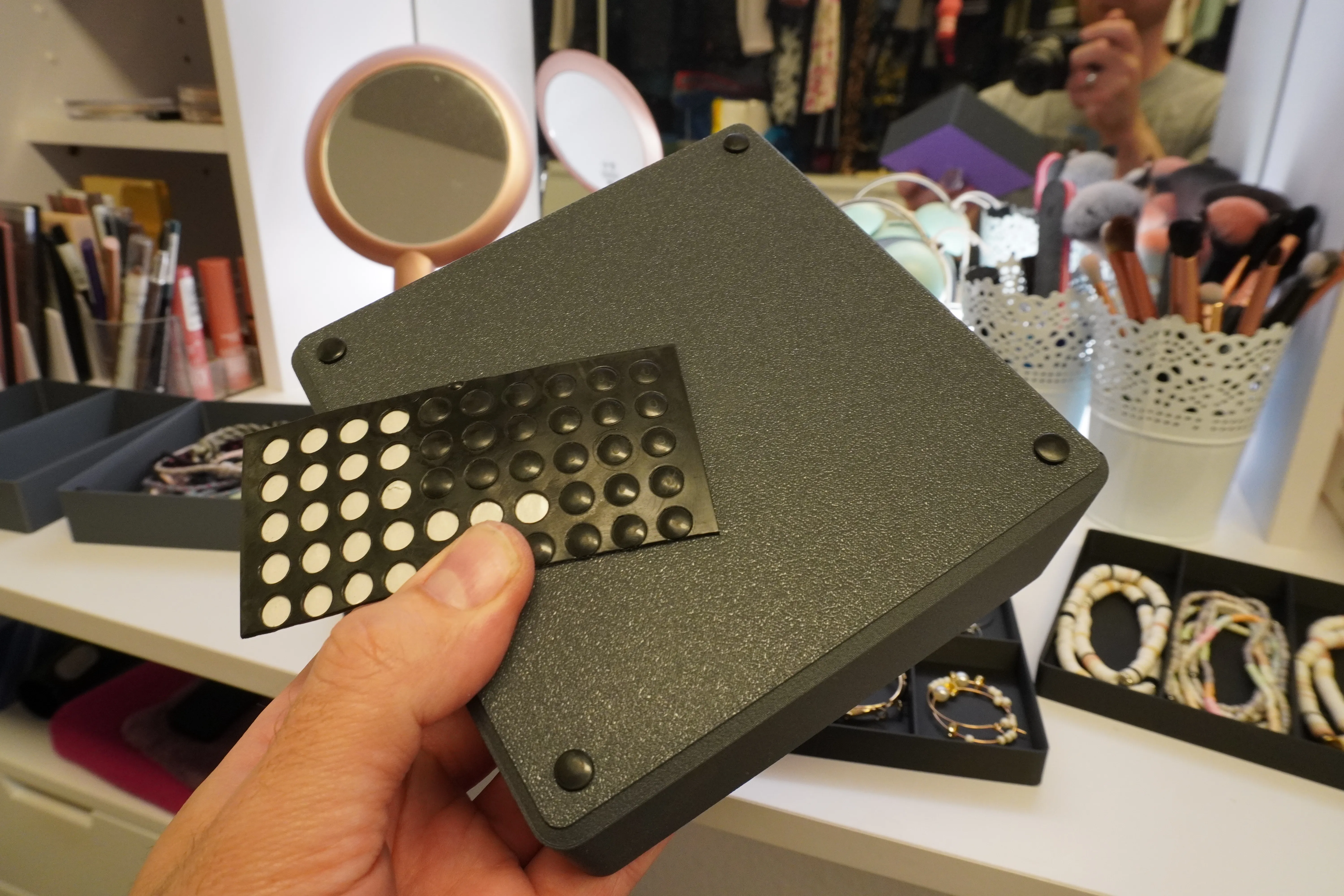

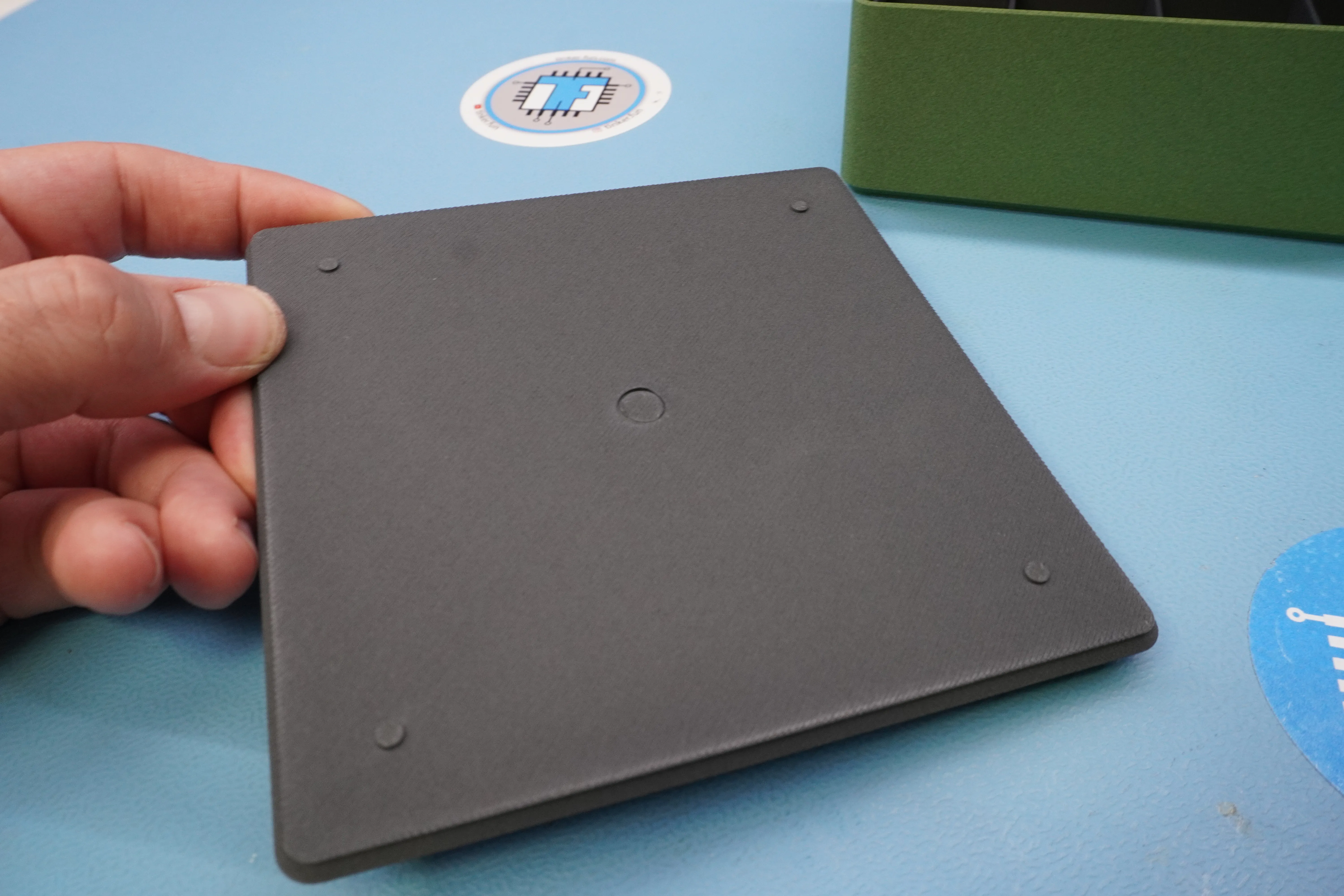

Even better with little effort! Stick self-adhesive rubber feet under the case.

Example -  Amazon Affilate Link (This is an advertising link that supports my channel. There are no costs for you):

https://amzn.to/43faGSn

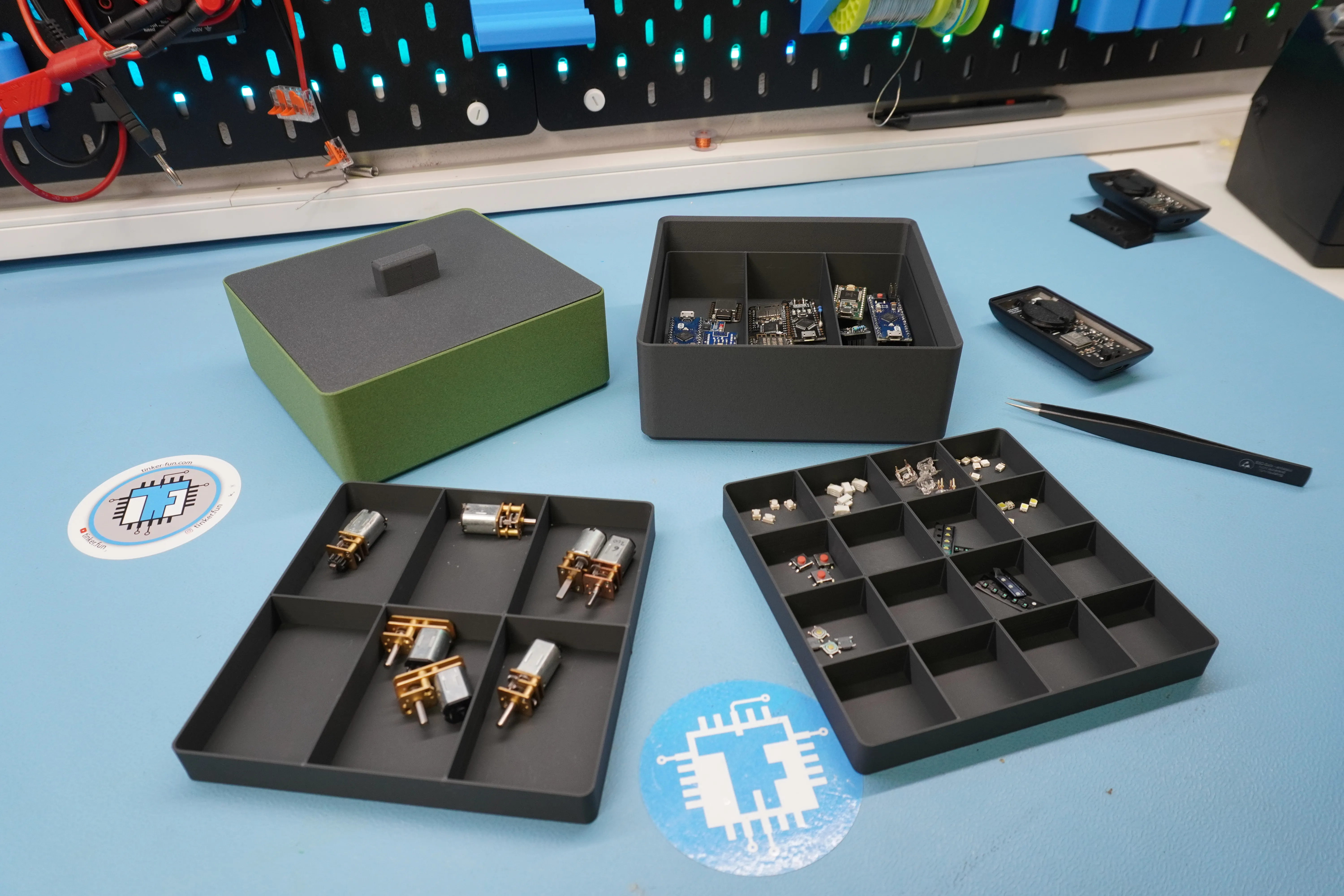

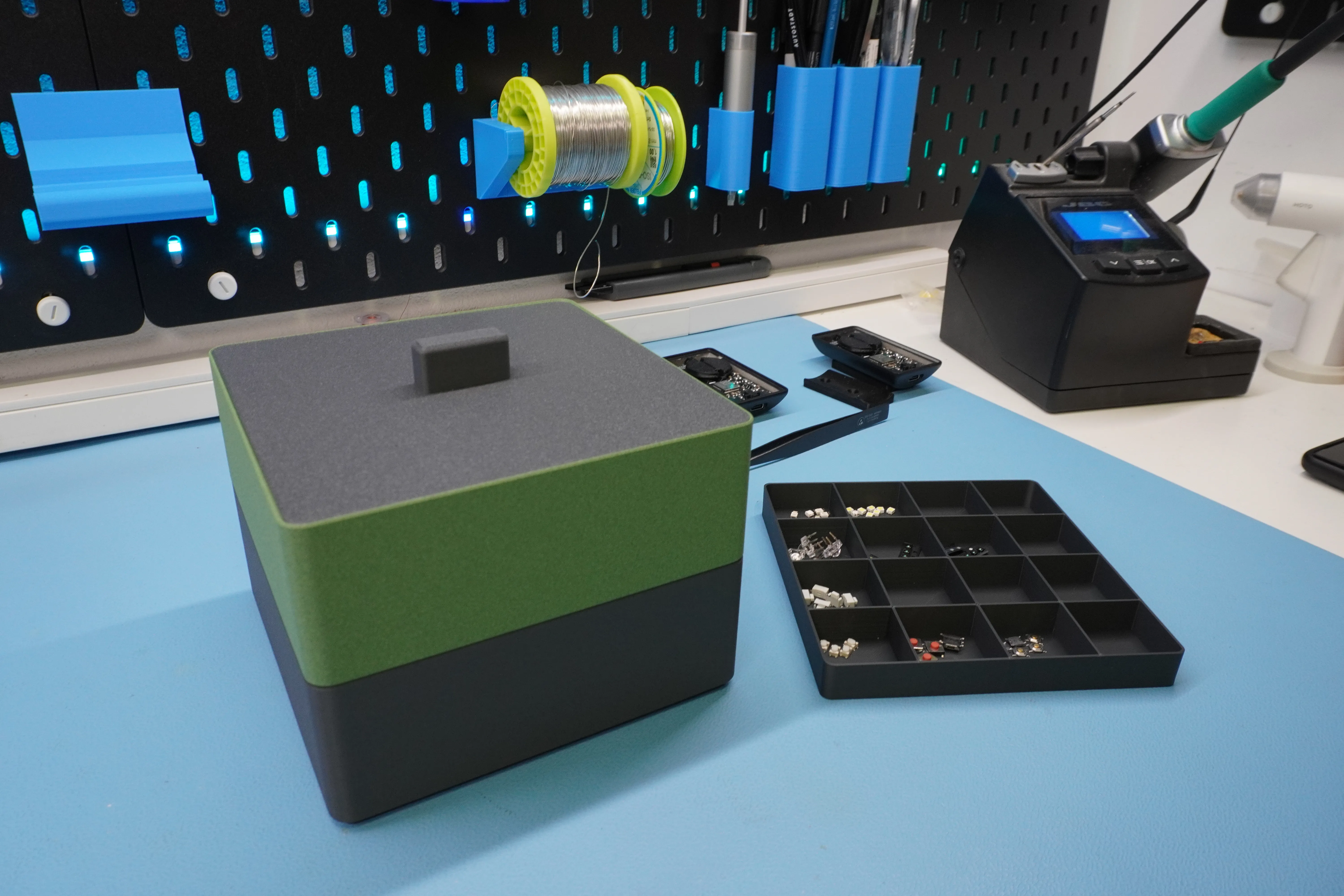

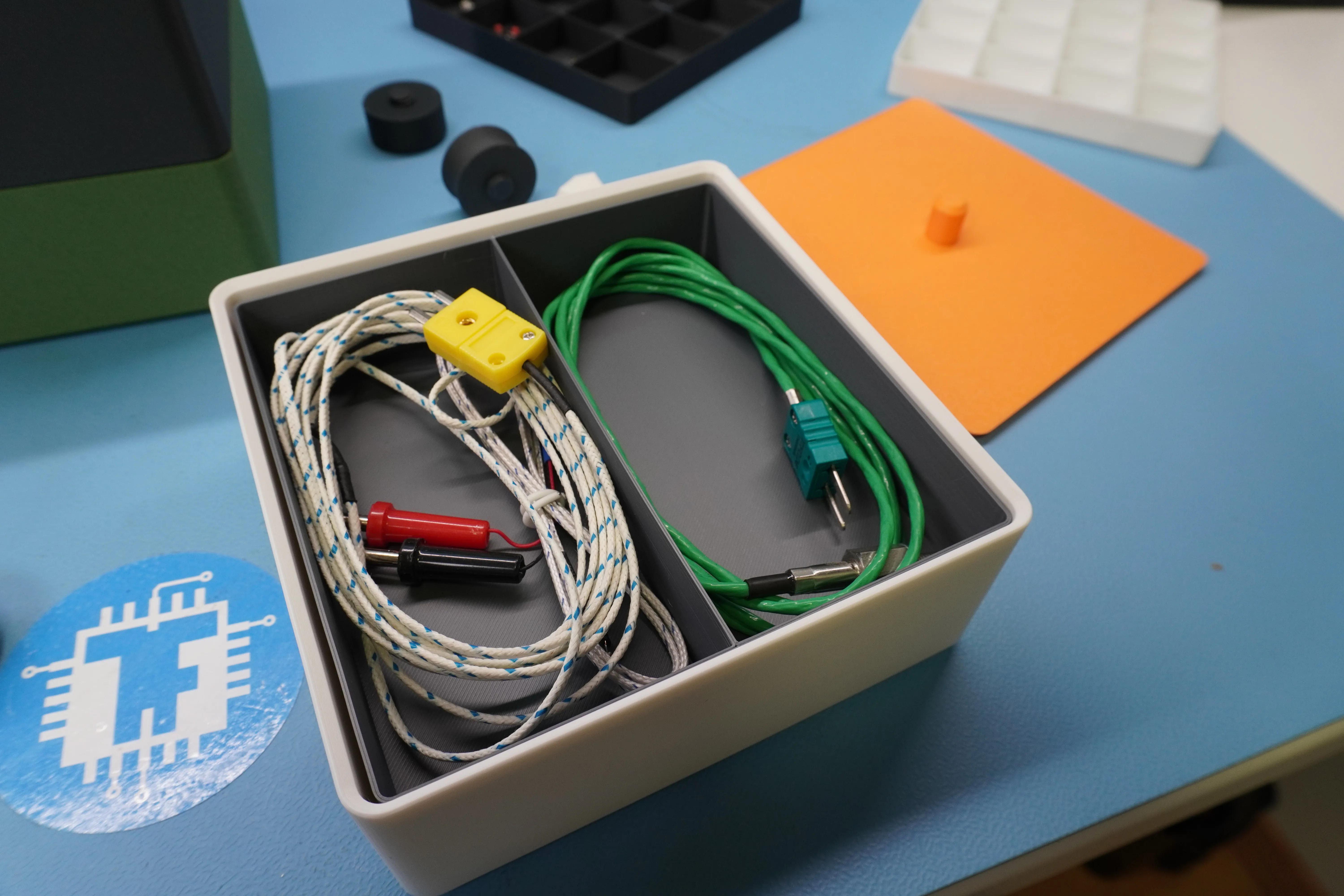

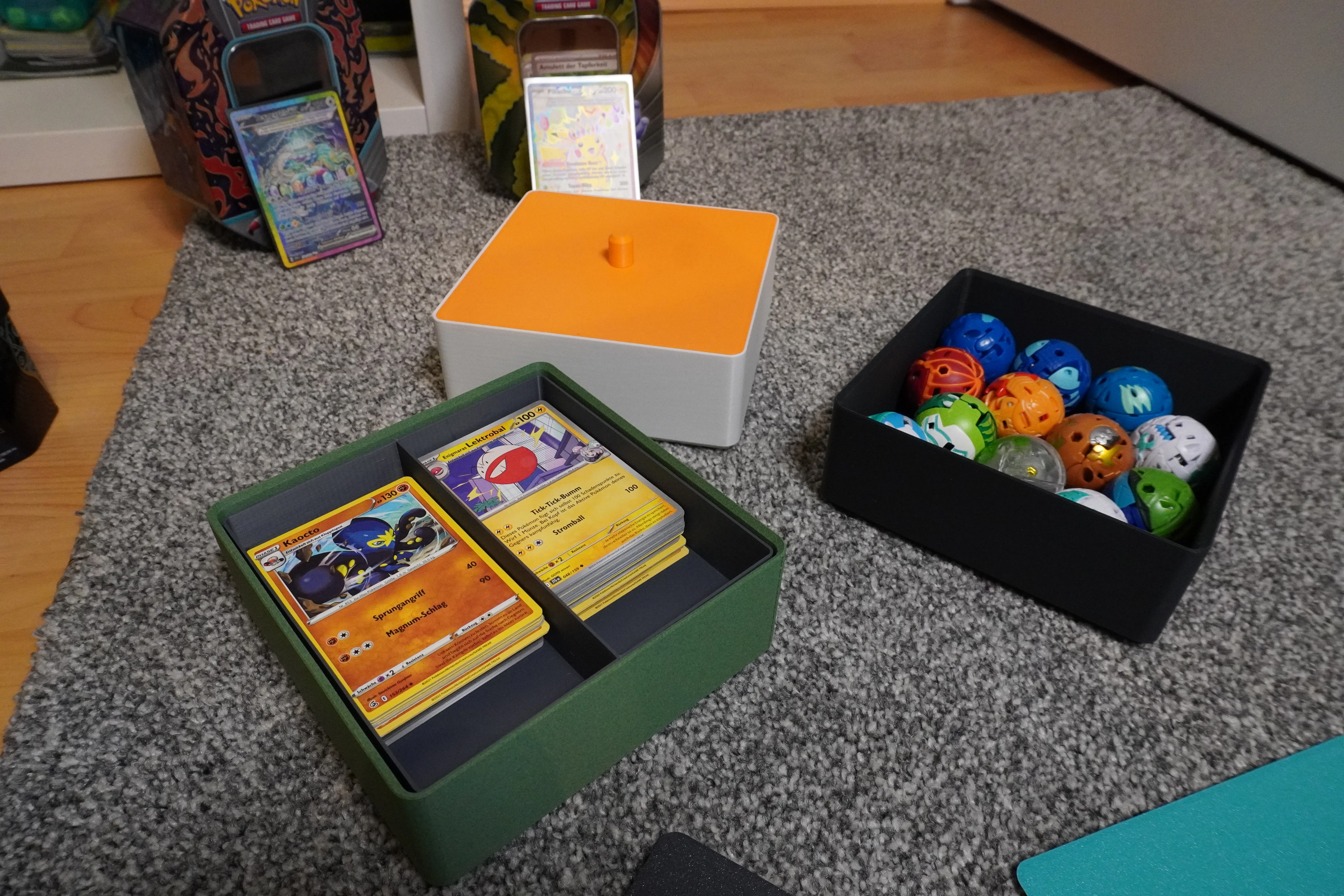

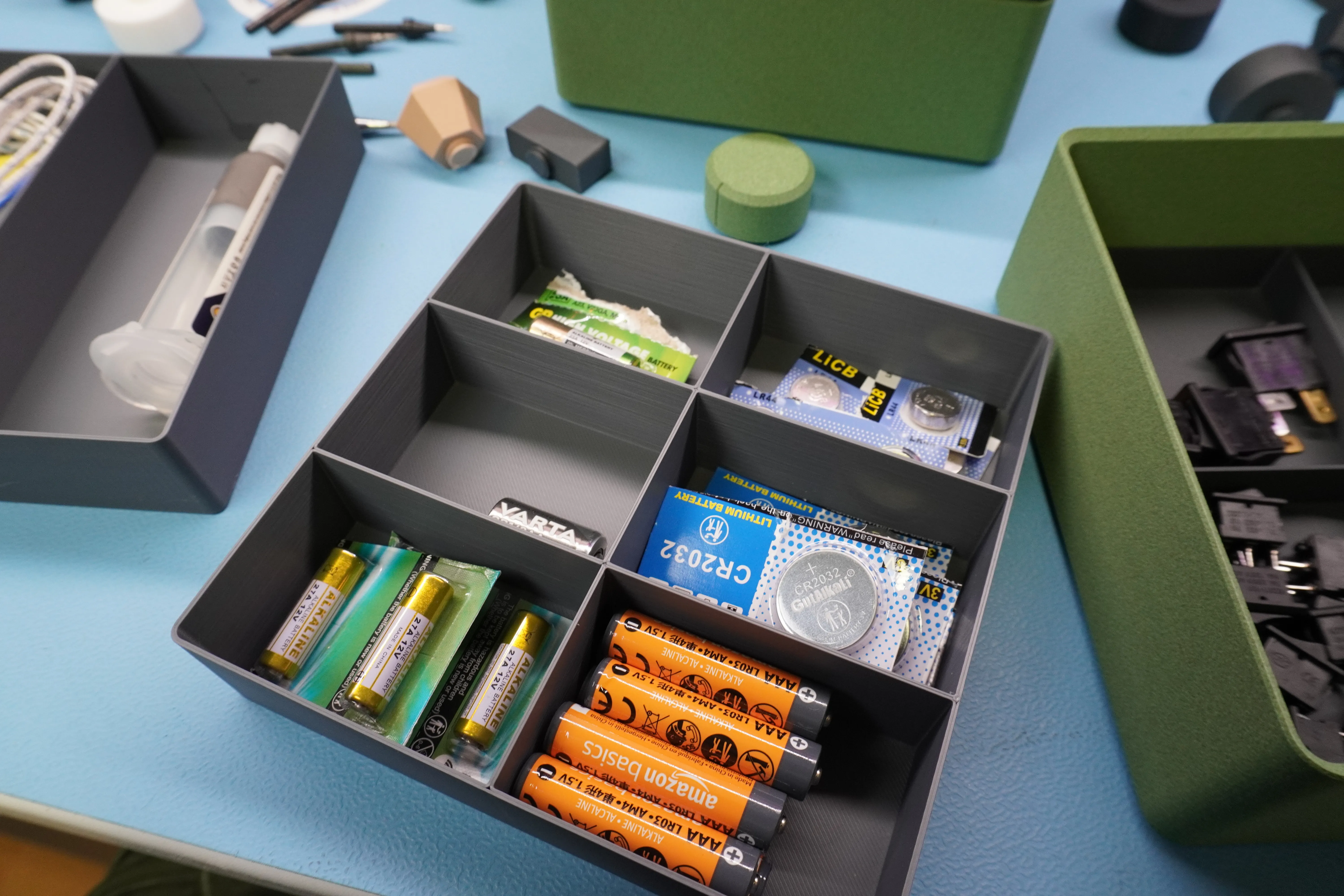

Not only a jewellery box

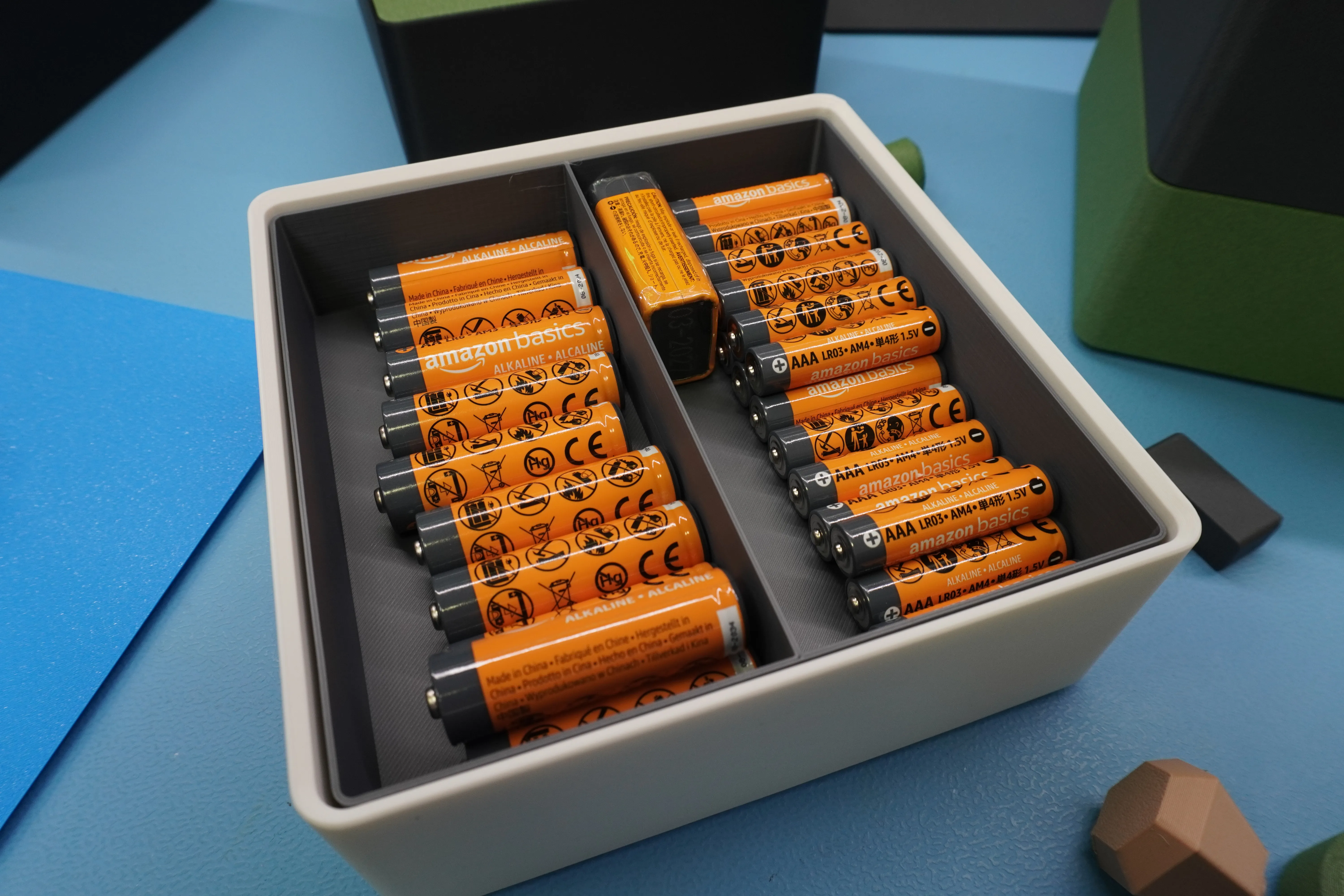

You can also use this storage box to store other things. Here are some examples:
