split keyboard V2
IP Report
Print Profile(1)
0.15mm layer, 3 walls, 15% infill
Designer
2.8 h
2 plates
Open in Bambu Studio
Boost
11
25
4
2
16
7
Released
Bill of Materials
List other parts
- 1N4148 diodes x 36:
- RP2040 pro micro x 2:
- TRRS jack x 2:
- TRRS cable x 1:
- keyboard switches x 36:
- 10m of cable x 1: i recommend 26awg
- 1u Keycaps x 36: i recommend xda profile
Description

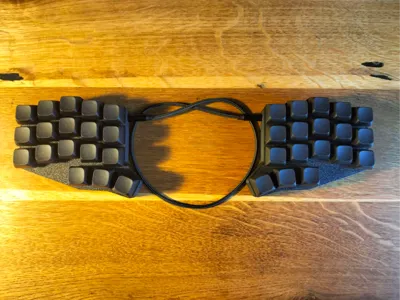

This is V2 of my split keyboard. It features a removable trrs cable, stronger and lower design and a improved sound thanks to the new case design. This keyboard project is a great step into the hobby of low-cost split ergonomic keyboards (Prices may wary but i was able to build it for $27).
the firmware is anivailable on my github
recomended parts are listed down below(given firmware, without any modifications, will only work with the rp2040 pro micro)
