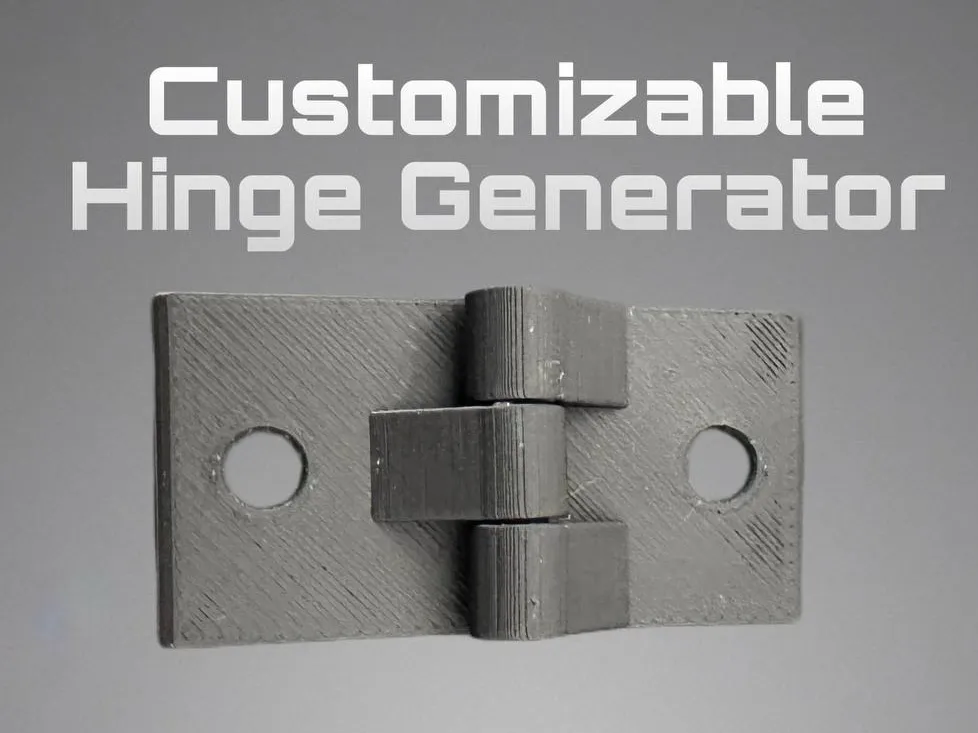

Customizable Hinge Generator
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
22 min
1 plate
Open in Bambu Studio
Boost
84
288
2
6
327
101
Released
Description
Description
Design and customize your own hinge with this versatile OpenSCAD-based generator. Tailor every aspect to fit your specific needs:
- Hinge Dimensions: Adjust the total length, number of knuckles per side, and knuckle outer radius.
- Pin Specifications: Set the pin radius and additional clearance for optimal fit.
- Plate Properties: Define plate width, thickness, edge relief, and chamfer options.
- Hole Configuration: Customize the number of holes, their diameter, spacing, and countersink features.
- Knuckle Details: Enable chamfers on knuckle edges and specify their size.
- Assembly View: Choose between assembled view or individual components for printing.
Boost Me (for free)
Please consider a boost if you found it helpful. Thanks!
