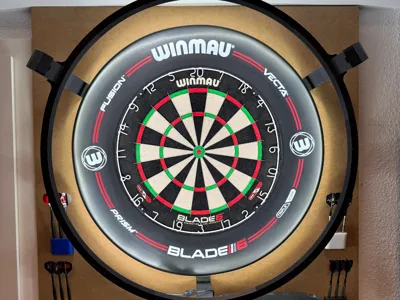

Auto Scoring System

Print Quantities:

• 2x feet
• 1x foot LED cable guide
• 3 x ring mount
• 6 x ring element
• 3 x arm and 3 x camera housing or 3 x arm
• 6x camera housing cover (3x with slots and 3x without slots)
• 9 x connecting pin

Screws:

• 15x M2 - 6mm screws for camera mounting and camera cover (https://amzn.to/3EPhYmh)
• 18x M3 - 6mm screws for connecting ring elements (https://amzn.to/3Yqym3n)
• 6x M4 - 12mm screws for mounting camera housings to the arm (https://amzn.to/3GzGAzY)
• 6x M4 - 16mm screws for mounting the ring to the arm (https://amzn.to/4lVHXsT)

Threaded Inserts:

• 12x M4x6x6 threaded inserts (https://amzn.to/42BC1Ob)
• 18x M3x4x5 threaded inserts (https://amzn.to/4lTJ4cD)

Required tools for assembly:

• Heat-set insert tool kit (https://amzn.to/4iIcYOq)
• Beginner soldering iron (https://amzn.to/44MAvKu)
• Hex key set (https://amzn.to/4d2oxPg)

Compatible Cameras and LEDs:

• Cameras - Aliexpress (https://a.aliexpress.com/_EJwKeLq)
• LEDs - Amazon (https://amzn.to/3DPy2nO)

UPDATES:

• April 30, 2025 - No supports for the entire model
• April 30, 2025 - Optimal carbon look alignment
• April 30, 2025 - The foot length is 50mm, optimal for all sound insulation mats, and they can also be used without them

Model Creator:

https://www.printables.com/model/287938-dartboard-led-ring-and-camera-mount-v2?lang=de
