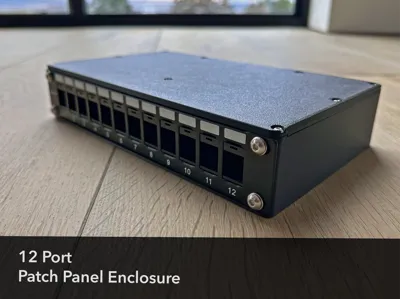

Mini Patch Panel Enclosure

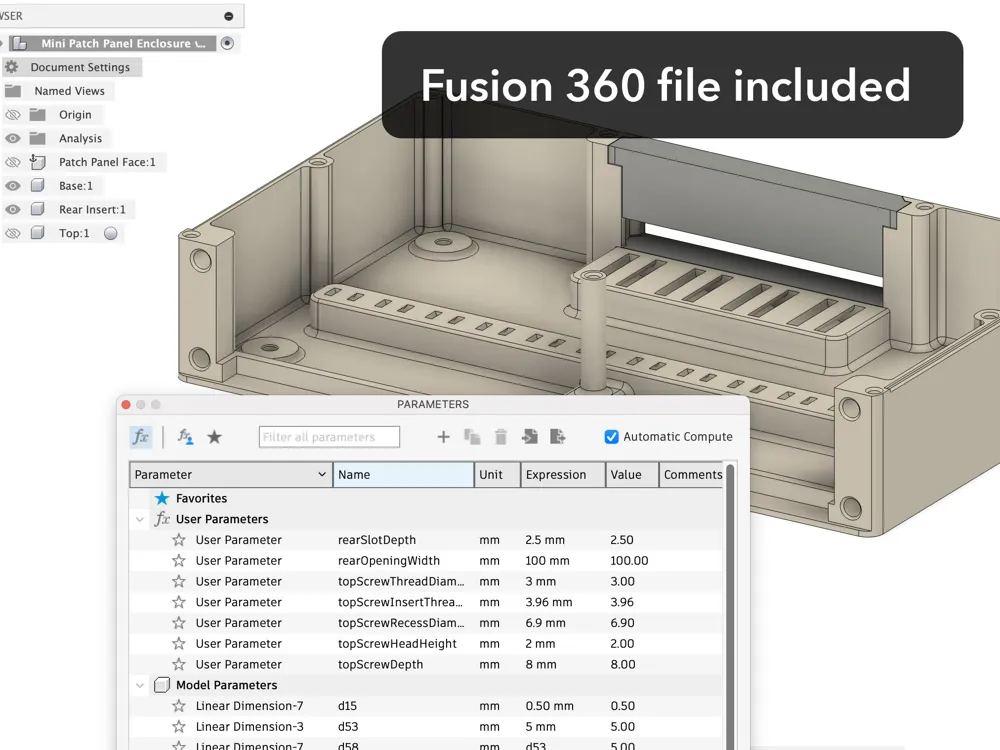

12-port mini patch panel enclosure.  Included STEP and Fusion 360 files so you can modify.

Dimensions (WxDxH): 255mm x 150mm x 51mm

Important notes:

• This model is 255mm long and only just fits on the print bed of my Bambu Carbon X1. The patch panel itself is ~254.5mm long.
• Threaded heat set inserts aren't all the same.  Check the diameter of yours before printing and modify the model to fits yours.

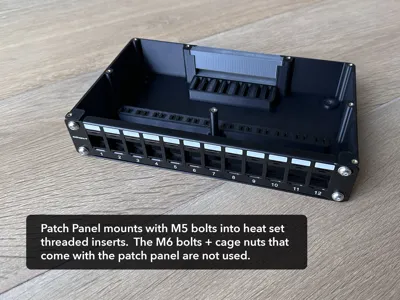

  • M5 diameter = 6.15mm, any length

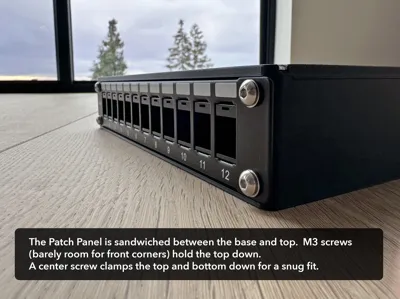

  • M3 diameter = 3.96mm, max 6mm long (these are parameters in Fusion 360 file)

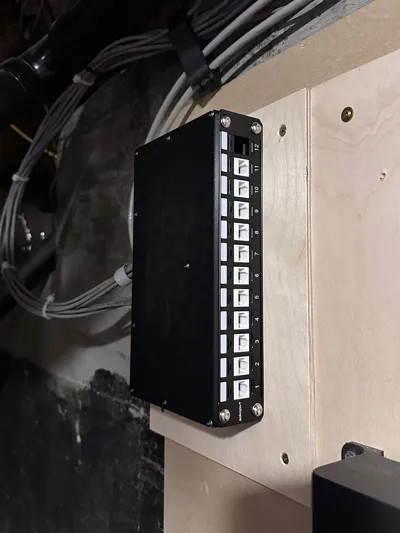

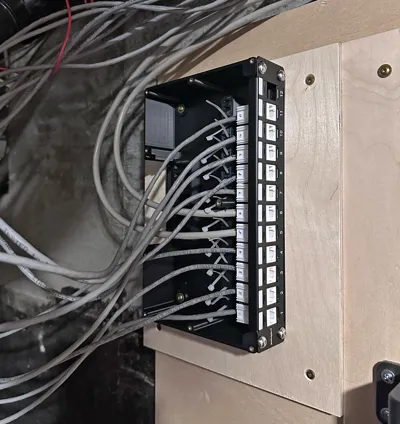

My use case: I have a crawl space where network cables meet and needed a mini patch panel that:

• can be wall mounted on its base
• is fully enclosed to be resistant to dust
• very strong and will take abuse
• inexpensive

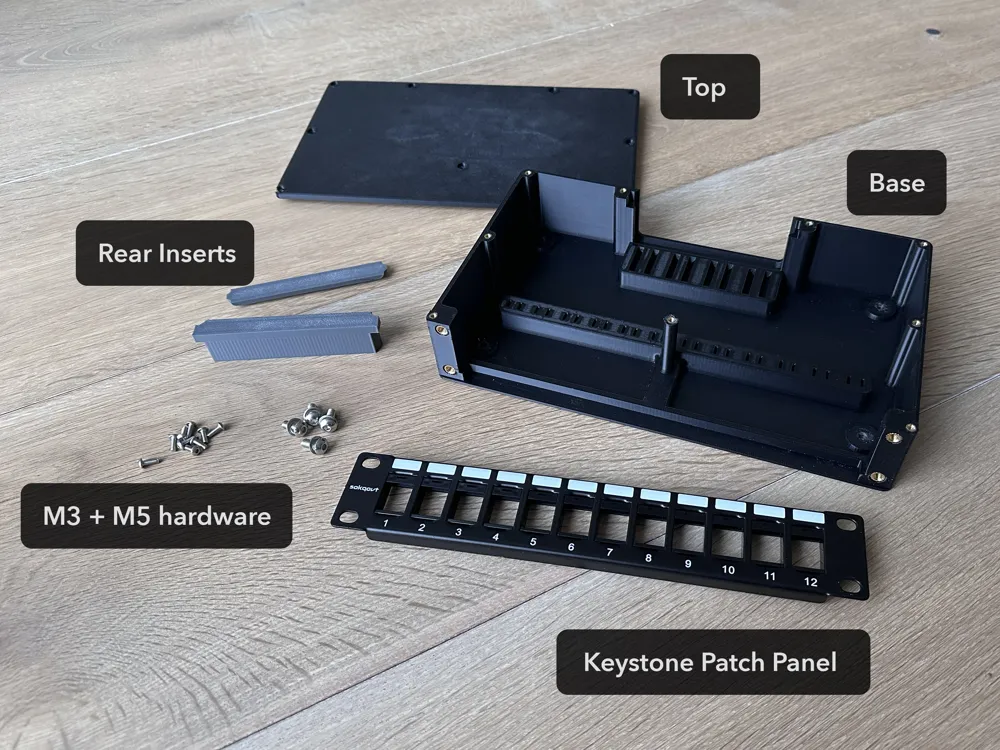

Parts I used:

• 12 port Keystone Patch Panel .. wow - only $7 at time of posting this.
• M5 and M3 threaded inserts
• M5 and M3 bolts
• Keystones
• Zip ties .. I had some old ones

Printing tips:

• I printed with 3 walls.  Any filament will work.  I chose PETG.

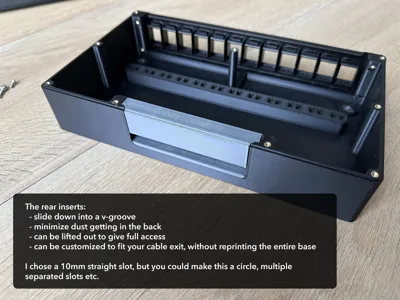

• Only a tinsy bit of support is needed on the (top) rear insert.

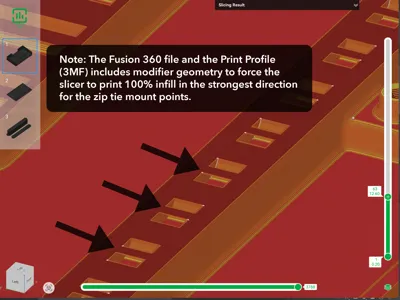

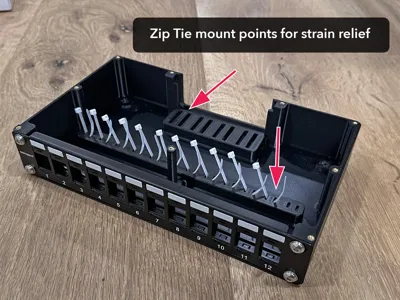

• My Print Profile includes modifier geometry to make the zip tie mounts very strong.   That geometry is included in the Fusion file in the Base component.
