Infill pattern display

Infill pattern display

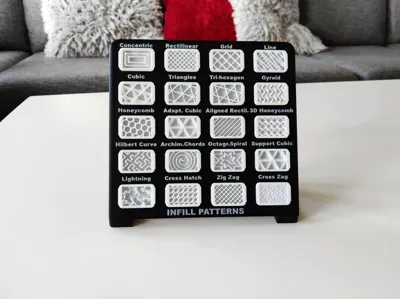

This is a frame and “bricks” printed, with all the different infills in Bambu Studio, to display the patterns.

Frame/stand

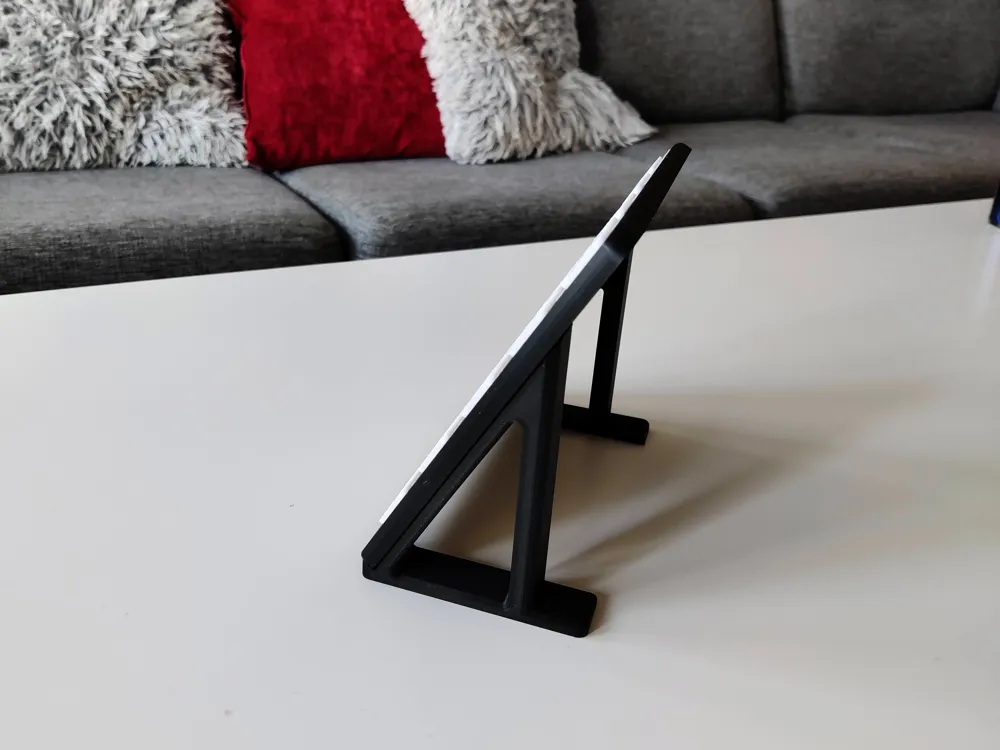

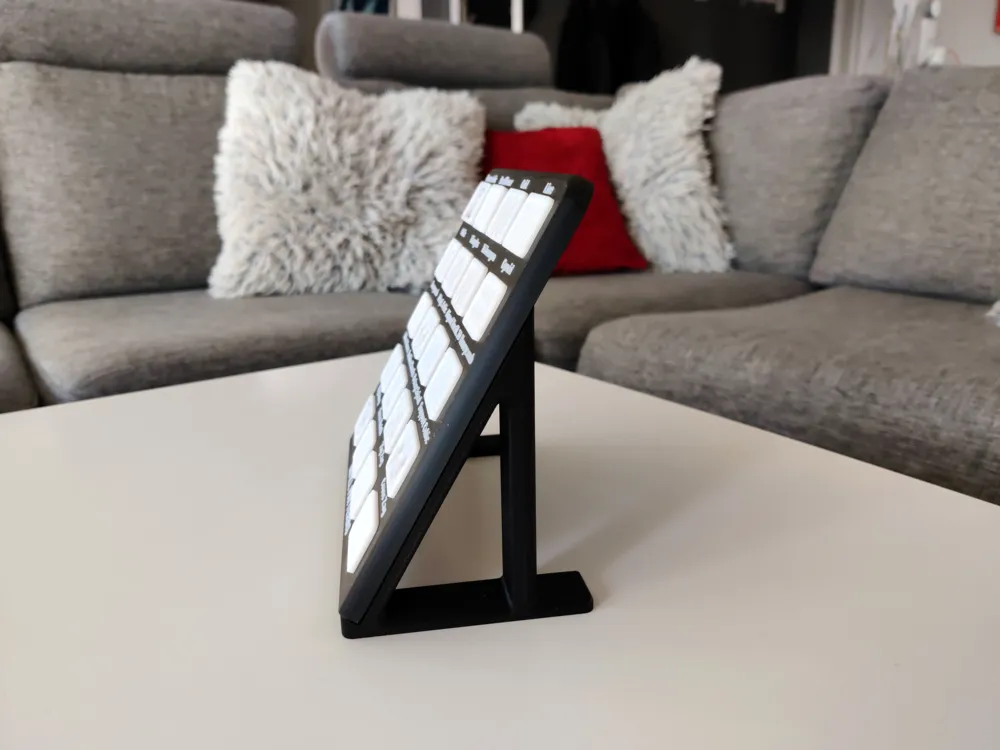

The frame is joined with the legs/stand at an 60 degree angle by a sliding dovetail joint on the back of the frame.

The frame has built in supports that are very easy to remove. My print profile also gives the option to skip the built in supports if you want to go with traditional supports.

The color swap for the text on the frame is already set up when you slice it.

Infill “bricks”

Each brick clicks in place on the frame and can be removed. There are small protruding edges to make them easier to remove.

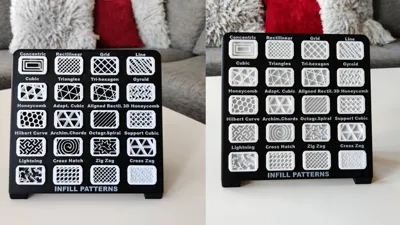

There´s an option to print the infill bricks either all in one color or with a different color for the bottom shell layers to get a more contrasting view of the infill pattern.

Both options are included in my print profile with a pause before the top shell layers where you cancel the print when it pauses.

The two color bricks also has a filament swap added after the bottom shell layers.

The bricks are already set up with the correct infill.

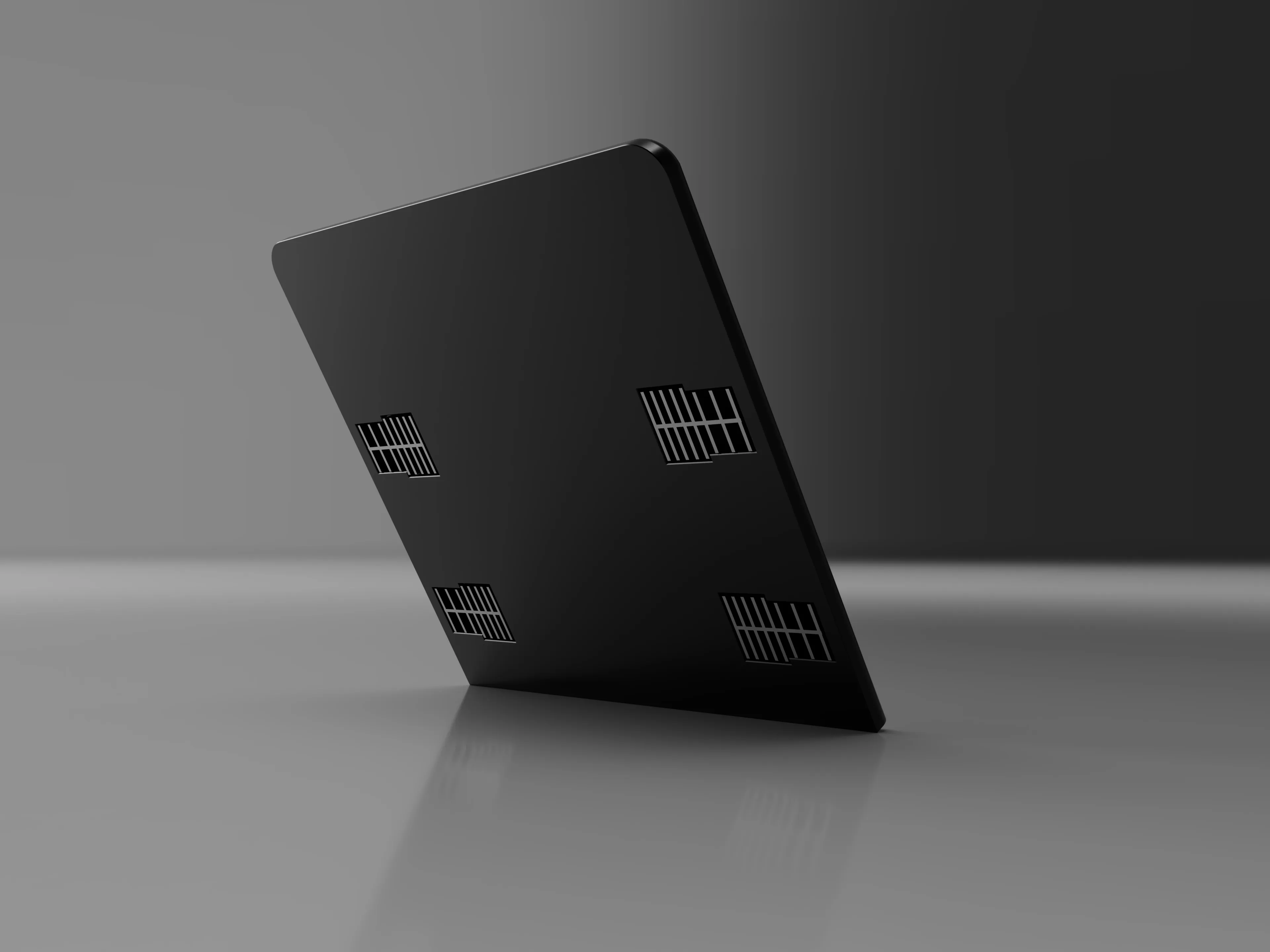

Frame/stand dovetails

Built in supports
