Utility OG case by sipura

sipura

Tools>Organizers

Print Profile(5)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 2 walls, 12% infill

Designer

10.3 h

4 plates

4.9(186)

V2 with thicker hinges 0.2mm layer, 3 walls, 12% infill

Designer

9.8 h

4 plates

4.9(125)

Inner box for the upper part of the case

Designer

2.5 h

1 plate

4.7(31)

0.2mm layer, 2 walls, 15% infill

4.3 h

1 plate

5.0(1)

Click to see more

Open in Bambu Studio

Boost

1990

3694

530

125

4 k

4.9 k

Released

Description

Hello,

UPDATE 26/1/2024:

You can check you our new model, same like this one but XL bigger. Inner containers are compatible.

https://makerworld.com/en/models/157759#profileId-173134

UPDATE 19/1/2024:

You can check you our new model, same like this one but smaller. Inner containers are compatible.

https://makerworld.com/en/models/146935#profileId-160286

My new model of the utility case.

Simple print without support

All parts are completely printed with PLA, only the gasket needs to be printed with TPU in order to close smooth and seal nicely.

To assemble it, you need:

6pcs M3 nuts

2 pcs of screws M3x30

3pcs of screws M3x18

Dimensions are in mm:

NEW:

Now we made V2 model that has thicker hinges on each side by 1mm behind, and wall loops with 3pcs.
For this model, instead of 3pcs M3x18mm screws, you now need 3pcs M3x20mm.

Also, if you need some custom accessories for all our models, you can contact us on our patreon page which is in bio.

Enjoy printing and using this useful case.

Comment & Rating (530)

@user_1013152695

Thanks for your share, and TPU fliament can be used directly. Exactly fit!

The designer has replied

@sipura

Nice, didnt know that... I recommend a print tpu seal to close smoothly, but if it works that way then great :D

@amdonio

Replying to @sipura :

Indeed fits perfectly without printing!

(Edited)

@sipura

Replying to @amdonio :

Great :D

@abweber

Print Profile

0.2mm layer, 2 walls, 12% infill

Great model, just the right size for what I needed. I added the lettering to the top, and it printed fantastic. I'm only knocking it because one of the hinges on the lower box broke when I was assembling it. It broke on a layer line, so I think it could be redesigned to be a little stronger by making it a little beefier. I am going to reprint that piece with 3 or 4 perimeters instead of 2 and see if it is stronger.

(Edited)

Strength Issue

The designer has replied

@sipura

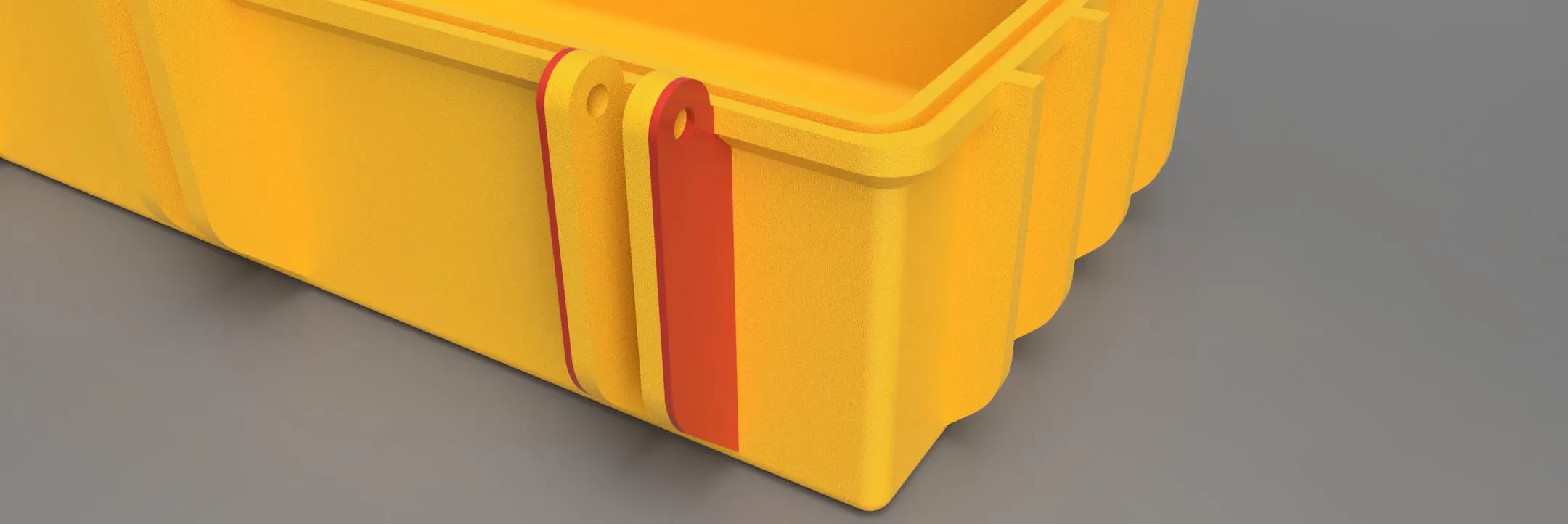

Thank you for your honest review. It's a bit strange to me, because this is the v3 model that I made with stronger hinges and it works perfectly for me, with a lot of use. Anyway, I made a new model and published a separate profile with 1mm thicker hinges on each side, and I hope this one will suit you better. Consider that you now need M3x20mm screws for that model instead of the previous 18mm. In the picture you can see the parts marked in red, they are made thicker. Best regards

(Edited)

@abweber

Replying to @sipura :

That's fantastic, thanks! I will go ahead and print the new one tonight. I sliced off the top corner of the model so I could do several faster test prints with different settings. Between upping the wall loops to 3, and upping the temp to 240, it was significantly stronger. I estimate that it was 2-3x as hard for me to break the hinge section off with these settings. Usually the default settings for the X1C are good enough for my prints, but in this case I needed to tweak for more strength.

(Edited)

@ernesdts

how do you made those letters? :0 I have an AMS but I never achieaved that kind of multicolor in a single layer

@tsubus

Print Profile

0.2mm layer, 2 walls, 12% infill

printed perfectly

The designer has replied

@sipura

thanks ;)

@user_3763349769

打印文件能共享下吗？谢谢。

@user_3763349769

Can I share the printed file? Thank you.

@ribbensthijs

Boosted

Really nice storage box. Using it for all my bambu lab spare parts and tools. Still need to print the tpu part but I dont have any tpu atm :(

The designer has replied

@sipura

Nice, thanks for photo :D Guys in comments says that works also without them also ;)

@ribbensthijs

Boosted

Replying to @sipura :

Ye it works fine without it but would be nice for more tension in the clips so that they close tighter

@sipura

Replying to @ribbensthijs :

i agree

@Nuno_p

Boosted

Print Profile

0.2mm layer, 2 walls, 12% infill

(Edited)

The designer has replied

@sipura

nice print :)

(Edited)

@Nuno_p

Boosted

Replying to @sipura :

Thanks. I like it a lot. :) I will post another photo when i finish the print.

@Nuno_p

Boosted

Replying to @sipura :

New photo uploaded. I'm very happy with the final result. :) Thank you

@StudioRC

Print Profile

V2 with thicker hinges 0.2mm layer, 3 walls, 12% infill

I enlarged to 120%, but printing the lid close to the edge of the heated bed resulted in lifted edges. Glad I didn't abort the print job, because it turned out OK in the end. Tomorrow, I'll print the rest and will make sure to reduce the speed on the first layer. Hopefully this helps to prevent the edges from lifting

The designer has replied

@sipura

try also clean your bed good, it will work better

(Edited)

@StudioRC

Replying to @sipura :

I gave the bed a rinse with soap, reduced print speed on the first layer and increase bed temperature on the first layer. The first layer was fine but somewhere along the way the corners started warping again while printing the bottom side. Perhaps it's because I used Bambu PLA matte. But once again, the end result turned out good, the lid is closing perfectly and I'm super happy with my new toolbox 🤩 thanks for sharing the design and for your suggestion.

(Edited)

@user_615202959

Love it!! Great idea. It’s going to be useful this summer.

The designer has replied

@sipura

Thank you :)

@ReturntoSender7

Print Profile

0.2mm layer, 2 walls, 12% infill

An amazing box! I designed some inserts so I could store spare bulbs and fuses for my VW camper

The designer has replied

@sipura

Nice one👍

@Thatguyadz

Print Profile

0.2mm layer, 2 walls, 12% infill

Absolutely love this box.... great design. I'm using mine to store all of the little Bambu bits & bobs.

The designer has replied

@sipura

Nice, color combinations are great too :D

(Edited)

@Thatguyadz

Replying to @sipura :

Thank you. Currently printing the larger one. will share pictures once finished. Love you're work keep it up. 🔥

(Edited)

@LitoPine

Could you make a case with these dimensions? They are listed in the photo. Those would need to be internal dimensions.

The designer has replied

@sipura

Thank you for the suggestion. This was the first one we made and published, after this we made and published a smaller model that you can find in my profile. We are already working on a larger model, which should be twice as big as the first version, but the inner boxes should be modular and correspond to the old model.

@sipura

That will be the dimensions for the new one. 194x188x64mm 64mm will be the hight. The reason for such dimensions is that all the boxes are modular, and that the inner boxes from, for example, smaller ones fit into the largest box.

(Edited)

@LitoPine

Replying to @sipura :

I'm looking to only print the case with nothing on the inside. I would like to print it in ASA to be used in a marine application. I do not need any inserts.
