Pattern makers vise attachment for modular clamp
Print Profile(5)
Description
Hello everyone!
Update 12.04.2025: Added TPU Pads to small and big vise as a separate profiles
I present to you another addition to my modular system

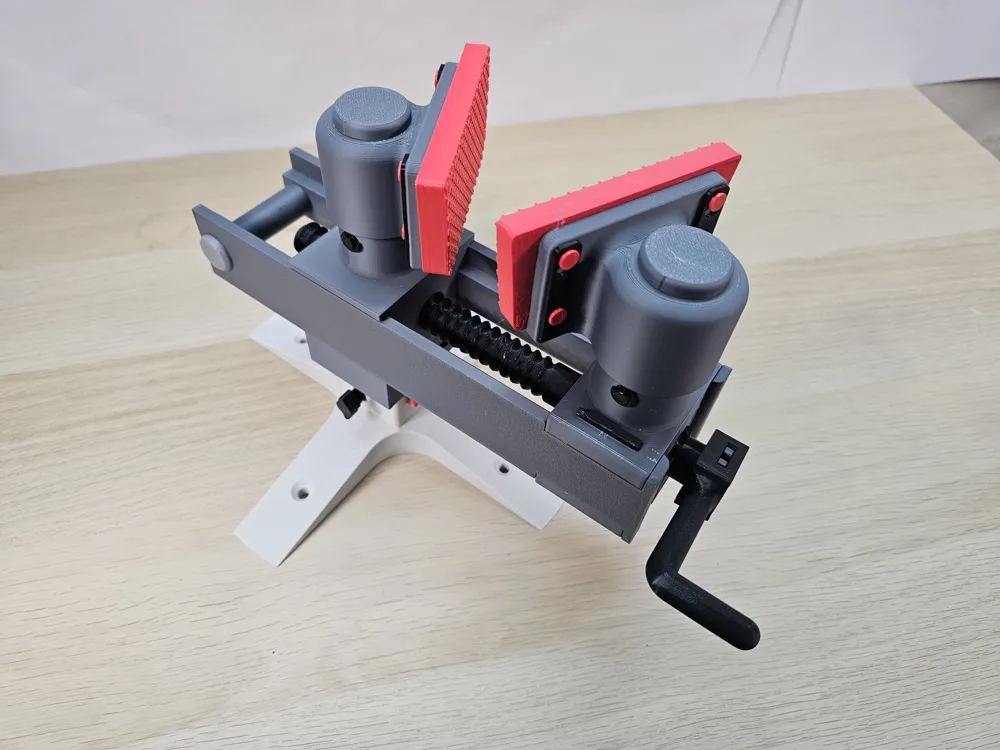

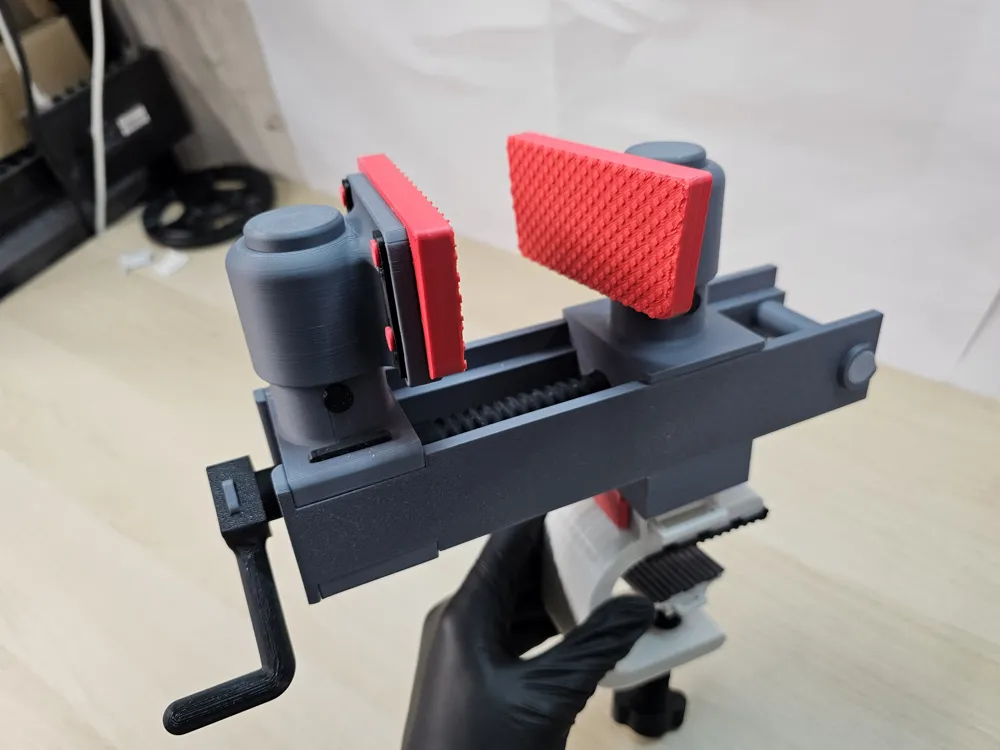

Pattern makers vise with 360 degree rotating pads !

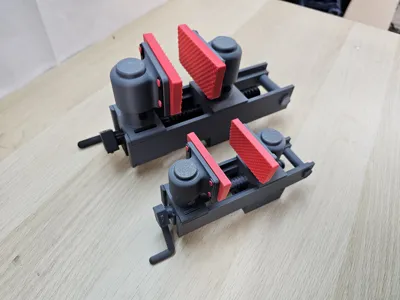

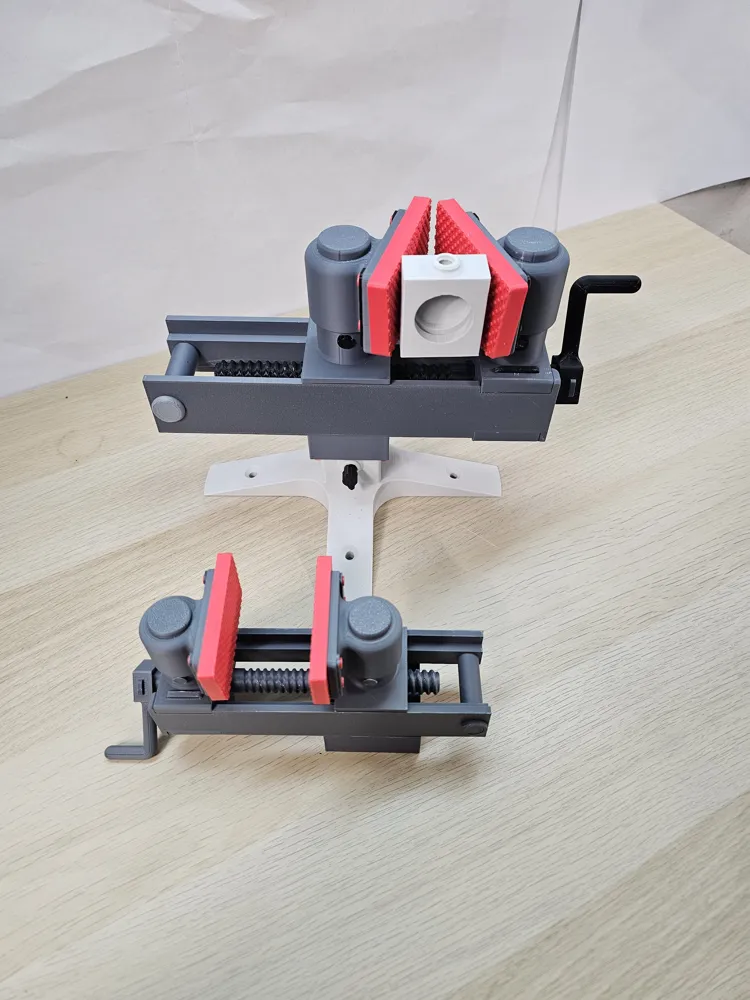

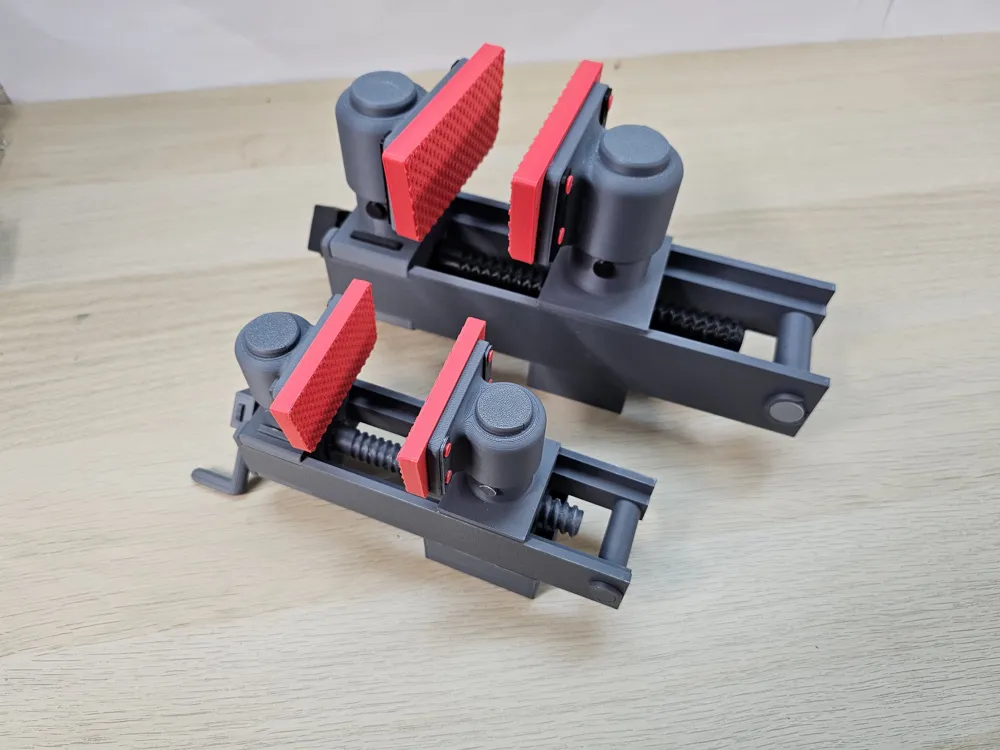

Available in two sizes:

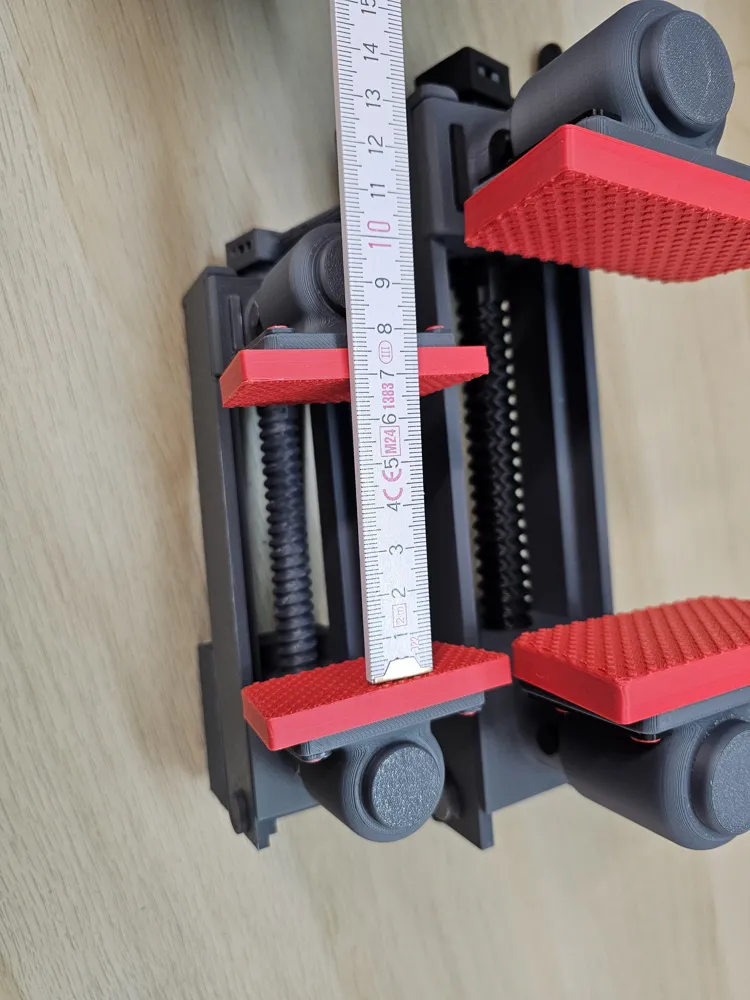

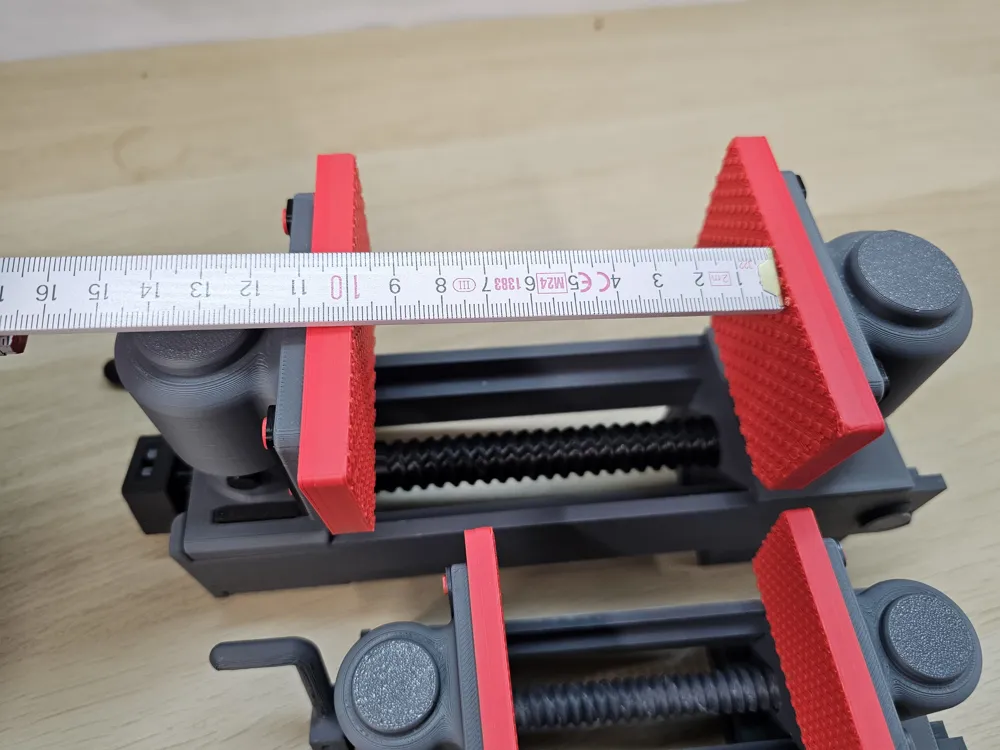

Large - max spacing 10cm, to print on A1, X1, P1
mini - max spacing 7cm - to print also on A1 mini
Pads size:
Big VISE: about 90x40mm
small: about 62x28mm
I suggest printing the main screw at 100% fill, the rest at your discretion, but the more the better
The parts are fitted quite tightly to avoid any play.
to attach to the table you need a clamp + connection module available here:
https://makerworld.com/en/models/1258107
and locks (in third print profile)
See assembly instructions for correct assembly sequence
