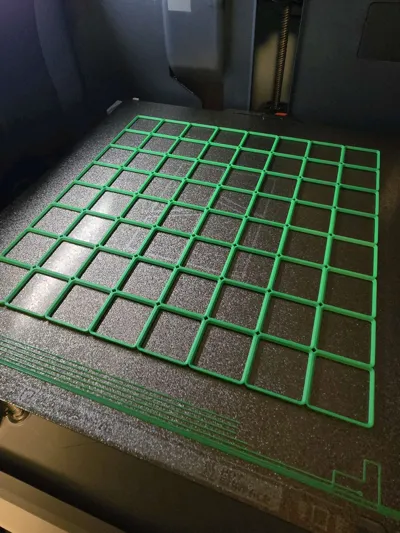

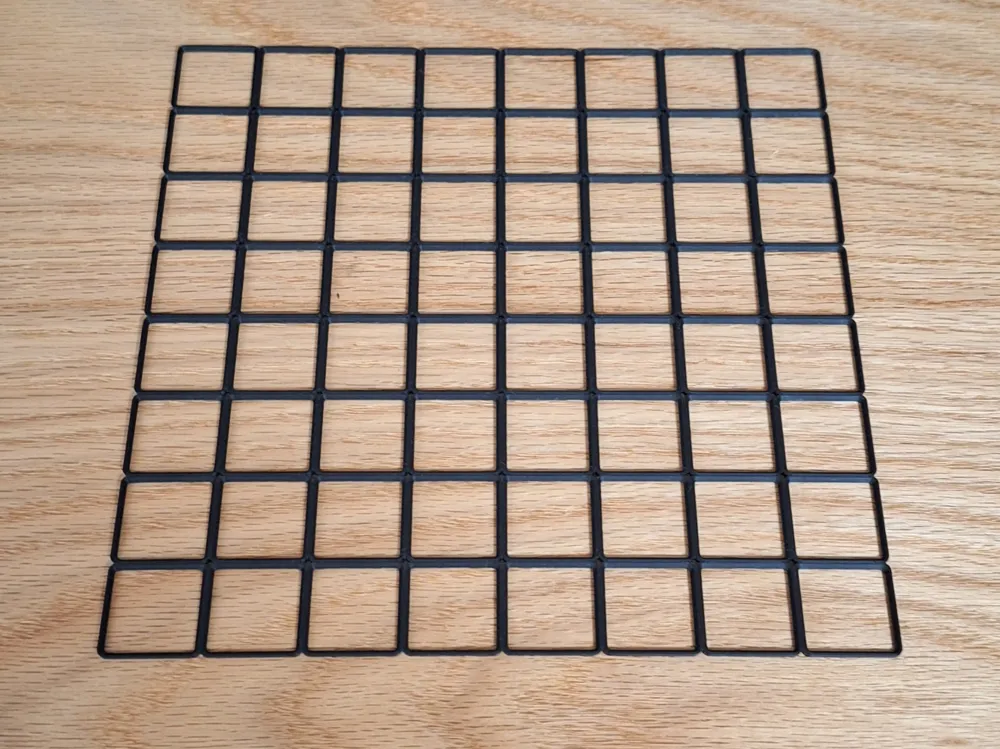

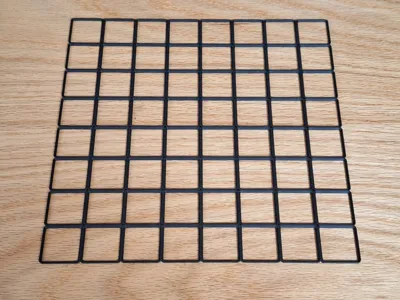

This is a baseplate for an RPG type gridfinity but it uses a 25mmx25mm size and the squares will lock in I will upload some time and the freecad file allows for any size just edit the spreadsheet, this is still a work in progress

UPDATE: Uploaded a baseplate v2 with a slightly better bottom chamfer (the old one will warp a bit with a lot of tiles in it)

Comment & Rating (44)

@nisanart

Print Profile

0.2mm layer, 2 walls, 15% infill

tysm!

The profile uploader has replied

@dave0616

Yore welcome! And thank you!

@zAykoRED

Boosted

friend I wanted to start using this system, where did you get the grass from

Show original

@MrPandaPrints

Boosted

Can you make a version so you can attach multiple plates?

The designer has replied

@dave0616

Im not sure what you mean? Do you mean stackable so you can print 5 at a time? im not sure I can do that :(

@dave0616

Thank you for the boost!

@MrPandaPrints

Boosted

Replying to @dave0616 :

I mean making connectors to make bigger plates

@GhostRider79

Print Profile

0.2mm layer, 2 walls, 15% infill

The profile uploader has replied

@dave0616

Thank you!

@zAykoRED

Boosted

I just downloaded this and it caught my attention. I've been looking for something like this for a while, it shows you like your project. In fact, I just downloaded Freecad and I hope to upload a couple of tile designs and other things. I also recommend that you upload the other profiles you have in STL only, you know people don't usually look at them much so you can get more likes and reach more people, genius. Thanks for the motivation hahaha

The designer has replied

Show original

@dave0616

Thank you :) I try to make as much stuff as I can come up with I have a few im still working on right now. I have uploaded all the files including the freecad files I dont use fusion or anything else.
