Poop Deflector for Bambulab A1 and A1 Mini

I know there are already poop deflector designs online. I tried a few but didn't like them because they were either too brittle and/or lacked a proper attachment. That's why I created my own design, which offers the following advantages:

secure fixation,
stabilized deflector,
stable walls,
easy and quick printing,
only 4g weight.

Since I've been using this deflector, no poop has missed the basket...

Assembly:

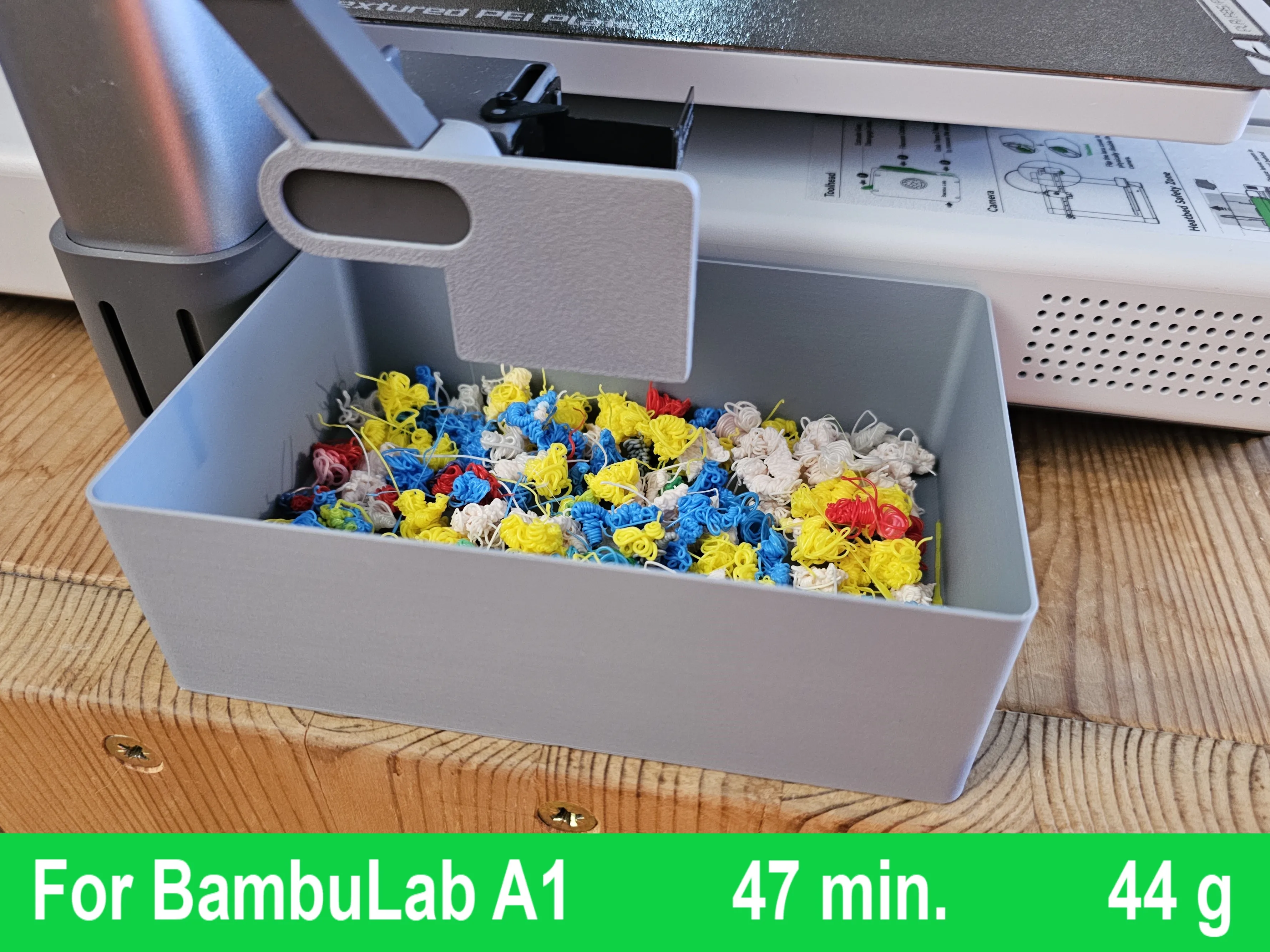

Carefully click the poop deflector onto the purge wiper. Place a collecting container under the deflector and make sure that the deflector cannot touch the container in the lowest z position of the printer.

Comment & Rating (711)

@hardermods

noticed some pla is still hot and sticks to it, added a piece of aluminum tape to prevent that. works great

@user_496631140

good idea. thank you!

@johnbcs

Boosted

An excellent design, nicely done! It printed beautifully in Bambu PLA Basic. I added some kapton tape to prevent sticking.

The designer has replied

@ThreeDMichael

In the early years of 3D printing, Kapton tape was glued to the print bed to increase adhesion. That's why I would have some doubts as to whether it's the right material for the poop deflector. I use the deflector on one printer without stickers and on a second one with self-adhesive aluminum foil. But since poops don't stick to either of them, I can't make a recommendation here.

@smashd

Print Profile

PETG ~ 24mins ~ 4g ~ 0.2mm layer, 2 walls, 15% infill

broke it off during the A1 heatbed replacement so I've printed it again in PETG (PLA poop does stick a lot less to that)

The designer has replied

@TheGooser

Boosted

thanks!

@brianneathery

Print Profile

PETG ~ 24mins ~ 4g ~ 0.2mm layer, 2 walls, 15% infill

Keeps the little guy from flinging his poo across the room.

The designer has replied

@TheGooser

Boosted

gotta keep the poo in its place! thanks!

@Kryzbar

Print Profile

PETG ~ 24mins ~ 4g ~ 0.2mm layer, 2 walls, 15% infill

fit nice

The designer has replied

@TheGooser

Boosted

thanks!

@autofctrl

Print Profile

PETG ~ 24mins ~ 4g ~ 0.2mm layer, 2 walls, 15% infill

Printed for my 2 A1 Mini - Fits Perfect!! Thx :)

The designer has replied

@TheGooser

Boosted

thanks!

@21josefelix

Print Profile

Ironing + 0.1mm layer, 3 walls etc.

Rápido y de ajuste perfecto. Lo he impreso en PLA porque no tengo PTEG, funciona aunque alguno se ha quedado pegado. Le pondré una capa de aluminio como he visto que ha hecho otra persona así evito las pegaduras del PLA.

@MustachePrinter

Print Profile

Ironing + 0.1mm layer, 3 walls etc.

works very well and haven't had any issues whatsoever, had to print the deflector in PETG though so the filament wouldn't stick to it

@Tezg79

Print Profile

Ironing + 0.1mm layer, 3 walls etc.

printed well thanks

@smashd

Print Profile

Ironing + 0.1mm layer, 3 walls etc.

printed in PETG so PLA wouldn't stick sometimes 😄
