Mechanical Wound Tracker with pin
Print Profile(1)
Description
**** Mechanical Wound Tracker with Pin V2 can be found HERE ****

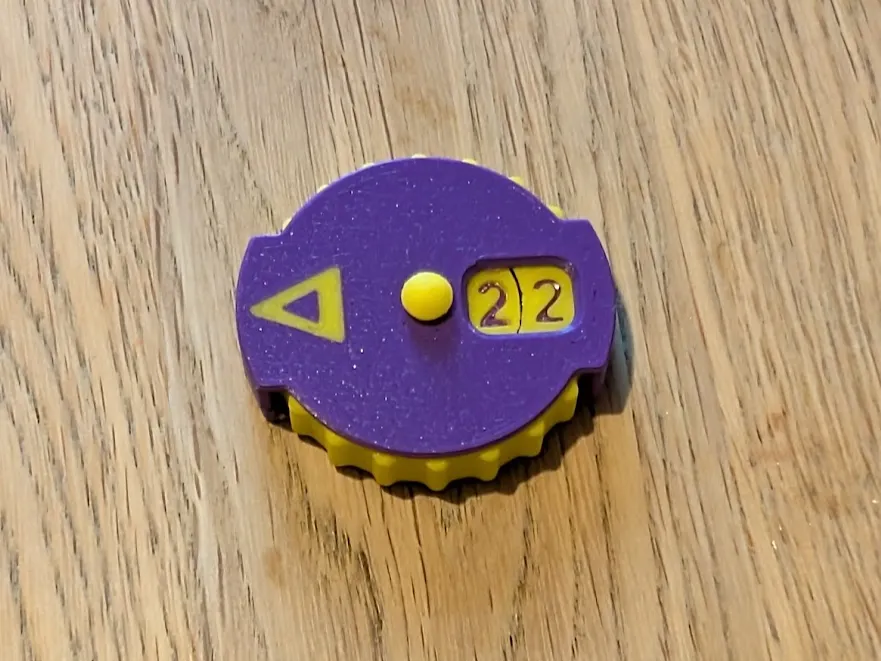

This is a mechanical wound tracker designed for use in War hammer 40k and other tabletop games, capable of tracking up to a maximum of 49 wounds.
The original design utilizes an M3 x 8 screw for assembly. However I have created an alternative push-fit pin design that can be 3D printed. This pin will extend slightly from the back of the tracker, enabling it to be heated with a flame and then pressed against a flat surface to create a secure, flush finish. I have also increased the gap in the number dials to allow it to spin better
Some grease is recommended but not required. You have to pay attention when adding the gear. Assemble the counter with it showing i.e. 15 in the window to get the spacing correct.
Full credit to oXiVanisher for the original design
